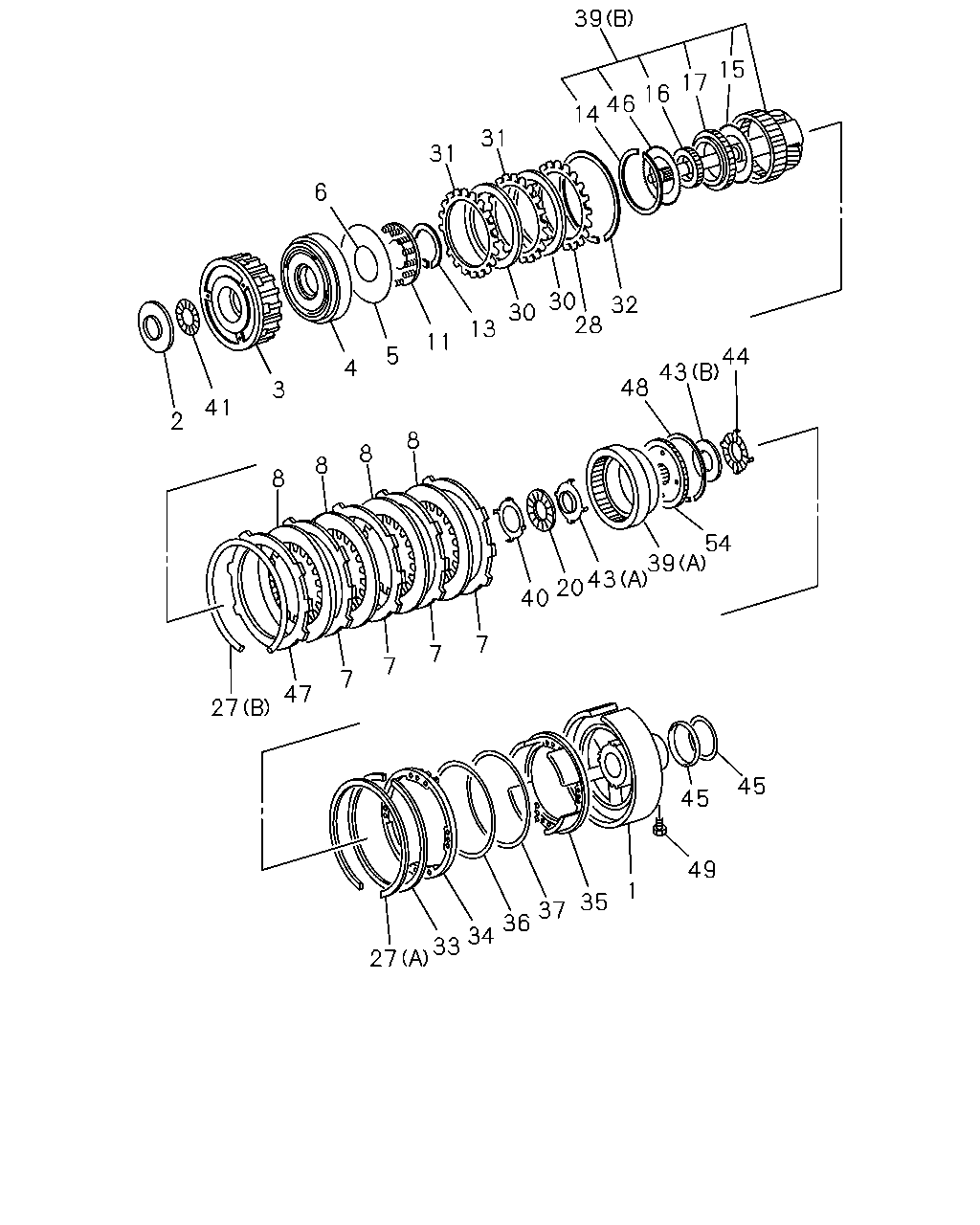

2-52 — AUTO TRANS OVERDRIVE GEAR (#43583) — 50 parça

39 15 17 16 46 14 31 31 6 30 32 30 13 28 11 5 44 43 48 4 3 41 2 8 8 8 8 54 39 43 20 40 7 7 7 7 47 27 45 45 49 1 35 37 36 34 33 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE ASM; OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97184-516-0	01	1	0009-
2	RACE; THRUST BRG,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97249-736-0	01	1	0009-
3	DRUM; CLU,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97232-042-0	01	1	0009-
4	PISTON ASM; CLU,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-889-0	01	1	0009-
5	GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97184-528-0	01	1	0009-
6	GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97184-321-0	01	1	0009-
7	PLATE; CLU CUSHION 4JH1 ENG<RJX>	8-97143-124-0	04	1	0009-
8	DISC; CLU,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97143-126-0	04	1	0009-
11	SPRING; CLU RETURN,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-890-0	01	1	0009-
13	RING; SNAP,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-783-0	01	1	0009-
14	RING; RET,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-882-0	01	1	0009-
15	WASHER; THRUST,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-883-0	01	1	0009-
16	CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97019-545-0	01	1	0009-
17	RACE; ONEWAY CLU,A/T 4JH1 ENG<RJX>	8-94479-885-0	01	1	0009-
20	BEARING; THRUST 4JH1 ENG<RJX>	8-94479-778-0	01	1	0009-
27	RING; RET,OVERDRIVE,A/T 4JH1 ENG<RJX> (A)	8-94479-859-0	01	1	0009-
27	RING; RET,OVERDRIVE,A/T 4JH1 ENG<RJX> (B)	8-94479-874-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.3	8-94479-896-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.2	8-94479-897-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.1	8-94479-898-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.6	8-97288-924-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.5	8-97288-925-0	01	1	0009-
28	PLATE; CLU BACKING,OVERDRIVE,A/T 4JH1 ENG<RJX> T=3.4	8-97288-926-0	01	1	0009-
30	DISC; CLU,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97143-121-0	02	1	0009-
31	PLATE; CUSHION,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-891-0	02	1	0009-
32	RING; RET,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94250-342-0	01	1	0009-
33	RETAINER; BRK RETURN SPR,OVERDRIVE,A/T 4JH1 ENG<RJX> ID=160	8-97184-521-0	01	1	0009-
34	SPRING; BRK RETURN,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97184-526-0	01	1	0009-
35	PISTON; BRK,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97288-915-0	01	1	0009-
36	GASKET; PISTON,OUTER,A/T 4JH1 ENG<RJX>	8-97184-519-0	01	1	0009-
37	GASKET; PISTON,INNER,A/T 4JH1 ENG<RJX>	8-97184-520-0	01	1	0009-
39	GEAR ASM; PLANETARY INTERNAL,A/T 4JH1 ENG<RJX> (A)	8-94479-876-0	01	1	0009-
39	GEAR ASM; PLANETARY INTERNAL,A/T 4JH1 ENG<RJX> (B)	8-97213-033-0	01	1	0009-
40	RACE; THRUST BRG,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-877-0	01	1	0009-
41	BEARING; THRUST,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97249-734-0	01	1	0009-
43	RACE; THRUST BRG,OVERDRIVE,A/T 4JH1 ENG<RJX> (A)	8-94479-878-0	01	1	0009-
43	RACE; THRUST BRG,OVERDRIVE,A/T 4JH1 ENG<RJX> (B)	8-97019-548-0	01	1	0009-
44	BEARING; THRUST,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-97019-547-0	01	1	0009-
45	RING; SEAL,OVERDRIVE,A/T 4JH1 ENG<RJX>	8-94479-747-0	02	1	0009-
46	PLATE; RET,OVERDRIVE CLU 4JH1 ENG<RJX>	8-94479-886-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.3	8-97143-099-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.8	8-97143-103-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.9	8-97143-104-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=4.0	8-97143-105-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.6	8-97288-916-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.7	8-97288-917-0	01	1	0009-
47	FLANGE; OVERDRIVE BRK,A/T 4JH1 ENG<RJX> T=3.5	8-97289-106-0	01	1	0009-
48	RING; SNAP,PLANETARY RING GEAR,OD 4JH1 ENG<RJX>	8-94479-853-0	01	1	0009-
49	BOLT; OVERDRIVE SUPPORT,A/T 4JH1 ENG<RJX>	8-97143-090-0	02	1	0009-
54	FLANGE; PLANETARY RING GEAR,OVERDRIVE 4JH1 ENG<RJX>	8-97019-546-0	01	1	0009-
