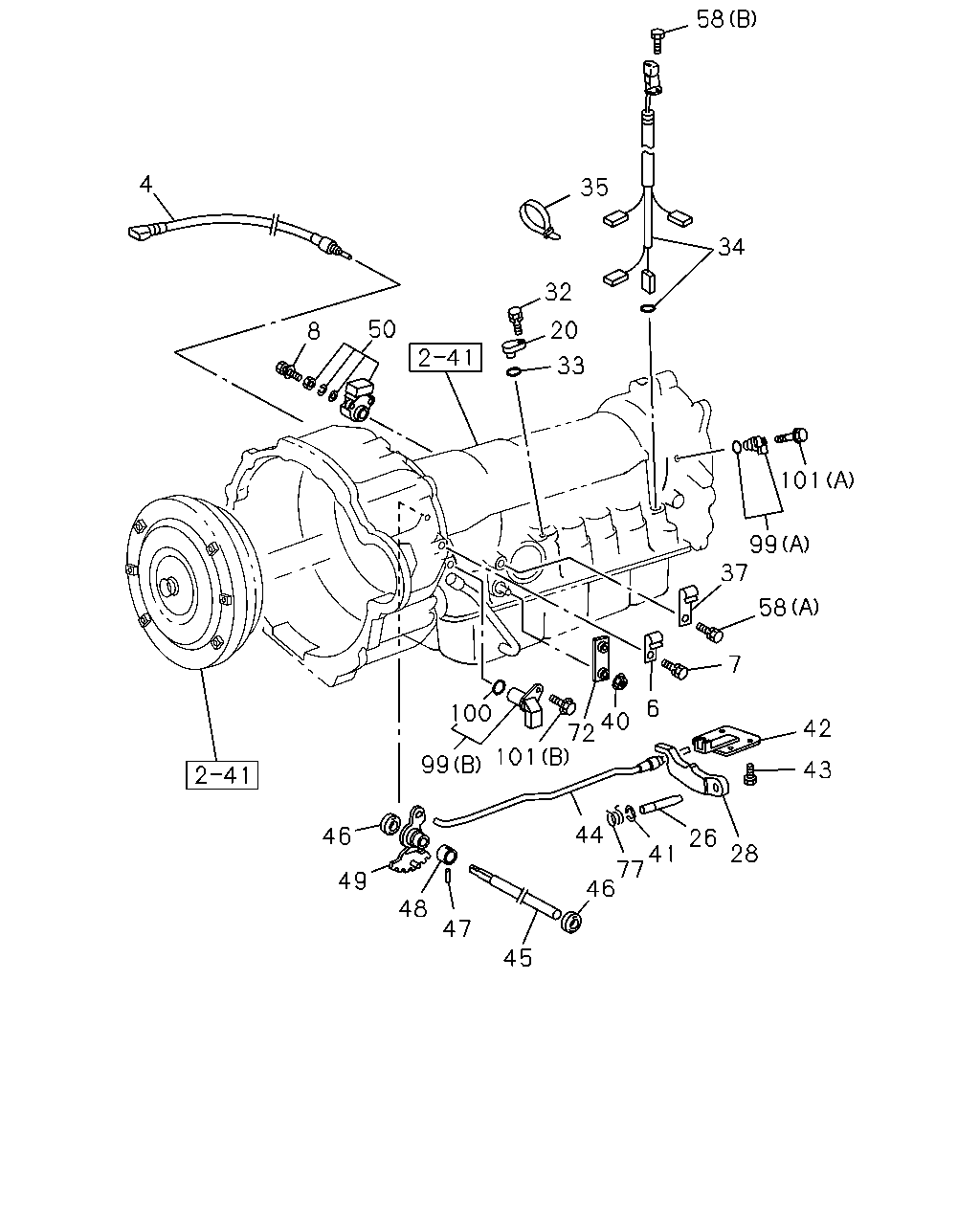

2-49 — AUTO TRANS INHIBITOR SWITCH (#43582) — 32 parça

58 4 35 34 32 50 20 33 8 101 99 37 58 7 6 100 40 72 101 99 42 43 44 26 41 28 77 46 46 49 48 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SENSOR; THERMO,A/T OIL 4JH1 ENG<RJX>	8-97126-810-0	01	1	0009-
6	CLAMP; WIRING HARNESS,A/T 4JH1 ENG<RJX>	8-97069-460-0	01	1	0009-
7	BOLT; CLAMP,WIRING HARNESS 4JH1 ENG<RJX> M6X10	8-94252-680-0	01	1	0009-
8	BOLT; NEUTRAL START SW,A/T 4JH1 ENG<RJX> M8X30	8-97130-929-0	01	1	0009-
20	PIN; SNAP,PARKING ROD,A/T 4JH1 ENG<RJX>	8-97232-067-0	01	1	0009-
26	SHAFT; PARKING PAWL,A/T 4JH1 ENG<RJX>	8-94479-975-0	01	1	0009-
28	PAWL; PARKING,A/T 4JH1 ENG<RJX>	8-97143-087-0	01	1	0009-
32	BOLT; THROTTLE CABLE 4JH1 ENG<RJX> M6X16	8-94479-712-0	01	1	0009-
33	GASKET; THROTTLE CABLE 4JH1 ENG<RJX>	8-94364-922-0	01	1	0009-
34	SOLENOID ASM; A/T 4JH1 ENG<RJX>	8-97232-108-0	01	1	0009-
35	CLAMP; THROTTLE CABLE 4JH1 ENG<RJX>	8-94473-565-0	01	1	0009-
37	CLAMP; SOLENOID,A/T 4JH1 ENG<RJX>	8-97213-023-0	01	1	0009-
40	NUT; LEVER TO SHAFT 4JH1 ENG<RJX> M8 FLANGE	0-91150-108-0	01	1	0009-
41	RETAINER; SPR,SHAFT 4JH1 ENG<RJX>	5-34488-002-0	01	1	0009-
42	BRACKET; PARKING LOCK 4JH1 ENG<RJX>	8-97126-815-0	01	1	0009-
43	BOLT; BRKT 4JH1 ENG<RJX> M6X14	8-94479-978-0	03	1	0009-
44	ROD ASM; PARKING PAWL 4JH1 ENG<RJX>	8-97126-814-0	01	1	0009-
45	SHAFT; VALVE LEVER 4JH1 ENG<RJX>	8-94450-763-0	01	1	0009-
46	SEAL; OIL 4JH1 ENG<RJX> OD=22	8-94479-740-0	02	1	0009-
47	PIN; ROLL SHAFT 4JH1 ENG<RJX> D=4	8-94257-081-0	01	1	0009-
48	COVER; SLEEVE 4JH1 ENG<RJX>	8-94479-761-0	01	1	0009-
49	LEVER ASM; CAM 4JH1 ENG<RJX>	8-94479-760-0	01	1	0009-
50	SWITCH; NEUTRAL,A/T 4JH1 ENG<RJX>	8-97207-138-0	01	1	0009-
58	BOLT; SOLENOID TO A/T 4JH1 ENG<RJX> (A)	8-94364-906-0	01	1	0009-
58	BOLT; SOLENOID TO A/T 4JH1 ENG<RJX> (B) M6X16	8-94479-712-0	01	1	0009-
72	LEVER; SELECT CONT 4JH1 ENG<RJX>	8-97019-749-1	01	1	0009-
77	SPRING; TORSION,PARKING BRK LK,A/T 4JH1 ENG<RJX>	8-94479-976-0	01	1	0009-
99	SENSOR; SPD 4JH1 ENG<RJX> (A)	8-97027-383-0	01	1	0009-
99	SENSOR; SPD 4JH1 ENG<RJX> (B)	8-97288-939-0	01	1	0009-
100	GASKET; SPD SENSOR 4JH1 ENG<RJX>	8-97027-197-0	01	1	0009-
101	BOLT; SPD SENSOR 4JH1 ENG<RJX> (A) M6X16	8-94479-712-0	01	1	0009-
101	BOLT; SPD SENSOR 4JH1 ENG<RJX> (B) M6X14	8-94479-978-0	01	1	0009-
