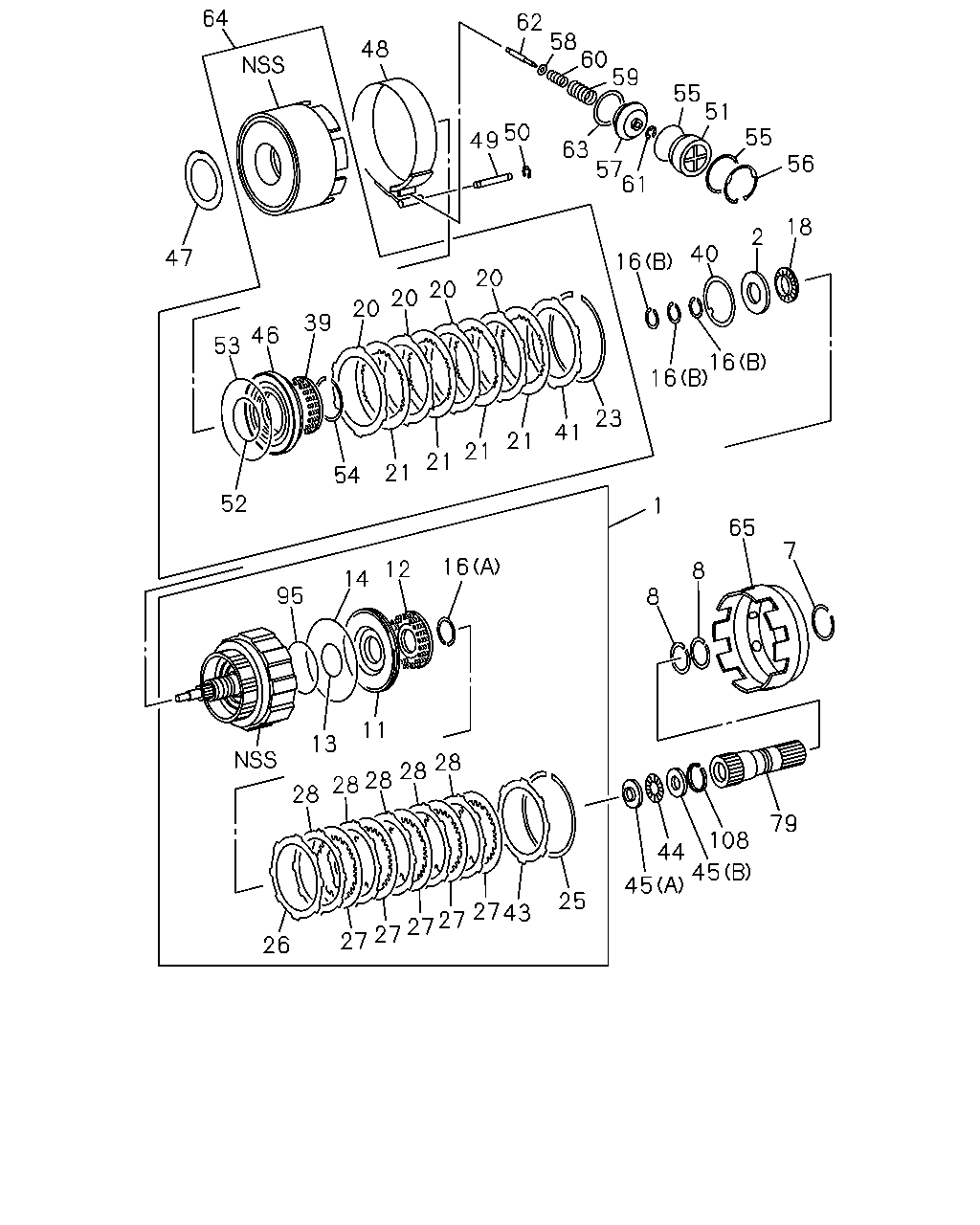

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#43581) — 66 parça

64 62 58 60 59 48 55 51 50 49 55 63 57 61 56 18 2 40 47 16 20 20 20 20 39 46 53 16 16 23 41 21 21 21 21 54 52 1 65 7 16 12 8 14 95 8 11 13 28 28 28 28 28 79 108 44 45 45 25 27 43 27 27 27 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HUB ASM; CLU,INPUT SHAFT,A/T 4JH1 ENG<RJX>	8-97184-340-0	01	1	0009-
2	RACE; THRUST BRG,A/T 4JH1 ENG<RJX>	8-94479-763-0	01	1	0009-
7	RING; RET,PLANETARY GEAR,A/T 4JH1 ENG<RJX>	8-94479-844-0	01	1	0009-
8	RING; SEAL,PLANETARY GEAR,A/T 4JH1 ENG<RJX>	8-94166-003-0	02	1	0009-
11	PISTON ASM; CLU,A/T 4JH1 ENG<RJX>	8-97025-836-0	01	1	0009-
12	SPRING; CLU RETURN,A/T 4JH1 ENG<RJX>	8-94479-770-0	01	1	0009-
13	GASKET; INNER,CLU,A/T 4JH1 ENG<RJX>	8-94364-919-0	01	1	0009-
14	GASKET; OUTER,CLU,A/T 4JH1 ENG<RJX>	8-94364-920-0	01	1	0009-
16	RING; SNAP,CLU,A/T 4JH1 ENG<RJX> (A)	8-94479-769-0	01	1	0009-
16	RING; SNAP,CLU,A/T 4JH1 ENG<RJX> (B)	8-94479-775-0	03	1	0009-
18	BEARING; THRUST,CLU,A/T 4JH1 ENG<RJX>	8-94479-764-0	01	1	0009-
20	DISC; CLU,A/T 4JH1 ENG<RJX>	8-97214-543-0	04	1	0009-
21	DISC ASM; CLU & FACING,A/T 4JH1 ENG<RJX>	8-97214-544-0	04	1	0009-
23	RING; RET,CLU,A/T 4JH1 ENG<RJX>	8-97214-553-0	01	1	0009-
25	RING; RET,BACKING PLATE,A/T 4JH1 ENG<RJX>	8-94250-342-0	01	1	0009-
26	PLATE; CLU,BACKING,A/T 4JH1 ENG<RJX>	8-94479-772-0	01	1	0009-
27	DISC ASM; CLU & FACING,A/T 4JH1 ENG<RJX>	8-97143-083-0	05	1	0009-
28	DISC; CLU,A/T 4JH1 ENG<RJX> STD	8-97025-838-0	05	1	0009-
28	DISC; CLU,A/T 4JH1 ENG<RJX> OPT	8-97184-342-0	05	1	0009-
39	SPRING; DIRECT CLU RETURN 4JH1 ENG<RJX>	8-97019-543-0	01	1	0009-
40	WASHER; THRUST,CLU DRUM,INPUT SHAFT 4JH1 ENG<RJX>	8-94479-796-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.9	8-97214-551-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=4.0	8-97214-552-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=4.1	8-97288-906-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=4.2	8-97288-907-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.3	8-97288-908-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.4	8-97288-909-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.5	8-97288-910-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.6	8-97288-911-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.7	8-97288-912-0	01	1	0009-
41	FLANGE; DIRECT CLU 4JH1 ENG<RJX> T=3.8	8-97288-913-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=3.0	8-97025-841-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=4.2	8-97025-843-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=4.4	8-97025-844-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=3.6	8-97232-043-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=3.8	8-97232-044-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=4.0	8-97232-045-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=3.2	8-97232-046-0	01	1	0009-
43	FLANGE; FWD CLU 4JH1 ENG<RJX> T=3.4	8-97232-047-0	01	1	0009-
44	BEARING; THRUST,INPUT SHAFT RR 4JH1 ENG<RJX>	8-94479-778-0	01	1	0009-
45	RACE; THRUST BRG,INPUT SHAFT 4JH1 ENG<RJX> (A)	8-94479-776-0	01	1	0009-
45	RACE; THRUST BRG,INPUT SHAFT 4JH1 ENG<RJX> (B)	8-94479-777-0	01	1	0009-
46	PISTON; DIRECT CLU,A/T 4JH1 ENG<RJX>	8-94364-921-0	01	1	0009-
47	WASHER; THRUST,DIRECT CLU DRUM 4JH1 ENG<RJX>	8-94479-779-0	01	1	0009-
48	BAND; 2ND COAST BRK 4JH1 ENG<RJX>	8-97143-086-0	01	1	0009-
49	PIN; 2ND COAST BRK BAND 4JH1 ENG<RJX>	8-94479-825-0	01	1	0009-
50	RING; SNAP,2ND COAST BRK BAND,A/T 4JH1 ENG<RJX>	8-94479-818-0	02	1	0009-
51	COVER; 2ND COAST BRK,A/T 4JH1 ENG<RJX>	8-94479-822-0	01	1	0009-
52	GASKET; PISTON INNER,DIRECT CLU,A/T 4JH1 ENG<RJX>	8-97184-321-0	01	1	0009-
53	GASKET; PISTON OUTER,DIRECT CLU,A/T 4JH1 ENG<RJX>	8-94364-920-0	01	1	0009-
54	RING; SNAP,PISTON RETURN SPRING 4JH1 ENG<RJX>	8-94479-783-0	01	1	0009-
55	GASKET; COVER,2ND COAST BRK,A/T 4JH1 ENG<RJX>	8-94479-824-0	02	1	0009-
56	RING; SNAP,2ND COAST BRK COVER,A/T 4JH1 ENG<RJX>	8-97069-458-0	01	1	0009-
57	PISTON; 2ND COAST BRK,A/T 4JH1 ENG<RJX>	8-97143-132-0	01	1	0009-
58	WASHER; 2ND COAST BRK PISTON,A/T 4JH1 ENG<RJX>	8-94479-817-0	01	1	0009-
59	SPRING; OUTER,2ND COAST BRK PISTON 4JH1 ENG<RJX>	8-94479-812-0	01	1	0009-
60	SPRING; INNER,2ND COAST BRK PISTON 4JH1 ENG<RJX>	8-94479-815-0	01	1	0009-
61	RING; SNAP,2ND COAST BRK 4JH1 ENG<RJX>	8-94479-818-0	01	1	0009-
62	ROD; 2ND COAST BRK PISTON 4JH1 ENG<RJX> L=71.4	8-94479-816-0	01	1	0009-
62	ROD; 2ND COAST BRK PISTON 4JH1 ENG<RJX> L=72.9	8-94479-820-0	01	1	0009-
63	RING; SEAL,2ND COAST BRK PISTON 4JH1 ENG<RJX>	8-94479-813-0	01	1	0009-
64	DRUM ASM; DIRECT CLU,A/T 4JH1 ENG<RJX>	8-97288-905-0	01	1	0009-
65	DRUM; SUN GEAR INPUT 4JH1 ENG<RJX>	8-97024-255-0	01	1	0009-
79	GEAR ASM; INPUT SUN 4JH1 ENG<RJX>	8-94479-846-0	01	1	0009-
95	GASKET; CLU HUB 4JH1 ENG<RJX>	8-97122-978-0	01	1	0009-
108	RING; SNAP,SUN GEAR 4JH1 ENG<RJX>	8-94479-845-0	01	1	0009-
