2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#43580) — 30 parça

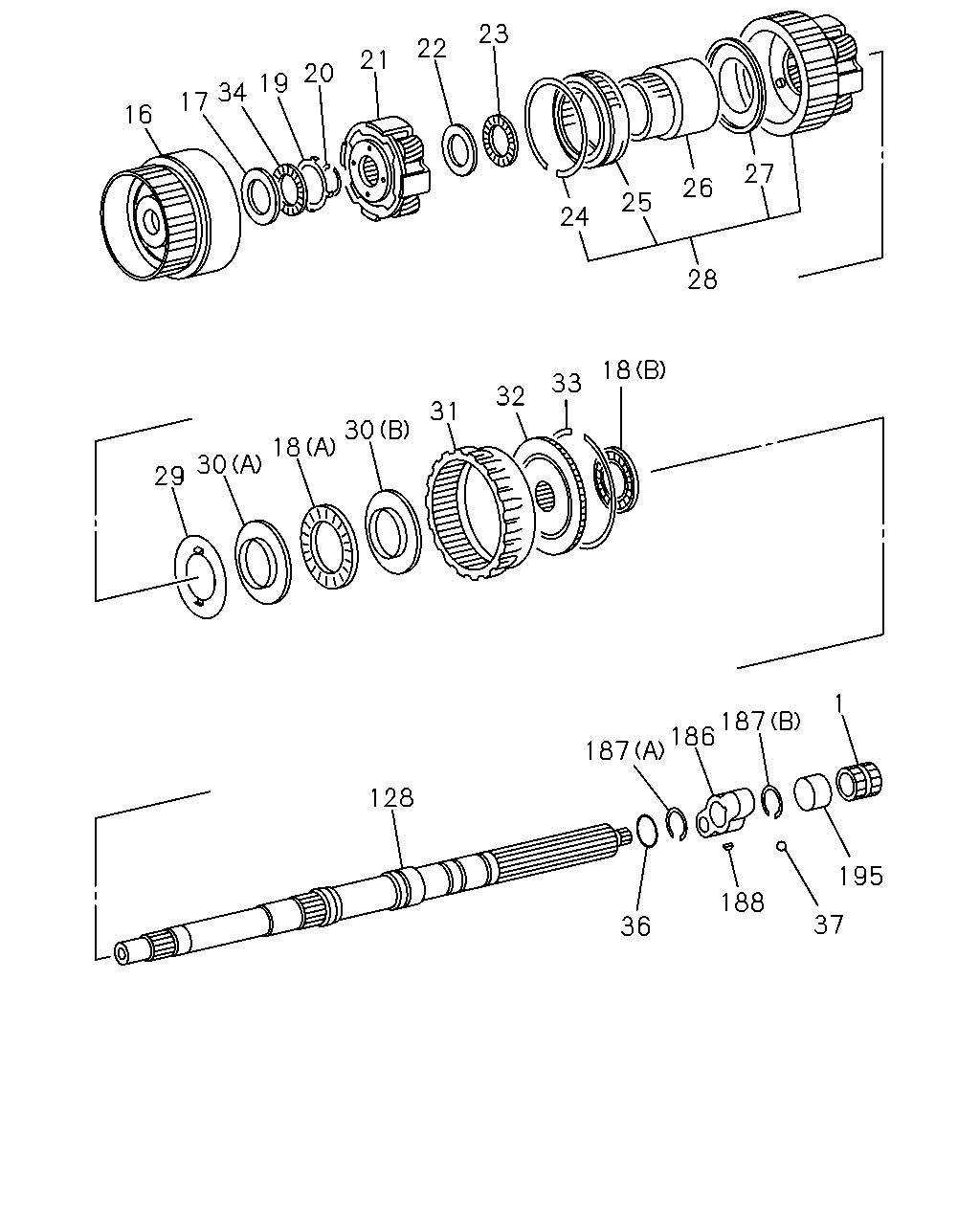

çizim 50703
23 22 21 20 19 34 17 16 27 26 25 24 28 18 33 32 31 30 18 30 29 1 187 186 187 128 195 188 37 36
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; SPEEDOMETER DRIVE,A/T
4JH1 ENG<RJX> 		8-97181-547-0 01 1 0009-
16 GEAR ASM; FRT PLANETARY,A/T
4JH1 ENG<RJX> 		8-97143-082-0 01 1 0009-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4JH1 ENG<RJX> 		8-94479-836-0 01 1 0009-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4JH1 ENG<RJX> (A) 		8-94479-847-0 01 1 0009-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
4JH1 ENG<RJX> (B) 		8-97249-735-0 01 1 0009-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
4JH1 ENG<RJX> 		8-94479-837-0 01 1 0009-
20 RING; RET,PLANETARY GEAR,A/T
4JH1 ENG<RJX> 		8-94479-842-0 01 1 0009-
21 GEAR; PLANETARY,INTERNAL FRT,A/T
4JH1 ENG<RJX> 		8-94479-839-0 01 1 0009-
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A
4JH1 ENG<RJX> 		8-94479-840-0 01 1 0009-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
4JH1 ENG<RJX> 		8-94479-841-0 01 1 0009-
24 RING; RET,FRT PLANETARY,A/T
4JH1 ENG<RJX> 		8-97143-129-0 01 1 0009-
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T
4JH1 ENG<RJX> 		8-94364-924-0 01 1 0009-
26 RACE; ONEWAY CLU,A/T
4JH1 ENG<RJX> 		8-97019-542-0 01 1 0009-
27 WASHER; THRUST,FRT PLANETARY,A/T
4JH1 ENG<RJX> 		8-94313-577-0 01 1 0009-
28 GEAR ASM; RR PLANETARY,A/T
4JH1 ENG<RJX> 		8-97232-050-0 01 1 0009-
29 WASHER; THRUST,FRT PLANETARY,A/T
4JH1 ENG<RJX> 		8-94479-851-0 01 1 0009-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
4JH1 ENG<RJX> (A) 		8-94479-848-0 01 1 0009-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
4JH1 ENG<RJX> (B) 		8-94479-849-0 01 1 0009-
31 GEAR ASM; INTERNAL,PLANETARY,A/T
4JH1 ENG<RJX> 		8-94479-854-0 01 1 0009-
32 FLANGE; RING GEAR,RR PLANETARY,A/T
4JH1 ENG<RJX> 		8-94479-852-0 01 1 0009-
33 RING; RET,PLANETARY GEAR,A/T
4JH1 ENG<RJX> 		8-94479-853-0 01 1 0009-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/
4JH1 ENG<RJX> 		8-94479-838-0 01 1 0009-
36 RING; SEALING,FRT PLANETARY SHAFT,A/T
4JH1 ENG<RJX> 		8-94479-902-0 01 1 0009-
37 BALL; SPD DRIVE
4JH1 ENG<RJX> 		8-94167-674-0 01 1 0009-
128 SHAFT; OUTPUT,A/T
4JH1 ENG<RJX> 		8-97184-427-0 01 1 0009-
186 ROTOR; SPEED SENSOR
4JH1 ENG<RJX> 		8-97211-747-0 01 1 0009-
187 RING; SNAP,ROTOR,SPEED SENSOR
4JH1 ENG<RJX> (A) 		8-97069-451-0 01 1 0009-
187 RING; SNAP,ROTOR,SPEED SENSOR
4JH1 ENG<RJX> (B) 		8-97069-457-0 01 1 0009-
188 KEY; SPEED SENSOR ROTOR
4JH1 ENG<RJX> 		8-94479-904-0 01 1 0009-
195 SPACER; SPEEDMETER,DRIVE
4JH1 ENG<RJX> 		8-97184-425-0 01 1 0009-
