◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#4358) — 912 parça

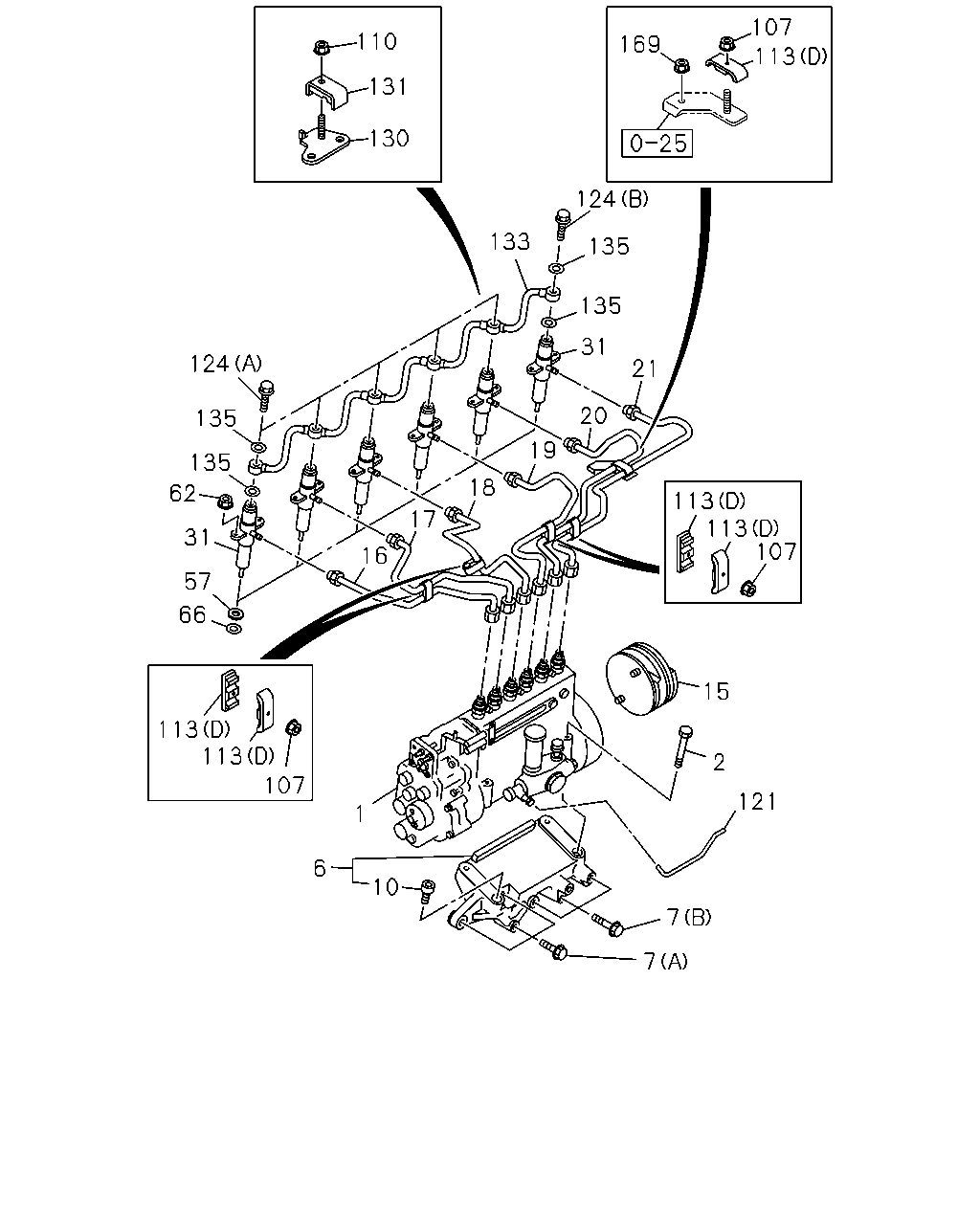

çizim 2944
107 110 169 113 131 130 124 133 135 135 31 124 21 20 135 19 135 18 62 113 113 107 17 31 16 57 66 15 113 113 2 107 121 1 6 10 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-616-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-617-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15601-620-6 01 1 9101-9207 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15602-889-0 01 1 9208-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. TAIWAN EMISSION REGULATION<TAL>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> TAIWAN EMISSION REGULATION<TAL> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15602-911-0 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,HONG KONG EQUIPMENT<PQ1> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-15601-529-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-530-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) HONG KONG EQUIPMENT<PQ1> 		1-15601-539-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15602-238-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-680-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94390-961-2 01 1 9606- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94392-108-2 01 1 9712- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-968-1 01 1 9601-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-968-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-969-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-979-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-980-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-975-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-977-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. OVERHEAD COOLING SYSTEM<YS9> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94395-976-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9703-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 9710-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9806- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94392-007-0 01 1 9803-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION PARTS<TCA> 		8-94392-439-0 01 1 9803-0203 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9101-9504 ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9505- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9703-9709 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9710-0512 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
6 BRACKET; INJ PUMP TO C/BL 9-19751-104-1 01 1 9101-9504 ● ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9505- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9703-9709 ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9710- ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28181-080-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X75 FLANGE 		8-94399-669-1 01 1 9505- ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-94399-863-1 01 1 9505-0805 ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ● ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 9703-9709 ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 9710- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15780-104-2 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-136-0 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9101-9303 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9304-9310 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9311-9504 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 9505-9601 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-308-0 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94393-962-2 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9703-9709 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9710- ● ●
16 PIPE; INJ NO.1 1-15413-169-3 01 1 9101-9504 ● ●
16 PIPE; INJ NO.1 1-15413-182-3 01 1 9101-9504 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-845-1 01 1 9505-9605 ●
16 PIPE; INJ NO.1
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9606-9608 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9609- ●
16 PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-546-0 01 1 9601- ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-007-2 01 1 9505-9608 ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-007-2 01 1 9609- ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9703-9709 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9710- ● ●
17 PIPE; INJ NO.2 1-15413-170-2 01 1 9101-9504 ● ●
17 PIPE; INJ NO.2 1-15413-183-2 01 1 9101-9504 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-846-1 01 1 9505-9605 ●
17 PIPE; INJ NO.2
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9606-9608 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9609- ●
17 PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-547-0 01 1 9601- ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-008-3 01 1 9505-9608 ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-008-3 01 1 9609- ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9703-9709 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9710-0109 ● ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ● ●
18 PIPE; INJ NO.3 1-15413-171-2 01 1 9101-9504 ● ●
18 PIPE; INJ NO.3 1-15413-184-2 01 1 9101-9504 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-897-1 01 1 9505-9605 ●
18 PIPE; INJ NO.3
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9606-9608 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9609- ●
18 PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-548-0 01 1 9601- ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-009-3 01 1 9505-9608 ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-009-3 01 1 9609- ●
18 PIPE; INJ NO.3 8-94391-424-0 01 1 9703-9705 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9706-9709 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9710-0204 ● ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0205- ● ●
19 PIPE; INJ NO.4 1-15413-172-2 01 1 9101-9504 ● ●
19 PIPE; INJ NO.4 1-15413-185-2 01 1 9101-9504 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-145-0 01 1 9505-9605 ●
19 PIPE; INJ NO.4
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9606-9608 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9609- ●
19 PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-549-0 01 1 9601- ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-010-4 01 1 9505-9608 ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-010-4 01 1 9609- ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9703-9709 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9710- ● ●
20 PIPE; INJ NO.5 1-15413-173-2 01 1 9101-9504 ● ●
20 PIPE; INJ NO.5 1-15413-186-2 01 1 9101-9504 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-146-0 01 1 9505-9605 ●
20 PIPE; INJ NO.5
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9606-9608 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9609- ●
20 PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-550-0 01 1 9601- ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-011-2 01 1 9505-9608 ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-011-2 01 1 9609- ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9703-9709 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9710- ● ●
21 PIPE; INJ NO.6 1-15413-174-3 01 1 9101-9504 ● ●
21 PIPE; INJ NO.6 1-15413-187-2 01 1 9101-9504 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-147-0 01 1 9505-9605 ●
21 PIPE; INJ NO.6
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9606-9608 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9609- ●
21 PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-551-0 01 1 9601- ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-494-3 01 1 9505-9608 ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-494-3 01 1 9609- ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9703-9709 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9710- ● ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9703-9709 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9710- ● ●
62 NUT; NOZZLE HOLDER
M8 		9-09110-408-0 12 1 9101-9504 ● ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9703-9709 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9710-0602 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3 		5-15315-003-0 06 1 9101-9504 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		1-15315-013-1 06 1 9505-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-607-1 06 1 9703-9703 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9704-9709 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9710- ● ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> M6 FLANGE 		0-91150-106-0 04 1 9505-9512 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE 		0-91150-106-0 04 1 9601-9605 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M6 FLANGE 		0-91150-106-0 04 1 9606-0602 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9703-9709 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9710-0602 ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 05 1 0603- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9703-9709 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9710-0602 ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94396-793-0 04 1 9505-9512 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94396-793-0 04 1 9601-9605 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94396-793-0 04 1 9606- ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		8-94397-444-0 04 1 9505-9512 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 04 1 9601-9605 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 01 1 9606-9608 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 04 1 9609- ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		1-09701-091-0 02 1 9505-9601 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		1-09701-091-0 02 1 9601-9608 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-09701-091-0 02 1 9609- ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 01 1 9505-9605 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 04 1 9606-9606 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 04 1 9606-9608 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 01 1 9609- ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 9703-9709 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-1 10 1 9710-1202 ● ●
113 CLIP; INJ PIPE
(D) 		1-09701-240-0 10 1 1203- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-15412-658-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
MT643 A/T ALLISON(PR7) 		1-15414-206-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FLYWHEEL HSG SAE #2<E4C> 		1-15414-206-0 01 1 9101-9504 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-229-0 01 1 9505- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-141-0 01 1 9703-9703 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9703-9709 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9710- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9703-9709 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9710- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9709-9709 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9710- ● ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 9703-9709 ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 9710- ● ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 9703-9709 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 9710- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15412-743-1 01 1 9101-9504 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-970-0 01 1 9505- ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9703-9709 ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9710- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9101-9305 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9306-9504 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9505-0108 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0109- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9703-9709 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9710- ● ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9710-0602 ● ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●

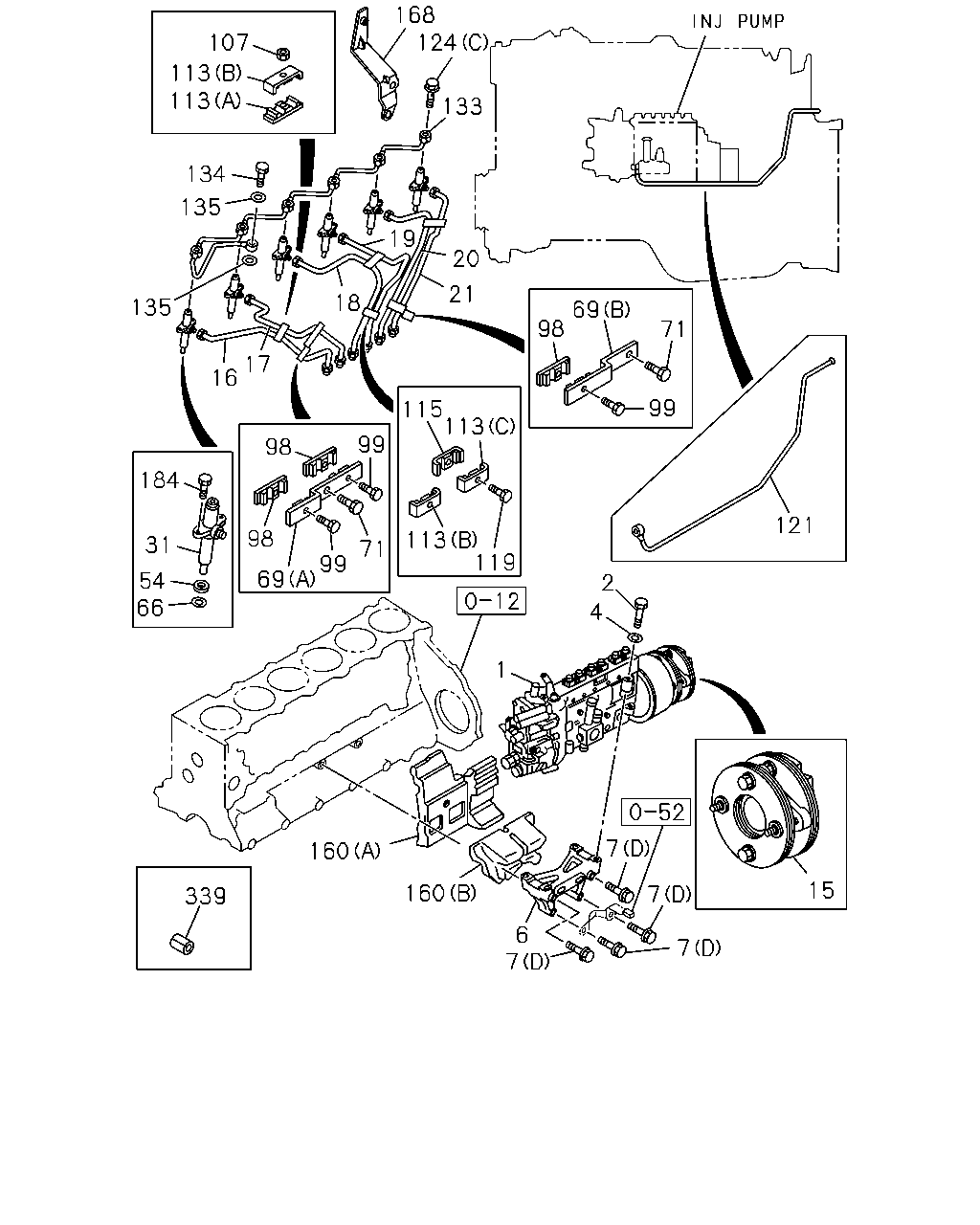

çizim 4264
168 124 107 113 113 133 134 135 19 20 21 18 135 69 98 71 17 16 99 115 113 99 98 184 121 98 113 119 31 71 99 69 54 66 2 4 1 7 160 15 160 7 339 6 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-616-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-617-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15601-620-6 01 1 9101-9207 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15602-889-0 01 1 9208-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. TAIWAN EMISSION REGULATION<TAL>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> TAIWAN EMISSION REGULATION<TAL> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15602-911-0 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,HONG KONG EQUIPMENT<PQ1> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-15601-529-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-530-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) HONG KONG EQUIPMENT<PQ1> 		1-15601-539-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15602-238-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-680-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94390-961-2 01 1 9606- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94392-108-2 01 1 9712- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-968-1 01 1 9601-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-968-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-969-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-979-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-980-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-975-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-977-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. OVERHEAD COOLING SYSTEM<YS9> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94395-976-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9703-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 9710-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9806- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94392-007-0 01 1 9803-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION PARTS<TCA> 		8-94392-439-0 01 1 9803-0203 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9101-9504 ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9505- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9703-9709 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9710-0512 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9101-9504 ● ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9505- ●
6 BRACKET; INJ PUMP TO C/BL 9-19751-104-1 01 1 9101-9504 ● ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9505- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9703-9709 ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9710- ● ●

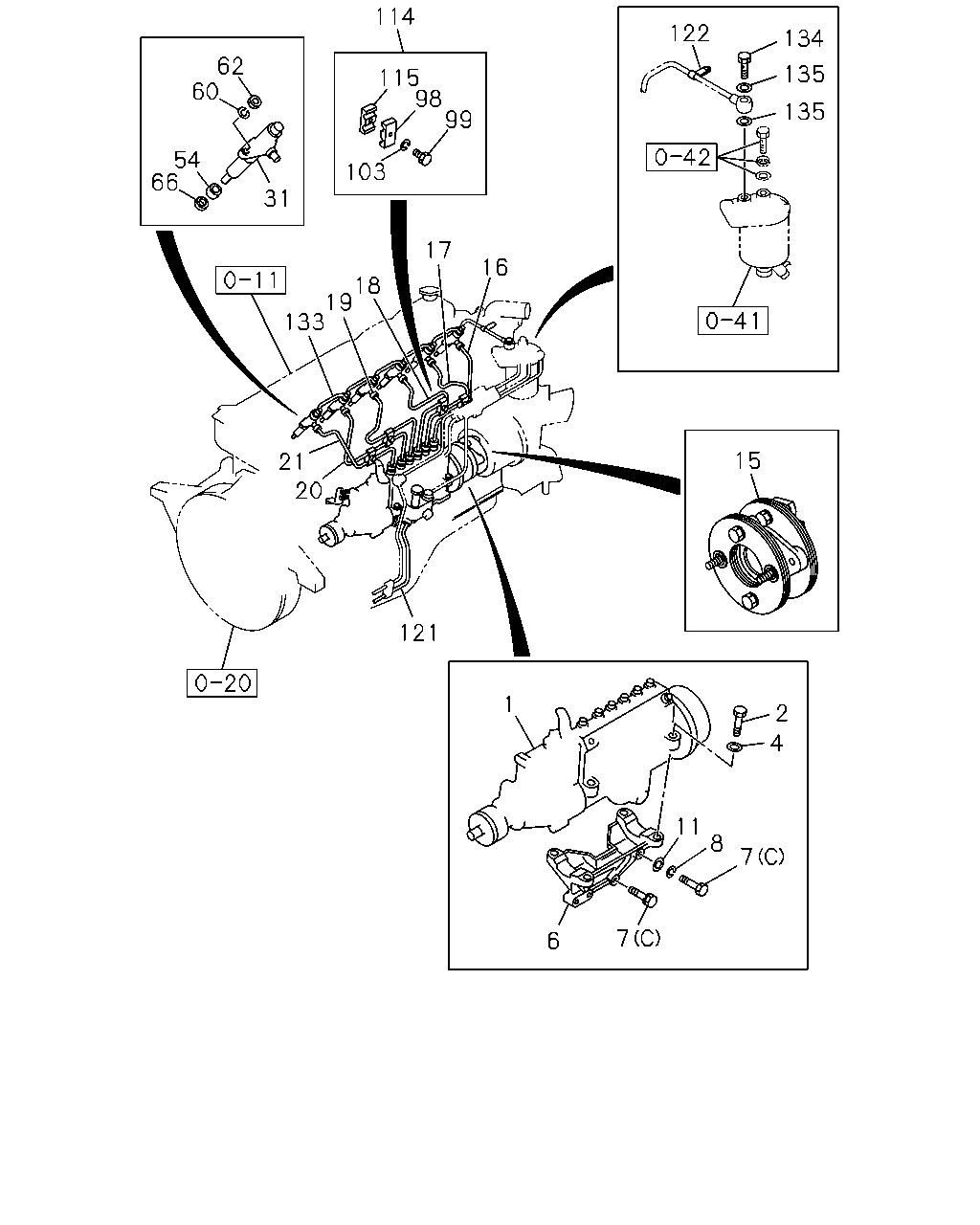

7 BOLT; INJ PUMP BRKT
(C) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28181-080-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X75 FLANGE 		8-94399-669-1 01 1 9505- ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-94399-863-1 01 1 9505-0805 ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15780-104-2 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-136-0 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9101-9303 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9304-9310 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9311-9504 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 9505-9601 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-308-0 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94393-962-2 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9703-9709 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9710- ● ●
16 PIPE; INJ NO.1 1-15413-169-3 01 1 9101-9504 ● ●
16 PIPE; INJ NO.1 1-15413-182-3 01 1 9101-9504 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-845-1 01 1 9505-9605 ●
16 PIPE; INJ NO.1
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9606-9608 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9609- ●
16 PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-546-0 01 1 9601- ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-007-2 01 1 9505-9608 ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-007-2 01 1 9609- ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9703-9709 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9710- ● ●
17 PIPE; INJ NO.2 1-15413-170-2 01 1 9101-9504 ● ●
17 PIPE; INJ NO.2 1-15413-183-2 01 1 9101-9504 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-846-1 01 1 9505-9605 ●
17 PIPE; INJ NO.2
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9606-9608 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9609- ●
17 PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-547-0 01 1 9601- ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-008-3 01 1 9505-9608 ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-008-3 01 1 9609- ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9703-9709 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9710-0109 ● ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ● ●
18 PIPE; INJ NO.3 1-15413-171-2 01 1 9101-9504 ● ●
18 PIPE; INJ NO.3 1-15413-184-2 01 1 9101-9504 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-897-1 01 1 9505-9605 ●
18 PIPE; INJ NO.3
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9606-9608 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9609- ●
18 PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-548-0 01 1 9601- ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-009-3 01 1 9505-9608 ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-009-3 01 1 9609- ●
18 PIPE; INJ NO.3 8-94391-424-0 01 1 9703-9705 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9706-9709 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9710-0204 ● ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0205- ● ●
19 PIPE; INJ NO.4 1-15413-172-2 01 1 9101-9504 ● ●
19 PIPE; INJ NO.4 1-15413-185-2 01 1 9101-9504 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-145-0 01 1 9505-9605 ●
19 PIPE; INJ NO.4
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9606-9608 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9609- ●
19 PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-549-0 01 1 9601- ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-010-4 01 1 9505-9608 ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-010-4 01 1 9609- ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9703-9709 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9710- ● ●
20 PIPE; INJ NO.5 1-15413-173-2 01 1 9101-9504 ● ●
20 PIPE; INJ NO.5 1-15413-186-2 01 1 9101-9504 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-146-0 01 1 9505-9605 ●
20 PIPE; INJ NO.5
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9606-9608 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9609- ●
20 PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-550-0 01 1 9601- ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-011-2 01 1 9505-9608 ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-011-2 01 1 9609- ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9703-9709 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9710- ● ●
21 PIPE; INJ NO.6 1-15413-174-3 01 1 9101-9504 ● ●
21 PIPE; INJ NO.6 1-15413-187-2 01 1 9101-9504 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-147-0 01 1 9505-9605 ●
21 PIPE; INJ NO.6
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9606-9608 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9609- ●
21 PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-551-0 01 1 9601- ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-494-3 01 1 9505-9608 ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-494-3 01 1 9609- ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9703-9709 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9710- ● ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9101-9504 ● ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9505- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3 		5-15315-003-0 06 1 9101-9504 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		1-15315-013-1 06 1 9505-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-607-1 06 1 9703-9703 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9704-9709 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9710- ● ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94396-086-0 01 1 9505-9601 ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94396-086-0 01 1 9601-9608 ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94396-086-0 01 1 9609- ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94396-087-0 01 1 9505-9601 ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94396-087-0 01 1 9601-9608 ●
69 BRACKET; INJ PIPE CLIP
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94396-087-0 01 1 9609- ●
71 BOLT; BRKT
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28080-812-0 02 1 9505-9608 ●
71 BOLT; BRKT
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M8X12 FLANGE 		0-28080-812-0 02 1 9609-0512 ●
71 BOLT; BRKT
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
98 CLIP; "A",INJ PIPE 9-15419-613-0 04 1 9101-9504 ● ● ●
98 CLIP; "A",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-445-0 03 1 9505-9608 ●
98 CLIP; "A",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94397-445-0 03 1 9609- ●
99 BOLT; CLIP,INJ,PIPE
M5X20 		9-09802-539-0 04 1 9101-9504 ● ● ●
99 BOLT; CLIP,INJ,PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94365-129-0 03 1 9505-9608 ●
99 BOLT; CLIP,INJ,PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94365-129-0 03 1 9609- ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> M6 FLANGE 		0-91150-106-0 04 1 9505-9512 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE 		0-91150-106-0 04 1 9601-9605 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M6 FLANGE 		0-91150-106-0 04 1 9606-0602 ●
107 NUT; INJ PIPE CLIP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M6 FLANGE 		0-91180-106-0 04 1 0603- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9703-9709 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9710-0602 ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 05 1 0603- ● ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94396-793-0 04 1 9505-9512 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94396-793-0 04 1 9601-9605 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94396-793-0 04 1 9606- ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		8-94397-444-0 04 1 9505-9512 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 04 1 9601-9605 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 01 1 9606-9608 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 04 1 9609- ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		1-09701-091-0 02 1 9505-9601 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		1-09701-091-0 02 1 9601-9608 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-09701-091-0 02 1 9609- ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 01 1 9505-9605 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94397-444-0 04 1 9606-9606 ●
113 CLIP; INJ PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 04 1 9606-9608 ●
113 CLIP; INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94397-444-0 01 1 9609- ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-0 10 1 9703-9709 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-1 10 1 9710-1202 ● ●
113 CLIP; INJ PIPE
(D) 		1-09701-240-0 10 1 1203- ● ●
115 CLIP; "B",INJ PIPE 9-15419-614-0 04 1 9101-9504 ● ● ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-444-0 03 1 9505-9510 ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-444-0 03 1 9601-9608 ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94397-444-0 03 1 9609- ●
119 BOLT; CLIP,INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X22 FLANGE 		0-28080-622-0 03 1 9505-9510 ●
119 BOLT; CLIP,INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X22 FLANGE 		0-28080-622-0 03 1 9601-9608 ●
119 BOLT; CLIP,INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M6X22 FLANGE 		0-28080-622-0 03 1 9609- ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-15412-658-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
MT643 A/T ALLISON(PR7) 		1-15414-206-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FLYWHEEL HSG SAE #2<E4C> 		1-15414-206-0 01 1 9101-9504 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-229-0 01 1 9505- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-141-0 01 1 9703-9703 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9703-9709 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9710- ● ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005- ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9703-9709 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9710- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9709-9709 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9710- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15412-743-1 01 1 9101-9504 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-970-0 01 1 9505- ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9703-9709 ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9710- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9101-9504 ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9505- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9101-9305 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9306-9504 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9505-0108 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0109- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9703-9709 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9710- ● ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94395-671-0 01 1 9505-9505 ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94390-169-0 01 1 9505-9605 ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94390-169-0 01 1 9606-9608 ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94390-169-0 01 1 9702-0203 ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		8-94390-169-0 01 1 0204- ●
160 SPACER; INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94390-169-0 01 1 0204- ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		8-94395-673-1 01 1 9505-9605 ●
160 SPACER; INJ PUMP
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94395-673-1 01 1 9606- ●
168 BRACKET; FUEL PIPE 8-94390-011-0 01 1 9505- ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28080-840-0 12 1 9505-0512 ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28050-840-0 12 1 0601- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0012- ●
çizim 5349
31 34 36 36 37 38 32 39 44 45 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15330-059-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9307-9504 ● ● ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9101-9303 ● ●
32 HOLDER ASM; NOZZLE
RIGHT HAND DRIVE(LTR5FB) 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-058-0 06 1 9101-9306 ●
32 HOLDER ASM; NOZZLE 8-94390-384-0 06 1 9505- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9703-9709 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9710- ● ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15311-143-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9101-9303 ● ●
33 NOZZLE; INJ
RIGHT HAND DRIVE(LTR5FB) 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-020-0 06 1 9101-9504 ●
33 NOZZLE; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-382-0 06 1 9601- ●
33 NOZZLE; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-535-0 06 1 9511- ●
33 NOZZLE; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-383-0 06 1 9511- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9703-9709 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9710- ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9101-9306 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9307-9310 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15339-009-0 06 1 9505-9901 ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9505-9901 ● ●
34 BOLT; EYE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		1-15339-009-0 06 1 9902- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9902- ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9311-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9101-9306 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9307-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 9505- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9703-9709 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9710- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9101-9306 ● ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ● ●
37 NUT; CAP,NOZZLE HOLDER
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15334-007-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-006-0 06 1 9307-9504 ● ● ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9101-9303 ● ● ●
37 NUT; CAP,NOZZLE HOLDER
RIGHT HAND DRIVE(LTR5FB) 		8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 1-15349-136-0 06 1 9505- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9307-9504 ● ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9505- ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9101-9504 ● ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9505- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9101-9504 ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9505- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9703-9709 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9710- ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9101-9504 ● ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9505- ●
çizim 36628
34 36 36 37 38 39 44 45 41 42 31 32 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15330-059-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9307-9504 ● ● ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9101-9303 ● ●
32 HOLDER ASM; NOZZLE
RIGHT HAND DRIVE(LTR5FB) 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-058-0 06 1 9101-9306 ●
32 HOLDER ASM; NOZZLE 8-94390-384-0 06 1 9505- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9703-9709 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9710- ● ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15311-143-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9101-9303 ● ●
33 NOZZLE; INJ
RIGHT HAND DRIVE(LTR5FB) 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-020-0 06 1 9101-9504 ●
33 NOZZLE; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-382-0 06 1 9601- ●
33 NOZZLE; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-535-0 06 1 9511- ●
33 NOZZLE; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-383-0 06 1 9511- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9703-9709 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9710- ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9101-9306 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9307-9310 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15339-009-0 06 1 9505-9901 ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9505-9901 ● ●
34 BOLT; EYE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		1-15339-009-0 06 1 9902- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9902- ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9311-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9101-9306 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9307-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 9505- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9703-9709 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9710- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9101-9306 ● ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ● ●
37 NUT; CAP,NOZZLE HOLDER
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15334-007-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 5-15332-006-0 06 1 9307-9504 ● ● ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9101-9303 ● ● ●
37 NUT; CAP,NOZZLE HOLDER
RIGHT HAND DRIVE(LTR5FB) 		8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 8-94169-504-0 06 1 9304-9306 ●
37 NUT; CAP,NOZZLE HOLDER 1-15349-136-0 06 1 9505- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9307-9504 ● ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9505- ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9101-9504 ● ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9505- ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15351-001-0 06 1 9101-9306 ● ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15351-001-0 06 1 9307-9504 ● ● ●
41 CONNECTOR; FUEL INL,NOZZLE HOLDER 5-15349-002-0 06 1 9101-9306 ●
42 GASKET; INL CONNECTOR,NOZZLE HOLDER 5-15339-003-0 06 1 9101-9504 ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9101-9504 ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9505- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9703-9709 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9710- ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9101-9504 ● ● ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9505- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 12 1 9101-9504 ● ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9703-9709 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9710- ● ●
çizim 36787
31 34 36 36 32 58 145 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15330-059-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-087-1 06 1 9307-9504 ● ● ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9101-9303 ● ●
32 HOLDER ASM; NOZZLE
RIGHT HAND DRIVE(LTR5FB) 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-057-0 06 1 9304-9306 ●
32 HOLDER ASM; NOZZLE 1-15330-058-0 06 1 9101-9306 ●
32 HOLDER ASM; NOZZLE 8-94390-384-0 06 1 9505- ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9703-9709 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9710- ● ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15311-143-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9101-9303 ● ●
33 NOZZLE; INJ
RIGHT HAND DRIVE(LTR5FB) 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-016-0 06 1 9304-9504 ●
33 NOZZLE; INJ 5-15311-020-0 06 1 9101-9504 ●
33 NOZZLE; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-382-0 06 1 9601- ●
33 NOZZLE; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-535-0 06 1 9511- ●
33 NOZZLE; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94390-383-0 06 1 9511- ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9703-9709 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9710- ● ●
34 BOLT; EYE,NOZZLE HOLDER
M8X19 FLANGE 		1-09675-139-0 06 1 9101-9306 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9307-9310 ● ● ●
34 BOLT; EYE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15339-009-0 06 1 9505-9901 ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9505-9901 ● ●
34 BOLT; EYE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		1-15339-009-0 06 1 9902- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9902- ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9311-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94171-195-0 06 1 9101-9306 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 06 1 9307-9504 ● ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 9505- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9703-9709 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9710- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9101-9306 ● ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9505-9901 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9902- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9703-9709 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9710- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9101-9504 ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9505- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9703-9709 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9710- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 12 1 9101-9504 ● ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9703-9709 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9710- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9703-9709 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 9710- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 9703-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 9710- ● ●
145 GASKET; RET NUT 8-94128-915-0 06 1 9703-9709 ●
145 GASKET; RET NUT 8-94128-915-0 06 1 9710- ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9703-9709 ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9710- ● ●
çizim 36833
114 122 134 62 60 135 115 98 99 135 54 66 103 31 17 16 18 19 133 15 21 20 121 1 2 4 11 8 7 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-616-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-617-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15601-620-6 01 1 9101-9207 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> HONG KONG EQUIPMENT<PQ1> 		1-15602-889-0 01 1 9208-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9101-9303 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT<PQ1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. TAIWAN EMISSION REGULATION<TAL>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15601-602-6 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> TAIWAN EMISSION REGULATION<TAL> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		1-15602-911-0 01 1 9304-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,HONG KONG EQUIPMENT<PQ1> 		1-15601-527-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-15601-529-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-530-6 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) HONG KONG EQUIPMENT<PQ1> 		1-15601-539-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-15601-679-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15602-238-4 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MT643 A/T ALLISON(PR7) 		1-15601-680-5 01 1 9101-9504 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94390-961-2 01 1 9606- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94392-108-2 01 1 9712- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-968-1 01 1 9601-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-968-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-969-3 01 1 9802- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-979-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATO R<YC4> 		8-94395-980-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-975-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,OVERHEAD COOLING SYSTEM<YS9> 		8-94395-977-4 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. OVERHEAD COOLING SYSTEM<YS9> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94395-976-3 01 1 9505- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9703-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 9710-9805 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-531-1 01 1 9806- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN> 		8-94392-007-0 01 1 9803-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-007-0 01 1 0204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION PARTS<TCA> 		8-94392-439-0 01 1 9803-0203 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9101-9504 ● ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9505- ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9703-9709 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9710-0512 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9101-9504 ● ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9505- ●
6 BRACKET; INJ PUMP TO C/BL 9-19751-104-1 01 1 9101-9504 ● ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9505- ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9703-9709 ●
6 BRACKET; INJ PUMP TO C/BL 8-94395-540-1 01 1 9710- ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9101-9504 ● ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28181-080-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28181-060-0 01 1 9505-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
7 BOLT; INJ PUMP BRKT
(D) M10X75 FLANGE 		8-94399-669-1 01 1 9505- ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-94399-863-1 01 1 9505-0805 ●
7 BOLT; INJ PUMP BRKT
(D) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28181-040-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9703-9709 ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28181-080-0 03 1 9710-0512 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ● ●
8 WASHER; LK,INJ PUMP BRKT
ID=10.2 		9-09150-510-0 02 1 9101-9106 ● ● ●
11 WASHER; INJ PUMP BRKT
ID=10.5 		9-09851-866-0 02 1 9107-9504 ● ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15780-081-3 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-081-3 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15780-104-2 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-136-0 01 1 9304-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9101-9303 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15780-089-2 01 1 9101-9303 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9304-9310 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9304-9310 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15780-089-2 01 1 9311-9504 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15780-089-2 01 1 9311-9504 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 9505-9601 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-308-0 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94393-962-2 01 1 9601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9703-9709 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9710- ● ●
16 PIPE; INJ NO.1 1-15413-169-3 01 1 9101-9504 ● ●
16 PIPE; INJ NO.1 1-15413-182-3 01 1 9101-9504 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-845-1 01 1 9505-9605 ●
16 PIPE; INJ NO.1
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9606-9608 ●
16 PIPE; INJ NO.1
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-845-1 01 1 9609- ●
16 PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-546-0 01 1 9601- ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-007-2 01 1 9505-9608 ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-007-2 01 1 9609- ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9703-9709 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 9710- ● ●
17 PIPE; INJ NO.2 1-15413-170-2 01 1 9101-9504 ● ●
17 PIPE; INJ NO.2 1-15413-183-2 01 1 9101-9504 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-846-1 01 1 9505-9605 ●
17 PIPE; INJ NO.2
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9606-9608 ●
17 PIPE; INJ NO.2
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-846-1 01 1 9609- ●
17 PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-547-0 01 1 9601- ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-008-3 01 1 9505-9608 ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-008-3 01 1 9609- ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9703-9709 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 9710-0109 ● ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ● ●
18 PIPE; INJ NO.3 1-15413-171-2 01 1 9101-9504 ● ●
18 PIPE; INJ NO.3 1-15413-184-2 01 1 9101-9504 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94393-897-1 01 1 9505-9605 ●
18 PIPE; INJ NO.3
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9606-9608 ●
18 PIPE; INJ NO.3
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94393-897-1 01 1 9609- ●
18 PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-548-0 01 1 9601- ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-009-3 01 1 9505-9608 ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-009-3 01 1 9609- ●
18 PIPE; INJ NO.3 8-94391-424-0 01 1 9703-9705 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9706-9709 ●
18 PIPE; INJ NO.3 8-94391-693-0 01 1 9710-0204 ● ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0205- ● ●
19 PIPE; INJ NO.4 1-15413-172-2 01 1 9101-9504 ● ●
19 PIPE; INJ NO.4 1-15413-185-2 01 1 9101-9504 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-145-0 01 1 9505-9605 ●
19 PIPE; INJ NO.4
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9606-9608 ●
19 PIPE; INJ NO.4
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-145-0 01 1 9609- ●
19 PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-549-0 01 1 9601- ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-010-4 01 1 9505-9608 ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-010-4 01 1 9609- ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9703-9709 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 9710- ● ●
20 PIPE; INJ NO.5 1-15413-173-2 01 1 9101-9504 ● ●
20 PIPE; INJ NO.5 1-15413-186-2 01 1 9101-9504 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-146-0 01 1 9505-9605 ●
20 PIPE; INJ NO.5
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9606-9608 ●
20 PIPE; INJ NO.5
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-146-0 01 1 9609- ●
20 PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-550-0 01 1 9601- ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-011-2 01 1 9505-9608 ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-011-2 01 1 9609- ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9703-9709 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 9710- ● ●
21 PIPE; INJ NO.6 1-15413-174-3 01 1 9101-9504 ● ●
21 PIPE; INJ NO.6 1-15413-187-2 01 1 9101-9504 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-147-0 01 1 9505-9605 ●
21 PIPE; INJ NO.6
AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9606-9608 ●
21 PIPE; INJ NO.6
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-147-0 01 1 9609- ●
21 PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-551-0 01 1 9601- ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94396-494-3 01 1 9505-9608 ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94396-494-3 01 1 9609- ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9703-9709 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 9710- ● ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> 		1-15300-212-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-0 06 1 9101-9303 ● ●
31 NOZZLE ASM; INJ
RIGHT HAND DRIVE(LTR5FB) 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-169-1 06 1 9304-9504 ●
31 NOZZLE ASM; INJ 1-15300-170-1 06 1 9101-9504 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-498-2 06 1 9601- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94390-499-1 06 1 9511- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-1 06 1 9505-9510 ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-511-2 06 1 9507- ●
31 NOZZLE ASM; INJ 8-94394-606-5 06 1 9703-9709 ●
31 NOZZLE ASM; INJ 8-94394-606-6 06 1 9710- ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9101-9504 ● ● ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9505- ●
60 WASHER; NOZZLE HOLDER
ID=8.2 		9-09150-508-0 12 1 9101-9504 ● ● ●
62 NUT; NOZZLE HOLDER
M8 		9-09110-408-0 12 1 9101-9504 ● ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9703-9709 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9710-0602 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 OD=19.0 T=7.3 		5-15315-003-0 06 1 9101-9504 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		1-15315-013-1 06 1 9505-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-607-1 06 1 9703-9703 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9704-9709 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 06 1 9710- ● ●
98 CLIP; "A",INJ PIPE 9-15419-613-0 04 1 9101-9504 ● ● ●
98 CLIP; "A",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-445-0 03 1 9505-9608 ●
98 CLIP; "A",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94397-445-0 03 1 9609- ●
99 BOLT; CLIP,INJ,PIPE
M5X20 		9-09802-539-0 04 1 9101-9504 ● ● ●
99 BOLT; CLIP,INJ,PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94365-129-0 03 1 9505-9608 ●
99 BOLT; CLIP,INJ,PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94365-129-0 03 1 9609- ●
103 WASHER; LK,CLIP,INJ PIPE
ID=5.1 		9-09150-505-0 04 1 9101-9504 ● ● ●
114 CLIP; INJ PIPE 9-15419-612-0 04 1 9101-9504 ● ● ●
115 CLIP; "B",INJ PIPE 9-15419-614-0 04 1 9101-9504 ● ● ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-444-0 03 1 9505-9510 ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94397-444-0 03 1 9601-9608 ●
115 CLIP; "B",INJ PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94397-444-0 03 1 9609- ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-15412-658-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
MT643 A/T ALLISON(PR7) 		1-15414-206-0 01 1 9101-9504 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FLYWHEEL HSG SAE #2<E4C> 		1-15414-206-0 01 1 9101-9504 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-229-0 01 1 9505- ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-141-0 01 1 9703-9703 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9703-9709 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94391-138-0 01 1 9710- ● ●
122 CLIP; LEAK OFF PIPE
ID=6 		9-09524-555-0 01 1 9101-9504 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15412-743-1 01 1 9101-9504 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-970-0 01 1 9505- ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9703-9709 ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94390-071-0 01 1 9710- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9101-9504 ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9505- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9101-9305 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9306-9504 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9505-0108 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0109- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9703-9709 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
