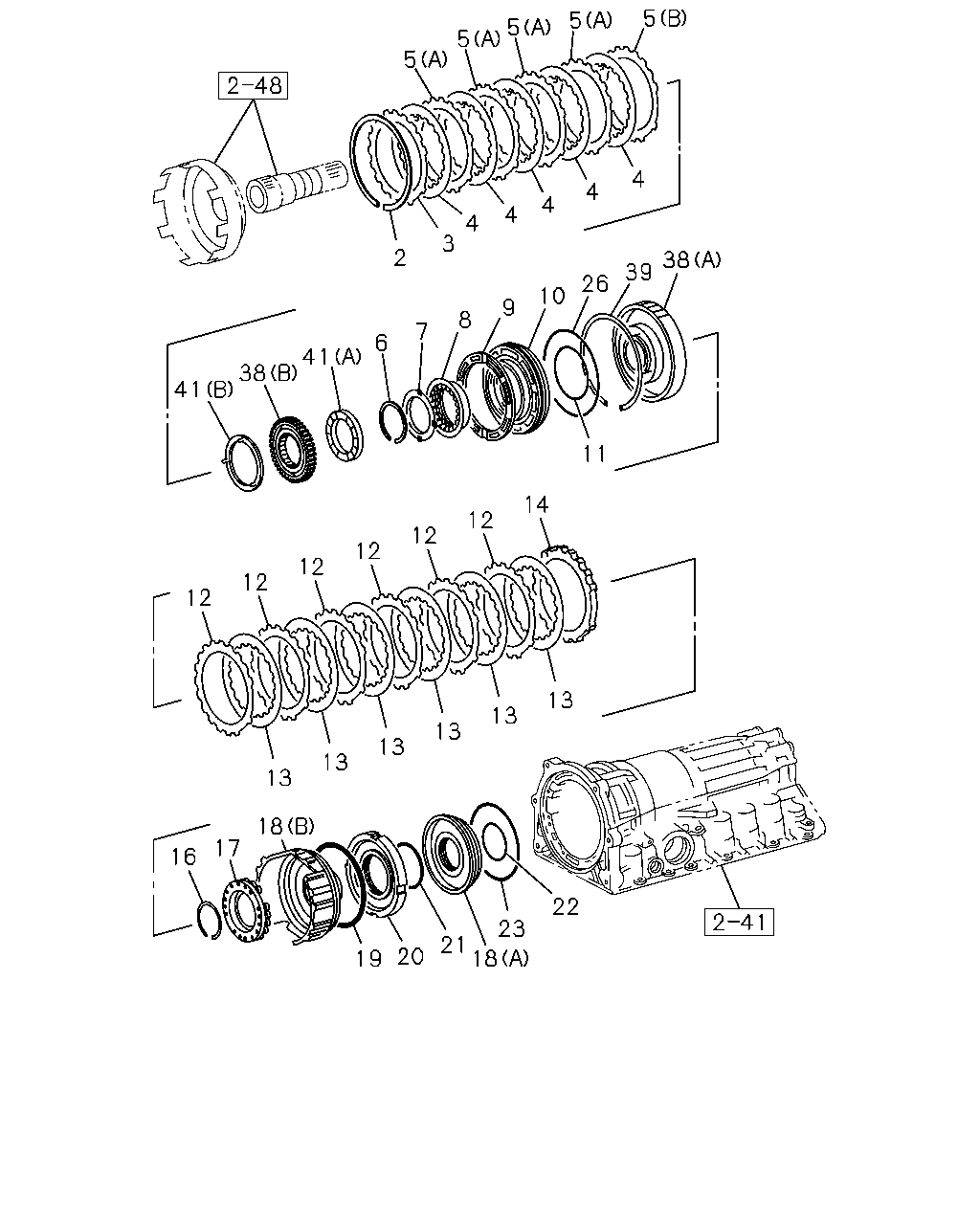

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#43579) — 36 parça

5 5 5 5 5 4 4 4 4 4 3 2 38 39 26 10 9 8 7 6 41 38 41 11 14 12 12 12 12 12 12 13 13 13 13 13 13 18 22 17 16 23 21 18 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; RET,FRT BRK,2ND BRK,A/T 4JH1 ENG<RJX>	8-94479-795-0	01	1	0009-
3	PLATE; CLU BACKING,2ND BRK,A/T 4JH1 ENG<RJX>	8-94479-806-0	01	1	0009-
4	DISC ASM; CLU & FACING,2ND BRK,A/T 4JH1 ENG<RJX>	8-97143-081-0	05	1	0009-
5	DISC; CLU,2ND BRK,A/T 4JH1 ENG<RJX> (A)	8-94479-807-0	04	1	0009-
5	DISC; CLU,2ND BRK,A/T 4JH1 ENG<RJX> (B)	8-97025-835-0	01	1	0009-
6	RING; SNAP,FRT BRK,A/T 4JH1 ENG<RJX>	8-94479-804-0	01	1	0009-
7	RETAINER; BRK,RETURN SPR,FRT BRK,A/T 4JH1 ENG<RJX>	8-94479-803-0	01	1	0009-
8	SPRING; RETURN,FRT BRK,A/T 4JH1 ENG<RJX>	8-94479-805-0	01	1	0009-
9	SLEEVE; 2ND BRK PISTON 4JH1 ENG<RJX>	8-97025-834-0	01	1	0009-
10	PISTON; BRK,FRT,2ND BRK,A/T 4JH1 ENG<RJX>	8-94479-799-0	01	1	0009-
11	GASKET; BRK PISTON,FRT,INNER,A/T 4JH1 ENG<RJX> ID=85	8-94479-800-0	01	1	0009-
12	PLATE; CLU,LOW & REV BRK,A/T 4JH1 ENG<RJX>	8-94479-832-0	06	1	0009-
13	DISC; CLU,LOW & REV BRK 4JH1 ENG<RJX>	8-97232-040-0	06	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=5.0	8-97019-534-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=4.8	8-97019-535-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=4.6	8-97019-536-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=4.4	8-97019-537-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=4.2	8-97019-538-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=4.0	8-97019-539-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=5.2	8-97184-319-0	01	1	0009-
14	FLANGE; BRK,LOW & REV BRAKE 4JH1 ENG<RJX> T=5.4	8-97184-320-0	01	1	0009-
16	RETAINER; RETURN SPR,RR BRK,A/T 4JH1 ENG<RJX>	5-34268-006-0	01	1	0009-
17	SPRING; RETURN,RR BRK,A/T 4JH1 ENG<RJX>	8-97214-554-0	01	1	0009-
18	PISTON; LOW & REV BRK,A/T 4JH1 ENG<RJX> (A)	8-94479-826-0	01	1	0009-
18	PISTON; LOW & REV BRK,A/T 4JH1 ENG<RJX> (B)	8-97069-454-0	01	1	0009-
19	GASKET; LOW & REV BRK PISTON 4JH1 ENG<RJX>	5-34218-004-0	01	1	0009-
20	SLEEVE; BRK REACTION,A/T 4JH1 ENG<RJX>	8-94479-827-0	01	1	0009-
21	RING; BRK REACTION SLEEVE,INNER 4JH1 ENG<RJX>	8-97184-352-0	01	1	0009-
22	GASKET; BRK PISTON,RR,INNER,A/T 4JH1 ENG<RJX>	8-97184-348-0	01	1	0009-
23	GASKET; BRK PISTON,RR,OUTER,A/T 4JH1 ENG<RJX>	8-97184-353-0	01	1	0009-
26	GASKET; BRK PISTON,FRT,OUTER,A/T 4JH1 ENG<RJX> ID=124	8-94479-801-0	01	1	0009-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JH1 ENG<RJX> (A)	8-94479-798-0	01	1	0009-
38	CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JH1 ENG<RJX> (B)	8-97143-134-0	01	1	0009-
39	RING; RET,SUN GEAR TO CLU 4JH1 ENG<RJX>	8-94479-797-0	01	1	0009-
41	WASHER; THRUST 4JH1 ENG<RJX> (A)	8-94479-809-0	01	1	0009-
41	WASHER; THRUST 4JH1 ENG<RJX> (B)	8-94479-811-0	01	1	0009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
