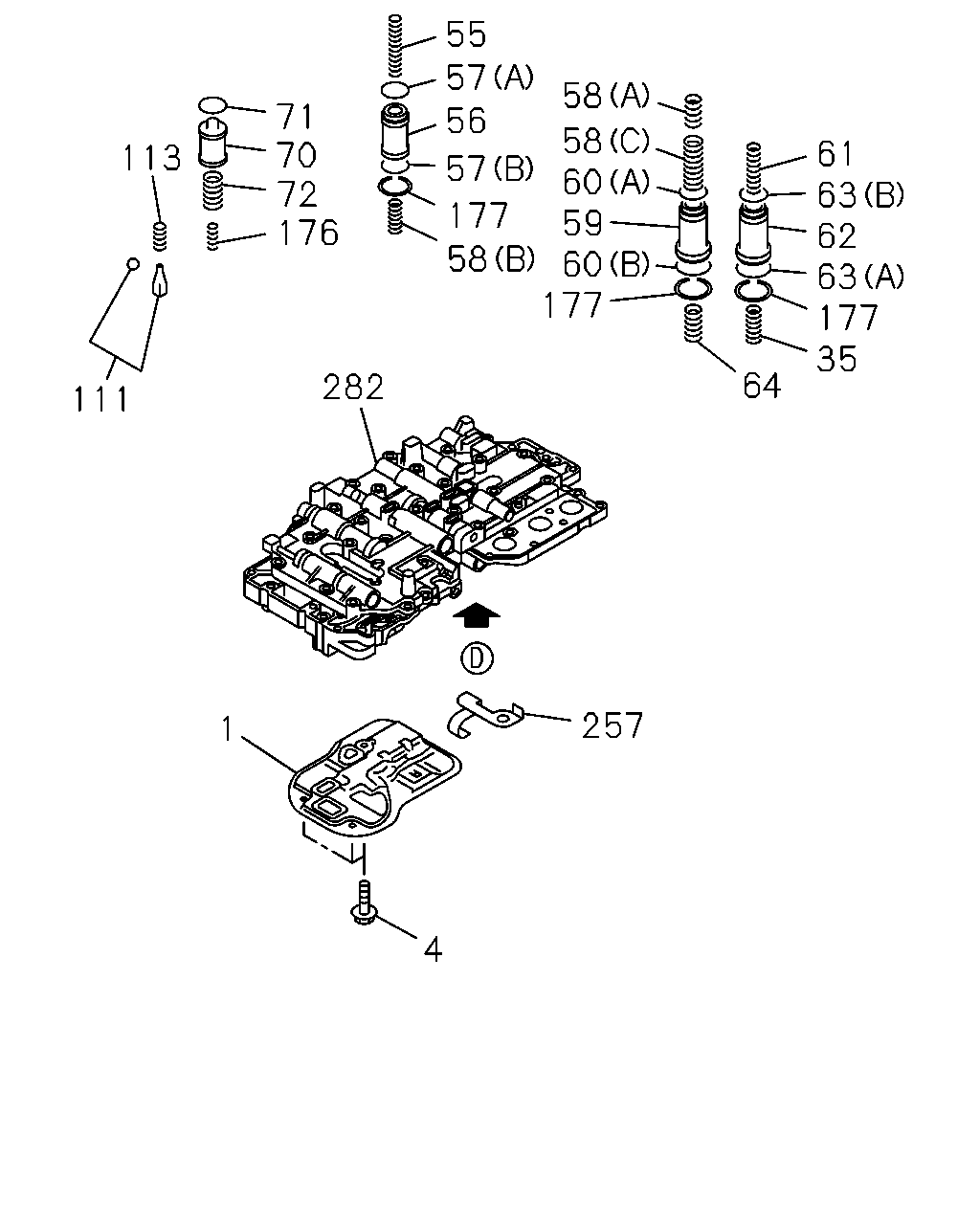

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#43578) — 30 parça

26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (A) M6X28	8-94473-611-0	10	1	0009-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (B) M6X36	8-94473-630-0	06	1	0009-
26	BOLT; BODY FIX,VLV LWR,A/T 4JH1 ENG<RJX> (C) M6X23	8-94479-925-0	04	1	0009-

55 57 58 56 58 57 60 177 59 58 60 177 71 70 72 176 61 63 62 63 177 35 113 64 282 111 257 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STRAINER ASM; OIL,A/T 4JH1 ENG<RJX>	8-97288-927-0	01	1	0009-
4	BOLT; OIL STRAINER,A/T 4JH1 ENG<RJX> M6X12	8-94479-927-0	03	1	0009-
35	SPRING; LWR VLV BODY 4JH1 ENG<RJX>	8-97025-856-0	01	1	0009-
55	SPRING; ACCUMLATOR PISTON 4JH1 ENG<RJX>	8-97027-208-0	01	1	0009-
56	PISTON; ACCUMLATOR 4JH1 ENG<RJX>	8-97027-207-0	01	1	0009-
57	GASKET; 2ND SPD PISTON,A/T 4JH1 ENG<RJX> (A) ID=20	8-97184-885-0	01	1	0009-
57	GASKET; 2ND SPD PISTON,A/T 4JH1 ENG<RJX> (B) ID=27	8-97184-886-0	01	1	0009-
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JH1 ENG<RJX> (A)	8-97027-204-0	01	1	0009-
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JH1 ENG<RJX> (B)	8-97027-209-0	01	1	0009-
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T 4JH1 ENG<RJX> (C)	8-97184-329-0	01	1	0009-
59	PISTON; DIRECT CLU,A/T 4JH1 ENG<RJX>	8-97025-819-0	01	1	0009-
60	GASKET; DIRECT CLU PISTON,A/T 4JH1 ENG<RJX> (A)	8-97184-887-0	01	1	0009-
60	GASKET; DIRECT CLU PISTON,A/T 4JH1 ENG<RJX> (B)	8-97184-888-0	01	1	0009-
61	SPRING; FWD CLU,(C-1 ACUUM),A/T 4JH1 ENG<RJX>	8-97184-330-0	01	1	0009-
62	PISTON; FWD CLU,A/T 4JH1 ENG<RJX>	8-97025-817-0	01	1	0009-
63	GASKET; FWD CLU,A/T 4JH1 ENG<RJX> (A)	8-97184-888-0	01	1	0009-
63	GASKET; FWD CLU,A/T 4JH1 ENG<RJX> (B) ID=24	8-97184-889-0	01	1	0009-
64	SPRING; DIRECT CLU 4JH1 ENG<RJX>	8-97184-335-0	01	1	0009-
70	PISTON; ACCUMLATOR 4JH1 ENG<RJX>	8-97027-205-0	01	1	0009-
71	GASKET; ACCUMLATOR PISTON 4JH1 ENG<RJX>	8-97184-884-0	01	1	0009-
72	SPRING; ACCUMLATOR PISTON 4JH1 ENG<RJX>	8-97027-206-0	01	1	0009-
111	BODY; CHECK BALL 4JH1 ENG<RJX>	8-94479-931-0	01	1	0009-
113	SPRING; CHECK BALL 4JH1 ENG<RJX>	8-94479-930-0	01	1	0009-
176	SPRING; ACCUM INNER 4JH1 ENG<RJX>	8-97025-825-0	01	1	0009-
177	RING; SNAP 4JH1 ENG<RJX> ID=19	8-97025-821-0	03	1	0009-
257	CLAMP; HARNESS 4JH1 ENG<RJX>	8-97232-037-0	01	1	0009-
282	BODY ASM; VLV,A/T 4JH1 ENG<RJX>	8-97288-903-0	01	1	0009-
