◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#43576) — 50 parça

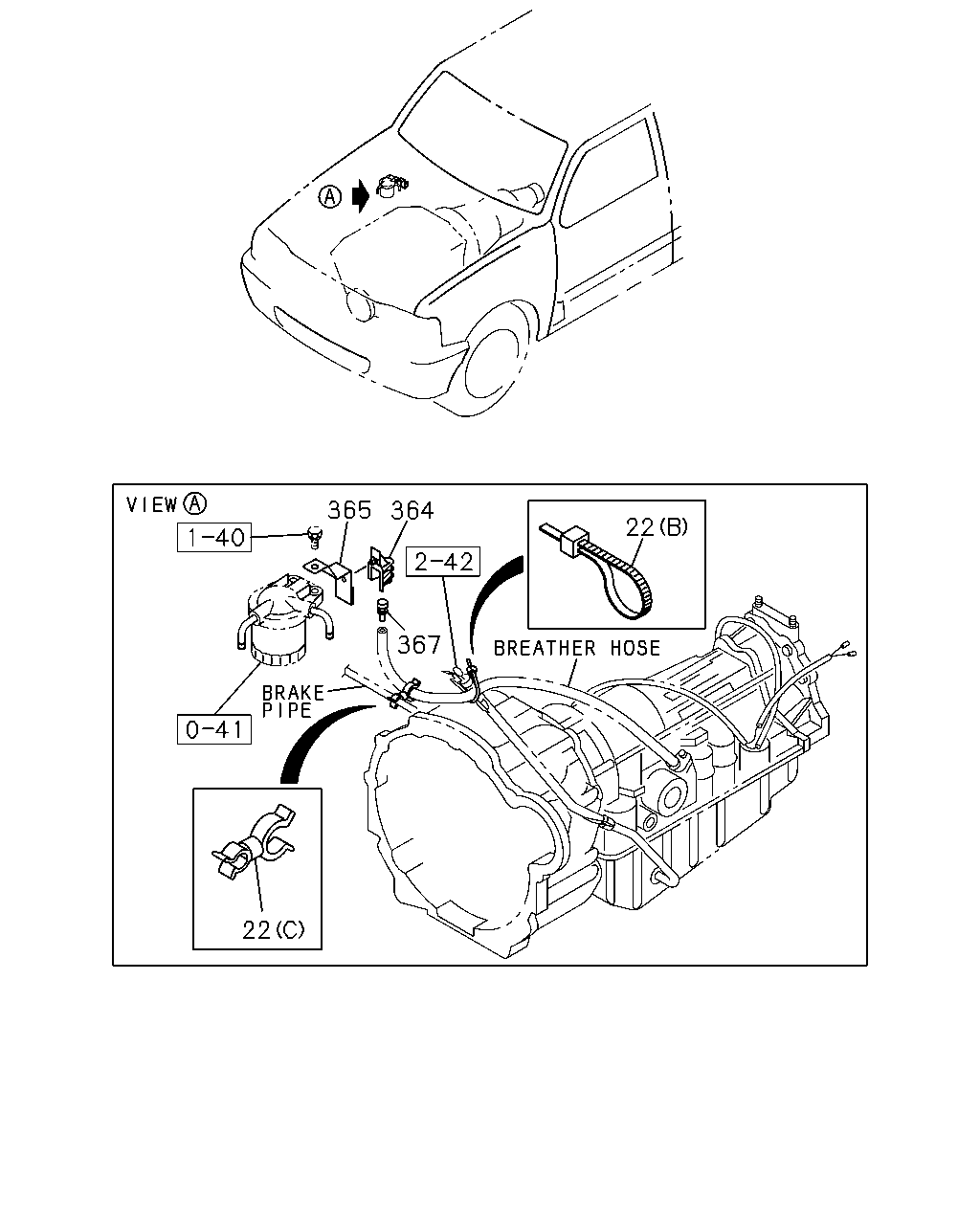

çizim 10738
365 364 22 367 22
BalonParca AdiParca NoAdetTipApplied Date
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (B) L=140 THA 		5-09707-031-1 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (C) ID=13 & 4.75 THA 		8-94447-856-0 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (A) 		8-94479-730-0 01 1 0009-
364 COVER; AIR BREATHER,A/T
4JH1 ENG<RJX> 		8-97228-324-0 01 1 0009-
365 BRACKET; BREATHER HOSE,A/T
4JH1 ENG<RJX> 		8-97252-264-1 01 1 0009-
367 BREATHER; AIR,MISSION
4JH1 ENG<RJX> 		8-97164-362-0 01 1 0009-

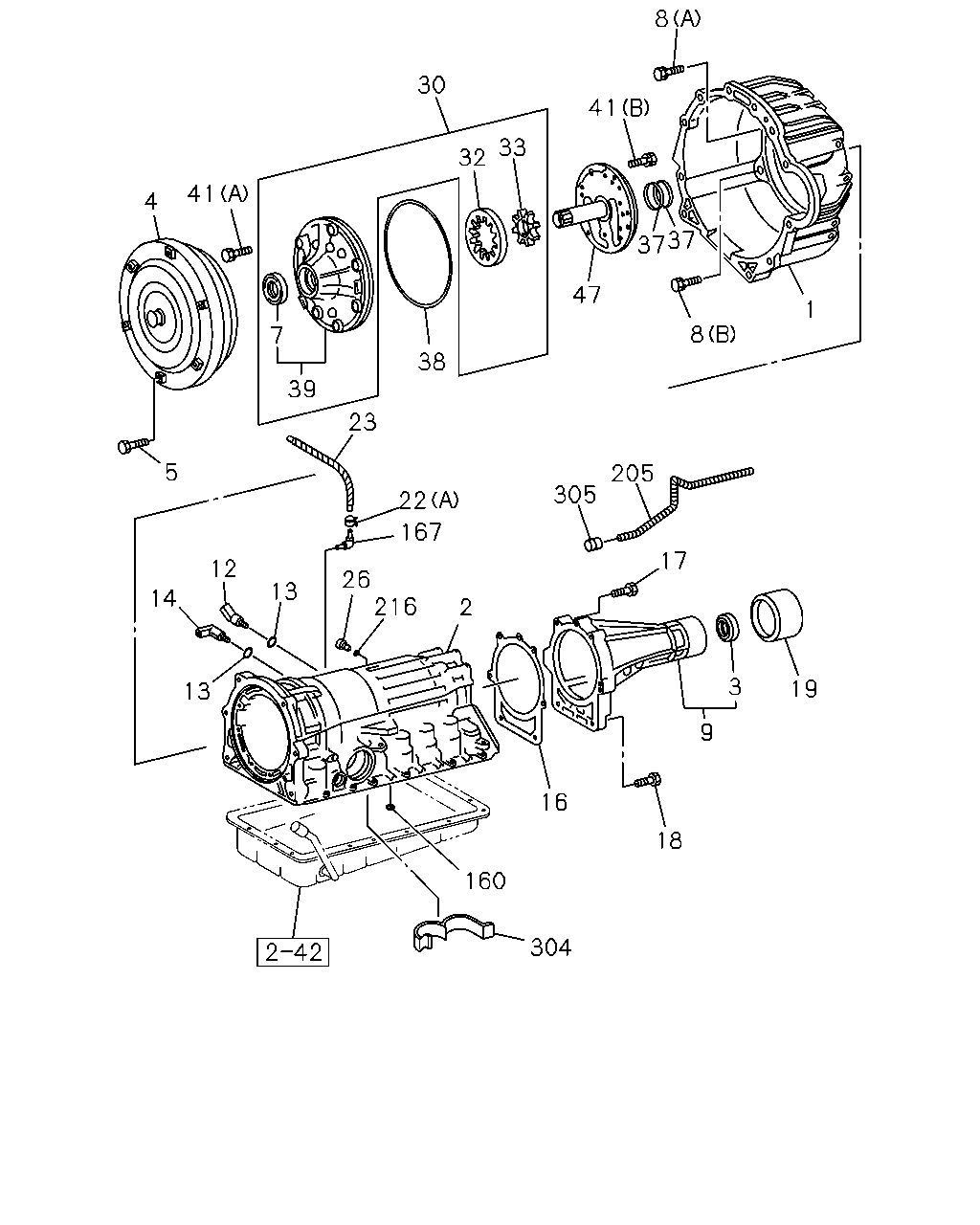

çizim 12569
8 30 41 33 32 37 37 41 4 47 1 8 7 38 39 23 5 205 305 22 167 17 12 26 216 13 14 2 3 19 13 9 16 18 160 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T
4JH1 ENG<RJX> 		8-97179-520-0 01 1 0009-
2 CASE ASM; A/T
4JH1 ENG<RJX> 		8-97288-902-0 01 1 0009-
3 SEAL; OIL,RR COVER,A/T
4JH1 ENG<RJX> 		8-97184-430-0 01 1 0009-
4 CONVERTER ASM; TORQUE,A/T
4JH1 ENG<RJX> 		8-97214-535-0 01 1 0009-
5 BOLT; RR PLATE TO TORQUE CONV
4JH1 ENG<RJX> M8X10 THA 		8-94460-742-0 06 1 0009-
7 SEAL; OIL,LIP,A/T
4JH1 ENG<RJX> 		8-94479-742-0 01 1 0009-
8 BOLT; HSG TO CASE
4JH1 ENG<RJX> (A) M10X35 		8-90257-082-0 04 1 0009-
8 BOLT; HSG TO CASE
4JH1 ENG<RJX> (B) M12X68 		8-97025-830-0 02 1 0009-
9 COVER ASM; RR,A/T
4JH1 ENG<RJX> 		8-97184-429-0 01 1 0009-
12 CONNECTOR; OIL COOLER OUTLET PIPE
4JH1 ENG<RJX> 		8-94450-762-0 01 1 0009-
13 GASKET; OIL COOLER PIPE
4JH1 ENG<RJX> ID=11.7 		8-94479-724-0 02 1 0009-
14 UNION; OIL COOLER RETURN PIPE
4JH1 ENG<RJX> 		8-94450-761-0 01 1 0009-
16 GASKET; EXT HSG
4JH1 ENG<RJX> 		8-97032-928-0 01 1 0009-
17 BOLT; REAR COVER TO CASE
4JH1 ENG<RJX> M10X45 		8-94473-632-0 04 1 0009-
18 BOLT; RR CVR TO CASE,LWR,A/T
4JH1 ENG<RJX> M10X35 		8-94479-951-0 02 1 0009-
19 COVER; DUST,REAR COVER
4JH1 ENG<RJX> 		8-97184-432-0 01 1 0009-
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (B) L=140 THA 		5-09707-031-1 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (C) ID=13 & 4.75 THA 		8-94447-856-0 02 1 0009-
22 CLIP; BREATHER HOSE,A/T
4JH1 ENG<RJX> (A) 		8-94479-730-0 01 1 0009-
23 HOSE; BREATHER,A/T
4JH1 ENG<RJX> 		8-97288-901-0 01 1 0009-
26 PLUG; TRANS CASE
4JH1 ENG<RJX> 		5-34119-002-0 02 1 0009-
30 PUMP ASM; OIL,A/T
4JH1 ENG<RJX> 		8-97143-135-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.715 H MARK 		8-97184-337-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.695 F MARK 		8-97213-029-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.705 G MARK 		8-97213-030-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.725 J MARK 		8-97213-031-0 01 1 0009-
32 GEAR; OUTER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.735 K MARK 		8-97213-032-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.715 H MARK 		8-97147-426-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.695 F MARK 		8-97213-025-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.705 G MARK 		8-97213-026-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.725 J MARK 		8-97213-027-0 01 1 0009-
33 GEAR; INNER,OIL PUMP,A/T
4JH1 ENG<RJX> W=10.735 K MARK 		8-97213-028-0 01 1 0009-
37 RING; SEAL,OIL PUMP,A/T
4JH1 ENG<RJX> 		8-94479-747-0 02 1 0009-
38 GASKET; OIL PUMP,A/T
4JH1 ENG<RJX> 		8-94479-748-0 01 1 0009-
39 BODY SUB ASM; FRT,OIL PUMP,A/T
4JH1 ENG<RJX> 		8-94479-741-0 01 1 0009-
41 BOLT; OIL PUMP HSG,A/T
4JH1 ENG<RJX> (A) M8X35 		8-94479-749-0 07 1 0009-
41 BOLT; OIL PUMP HSG,A/T
4JH1 ENG<RJX> (B) M6X15.5 		8-97019-532-0 13 1 0009-
47 SHAFT; OIL PUMP,A/T
4JH1 ENG<RJX> 		8-97019-531-0 01 1 0009-
160 GASKET; BRK DRUM,A/T
4JH1 ENG<RJX> 		8-94313-576-0 01 1 0009-
167 CONNECTOR; CASE,A/T
4JH1 ENG<RJX> 		8-97126-812-0 01 1 0009-
205 TUBE; EXT HSG
4JH1 ENG<RJX> 		8-97184-431-0 01 1 0009-
216 GASKET; SOLENOID OUTER
4JH1 ENG<RJX> ID=6 		5-34119-001-0 02 1 0009-
304 SPRING; LEAF,A/T
4JH1 ENG<RJX> 		8-97184-331-0 01 1 0009-
305 GASKET; TUBE,EXT HSG
4JH1 ENG<RJX> 		8-97027-228-0 01 1 0009-
