2-30 — GEAR SHIFTER AND QUADRANT BOX (#43573) — 91 parça

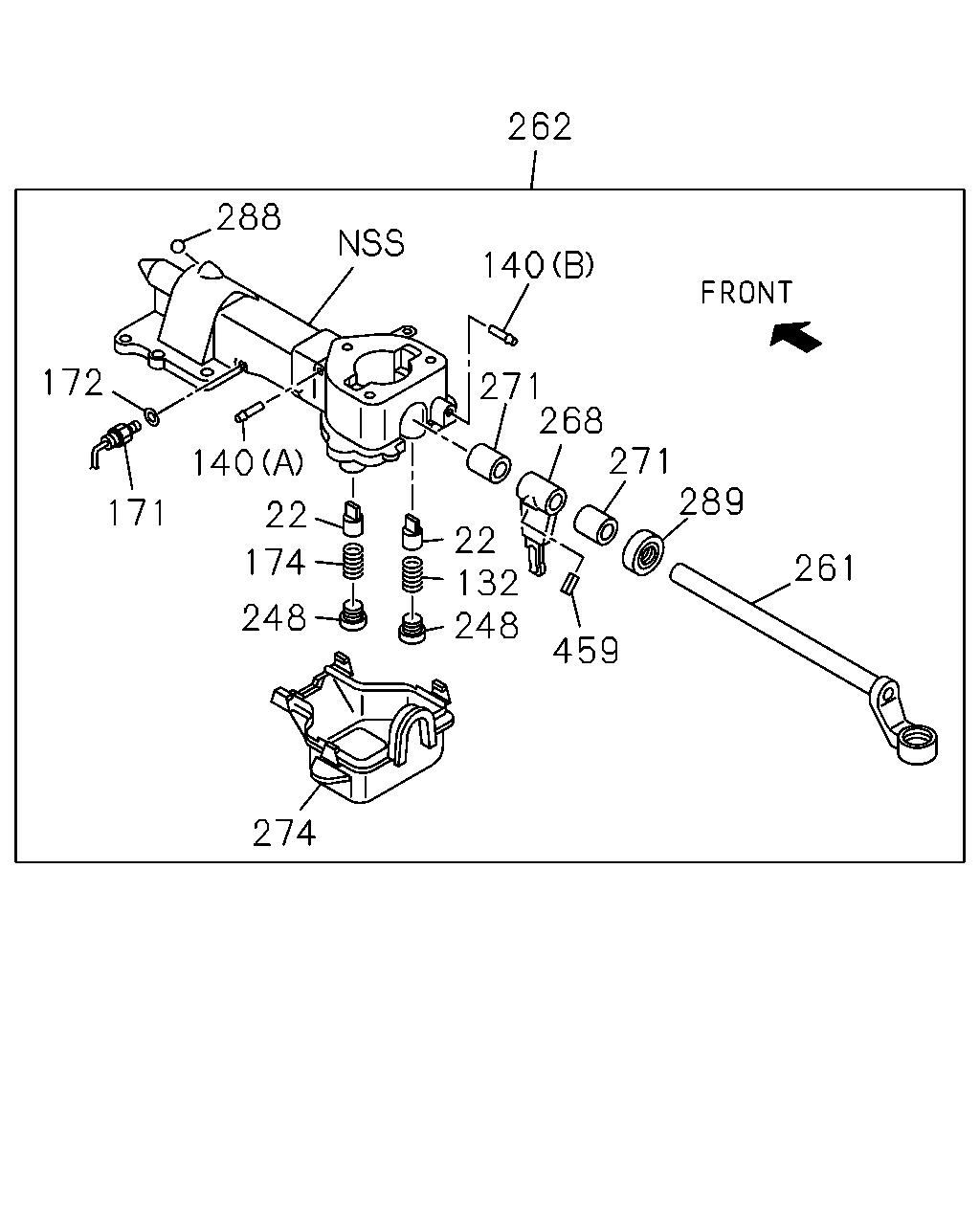

262 288 140 271 268 271 289 22 132 248 172 140 22 174 171 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0009-	●	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0009-	●	●
140	BREATHER; AIR,TRANS 4JH1 ENG<RJX> (A)	8-97173-544-0	01	1	0009-		●
140	BREATHER; AIR,TRANS 4JH1 ENG<RJX> (B)	8-97173-545-0	01	1	0009-		●
171	SWITCH; NEUTRAL 4JH1 ENG<RJX>	8-97138-631-0	01	1	0009-		●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=14.2 THA	8-94462-114-0	01	1	0009-		●
174	SPRING; REV	8-97181-394-0	01	1	0009-	●	●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0009-	●	●
261	ROD; GEAR CONT 4JA1 ENG<RLE>	8-97257-825-0	01	1	0009-	●
261	ROD; GEAR CONT 4JH1 ENG<RJX>	8-97257-909-0	01	1	0009-		●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE>	8-97201-493-1	01	1	0009-	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX>	8-97257-823-0	01	1	0009-		●
268	LEVER; CONT,INTERNAL 4JA1 ENG<RLE>	8-97184-894-0	01	1	0009-	●
268	LEVER; CONT,INTERNAL 4JH1 ENG<RJX>	8-97184-895-0	01	1	0009-		●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0009-	●	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0009-	●	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0009-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0009-	●	●
459	PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0009-	●	●

262 288 271 268 271 289 22 174 248 22 132 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0009-	●	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0009-	●	●
174	SPRING; REV	8-97181-394-0	01	1	0009-	●	●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0009-	●	●
261	ROD; GEAR CONT 4JA1 ENG<RLE>	8-97257-825-0	01	1	0009-	●
261	ROD; GEAR CONT 4JH1 ENG<RJX>	8-97257-909-0	01	1	0009-		●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE>	8-97201-493-1	01	1	0009-	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX>	8-97257-823-0	01	1	0009-		●
268	LEVER; CONT,INTERNAL 4JA1 ENG<RLE>	8-97184-894-0	01	1	0009-	●
268	LEVER; CONT,INTERNAL 4JH1 ENG<RJX>	8-97184-895-0	01	1	0009-		●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0009-	●	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0009-	●	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0009-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97181-327-0	01	1	0009-	●	●
459	PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0009-	●	●

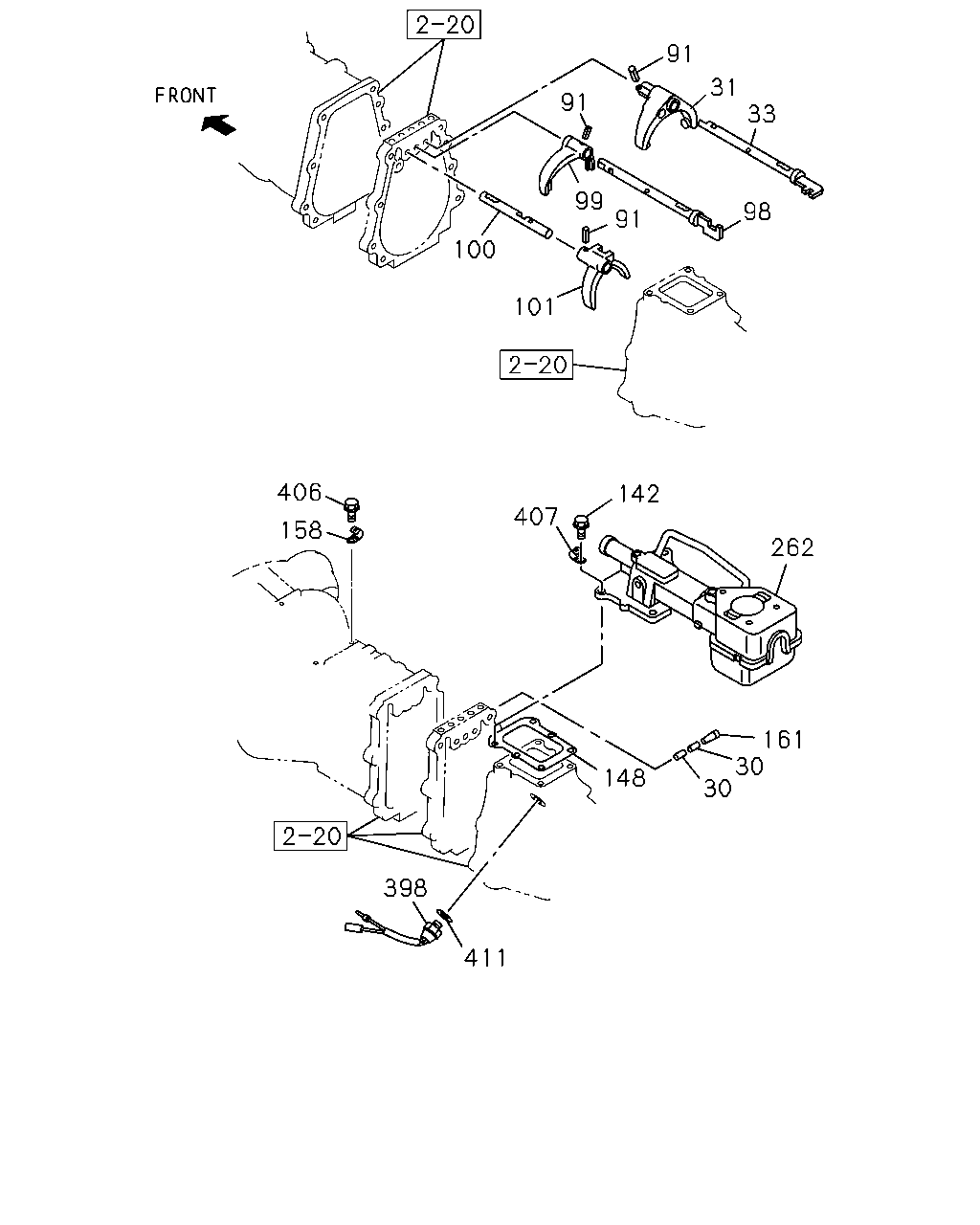

91 31 33 91 99 91 98 100 101 406 142 407 158 262 161 30 30 148 398 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0009-	●	●
31	ARM; SHIFT,LOW & 2ND 4JA1 ENG<RLE>	8-97024-503-1	01	1	0009-	●
31	ARM; SHIFT,LOW & 2ND 4JH1 ENG<RJX>	8-94421-912-2	01	1	0009-		●
33	ROD; SHIFT,LOW & 2ND 4JA1 ENG<RLE>	8-97213-047-0	01	1	0009-	●
33	ROD; SHIFT,LOW & 2ND 4JH1 ENG<RJX>	8-97019-061-2	01	1	0009-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	0009-	●	●
98	ROD; SHIFT,TOP & 3RD 4JA1 ENG<RLE>	8-97213-045-0	01	1	0009-	●
98	ROD; SHIFT,TOP & 3RD 4JH1 ENG<RJX>	8-97019-060-3	01	1	0009-		●
99	ARM; SHIFT,4TH & 3RD 4JA1 ENG<RLE>	8-94435-153-1	01	1	0009-	●
99	ARM; SHIFT,4TH & 3RD 4JH1 ENG<RJX>	8-94421-911-2	01	1	0009-		●
100	ROD; SHIFT,REV & 5TH 4JA1 ENG<RLE>	8-97115-185-0	01	1	0009-	●
101	ARM; SHIFT,REV & 5TH 4JA1 ENG<RLE>	8-94455-851-3	01	1	0009-	●
101	ARM; SHIFT,REV & 5TH 4JH1 ENG<RJX>	8-94448-755-2	01	1	0009-		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0009-	●	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-97184-922-0	01	1	0009-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-599-0	01	1	0009-		●
158	CLIP; HARNESS 4JA1 ENG<RLE> ID=12 B=14 ID=8.5 THA	5-09700-350-0	02	1	0009-	●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	0009-	●	●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE>	8-97201-493-1	01	1	0009-	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX>	8-97257-823-0	01	1	0009-		●
398	SWITCH; REV LAMP 4JA1 ENG<RLE>	8-94411-366-1	01	1	0009-	●
398	SWITCH; REV LAMP 4JH1 ENG<RJX>	8-97138-635-0	01	1	0009-		●
406	BOLT; HARNESS CLIP 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
407	CLIP; SWITCH HARNESS 4JA1 ENG<RLE> ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0009-	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> ID=14.2 THA	8-94462-114-0	01	1	0009-	●

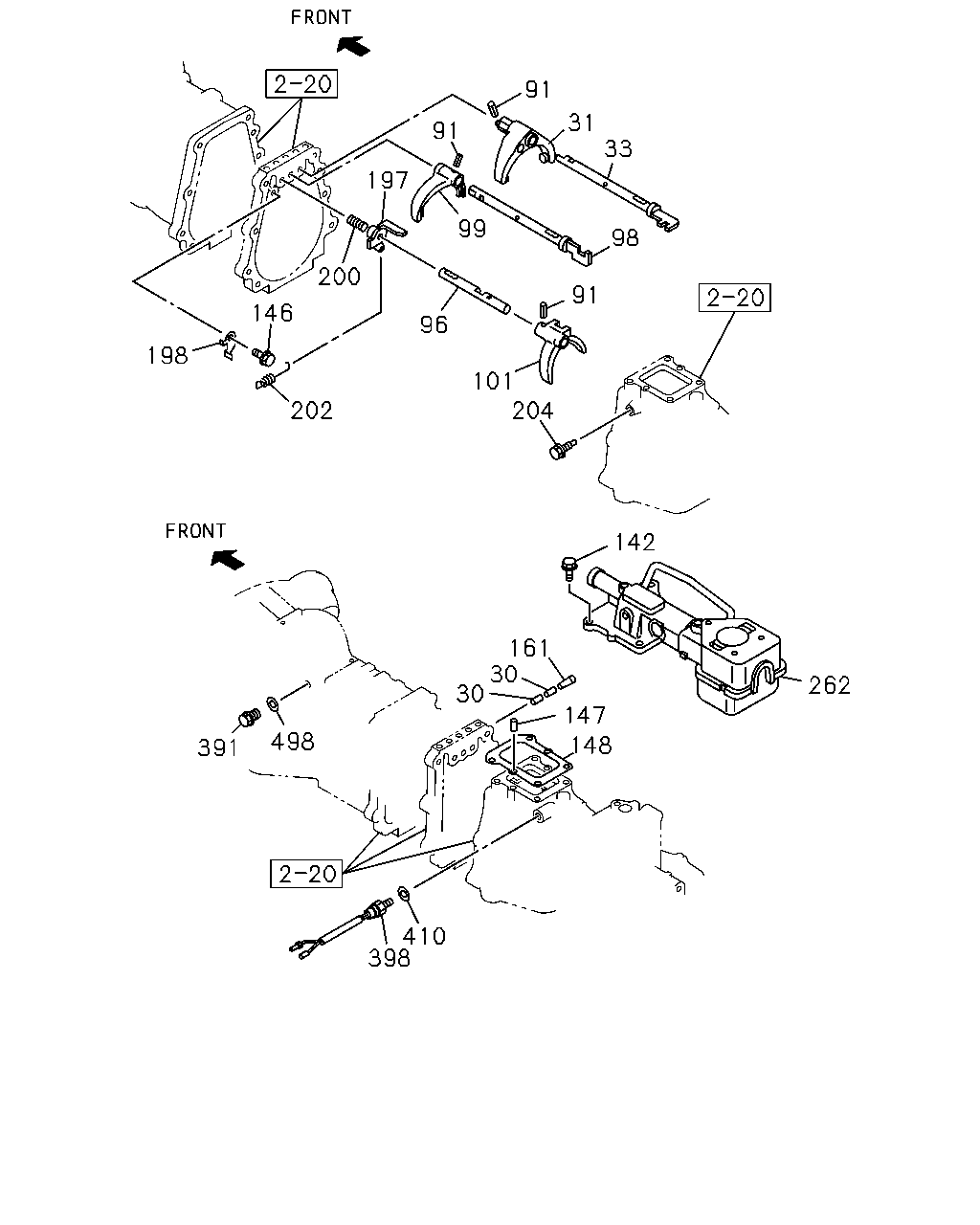

91 31 33 91 197 99 98 200 146 91 96 198 101 204 202 142 161 30 30 262 147 148 498 391 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0009-	●	●
31	ARM; SHIFT,LOW & 2ND 4JA1 ENG<RLE>	8-97024-503-1	01	1	0009-	●
31	ARM; SHIFT,LOW & 2ND 4JH1 ENG<RJX>	8-94421-912-2	01	1	0009-		●
33	ROD; SHIFT,LOW & 2ND 4JA1 ENG<RLE>	8-97213-047-0	01	1	0009-	●
33	ROD; SHIFT,LOW & 2ND 4JH1 ENG<RJX>	8-97019-061-2	01	1	0009-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	0009-	●	●
96	ROD; SHIFT,5TH 4JH1 ENG<RJX>	8-94440-079-1	01	1	0009-		●
98	ROD; SHIFT,TOP & 3RD 4JA1 ENG<RLE>	8-97213-045-0	01	1	0009-	●
98	ROD; SHIFT,TOP & 3RD 4JH1 ENG<RJX>	8-97019-060-3	01	1	0009-		●
99	ARM; SHIFT,4TH & 3RD 4JA1 ENG<RLE>	8-94435-153-1	01	1	0009-	●
99	ARM; SHIFT,4TH & 3RD 4JH1 ENG<RJX>	8-94421-911-2	01	1	0009-		●
101	ARM; SHIFT,REV & 5TH 4JA1 ENG<RLE>	8-94455-851-3	01	1	0009-	●
101	ARM; SHIFT,REV & 5TH 4JH1 ENG<RJX>	8-94448-755-2	01	1	0009-		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0009-	●	●
146	BOLT; REV INHIBITOR 4JH1 ENG<RJX> M8X20 FLANGE	0-28680-820-0	01	1	0009-0011		●
146	BOLT; REV INHIBITOR 4JH1 ENG<RJX> M8X20 FLANGE	0-28080-820-0	01	1	0012-		●
147	PIN; KNOCK 4X2<TFB***> 4JH1 ENG<RJX> OD=6 L=12	9-08150-612-0	02	1	0009-		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-97184-922-0	01	1	0009-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-599-0	01	1	0009-		●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	0009-	●	●
197	INHIBITOR; REV SHIFT 4JH1 ENG<RJX>	8-94448-753-0	01	1	0009-		●
198	BRACKET; REV INHIBITOR 4JH1 ENG<RJX>	8-94448-199-0	01	1	0009-		●
200	SPRING; REV INHIBITOR,COMP 4JH1 ENG<RJX>	8-94448-807-0	01	1	0009-		●
202	SPRING; REV INHIBITOR,EXT 4JH1 ENG<RJX>	8-97017-500-0	01	1	0009-		●
204	STOPPER; REV INHIBITOR 4JH1 ENG<RJX>	8-94479-434-2	01	1	0009-		●
262	BOX ASM; SHIFT CONT 4JA1 ENG<RLE>	8-97201-493-1	01	1	0009-	●
262	BOX ASM; SHIFT CONT 4JH1 ENG<RJX>	8-97257-823-0	01	1	0009-		●
391	PLUG; SW HOLE 4JH1 ENG<RJX> M14X11	8-94252-142-0	01	1	0009-		●
398	SWITCH; REV LAMP 4JA1 ENG<RLE>	8-94411-366-1	01	1	0009-	●
398	SWITCH; REV LAMP 4JH1 ENG<RJX>	8-97138-635-0	01	1	0009-		●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0009-		●
498	GASKET; SWITCH,1ST & 2ND 4JH1 ENG<RJX> ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0009-		●
