Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#43572) — 397 parça

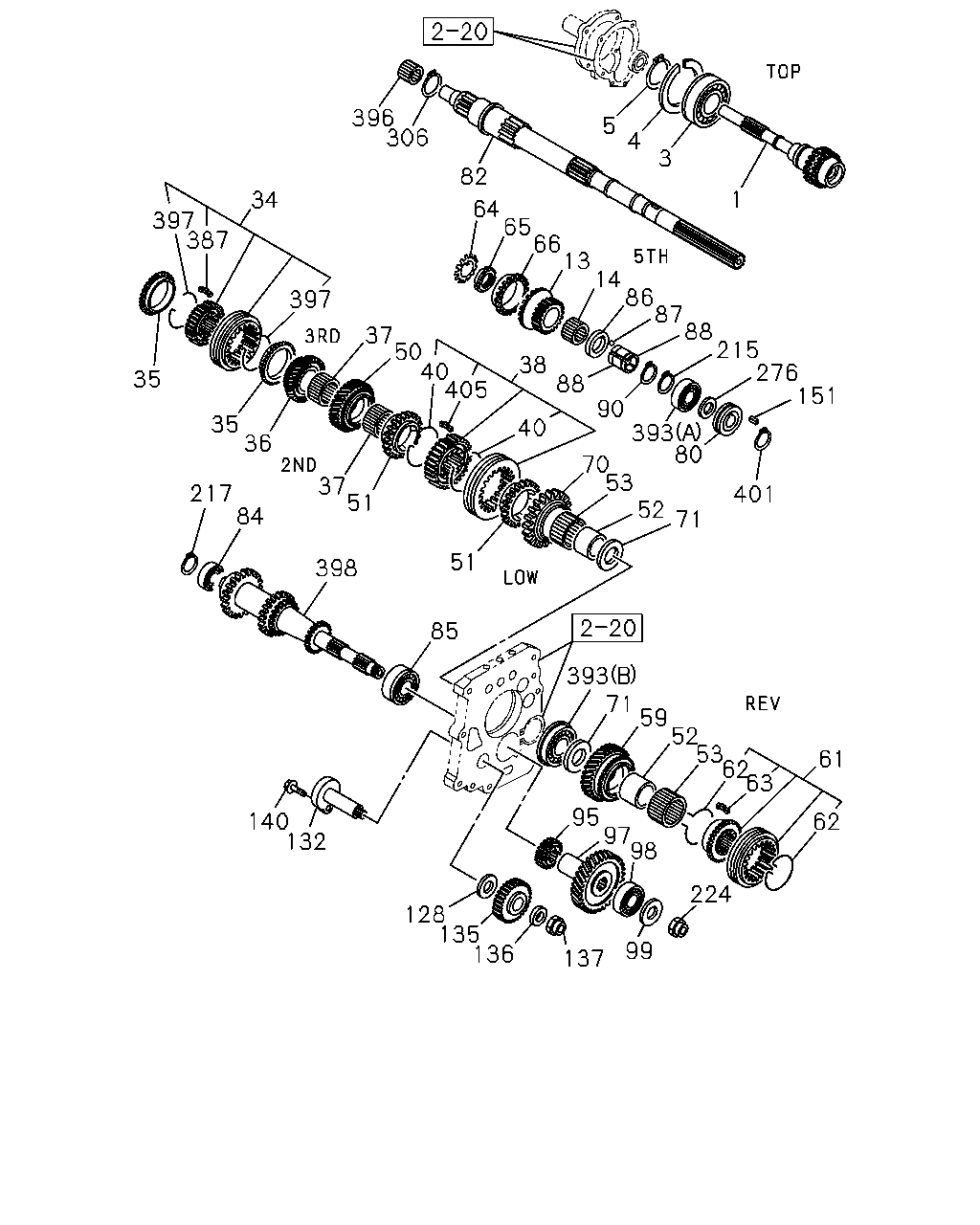

396 306 5 4 3 82 64 65 66 13 14 86 87 88 215 276 151 34 1 397 387 397 37 50 40 405 38 88 90 393 80 35 35 36 37 51 40 70 53 52 71 217 84 401 51 398 85 393 71 59 52 53 62 61 63 95 97 98 140 132 62 224 137 128 135 136 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JA1 ENG<RLE> Z=23	8-94435-160-2	01	1	0009-	●
1	SHAFT; TOP GEAR,TRANS 4JH1 ENG<RJX> Z=25	8-97182-212-0	01	1	0009-		●
3	BEARING; TOP GEAR SHAFT 4JA1 ENG<RLE> NSK THA	8-94167-637-0	01	1	0009-	●
3	BEARING; TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94380-015-1	01	1	0009-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> NSK	8-94206-485-0	01	1	0009-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94422-083-0	01	1	0009-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> ID=37.0	9-09180-040-0	01	1	0009-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> ID=37.4	8-97254-316-0	01	1	0009-		●
13	GEAR; 5TH,MAINSHAFT 4JA1 ENG<RLE> Z=25	8-94161-912-3	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT 4JH1 ENG<RJX> Z=22	8-97104-023-2	01	1	0009-		●
14	BEARING; NEEDLE,5TH 4JA1 ENG<RLE> NSK	8-94161-994-0	01	1	0009-	●
14	BEARING; NEEDLE,5TH 4JH1 ENG<RJX> NSK	8-97029-341-0	01	1	0009-		●
34	SYNCHRONIZER; 4TH & 3RD 4JA1 ENG<RLE>	8-94161-860-0	01	1	0009-	●
34	SYNCHRONIZER; 4TH & 3RD 4JH1 ENG<RJX>	8-97188-798-0	01	1	0009-		●
35	RING; BLOCK,4TH & 3RD 4JA1 ENG<RLE> Z=30	8-94463-830-1	02	1	0009-	●
35	RING; BLOCK,4TH & 3RD 4JH1 ENG<RJX> Z=45	8-94151-510-3	02	1	0009-		●
36	GEAR; 3RD,MAINSHAFT 4JA1 ENG<RLE> Z=29	8-94161-137-1	01	1	0009-	●
36	GEAR; 3RD,MAINSHAFT 4JH1 ENG<RJX> Z=29	8-97104-022-2	01	1	0009-		●
37	BEARING; NEEDLE,2ND & 3RD 4JA1 ENG<RLE> NSK	8-94161-989-0	02	1	0009-	●
38	SYNCHRONIZER; LOW & 2ND 4JA1 ENG<RLE>	8-94435-140-0	01	1	0009-	●
38	SYNCHRONIZER; LOW & 2ND 4JH1 ENG<RJX>	8-97188-799-0	01	1	0009-		●
40	SPRING; INSERT,LOW & 2ND 4JA1 ENG<RLE>	8-94152-558-1	02	1	0009-	●
40	SPRING; INSERT,LOW & 2ND 4JH1 ENG<RJX>	8-94448-045-0	02	1	0009-		●
50	GEAR; 2ND,MAINSHAFT 4JA1 ENG<RLE> Z=31	8-94311-564-1	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT 4JH1 ENG<RJX> Z=33	8-97025-872-0	01	1	0009-		●
51	RING; BLOCK,LOW & 2ND 4JA1 ENG<RLE> Z=45	8-94151-510-3	02	1	0009-	●
51	RING; BLOCK,LOW & 2ND 4JH1 ENG<RJX> Z=48	8-94363-054-1	02	1	0009-		●
52	COLLAR; NEEDLE BRG,LOW 4JA1 ENG<RLE>	8-94248-620-1	02	1	0009-	●
53	BEARING; NEEDLE,LOW & REV 4JA1 ENG<RLE> NSK	8-94161-991-0	02	1	0009-	●
59	GEAR; REV MAINSHAFT 4JA1 ENG<RLE> Z=37	8-94310-158-1	01	1	0009-	●
59	GEAR; REV MAINSHAFT 4JH1 ENG<RJX> Z=40	8-97104-024-2	01	1	0009-		●
61	SYNCHRONIZER; REV & 5TH 4JA1 ENG<RLE>	5-33260-010-0	01	1	0009-	●
61	SYNCHRONIZER; REV & 5TH 4JH1 ENG<RJX>	8-97188-800-0	01	1	0009-		●
62	SPRING; INSERT,REV & 5TH 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
62	SPRING; INSERT,REV & 5TH 4JH1 ENG<RJX>	5-33264-012-0	02	1	0009-		●
63	INSERT; SYN,REV & 5TH 4JA1 ENG<RLE>	5-33263-002-3	03	1	0009-	●
63	INSERT; SYN,REV & 5TH 4JH1 ENG<RJX>	5-33263-001-0	03	1	0009-		●
64	WASHER; LK,LOW 4JA1 ENG<RLE>	8-94238-095-0	01	1	0009-	●
65	NUT; MAINSHAFT 4JA1 ENG<RLE> M32	8-94238-094-1	01	1	0009-	●
65	NUT; MAINSHAFT 4JH1 ENG<RJX> M34	8-94422-071-1	01	1	0009-		●
66	RING; BLOCK,SYN 4JA1 ENG<RLE> Z=30	8-94463-830-1	01	1	0009-	●
66	RING; BLOCK,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97169-516-1	01	1	0009-0011		●
66	RING; BLOCK,SYN 4X4<TFS***>	8-97169-516-1	01	1	0012-		●
70	GEAR; 1ST,MAINSHAFT 4JA1 ENG<RLE> Z=41	8-94310-154-1	01	1	0009-	●
70	GEAR; 1ST,MAINSHAFT 4JH1 ENG<RJX> Z=43	8-94363-057-0	01	1	0009-		●
71	WASHER; THRUST,LOW 4JA1 ENG<RLE> ID=32.0	5-33239-043-3	02	1	0009-	●
80	GEAR; SPD DRIVE 4JA1 ENG<RLE> Z=6	8-94161-086-1	01	1	0009-	●
80	GEAR; SPD DRIVE 4JH1 ENG<RJX> Z=6	8-94472-608-1	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4JA1 ENG<RLE> Z=26-24-27	8-94435-162-3	01	1	0009-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> 4JH1 ENG<RJX> Z=28-34-26-27	8-97120-040-0	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27	8-97120-039-0	01	1	0009-		●
84	BEARING; COUNTER SHAFT,FRT 4JA1 ENG<RLE> NSK ID=20 OD=47 THA	8-97063-365-0	01	1	0009-	●
85	BEARING; ANGULAR BALL,CLUSTER 4JA1 ENG<RLE> NSK ID=25 OD=52 THA	8-94124-766-0	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.80	8-94238-099-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.90	8-94238-100-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.00	8-94238-101-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.10	8-94238-102-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.20	8-94238-103-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.30	8-94238-104-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=7.90 WHITE	8-94422-110-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.00 YELLOW	8-94422-111-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.10 GREEN	8-94422-112-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.20 BLUE	8-94422-113-2	01	1	0009-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0009-	●	●
88	RING; THRUST,THRUST WASHER 4JA1 ENG<RLE>	8-94473-936-2	02	1	0009-	●
90	RING; SNAP,THRUST RING 4JA1 ENG<RLE> ID=37.0	9-09180-040-0	01	1	0009-	●
90	RING; SNAP,THRUST RING 4X2<TFB***> 4JH1 ENG<RJX> ID=29.6	9-09180-032-0	01	1	0009-		●
95	GEAR; REV,COUNTER 4JA1 ENG<RLE> Z=16	8-94161-120-1	01	1	0009-	●
95	GEAR; REV,COUNTER 4JH1 ENG<RJX> Z=19	8-94377-433-0	01	1	0009-		●
97	GEAR; 5TH,COUNTER 4JA1 ENG<RLE> Z=47	8-94161-098-2	01	1	0009-	●
97	GEAR; 5TH,COUNTER 4JH1 ENG<RJX> Z=50	8-94377-434-0	01	1	0009-		●
98	BEARING; BALL,COUNTER END 4JA1 ENG<RLE> NSK	8-97063-366-0	01	1	0009-	●
98	BEARING; BALL,COUNTER END 4JH1 ENG<RJX> NSK	8-97018-535-1	01	1	0009-		●
99	WASHER; PL,COUNTER 5TH GEAR 4JA1 ENG<RLE> ID=17	9-09160-516-0	01	1	0009-	●
128	WASHER; THRUST,REV SHAFT 4JA1 ENG<RLE> ID=22.0	5-33363-004-0	01	1	0009-	●
132	SHAFT; REV 4JA1 ENG<RLE>	8-94435-146-0	01	1	0009-	●
132	SHAFT; REV 4JH1 ENG<RJX>	8-97019-155-1	01	1	0009-		●
135	GEAR; REV IDLER 4JA1 ENG<RLE> Z=23	8-94161-118-1	01	1	0009-	●
135	GEAR; REV IDLER 4JH1 ENG<RJX> Z=33	8-94377-435-0	01	1	0009-		●
136	WASHER; THRUST,REV IDLE,RR 4JA1 ENG<RLE> ID=16.2	5-33363-003-3	01	1	0009-	●
137	NUT; REV GEAR 4JA1 ENG<RLE> M16	9-09844-195-0	01	1	0009-	●
140	BOLT; LK PIECE 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
151	KEY; FEATHER,SPD DRIVE GEAR 4JA1 ENG<RLE>	9-08020-510-0	01	1	0009-	●
215	RING; SNAP,BALL BRG 4JA1 ENG<RLE> ID=27.9	9-09180-030-0	01	1	0009-	●
217	RING; SNAP,COUNTER FRT BRG 4JA1 ENG<RLE> ID=18.5	9-09180-020-0	01	1	0009-	●
224	NUT; SELF LK,COUNTER 4JA1 ENG<RLE> M16	9-09844-195-0	01	1	0009-	●
276	SPACER; BRG TO DRIVE GEAR 4JA1 ENG<RLE>	8-94161-087-0	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.50	5-09588-020-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.55	5-09588-021-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.60	5-09588-022-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.65	5-09588-023-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.90 BLUE	8-97129-615-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.85 YELLOW	8-97129-616-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.80 WHITE	8-97129-617-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> 4JH1 ENG<RJX> (B) ID=27.9	9-09180-030-0	02	1	0009-		●
387	INSERT; SYN,4TH & 3RD 4JA1 ENG<RLE>	9-33263-048-2	03	1	0009-	●
393	BEARING; MAINSHAFT END 4JA1 ENG<RLE> (A) NSK THA	8-94173-863-0	01	1	0009-	●
393	BEARING; MAINSHAFT END 4JA1 ENG<RLE> (B) NSK	8-94173-866-0	01	1	0009-	●
396	BEARING; NEEDLE,MAINSHAFT 4JA1 ENG<RLE> JTEKT	9-00096-100-1	01	1	0009-	●
396	BEARING; NEEDLE,MAINSHAFT 4JH1 ENG<RJX> NSK	8-94422-068-1	01	1	0009-		●
397	SPRING; INSERT,4TH & 3RD 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0012-		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***>	8-94422-075-0	02	1	0012-		●
398	GEAR; COUNTER 4JA1 ENG<RLE> Z=37-31-20-16	8-94469-524-1	01	1	0009-	●
398	GEAR; COUNTER 4JH1 ENG<RJX> Z=46-38-27-21	8-97100-912-0	01	1	0009-		●
401	RING; SNAP,SPD DRIVE GEAR 4JA1 ENG<RLE> ID=27.9	9-09180-030-0	01	1	0009-	●
405	INSERT; SYN,LOW & 2ND 4JA1 ENG<RLE>	8-94152-557-1	03	1	0009-	●
405	INSERT; SYN,LOW & 2ND 4JH1 ENG<RJX>	8-94363-062-1	03	1	0009-		●

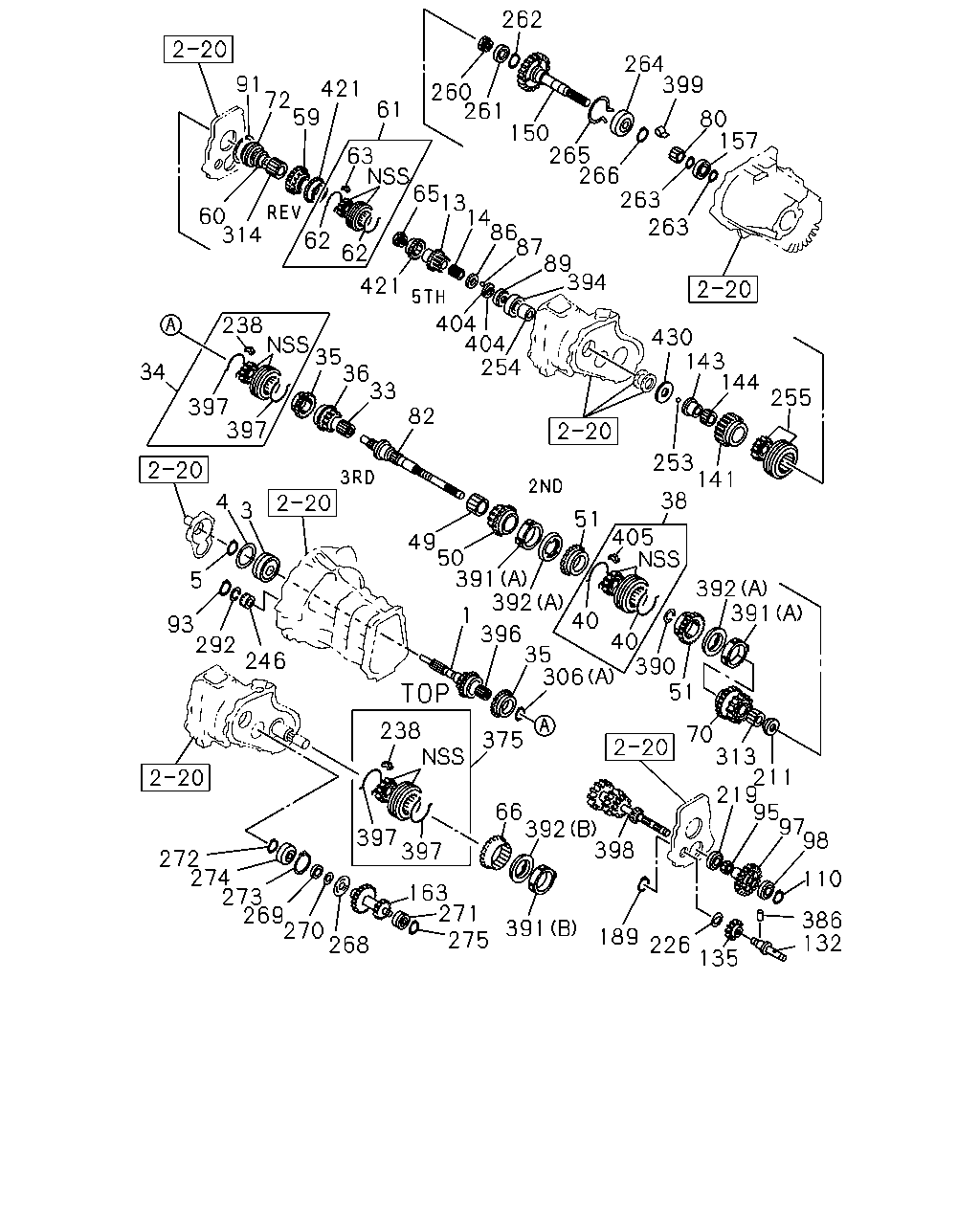

262 264 399 80 157 91 421 72 59 260 261 150 265 266 263 263 61 63 65 13 14 86 87 89 394 60 314 62 62 421 404 404 254 238 35 36 33 82 430 143 144 255 34 397 397 253 141 38 4 3 51 405 392 391 49 50 391 392 1 40 396 40 35 390 306 51 5 93 292 246 375 238 70 313 211 219 95 97 98 397 397 66 392 398 272 274 273 269 270 268 110 163 271 275 386 132 391 189 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JA1 ENG<RLE> Z=23	8-94435-160-2	01	1	0009-	●
1	SHAFT; TOP GEAR,TRANS 4JH1 ENG<RJX> Z=25	8-97182-212-0	01	1	0009-		●
3	BEARING; TOP GEAR SHAFT 4JA1 ENG<RLE> NSK THA	8-94167-637-0	01	1	0009-	●
3	BEARING; TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94380-015-1	01	1	0009-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> NSK	8-94206-485-0	01	1	0009-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94422-083-0	01	1	0009-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> ID=37.0	9-09180-040-0	01	1	0009-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> ID=37.4	8-97254-316-0	01	1	0009-		●
13	GEAR; 5TH,MAINSHAFT 4JA1 ENG<RLE> Z=25	8-94161-912-3	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT 4JH1 ENG<RJX> Z=22	8-97104-023-2	01	1	0009-		●
14	BEARING; NEEDLE,5TH 4JA1 ENG<RLE> NSK	8-94161-994-0	01	1	0009-	●
14	BEARING; NEEDLE,5TH 4JH1 ENG<RJX> NSK	8-97029-341-0	01	1	0009-		●
33	BEARING; NEEDLE,3RD GEAR 4JH1 ENG<RJX> NSK	1-09811-028-1	01	1	0009-		●
34	SYNCHRONIZER; 4TH & 3RD 4JA1 ENG<RLE>	8-94161-860-0	01	1	0009-	●
34	SYNCHRONIZER; 4TH & 3RD 4JH1 ENG<RJX>	8-97188-798-0	01	1	0009-		●
35	RING; BLOCK,4TH & 3RD 4JA1 ENG<RLE> Z=30	8-94463-830-1	02	1	0009-	●
35	RING; BLOCK,4TH & 3RD 4JH1 ENG<RJX> Z=45	8-94151-510-3	02	1	0009-		●
36	GEAR; 3RD,MAINSHAFT 4JA1 ENG<RLE> Z=29	8-94161-137-1	01	1	0009-	●
36	GEAR; 3RD,MAINSHAFT 4JH1 ENG<RJX> Z=29	8-97104-022-2	01	1	0009-		●
38	SYNCHRONIZER; LOW & 2ND 4JA1 ENG<RLE>	8-94435-140-0	01	1	0009-	●
38	SYNCHRONIZER; LOW & 2ND 4JH1 ENG<RJX>	8-97188-799-0	01	1	0009-		●
40	SPRING; INSERT,LOW & 2ND 4JA1 ENG<RLE>	8-94152-558-1	02	1	0009-	●
40	SPRING; INSERT,LOW & 2ND 4JH1 ENG<RJX>	8-94448-045-0	02	1	0009-		●
49	BEARING; NEEDLE,2ND GEAR 4JH1 ENG<RJX> JTEKT	9-00096-625-0	01	1	0009-		●
50	GEAR; 2ND,MAINSHAFT 4JA1 ENG<RLE> Z=31	8-94311-564-1	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT 4JH1 ENG<RJX> Z=33	8-97025-872-0	01	1	0009-		●
51	RING; BLOCK,LOW & 2ND 4JA1 ENG<RLE> Z=45	8-94151-510-3	02	1	0009-	●
51	RING; BLOCK,LOW & 2ND 4JH1 ENG<RJX> Z=48	8-94363-054-1	02	1	0009-		●
59	GEAR; REV MAINSHAFT 4JA1 ENG<RLE> Z=37	8-94310-158-1	01	1	0009-	●
59	GEAR; REV MAINSHAFT 4JH1 ENG<RJX> Z=40	8-97104-024-2	01	1	0009-		●
60	COLLAR; REV MAIN 4JH1 ENG<RJX>	8-97031-079-0	01	1	0009-		●
61	SYNCHRONIZER; REV & 5TH 4JA1 ENG<RLE>	5-33260-010-0	01	1	0009-	●
61	SYNCHRONIZER; REV & 5TH 4JH1 ENG<RJX>	8-97188-800-0	01	1	0009-		●
62	SPRING; INSERT,REV & 5TH 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
62	SPRING; INSERT,REV & 5TH 4JH1 ENG<RJX>	5-33264-012-0	02	1	0009-		●
63	INSERT; SYN,REV & 5TH 4JA1 ENG<RLE>	5-33263-002-3	03	1	0009-	●
63	INSERT; SYN,REV & 5TH 4JH1 ENG<RJX>	5-33263-001-0	03	1	0009-		●
65	NUT; MAINSHAFT 4JA1 ENG<RLE> M32	8-94238-094-1	01	1	0009-	●
65	NUT; MAINSHAFT 4JH1 ENG<RJX> M34	8-94422-071-1	01	1	0009-		●
66	RING; BLOCK,SYN 4JA1 ENG<RLE> Z=30	8-94463-830-1	01	1	0009-	●
66	RING; BLOCK,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97169-516-1	01	1	0009-0011		●
66	RING; BLOCK,SYN 4X4<TFS***>	8-97169-516-1	01	1	0012-		●
70	GEAR; 1ST,MAINSHAFT 4JA1 ENG<RLE> Z=41	8-94310-154-1	01	1	0009-	●
70	GEAR; 1ST,MAINSHAFT 4JH1 ENG<RJX> Z=43	8-94363-057-0	01	1	0009-		●
72	BEARING; BALL,MAINSHAFT 4JH1 ENG<RJX> NSK THA	8-94380-017-1	01	1	0009-		●
80	GEAR; SPD DRIVE 4JA1 ENG<RLE> Z=6	8-94161-086-1	01	1	0009-	●
80	GEAR; SPD DRIVE 4JH1 ENG<RJX> Z=6	8-94472-608-1	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4JA1 ENG<RLE> Z=26-24-27	8-94435-162-3	01	1	0009-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> 4JH1 ENG<RJX> Z=28-34-26-27	8-97120-040-0	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27	8-97120-039-0	01	1	0009-		●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.80	8-94238-099-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.90	8-94238-100-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.00	8-94238-101-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.10	8-94238-102-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.20	8-94238-103-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.30	8-94238-104-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=7.90 WHITE	8-94422-110-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.00 YELLOW	8-94422-111-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.10 GREEN	8-94422-112-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.20 BLUE	8-94422-113-2	01	1	0009-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0009-	●	●
89	RING; RET,THRUST RING 4JH1 ENG<RJX> ID=31.8	8-94422-395-0	01	1	0009-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT 4JH1 ENG<RJX> ID=76.2	8-94322-411-0	01	1	0009-		●
93	RING; SNAP,COUNTER FRT BRG 4JH1 ENG<RJX> ID=23.2	9-09180-025-0	01	1	0009-		●
95	GEAR; REV,COUNTER 4JA1 ENG<RLE> Z=16	8-94161-120-1	01	1	0009-	●
95	GEAR; REV,COUNTER 4JH1 ENG<RJX> Z=19	8-94377-433-0	01	1	0009-		●
97	GEAR; 5TH,COUNTER 4JA1 ENG<RLE> Z=47	8-94161-098-2	01	1	0009-	●
97	GEAR; 5TH,COUNTER 4JH1 ENG<RJX> Z=50	8-94377-434-0	01	1	0009-		●
98	BEARING; BALL,COUNTER END 4JA1 ENG<RLE> NSK	8-97063-366-0	01	1	0009-	●
98	BEARING; BALL,COUNTER END 4JH1 ENG<RJX> NSK	8-97018-535-1	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.10 WHITE	8-94422-103-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.20 YELLOW	8-94422-104-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.30 BLUE	8-94422-105-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.40 PINK	8-94422-106-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.50 GREEN	8-94422-107-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.60 BROWN	8-94422-108-0	01	1	0009-		●
132	SHAFT; REV 4JA1 ENG<RLE>	8-94435-146-0	01	1	0009-	●
132	SHAFT; REV 4JH1 ENG<RJX>	8-97019-155-1	01	1	0009-		●
135	GEAR; REV IDLER 4JA1 ENG<RLE> Z=23	8-94161-118-1	01	1	0009-	●
135	GEAR; REV IDLER 4JH1 ENG<RJX> Z=33	8-94377-435-0	01	1	0009-		●
141	GEAR; INPUT,TRANSFER 4X4<TFS***> Z=34	8-97141-878-0	01	1	0009-		●
143	COLLAR; INPUT GEAR BRG,TRANSFER 4X4<TFS***>	8-94482-579-1	01	1	0009-		●
144	BEARING; NEEDLE,INPUT GEAR 4X4<TFS***> NSK	1-09811-028-1	01	1	0009-		●
150	SHAFT; OUTPUT,RR WHEEL DRIVE 4X4<TFS***> Z=49	8-97166-157-0	01	1	0009-		●
157	BEARING; BALL,OUTPUT SHAFT 4X4<TFS***> NSK	8-94422-170-0	01	1	0009-		●
163	GEAR; COUNTER,TRANSFER 4X4<TFS***> Z=37-26	8-97165-317-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.20 WHITE	8-94422-100-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.30 YELLOW	8-94422-101-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.40 BLUE	8-94422-102-0	01	1	0009-		●
211	BEARING; THRUST NEEDLE,1ST GEAR 4JH1 ENG<RJX> NSK	8-94148-935-0	01	1	0009-		●
219	BEARING; BALL,CLUSTER,RR 4JH1 ENG<RJX> NSK	8-94436-929-0	01	1	0009-		●
226	WASHER; THRUST,REV GEAR,COUNTER 4JH1 ENG<RJX> ID=30.0	8-94223-069-1	01	1	0009-		●
238	INSERT 4JH1 ENG<RJX>	8-94448-202-2	03	1	0009-0011		●
238	INSERT 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-94448-202-2	03	1	0009-0011		●
238	INSERT 4JH1 ENG<RJX>	8-94448-202-2	03	1	0012-		●
238	INSERT 4X4<TFS***>	8-94448-202-2	03	1	0012-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT 4JH1 ENG<RJX> NSK	8-97029-600-3	01	1	0009-		●
253	BALL; INPUT 4X4<TFS***>	8-94201-356-0	01	1	0009-		●
254	COLLAR; TRANSFER 4X4<TFS***>	8-94483-030-2	01	1	0009-		●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER 4X4<TFS***>	8-97141-885-1	01	1	0009-		●
260	NUT; MAINSHAFT END 4X4<TFS***> M30	8-94422-072-1	01	1	0009-		●
261	BEARING; PILOT,OUTPUT SHAFT 4X4<TFS***> NSK	8-94422-176-0	01	1	0009-		●
262	RING; SNAP,PILOT BRG 4X4<TFS***> ID=23.2	9-09180-025-0	01	1	0009-		●
263	RING; SNAP,OUTPUT SHAFT BRG 4X4<TFS***> ID=27.9	9-09180-030-0	02	1	0009-		●
264	BEARING; RR OUTPUT SHAFT,FRT 4X4<TFS***> NSK	8-94422-054-1	01	1	0009-		●
264	BEARING; RR OUTPUT SHAFT,FRT 4X4<TFS***> JTEKT	8-94422-055-1	01	1	0009-		●
265	RING; SNAP,BRG OUTER 4X4<TFS***> OD=95.0	8-94422-091-0	01	1	0009-		●
266	RING; SNAP,BRG INNER 4X4<TFS***> ID=37.4	8-97254-316-0	01	1	0009-		●
268	PLATE; ANTI LASH,COUNTER 4X4<TFS***>	8-97164-348-0	01	1	0009-		●
269	SPACER; ANTI LASH PLATE,COUNTER 4X4<TFS***>	8-97222-764-0	01	1	0009-		●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER 4X4<TFS***>	8-94482-498-0	01	1	0009-		●
271	BEARING; COUNTER GEAR,FRT 4X4<TFS***> NSK	8-94422-050-1	01	1	0009-		●
272	RING; SNAP,BRG INNER 4X4<TFS***> T=1.50 WHITE	8-94448-808-0	01	1	0009-		●
272	RING; SNAP,BRG INNER 4X4<TFS***> T=1.55 YELLOW	8-94448-809-0	01	1	0009-		●
272	RING; SNAP,BRG INNER 4X4<TFS***> T=1.60 BLUE	8-94448-810-0	01	1	0009-		●
273	RING; SNAP,BRG OUTER 4X4<TFS***> OD=77.0	8-94422-092-0	01	1	0009-		●
274	BEARING; COUNTER GEAR,RR 4X4<TFS***> NSK	8-97080-184-0	01	1	0009-		●
274	BEARING; COUNTER GEAR,RR 4X4<TFS***> JTEKT	8-97080-185-0	01	1	0009-		●
275	RING; SNAP,COUNTER GEAR BRG 4X4<TFS***> ID=23.2	9-09180-025-0	01	1	0009-		●
292	RING; SNAP,BRG OUTER 4JH1 ENG<RJX> NSK	8-94422-081-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.50	5-09588-020-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.55	5-09588-021-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.60	5-09588-022-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.65	5-09588-023-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.90 BLUE	8-97129-615-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.85 YELLOW	8-97129-616-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.80 WHITE	8-97129-617-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> 4JH1 ENG<RJX> (B) ID=27.9	9-09180-030-0	02	1	0009-		●
313	BEARING; NEEDLE,LOW GEAR 4JH1 ENG<RJX> NSK	1-09811-028-1	01	1	0009-		●
314	BEARING; NEEDLE,REV GEAR 4JH1 ENG<RJX> NSK	8-94422-064-0	01	1	0009-		●
314	BEARING; NEEDLE,REV GEAR 4JH1 ENG<RJX> JTEKT	8-94422-065-1	01	1	0009-		●
375	SYNCHRONIZER ASM; 2ND & 4TH 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97188-798-0	01	1	0009-0011		●
375	SYNCHRONIZER ASM; 2ND & 4TH 4X4<TFS***>	8-97188-798-0	01	1	0012-		●
375	SYNCHRONIZER ASM; 2ND & 4TH 4X4<TFS***> EXC. SHIFT ON THE FLY<7EX>	8-97104-026-0	01	1	0009-0011		●
386	PIN; REV SHAFT 4JH1 ENG<RJX> OD=6 L=40	9-08150-640-0	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.80 WHITE	8-94422-088-2	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.85 YELLOW	8-94422-089-1	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.90 BLUE	8-94422-090-2	01	1	0009-		●
391	RING; INSIDE,SYN 4JH1 ENG<RJX> (A) OD=95.8	8-94363-056-0	02	1	0009-		●
391	RING; INSIDE,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX> (B)	8-97101-452-0	01	1	0009-0011		●
391	RING; INSIDE,SYN 4X4<TFS***> (B)	8-97101-452-0	01	1	0012-		●
392	RING; OUTSIDE,SYN 4JH1 ENG<RJX> (A) OD=90.0	8-94363-055-0	02	1	0009-		●
392	RING; OUTSIDE,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX> (B)	8-97169-514-0	01	1	0009-0011		●
392	RING; OUTSIDE,SYN 4X4<TFS***> (B)	8-97169-514-0	01	1	0012-		●
394	BEARING; BALL,MAINSHAFT RR 4X4<TFS***> NSK	8-97018-921-1	01	1	0009-		●
396	BEARING; NEEDLE,MAINSHAFT 4JA1 ENG<RLE> JTEKT	9-00096-100-1	01	1	0009-	●
396	BEARING; NEEDLE,MAINSHAFT 4JH1 ENG<RJX> NSK	8-94422-068-1	01	1	0009-		●
397	SPRING; INSERT,4TH & 3RD 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0012-		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***>	8-94422-075-0	02	1	0012-		●
398	GEAR; COUNTER 4JA1 ENG<RLE> Z=37-31-20-16	8-94469-524-1	01	1	0009-	●
398	GEAR; COUNTER 4JH1 ENG<RJX> Z=46-38-27-21	8-97100-912-0	01	1	0009-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4JH1 ENG<RJX>	8-94310-229-0	01	1	0009-		●
404	PLATE; THRUST 4JH1 ENG<RJX>	8-94421-892-0	02	1	0009-		●
405	INSERT; SYN,LOW & 2ND 4JA1 ENG<RLE>	8-94152-557-1	03	1	0009-	●
405	INSERT; SYN,LOW & 2ND 4JH1 ENG<RJX>	8-94363-062-1	03	1	0009-		●
421	RING; BLOCK,REV & 5TH 4JH1 ENG<RJX> Z=36	8-97071-688-0	02	1	0009-		●
430	PLATE; OIL SEAL,TRANSFER 4X4<TFS***>	8-94482-379-2	01	1	0009-		●

91 314 59 421 72 60 61 63 421 13 87 86 89 404 399 90 306 149 65 62 62 14 404 51 38 405 80 306 390 51 391 70 313 211 49 50 391 392 40 5 4 3 392 1 396 35 238 35 36 33 34 93 292 246 306 397 397 82 219 97 98 398 110 189 386 132 95 226 135 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JA1 ENG<RLE> Z=23	8-94435-160-2	01	1	0009-	●
1	SHAFT; TOP GEAR,TRANS 4JH1 ENG<RJX> Z=25	8-97182-212-0	01	1	0009-		●
3	BEARING; TOP GEAR SHAFT 4JA1 ENG<RLE> NSK THA	8-94167-637-0	01	1	0009-	●
3	BEARING; TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94380-015-1	01	1	0009-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> NSK	8-94206-485-0	01	1	0009-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> NSK	8-94422-083-0	01	1	0009-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JA1 ENG<RLE> ID=37.0	9-09180-040-0	01	1	0009-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG<RJX> ID=37.4	8-97254-316-0	01	1	0009-		●
13	GEAR; 5TH,MAINSHAFT 4JA1 ENG<RLE> Z=25	8-94161-912-3	01	1	0009-	●
13	GEAR; 5TH,MAINSHAFT 4JH1 ENG<RJX> Z=22	8-97104-023-2	01	1	0009-		●
14	BEARING; NEEDLE,5TH 4JA1 ENG<RLE> NSK	8-94161-994-0	01	1	0009-	●
14	BEARING; NEEDLE,5TH 4JH1 ENG<RJX> NSK	8-97029-341-0	01	1	0009-		●
33	BEARING; NEEDLE,3RD GEAR 4JH1 ENG<RJX> NSK	1-09811-028-1	01	1	0009-		●
34	SYNCHRONIZER; 4TH & 3RD 4JA1 ENG<RLE>	8-94161-860-0	01	1	0009-	●
34	SYNCHRONIZER; 4TH & 3RD 4JH1 ENG<RJX>	8-97188-798-0	01	1	0009-		●
35	RING; BLOCK,4TH & 3RD 4JA1 ENG<RLE> Z=30	8-94463-830-1	02	1	0009-	●
35	RING; BLOCK,4TH & 3RD 4JH1 ENG<RJX> Z=45	8-94151-510-3	02	1	0009-		●
36	GEAR; 3RD,MAINSHAFT 4JA1 ENG<RLE> Z=29	8-94161-137-1	01	1	0009-	●
36	GEAR; 3RD,MAINSHAFT 4JH1 ENG<RJX> Z=29	8-97104-022-2	01	1	0009-		●
38	SYNCHRONIZER; LOW & 2ND 4JA1 ENG<RLE>	8-94435-140-0	01	1	0009-	●
38	SYNCHRONIZER; LOW & 2ND 4JH1 ENG<RJX>	8-97188-799-0	01	1	0009-		●
40	SPRING; INSERT,LOW & 2ND 4JA1 ENG<RLE>	8-94152-558-1	02	1	0009-	●
40	SPRING; INSERT,LOW & 2ND 4JH1 ENG<RJX>	8-94448-045-0	02	1	0009-		●
49	BEARING; NEEDLE,2ND GEAR 4JH1 ENG<RJX> JTEKT	9-00096-625-0	01	1	0009-		●
50	GEAR; 2ND,MAINSHAFT 4JA1 ENG<RLE> Z=31	8-94311-564-1	01	1	0009-	●
50	GEAR; 2ND,MAINSHAFT 4JH1 ENG<RJX> Z=33	8-97025-872-0	01	1	0009-		●
51	RING; BLOCK,LOW & 2ND 4JA1 ENG<RLE> Z=45	8-94151-510-3	02	1	0009-	●
51	RING; BLOCK,LOW & 2ND 4JH1 ENG<RJX> Z=48	8-94363-054-1	02	1	0009-		●
59	GEAR; REV MAINSHAFT 4JA1 ENG<RLE> Z=37	8-94310-158-1	01	1	0009-	●
59	GEAR; REV MAINSHAFT 4JH1 ENG<RJX> Z=40	8-97104-024-2	01	1	0009-		●
60	COLLAR; REV MAIN 4JH1 ENG<RJX>	8-97031-079-0	01	1	0009-		●
61	SYNCHRONIZER; REV & 5TH 4JA1 ENG<RLE>	5-33260-010-0	01	1	0009-	●
61	SYNCHRONIZER; REV & 5TH 4JH1 ENG<RJX>	8-97188-800-0	01	1	0009-		●
62	SPRING; INSERT,REV & 5TH 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
62	SPRING; INSERT,REV & 5TH 4JH1 ENG<RJX>	5-33264-012-0	02	1	0009-		●
63	INSERT; SYN,REV & 5TH 4JA1 ENG<RLE>	5-33263-002-3	03	1	0009-	●
63	INSERT; SYN,REV & 5TH 4JH1 ENG<RJX>	5-33263-001-0	03	1	0009-		●
65	NUT; MAINSHAFT 4JA1 ENG<RLE> M32	8-94238-094-1	01	1	0009-	●
65	NUT; MAINSHAFT 4JH1 ENG<RJX> M34	8-94422-071-1	01	1	0009-		●
70	GEAR; 1ST,MAINSHAFT 4JA1 ENG<RLE> Z=41	8-94310-154-1	01	1	0009-	●
70	GEAR; 1ST,MAINSHAFT 4JH1 ENG<RJX> Z=43	8-94363-057-0	01	1	0009-		●
72	BEARING; BALL,MAINSHAFT 4JH1 ENG<RJX> NSK THA	8-94380-017-1	01	1	0009-		●
80	GEAR; SPD DRIVE 4JA1 ENG<RLE> Z=6	8-94161-086-1	01	1	0009-	●
80	GEAR; SPD DRIVE 4JH1 ENG<RJX> Z=6	8-94472-608-1	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4JA1 ENG<RLE> Z=26-24-27	8-94435-162-3	01	1	0009-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> 4JH1 ENG<RJX> Z=28-34-26-27	8-97120-040-0	01	1	0009-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27	8-97120-039-0	01	1	0009-		●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.80	8-94238-099-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=7.90	8-94238-100-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.00	8-94238-101-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.10	8-94238-102-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.20	8-94238-103-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JA1 ENG<RLE> T=8.30	8-94238-104-4	01	1	0009-	●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=7.90 WHITE	8-94422-110-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.00 YELLOW	8-94422-111-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.10 GREEN	8-94422-112-2	01	1	0009-		●
86	WASHER; THRUST,5TH 4JH1 ENG<RJX> T=8.20 BLUE	8-94422-113-2	01	1	0009-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0009-	●	●
89	RING; RET,THRUST RING 4JH1 ENG<RJX> ID=31.8	8-94422-395-0	01	1	0009-		●
90	RING; SNAP,THRUST RING 4JA1 ENG<RLE> ID=37.0	9-09180-040-0	01	1	0009-	●
90	RING; SNAP,THRUST RING 4X2<TFB***> 4JH1 ENG<RJX> ID=29.6	9-09180-032-0	01	1	0009-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT 4JH1 ENG<RJX> ID=76.2	8-94322-411-0	01	1	0009-		●
93	RING; SNAP,COUNTER FRT BRG 4JH1 ENG<RJX> ID=23.2	9-09180-025-0	01	1	0009-		●
95	GEAR; REV,COUNTER 4JA1 ENG<RLE> Z=16	8-94161-120-1	01	1	0009-	●
95	GEAR; REV,COUNTER 4JH1 ENG<RJX> Z=19	8-94377-433-0	01	1	0009-		●
97	GEAR; 5TH,COUNTER 4JA1 ENG<RLE> Z=47	8-94161-098-2	01	1	0009-	●
97	GEAR; 5TH,COUNTER 4JH1 ENG<RJX> Z=50	8-94377-434-0	01	1	0009-		●
98	BEARING; BALL,COUNTER END 4JA1 ENG<RLE> NSK	8-97063-366-0	01	1	0009-	●
98	BEARING; BALL,COUNTER END 4JH1 ENG<RJX> NSK	8-97018-535-1	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.10 WHITE	8-94422-103-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.20 YELLOW	8-94422-104-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.30 BLUE	8-94422-105-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.40 PINK	8-94422-106-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.50 GREEN	8-94422-107-0	01	1	0009-		●
110	RING; SNAP,COUNTER BRG 4JH1 ENG<RJX> T=1.60 BROWN	8-94422-108-0	01	1	0009-		●
132	SHAFT; REV 4JA1 ENG<RLE>	8-94435-146-0	01	1	0009-	●
132	SHAFT; REV 4JH1 ENG<RJX>	8-97019-155-1	01	1	0009-		●
135	GEAR; REV IDLER 4JA1 ENG<RLE> Z=23	8-94161-118-1	01	1	0009-	●
135	GEAR; REV IDLER 4JH1 ENG<RJX> Z=33	8-94377-435-0	01	1	0009-		●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2<TFB***> 4JH1 ENG<RJX> NSK THA	8-94173-863-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.20 WHITE	8-94422-100-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.30 YELLOW	8-94422-101-0	01	1	0009-		●
189	RING; SNAP,REV,GEAR 4JH1 ENG<RJX> T=1.40 BLUE	8-94422-102-0	01	1	0009-		●
211	BEARING; THRUST NEEDLE,1ST GEAR 4JH1 ENG<RJX> NSK	8-94148-935-0	01	1	0009-		●
219	BEARING; BALL,CLUSTER,RR 4JH1 ENG<RJX> NSK	8-94436-929-0	01	1	0009-		●
226	WASHER; THRUST,REV GEAR,COUNTER 4JH1 ENG<RJX> ID=30.0	8-94223-069-1	01	1	0009-		●
238	INSERT 4JH1 ENG<RJX>	8-94448-202-2	03	1	0009-0011		●
238	INSERT 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-94448-202-2	03	1	0009-0011		●
238	INSERT 4JH1 ENG<RJX>	8-94448-202-2	03	1	0012-		●
238	INSERT 4X4<TFS***>	8-94448-202-2	03	1	0012-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT 4JH1 ENG<RJX> NSK	8-97029-600-3	01	1	0009-		●
292	RING; SNAP,BRG OUTER 4JH1 ENG<RJX> NSK	8-94422-081-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.50	5-09588-020-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.55	5-09588-021-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.60	5-09588-022-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JA1 ENG<RLE> T=1.65	5-09588-023-1	01	1	0009-	●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.90 BLUE	8-97129-615-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.85 YELLOW	8-97129-616-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4JH1 ENG<RJX> (A) T=1.80 WHITE	8-97129-617-0	01	1	0009-		●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> 4JH1 ENG<RJX> (B) ID=27.9	9-09180-030-0	02	1	0009-		●
313	BEARING; NEEDLE,LOW GEAR 4JH1 ENG<RJX> NSK	1-09811-028-1	01	1	0009-		●
314	BEARING; NEEDLE,REV GEAR 4JH1 ENG<RJX> NSK	8-94422-064-0	01	1	0009-		●
314	BEARING; NEEDLE,REV GEAR 4JH1 ENG<RJX> JTEKT	8-94422-065-1	01	1	0009-		●
386	PIN; REV SHAFT 4JH1 ENG<RJX> OD=6 L=40	9-08150-640-0	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.80 WHITE	8-94422-088-2	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.85 YELLOW	8-94422-089-1	01	1	0009-		●
390	RING; SNAP,CLU HUB 4JH1 ENG<RJX> T=1.90 BLUE	8-94422-090-2	01	1	0009-		●
391	RING; INSIDE,SYN 4JH1 ENG<RJX> (A) OD=95.8	8-94363-056-0	02	1	0009-		●
391	RING; INSIDE,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX> (B)	8-97101-452-0	01	1	0009-0011		●
391	RING; INSIDE,SYN 4X4<TFS***> (B)	8-97101-452-0	01	1	0012-		●
392	RING; OUTSIDE,SYN 4JH1 ENG<RJX> (A) OD=90.0	8-94363-055-0	02	1	0009-		●
392	RING; OUTSIDE,SYN 4X4<TFS***> SHIFT ON THE FLY<7EX> (B)	8-97169-514-0	01	1	0009-0011		●
392	RING; OUTSIDE,SYN 4X4<TFS***> (B)	8-97169-514-0	01	1	0012-		●
396	BEARING; NEEDLE,MAINSHAFT 4JA1 ENG<RLE> JTEKT	9-00096-100-1	01	1	0009-	●
396	BEARING; NEEDLE,MAINSHAFT 4JH1 ENG<RJX> NSK	8-94422-068-1	01	1	0009-		●
397	SPRING; INSERT,4TH & 3RD 4JA1 ENG<RLE>	5-33264-010-0	02	1	0009-	●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-94422-075-0	02	1	0009-0011		●
397	SPRING; INSERT,4TH & 3RD 4JH1 ENG<RJX>	8-94422-075-0	02	1	0012-		●
397	SPRING; INSERT,4TH & 3RD 4X4<TFS***>	8-94422-075-0	02	1	0012-		●
398	GEAR; COUNTER 4JA1 ENG<RLE> Z=37-31-20-16	8-94469-524-1	01	1	0009-	●
398	GEAR; COUNTER 4JH1 ENG<RJX> Z=46-38-27-21	8-97100-912-0	01	1	0009-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4JH1 ENG<RJX>	8-94310-229-0	01	1	0009-		●
404	PLATE; THRUST 4JH1 ENG<RJX>	8-94421-892-0	02	1	0009-		●
405	INSERT; SYN,LOW & 2ND 4JA1 ENG<RLE>	8-94152-557-1	03	1	0009-	●
405	INSERT; SYN,LOW & 2ND 4JH1 ENG<RJX>	8-94363-062-1	03	1	0009-		●
421	RING; BLOCK,REV & 5TH 4JH1 ENG<RJX> Z=36	8-97071-688-0	02	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
