2-25 — SPEEDOMETER DRIVEN GEAR (#43571) — 99 parça

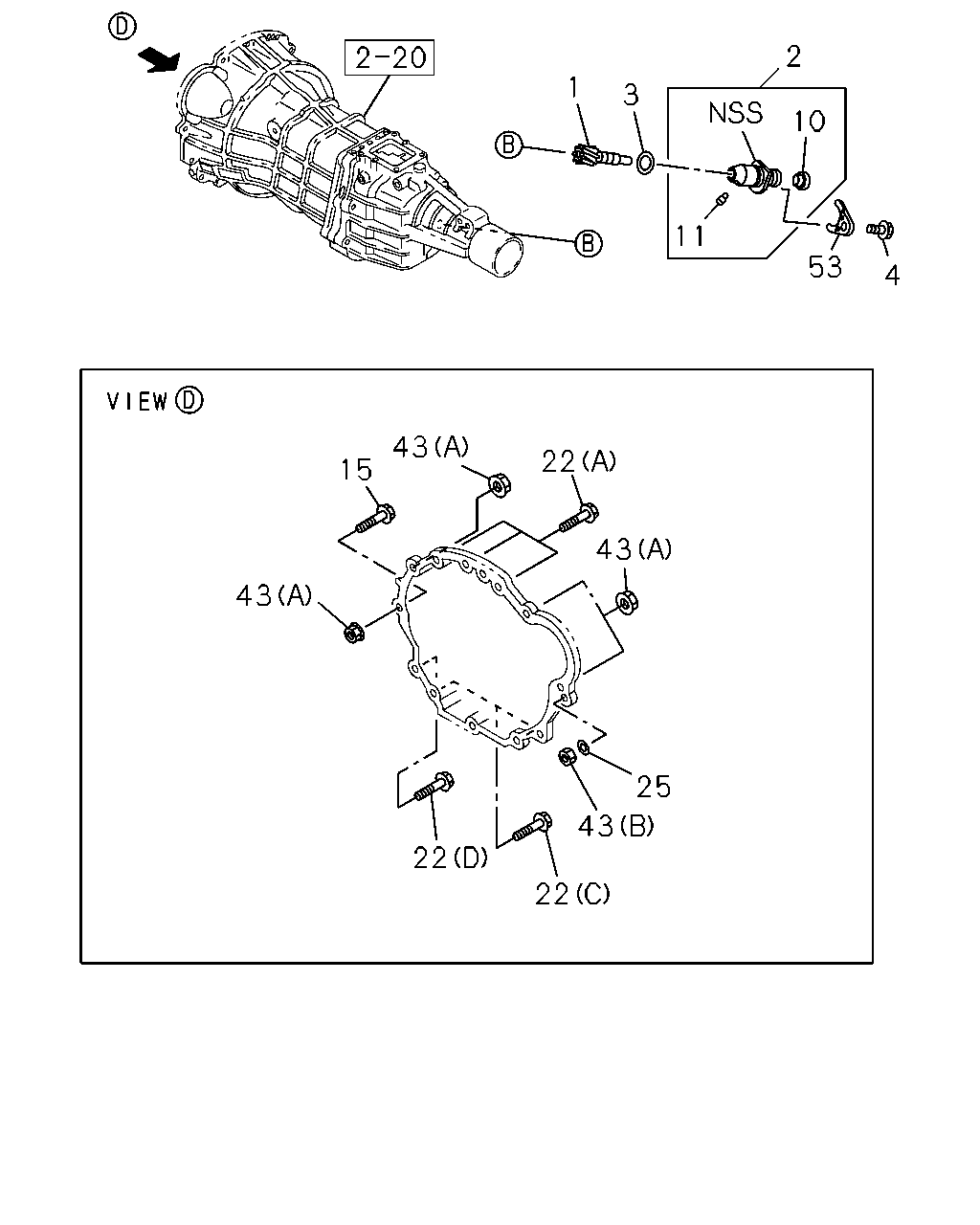

2 1 3 10 11 53 4 43 15 22 43 43 25 43 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4JA1 ENG<RLE> Z=19	8-94473-303-2	01	1	0009-	●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=18	8-97012-086-2	01	1	0009-		●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=20	8-97181-542-0	01	1	0009-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JA1 ENG<RLE>	8-94463-608-4	01	1	0009-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97021-133-4	01	1	0009-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97181-543-0	01	1	0009-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7	9-09921-100-0	01	1	0009-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=19	8-97181-545-0	01	1	0009-			●
4	BOLT; RET,DRIVEN GEAR 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X20 FLANGE	0-28080-820-0	01	1	0009-		●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X14 W/WASHER	8-94480-043-0	01	1	0009-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-1	01	1	0009-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-94480-040-0	01	1	0009-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> JTEKT	8-97181-544-0	01	1	0009-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0009-	●	●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M10X45 FLANGE	0-28081-045-0	01	1	0009-		●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (B) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M6X16 W/LK WASHER	0-50040-616-0	04	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (B) M10X45 FLANGE	0-28081-045-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (E) M12X90	0-28081-290-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	02	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (D) M12X35 FLANGE	0-28081-235-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (A) M10X40 FLANGE	0-28081-040-0	03	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (C) M10X60 FLANGE	0-28081-060-0	02	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (D) M12X40 FLANGE	0-28081-240-0	01	1	0009-		●
22	BOLT; TRANS CASE TO ENG (F) M12X176	8-97163-249-0	02	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (G) M12X40 FLANGE	0-28081-240-0	02	1	0009-			●
25	WASHER; PL,TRANS CASE 4JH1 ENG<RJX> ID=12.5	9-09160-512-0	01	1	0009-		●
43	NUT; TRANS CASE 4JH1 ENG<RJX> M12	9-99110-412-0	01	1	0009-		●
43	NUT; TRANS CASE 4JH1 ENG<RJX> M10 FLANGE	0-91150-110-0	02	1	0009-		●	●
53	PLATE; LOCK,DRIVEN GEAR 4JH1 ENG<RJX>	8-97021-019-0	01	1	0009-		●
53	PLATE; LOCK,DRIVEN GEAR 4JH1 ENG<RJX>	8-94479-720-0	01	1	0009-			●

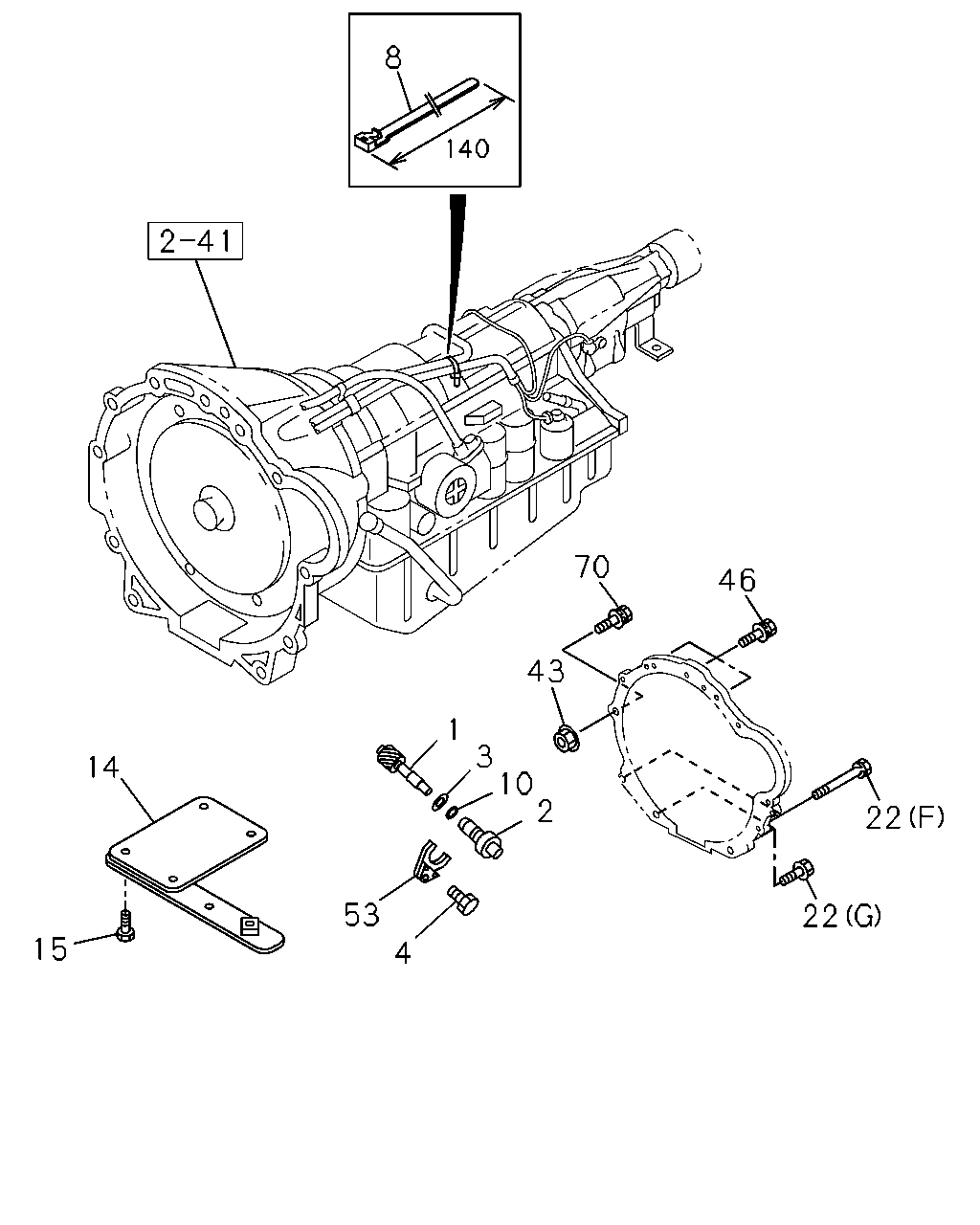

8 70 46 43 1 3 10 2 14 22 53 4 22 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4JA1 ENG<RLE> Z=19	8-94473-303-2	01	1	0009-	●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=18	8-97012-086-2	01	1	0009-		●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=20	8-97181-542-0	01	1	0009-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JA1 ENG<RLE>	8-94463-608-4	01	1	0009-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97021-133-4	01	1	0009-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97181-543-0	01	1	0009-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7	9-09921-100-0	01	1	0009-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=19	8-97181-545-0	01	1	0009-			●
4	BOLT; RET,DRIVEN GEAR 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X20 FLANGE	0-28080-820-0	01	1	0009-		●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X14 W/WASHER	8-94480-043-0	01	1	0009-			●
8	CLIP 4JH1 ENG<RJX> L=140 THA	5-09707-031-1	01	1	0009-0010			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-1	01	1	0009-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-94480-040-0	01	1	0009-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> JTEKT	8-97181-544-0	01	1	0009-			●
14	COVER; UNDER,TRANS 4JH1 ENG<RJX>	8-97061-582-0	01	1	0009-			●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M10X45 FLANGE	0-28081-045-0	01	1	0009-		●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (B) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M6X16 W/LK WASHER	0-50040-616-0	04	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (B) M10X45 FLANGE	0-28081-045-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (E) M12X90	0-28081-290-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	02	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (D) M12X35 FLANGE	0-28081-235-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (A) M10X40 FLANGE	0-28081-040-0	03	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (C) M10X60 FLANGE	0-28081-060-0	02	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (D) M12X40 FLANGE	0-28081-240-0	01	1	0009-		●
22	BOLT; TRANS CASE TO ENG (F) M12X176	8-97163-249-0	02	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (G) M12X40 FLANGE	0-28081-240-0	02	1	0009-			●
43	NUT; TRANS CASE 4JH1 ENG<RJX> M12	9-99110-412-0	01	1	0009-		●
43	NUT; TRANS CASE 4JH1 ENG<RJX> M10 FLANGE	0-91150-110-0	02	1	0009-		●	●
46	BOLT; TRANS CASE 4JH1 ENG<RJX> M10X40 FLANGE	0-28081-040-0	03	1	0009-			●
53	PLATE; LOCK,DRIVEN GEAR 4JH1 ENG<RJX>	8-97021-019-0	01	1	0009-		●
53	PLATE; LOCK,DRIVEN GEAR 4JH1 ENG<RJX>	8-94479-720-0	01	1	0009-			●
70	BOLT; TRANS CASE TO RR PLATE 4JH1 ENG<RJX> M10X45 FLANGE	0-28081-045-0	01	1	0009-			●

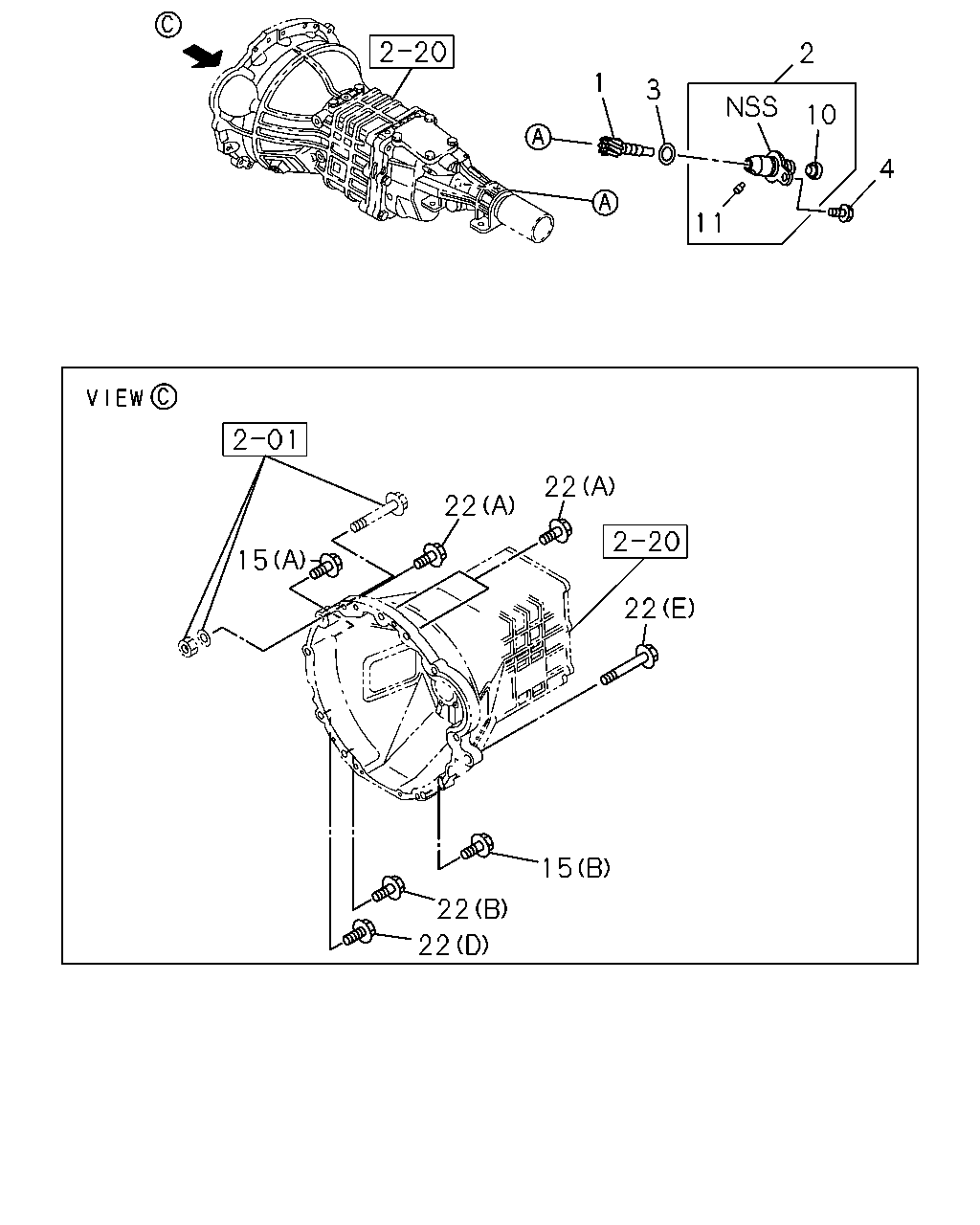

2 1 3 10 4 11 22 22 15 1 22 15 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD 4JA1 ENG<RLE> Z=19	8-94473-303-2	01	1	0009-	●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=18	8-97012-086-2	01	1	0009-		●
1	GEAR; DRIVEN,SPD 4JH1 ENG<RJX> Z=20	8-97181-542-0	01	1	0009-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JA1 ENG<RLE>	8-94463-608-4	01	1	0009-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97021-133-4	01	1	0009-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4JH1 ENG<RJX>	8-97181-543-0	01	1	0009-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7	9-09921-100-0	01	1	0009-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> ID=19	8-97181-545-0	01	1	0009-			●
4	BOLT; RET,DRIVEN GEAR 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X20 FLANGE	0-28080-820-0	01	1	0009-		●
4	BOLT; RET,DRIVEN GEAR 4JH1 ENG<RJX> M8X14 W/WASHER	8-94480-043-0	01	1	0009-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97131-328-1	01	1	0009-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-94480-040-0	01	1	0009-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> JTEKT	8-97181-544-0	01	1	0009-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0009-	●	●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M10X45 FLANGE	0-28081-045-0	01	1	0009-		●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (B) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	01	1	0009-	●
15	BOLT; UNDER COVER TO TRANS 4JH1 ENG<RJX> M6X16 W/LK WASHER	0-50040-616-0	04	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (B) M10X45 FLANGE	0-28081-045-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (E) M12X90	0-28081-290-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X40 FLANGE	0-28081-040-0	02	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (A) M10X35 FLANGE	0-28081-035-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JA1 ENG<RLE> (D) M12X35 FLANGE	0-28081-235-0	01	1	0009-	●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (A) M10X40 FLANGE	0-28081-040-0	03	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (C) M10X60 FLANGE	0-28081-060-0	02	1	0009-		●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (D) M12X40 FLANGE	0-28081-240-0	01	1	0009-		●
22	BOLT; TRANS CASE TO ENG (F) M12X176	8-97163-249-0	02	1	0009-			●
22	BOLT; TRANS CASE TO ENG 4JH1 ENG<RJX> (G) M12X40 FLANGE	0-28081-240-0	02	1	0009-			●
