2-20 — MANUAL TRANSMISSION ASM AND CASE (#43570) — 170 parça

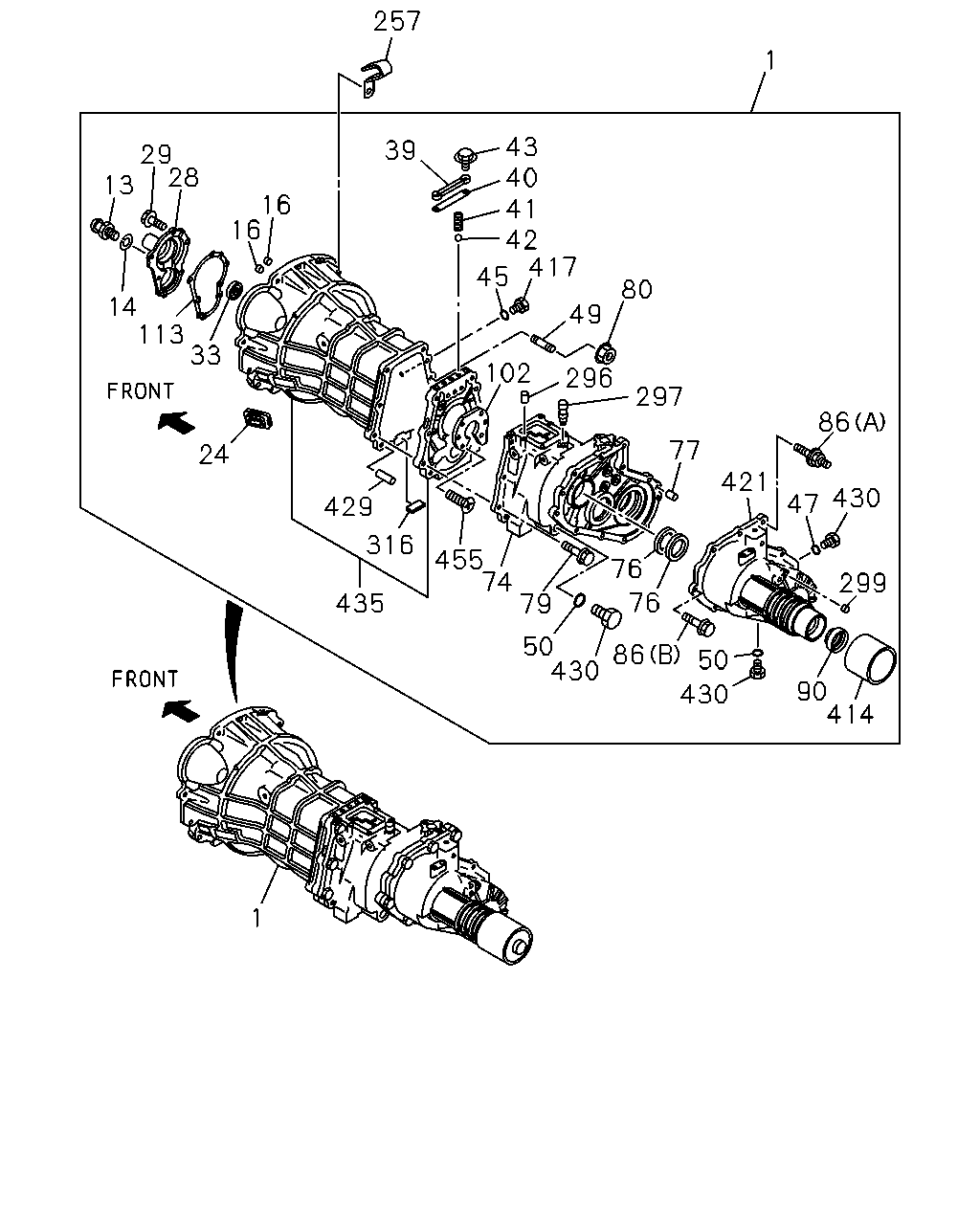

257 1 43 40 41 42 417 45 39 29 28 13 16 16 14 113 33 80 49 102 296 297 86 24 77 421 47 430 429 316 299 50 86 50 430 430 76 76 455 74 79 435 90 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JA1 ENG<RLE> THA	8-97915-325-0	01	1	0009-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX>	8-97235-931-0	01	1	0009-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97235-933-0	01	1	0009-0011		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***>	8-97235-933-0	01	1	0012-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. SHIFT ON THE FLY<7EX>	8-97235-932-0	01	1	0009-0011		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0009-	●	●
14	WASHER; LK,SUPPORT 4JH1 ENG<RJX> ID=12.2	9-09150-512-0	01	1	0009-		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0009-	●	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0009-	●	●
28	COVER; FRT,TRANS CASE 4JA1 ENG<RLE>	8-97116-796-0	01	1	0009-	●
28	COVER; FRT,TRANS CASE 4JH1 ENG<RJX>	8-97104-676-0	01	1	0009-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0009-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94326-441-0	01	1	0009-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-698-0	01	1	0009-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-699-2	01	1	0009-		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0009-	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-94473-947-0	01	1	0009-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-600-1	01	1	0009-		●
41	SPRING; DETENT BALL 4JA1 ENG<RLE> L=25.6	8-94435-336-0	03	1	0009-	●
41	SPRING; DETENT BALL 4JH1 ENG<RJX> L=26.8	8-94320-193-0	03	1	0009-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0009-	●	●
43	BOLT; PLATE TO PLATE 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	02	1	0009-	●
43	BOLT; PLATE TO PLATE 4JH1 ENG<RJX> M8X22 FLANGE	8-94448-815-3	02	1	0009-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17	8-97115-712-0	01	1	0009-		●
49	STUD; TRANSFER CASE 4X4<TFS***> M10X51.5 L=72	8-97036-714-1	01	1	0009-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> ID=17	8-97115-712-0	01	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JH1 ENG<RJX> ID=17	8-97115-712-0	01	1	0009-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17	8-97115-712-0	02	1	0009-		●
74	CASE ASM; TRANSFER 4X4<TFS***>	8-97149-125-1	01	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> TKK	8-97046-700-0	02	1	0009-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> NOK	8-97046-701-2	02	1	0009-		●
77	PIN; KNOCK,TRANSFER CASE 4X4<TFS***> OD=10 L=20	8-97135-423-0	02	1	0009-		●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X55 FLANGE	8-94473-959-1	06	1	0009-		●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X18 M10X55 L=83	8-97036-715-0	01	1	0009-		●
80	NUT; TRANSFER CASE 4X4<TFS***> M10 FLANGE	0-91150-110-0	01	1	0009-		●
86	BOLT; RR COVER 4JA1 ENG<RLE> (A) M10X55 FLANGE	8-94473-959-1	08	1	0009-	●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (A) M10X55 FLANGE	8-94473-959-1	07	1	0009-		●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (A) M10X35 FLANGE	0-28081-035-0	09	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	0009-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94422-387-0	01	1	0009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-704-0	01	1	0009-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-705-2	01	1	0009-		●
102	RETAINER; BRG UPR,MAINSHAFT 4JH1 ENG<RJX>	8-97138-673-0	01	1	0009-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-97113-190-0	01	1	0009-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-589-0	01	1	0009-		●
257	CLIP; HARNESS 4JA1 ENG<RLE> ID=22	8-97022-767-0	02	1	0009-	●
257	CLIP; HARNESS 4JH1 ENG<RJX> ID=22	8-97022-767-0	01	1	0009-		●
296	PIN; QUAD BOX TO CASE 4X4<TFS***> OD=6 L=12	9-08150-612-0	02	1	0009-		●
297	BREATHER; AIR,TRANSFER CASE 4X4<TFS***>	8-97172-677-1	01	1	0009-		●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=14	5-09609-004-0	03	1	0009-		●
316	MAGNET; TRANS CASE 4JH1 ENG<RJX>	8-94249-524-2	01	1	0009-		●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0009-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0009-	●	●
421	COVER; RR,TRANS 4JA1 ENG<RLE>	8-97112-207-3	01	1	0009-	●
421	COVER; RR,TRANS 4X2<TFB***> 4JH1 ENG<RJX>	8-97039-528-2	01	1	0009-		●
421	COVER; RR,TRANS 4X4<TFS***>	8-97217-334-0	01	1	0009-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0009-	●	●
430	PLUG; OIL DRAIN 4JA1 ENG<RLE>	9-09662-004-0	01	1	0009-	●
430	PLUG; OIL DRAIN 4X2<TFB***> 4JH1 ENG<RJX>	9-09662-004-0	01	1	0009-		●
430	PLUG; OIL DRAIN 4X4<TFS***>	9-09662-004-0	02	1	0009-		●
435	CASE; TRANS 4JA1 ENG<RLE>	8-97211-484-0	01	1	0009-	●
435	CASE; TRANS 4JH1 ENG<RJX>	8-97252-840-1	01	1	0009-		●
455	SCREW; BRG RET 4JH1 ENG<RJX> M8X22	8-97062-754-0	04	1	0009-		●

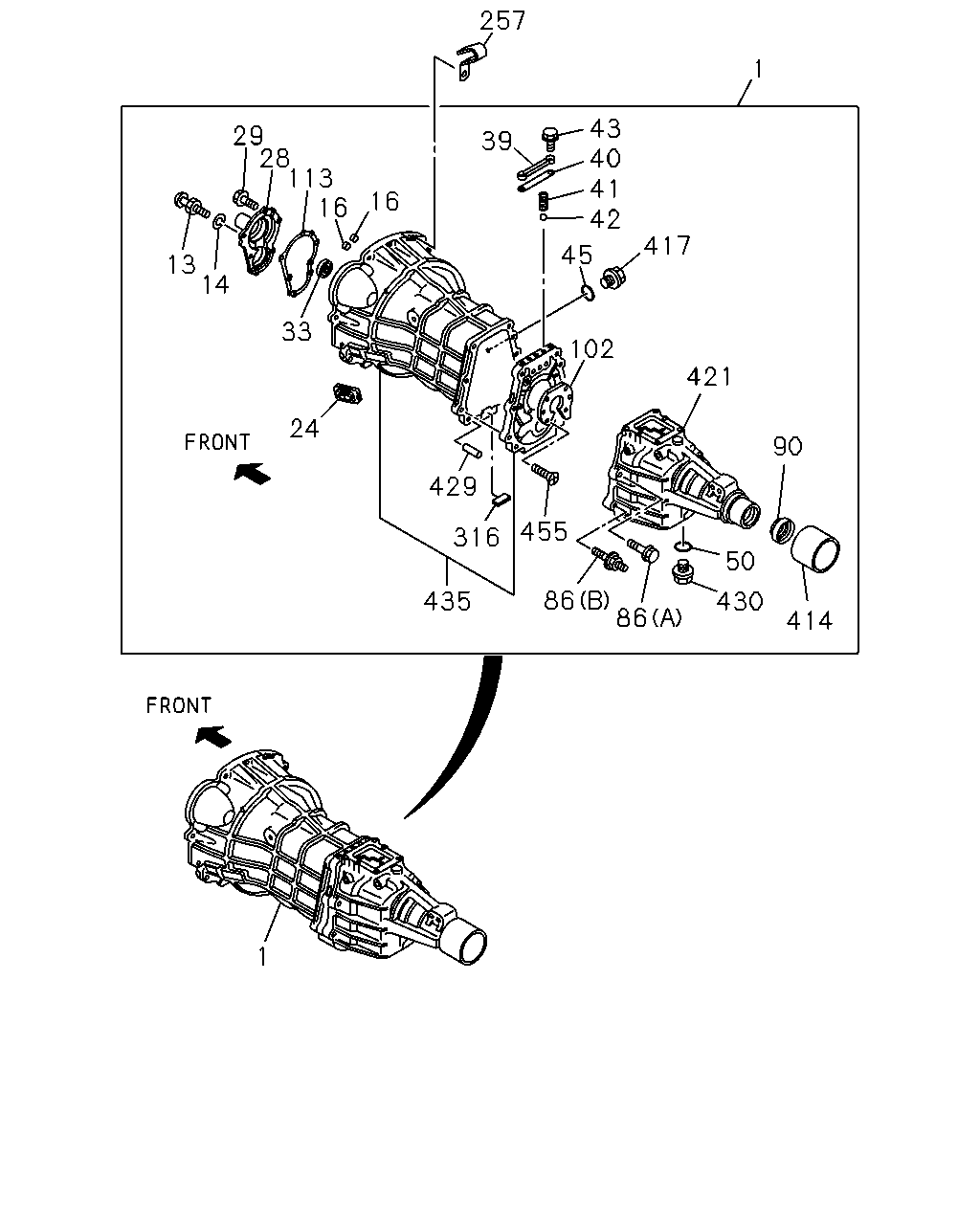

257 1 43 40 41 42 45 29 28 113 16 39 16 417 13 14 33 102 421 24 90 429 455 316 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JA1 ENG<RLE> THA	8-97915-325-0	01	1	0009-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX>	8-97235-931-0	01	1	0009-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97235-933-0	01	1	0009-0011		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***>	8-97235-933-0	01	1	0012-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. SHIFT ON THE FLY<7EX>	8-97235-932-0	01	1	0009-0011		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0009-	●	●
14	WASHER; LK,SUPPORT 4JH1 ENG<RJX> ID=12.2	9-09150-512-0	01	1	0009-		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0009-	●	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0009-	●	●
28	COVER; FRT,TRANS CASE 4JA1 ENG<RLE>	8-97116-796-0	01	1	0009-	●
28	COVER; FRT,TRANS CASE 4JH1 ENG<RJX>	8-97104-676-0	01	1	0009-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0009-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94326-441-0	01	1	0009-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-698-0	01	1	0009-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-699-2	01	1	0009-		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0009-	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-94473-947-0	01	1	0009-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-600-1	01	1	0009-		●
41	SPRING; DETENT BALL 4JA1 ENG<RLE> L=25.6	8-94435-336-0	03	1	0009-	●
41	SPRING; DETENT BALL 4JH1 ENG<RJX> L=26.8	8-94320-193-0	03	1	0009-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0009-	●	●
43	BOLT; PLATE TO PLATE 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	02	1	0009-	●
43	BOLT; PLATE TO PLATE 4JH1 ENG<RJX> M8X22 FLANGE	8-94448-815-3	02	1	0009-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> ID=17	8-97115-712-0	01	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JH1 ENG<RJX> ID=17	8-97115-712-0	01	1	0009-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17	8-97115-712-0	02	1	0009-		●
86	BOLT; RR COVER 4JA1 ENG<RLE> (A) M10X55 FLANGE	8-94473-959-1	08	1	0009-	●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (A) M10X55 FLANGE	8-94473-959-1	07	1	0009-		●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (A) M10X35 FLANGE	0-28081-035-0	09	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	0009-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94422-387-0	01	1	0009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-704-0	01	1	0009-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-705-2	01	1	0009-		●
102	RETAINER; BRG UPR,MAINSHAFT 4JH1 ENG<RJX>	8-97138-673-0	01	1	0009-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-97113-190-0	01	1	0009-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-589-0	01	1	0009-		●
257	CLIP; HARNESS 4JA1 ENG<RLE> ID=22	8-97022-767-0	02	1	0009-	●
257	CLIP; HARNESS 4JH1 ENG<RJX> ID=22	8-97022-767-0	01	1	0009-		●
316	MAGNET; TRANS CASE 4JH1 ENG<RJX>	8-94249-524-2	01	1	0009-		●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0009-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0009-	●	●
421	COVER; RR,TRANS 4JA1 ENG<RLE>	8-97112-207-3	01	1	0009-	●
421	COVER; RR,TRANS 4X2<TFB***> 4JH1 ENG<RJX>	8-97039-528-2	01	1	0009-		●
421	COVER; RR,TRANS 4X4<TFS***>	8-97217-334-0	01	1	0009-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0009-	●	●
430	PLUG; OIL DRAIN 4JA1 ENG<RLE>	9-09662-004-0	01	1	0009-	●
430	PLUG; OIL DRAIN 4X2<TFB***> 4JH1 ENG<RJX>	9-09662-004-0	01	1	0009-		●
430	PLUG; OIL DRAIN 4X4<TFS***>	9-09662-004-0	02	1	0009-		●
435	CASE; TRANS 4JA1 ENG<RLE>	8-97211-484-0	01	1	0009-	●
435	CASE; TRANS 4JH1 ENG<RJX>	8-97252-840-1	01	1	0009-		●
455	SCREW; BRG RET 4JH1 ENG<RJX> M8X22	8-97062-754-0	04	1	0009-		●

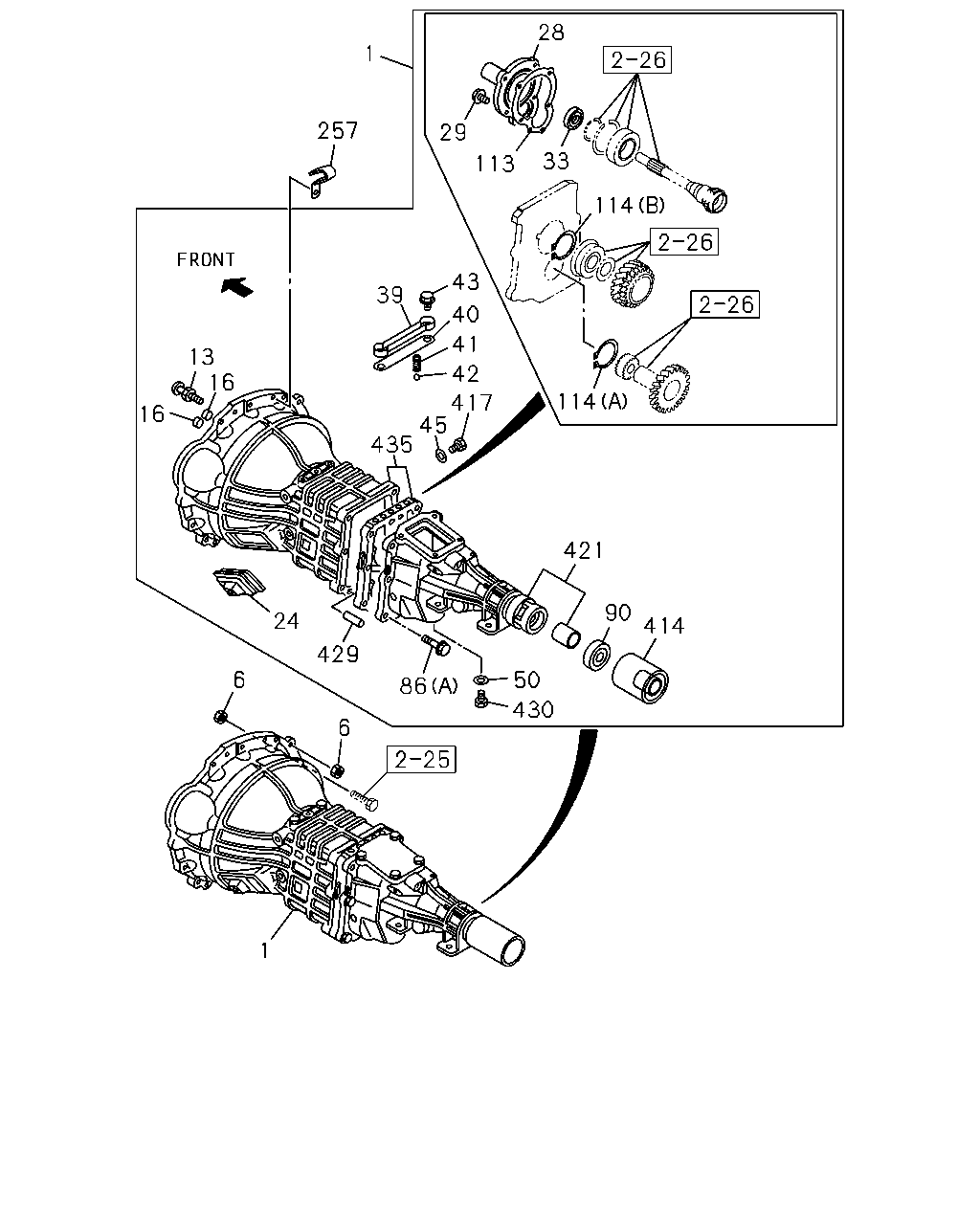

28 1 33 257 29 113 114 43 40 41 42 417 45 435 39 13 16 114 16 421 90 414 24 429 6 50 430 86 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JA1 ENG<RLE> THA	8-97915-325-0	01	1	0009-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX>	8-97235-931-0	01	1	0009-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> SHIFT ON THE FLY<7EX>	8-97235-933-0	01	1	0009-0011		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***>	8-97235-933-0	01	1	0012-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. SHIFT ON THE FLY<7EX>	8-97235-932-0	01	1	0009-0011		●
6	NUT; CASE,TRANS 4JA1 ENG<RLE> M10 FLANGE	0-91150-110-0	02	1	0009-	●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0009-	●	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0009-	●	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0009-	●	●
28	COVER; FRT,TRANS CASE 4JA1 ENG<RLE>	8-97116-796-0	01	1	0009-	●
28	COVER; FRT,TRANS CASE 4JH1 ENG<RJX>	8-97104-676-0	01	1	0009-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0009-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94326-441-0	01	1	0009-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-698-0	01	1	0009-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-699-2	01	1	0009-		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0009-	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-94473-947-0	01	1	0009-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-600-1	01	1	0009-		●
41	SPRING; DETENT BALL 4JA1 ENG<RLE> L=25.6	8-94435-336-0	03	1	0009-	●
41	SPRING; DETENT BALL 4JH1 ENG<RJX> L=26.8	8-94320-193-0	03	1	0009-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0009-	●	●
43	BOLT; PLATE TO PLATE 4JA1 ENG<RLE> M8X16 FLANGE	0-28080-816-0	02	1	0009-	●
43	BOLT; PLATE TO PLATE 4JH1 ENG<RJX> M8X22 FLANGE	8-94448-815-3	02	1	0009-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0009-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> ID=17	8-97115-712-0	01	1	0009-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JH1 ENG<RJX> ID=17	8-97115-712-0	01	1	0009-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17	8-97115-712-0	02	1	0009-		●
86	BOLT; RR COVER 4JA1 ENG<RLE> (A) M10X55 FLANGE	8-94473-959-1	08	1	0009-	●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (A) M10X55 FLANGE	8-94473-959-1	07	1	0009-		●
86	BOLT; RR COVER 4X2<TFB***> 4JH1 ENG<RJX> (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (A) M10X35 FLANGE	0-28081-035-0	09	1	0009-		●
86	BOLT; RR COVER 4X4<TFS***> (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	0009-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE> NOK	8-94422-387-0	01	1	0009-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> TKK	8-97046-704-0	01	1	0009-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX> NOK	8-97046-705-2	01	1	0009-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG<RLE>	8-97113-190-0	01	1	0009-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG<RJX>	8-97083-589-0	01	1	0009-		●
114	RING; SNAP,BALL BRG 4JA1 ENG<RLE> (A) ID=49.6	5-09589-004-0	01	1	0009-	●
114	RING; SNAP,BALL BRG 4JA1 ENG<RLE> (B) ID=71.7	5-09589-005-0	01	1	0009-	●
257	CLIP; HARNESS 4JA1 ENG<RLE> ID=22	8-97022-767-0	02	1	0009-	●
257	CLIP; HARNESS 4JH1 ENG<RJX> ID=22	8-97022-767-0	01	1	0009-		●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0009-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0009-	●	●
421	COVER; RR,TRANS 4JA1 ENG<RLE>	8-97112-207-3	01	1	0009-	●
421	COVER; RR,TRANS 4X2<TFB***> 4JH1 ENG<RJX>	8-97039-528-2	01	1	0009-		●
421	COVER; RR,TRANS 4X4<TFS***>	8-97217-334-0	01	1	0009-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0009-	●	●
430	PLUG; OIL DRAIN 4JA1 ENG<RLE>	9-09662-004-0	01	1	0009-	●
430	PLUG; OIL DRAIN 4X2<TFB***> 4JH1 ENG<RJX>	9-09662-004-0	01	1	0009-		●
430	PLUG; OIL DRAIN 4X4<TFS***>	9-09662-004-0	02	1	0009-		●
435	CASE; TRANS 4JA1 ENG<RLE>	8-97211-484-0	01	1	0009-	●
435	CASE; TRANS 4JH1 ENG<RJX>	8-97252-840-1	01	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
