Sayfa 0-39 - Isuzu EPC

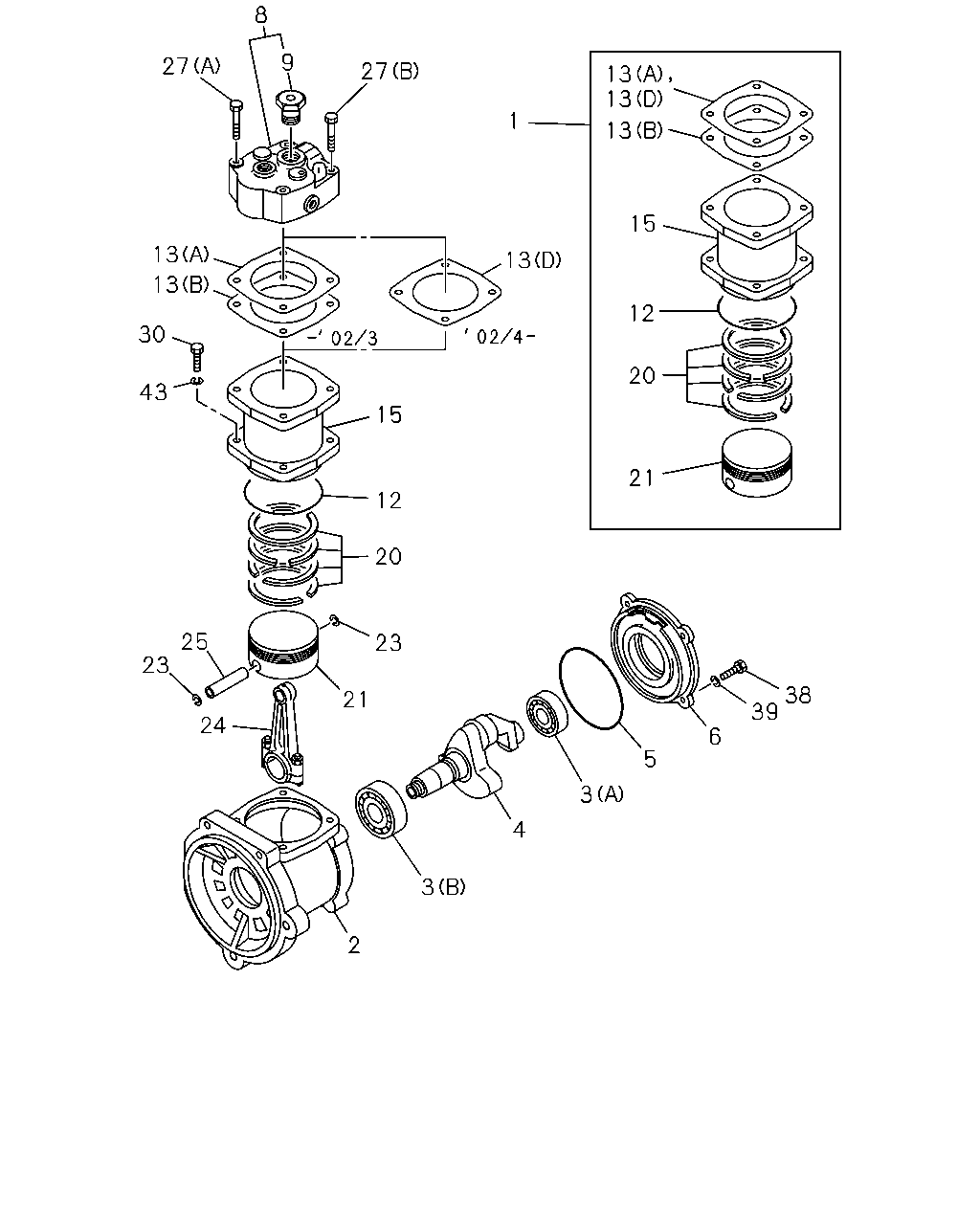

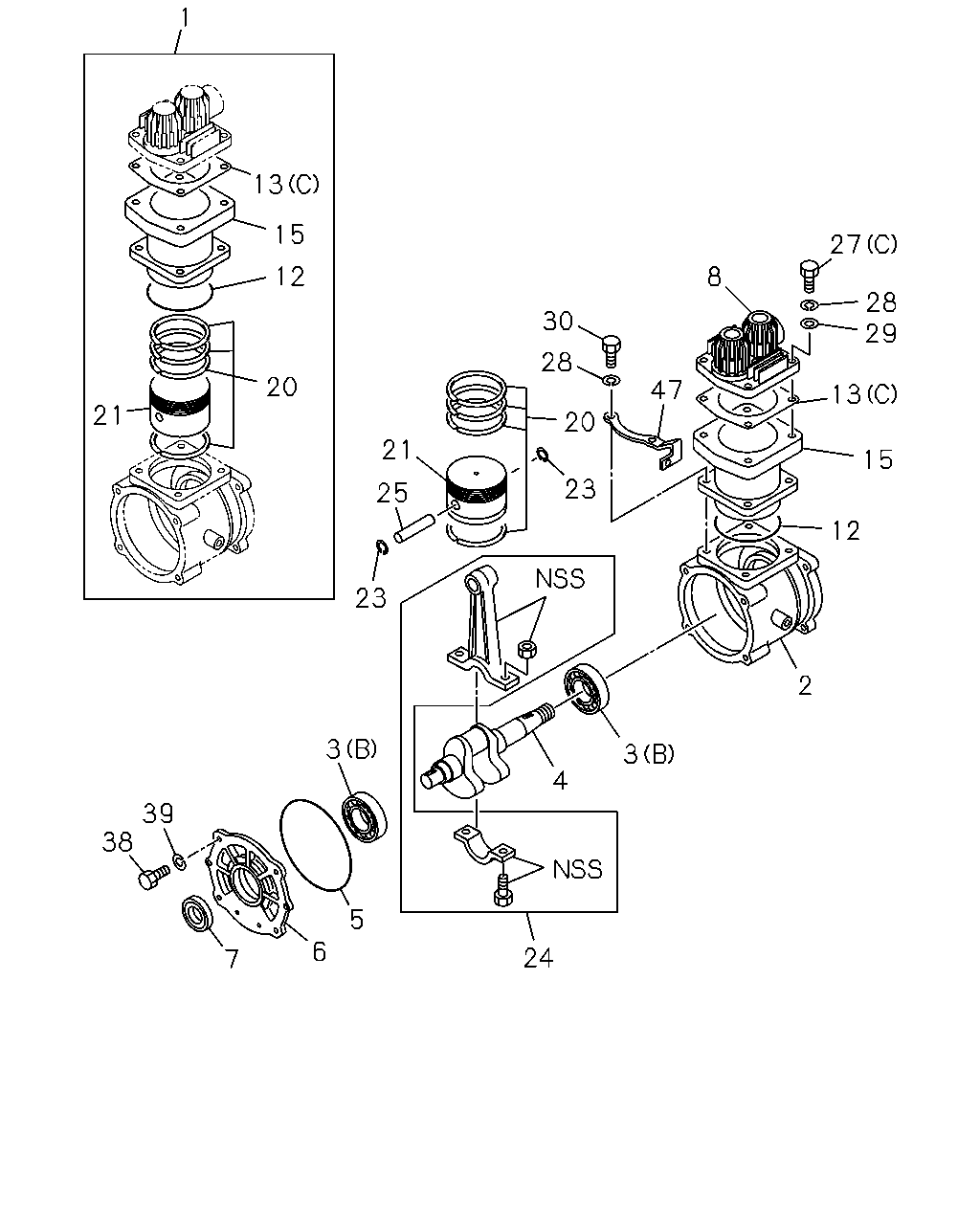

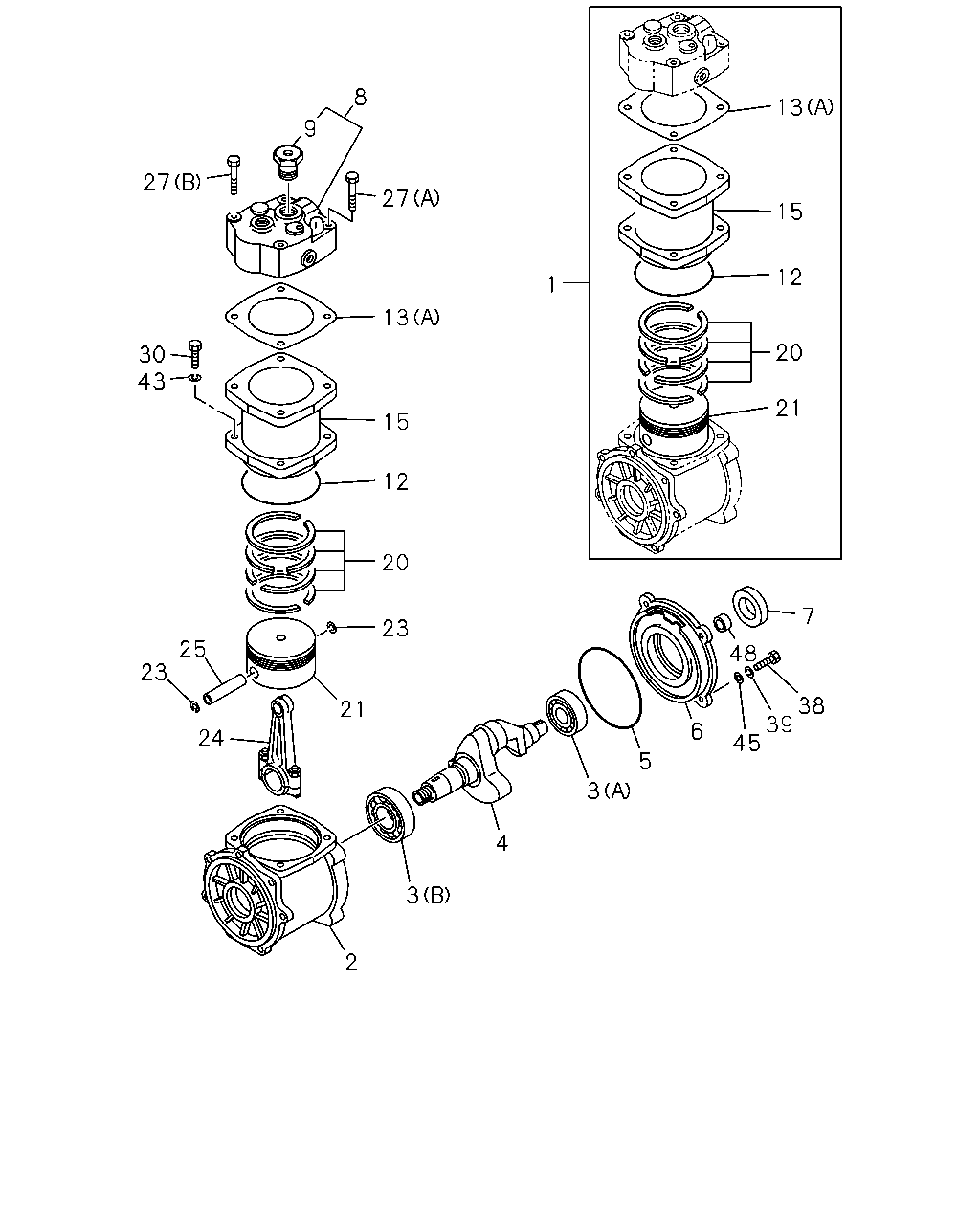

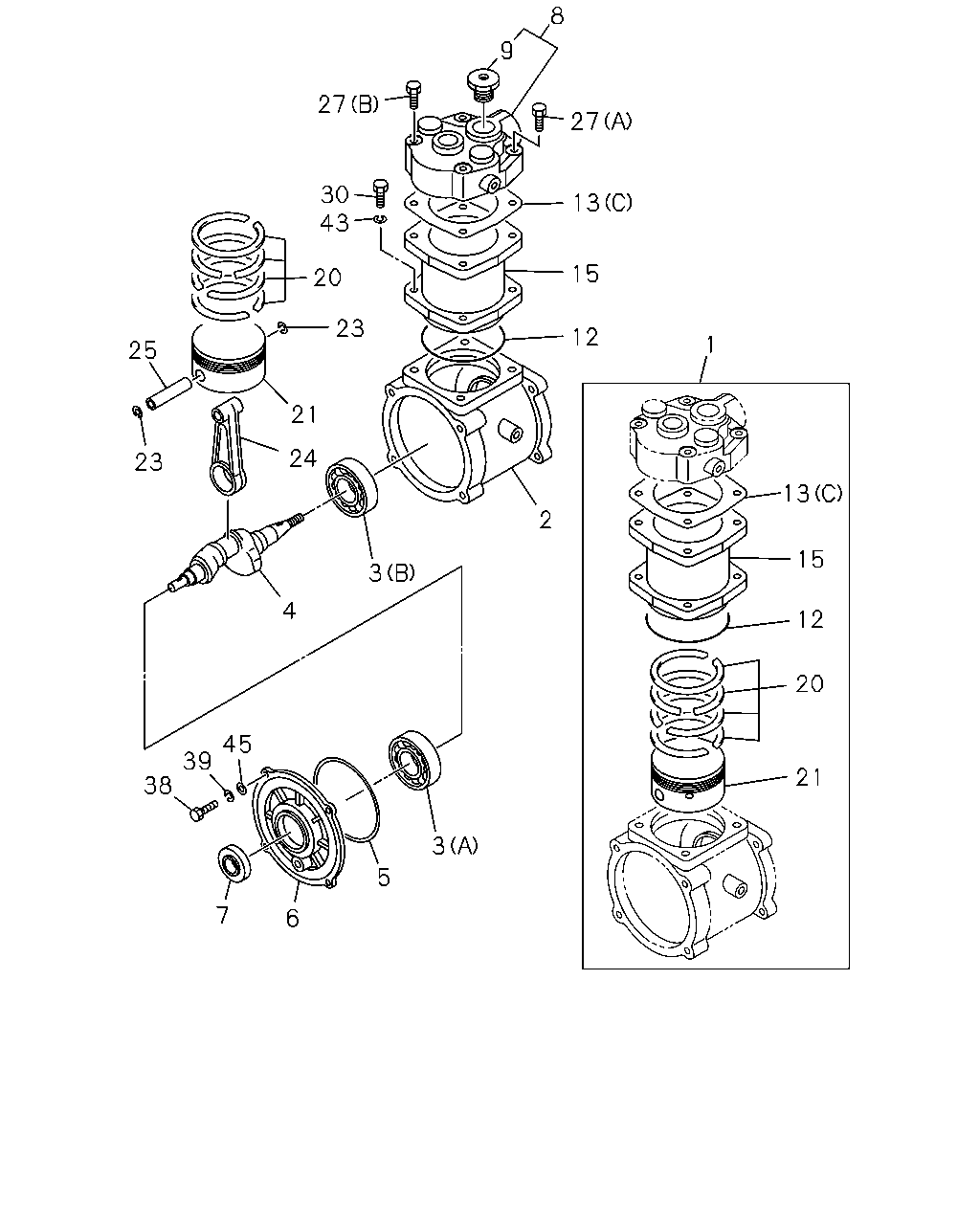

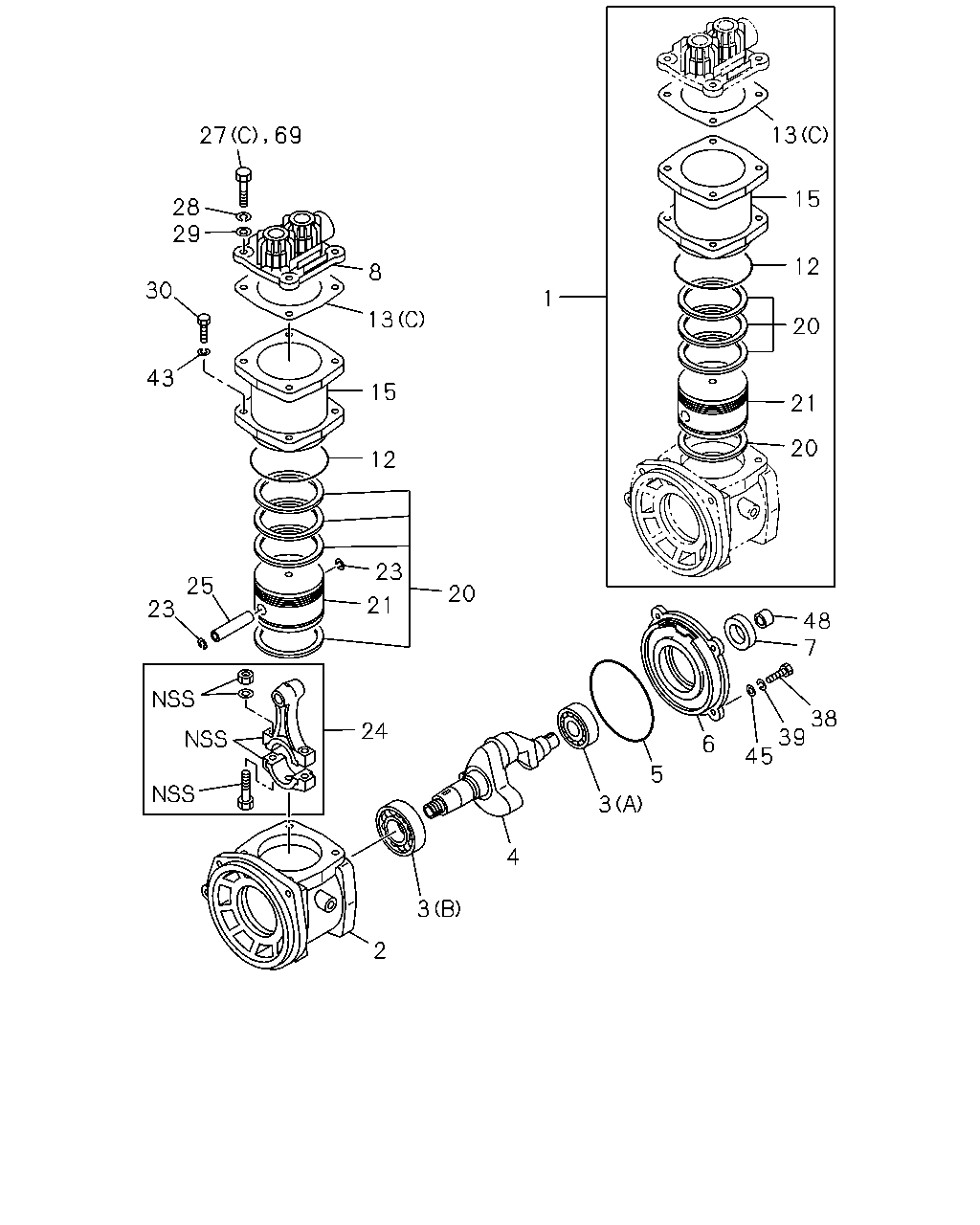

0-39 — AIR COMPRESSOR; BRAKE (#4357) — 913 parça

13 15 28 29 12 8 30 1 13 20 43 15 21 20 12 23 25 20 21 23 48 7 38 39 45 24 6 5 3 4 3 2 27 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-048-0	01	1	9101-9504	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-044-0	01	1	9101-9504	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-053-2	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0204-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-050-1	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9703-9709					●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9710-0812					●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-					●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-241-0	01	1	9101-9504	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-255-0	01	1	9101-9504	●		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9505-0203				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0204-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9703-9709					●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9710-					●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	02	1	9101-9504	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9710-				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9710-1202				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-037-0	01	1	9101-9504	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-042-0	01	1	9101-9504	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-048-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-047-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9703-9709					●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9710-1202					●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-					●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-019-0	01	1	9101-9504	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9101-9504	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9505-9702				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9703-9709				●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9710-1107				●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-				●	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-040-0	01	1	9101-9504	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-041-1	01	1	9101-9504	●		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9505-0203				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9703-9709					●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9710-1202					●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-					●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-018-1	01	1	9101-9504	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-024-1	01	1	9101-9504	●		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9505-0203				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9101-9504	●	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-013-1	01	1	9101-9203	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-048-0	01	1	9204-9504	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-052-1	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9703-9709					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9710-					●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-020-0	01	1	9101-9504	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-539-0	01	1	9101-9504	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9505-9702				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9703-9709				●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9710-1107				●	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-				●	●	●
13	GASKET; AIR CMPR (A)	8-98112-947-0	01	1	0204-				●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-					●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-0	01	1	9101-9504	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-1	01	1	9505-0203				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19139-004-0	01	1	9101-9504	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-004-0	01	1	9505-9702				●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9703-9709					●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9710-0203					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9703-9709				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9703-9709					●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9710-9805				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9710-9805					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-626-0	01	1	9806-0203				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9807-0203					●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-222-0	01	1	9101-9504	●	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-250-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9101-9504	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0204-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9703-9709					●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9710-					●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9101-9504	●	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9505-0203				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9101-9504	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9505-9702				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9703-9709				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9703-9709					●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9710-0203				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9710-0203					●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812				●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9101-9504	●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9505-0203				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9101-9504	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9505-9702				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9703-9709				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9703-9709					●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9710-0203				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9710-0203					●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812				●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9101-9504	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9505-0203				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0204-0812				●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-008-0	02	1	9101-9504	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9703-9709					●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9710-0812					●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-					●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-011-0	01	1	9101-9504	●	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-017-0	01	1	9505-0203				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9101-9504	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9505-9702				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9703-9709				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9703-9709					●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9710-0203				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9710-0203					●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202				●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1203-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9101-9504	●	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9505-0203				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9101-9504	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9505-9702				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9703-9709				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9703-9709					●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9710-0203				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9710-0203					●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812				●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9101-9504	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9505-9805				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9703-9709				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9710-0203				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9710-0203					●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-				●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9703-9709				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9710-0203				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9710-0203					●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-				●	●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	08	1	9101-9504	●	●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9505-9805				●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9101-9504	●	●	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9101-9504	●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0203				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0204-				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	9-02051-025-0	04	1	9101-9504	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9505-9702				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9703-9709				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9703-9709					●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9710-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9710-9805					●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-					●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-331-0	04	1	9101-9504	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9101-9504	●		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9505-0203				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0204-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9703-9709					●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9710-					●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9101-9504	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9505-9702				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9703-9709				●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9710-				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9101-9504	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9505-9702				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9703-9709				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9710-9805				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-					●	●
45	WASHER; PL,COVER FIX,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.4	9-09160-508-0	04	1	9101-9504	●		●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9505-0203				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0204-				●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9505-0203				●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0204-				●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19119-031-0	04	1	9806-0203				●

8 13 15 12 20 21 1 7 38 39 45 48 6 5 3 4 3 21 23 24 25 23 20 12 15 13 27 27 30 43 9 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-048-0	01	1	9101-9504	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-044-0	01	1	9101-9504	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-053-2	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0204-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-050-1	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9703-9709					●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9710-0812					●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-					●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-241-0	01	1	9101-9504	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-255-0	01	1	9101-9504	●		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9505-0203				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0204-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9703-9709					●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9710-					●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	02	1	9101-9504	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9710-				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9710-1202				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-037-0	01	1	9101-9504	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-042-0	01	1	9101-9504	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-048-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-047-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9703-9709					●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9710-1202					●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-					●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-019-0	01	1	9101-9504	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9101-9504	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9505-9702				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9703-9709				●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9710-1107				●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-				●	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-040-0	01	1	9101-9504	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-041-1	01	1	9101-9504	●		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9505-0203				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9703-9709					●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9710-1202					●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-					●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-018-1	01	1	9101-9504	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-024-1	01	1	9101-9504	●		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9505-0203				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9101-9504	●	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-013-1	01	1	9101-9203	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-048-0	01	1	9204-9504	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-052-1	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9703-9709					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9710-					●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-005-0	01	1	9101-9203	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-0	01	1	9204-9504	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9505-9702				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9703-9709				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9703-9709					●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9710-0203				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9710-0203					●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0204-				●	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-020-0	01	1	9101-9504	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-539-0	01	1	9101-9504	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9505-9702				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9703-9709				●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9710-1107				●	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-				●	●	●
13	GASKET; AIR CMPR (A)	8-98112-947-0	01	1	0204-				●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-					●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-0	01	1	9101-9504	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-1	01	1	9505-0203				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19139-004-0	01	1	9101-9504	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-004-0	01	1	9505-9702				●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9703-9709					●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9710-0203					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9703-9709				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9703-9709					●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9710-9805				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9710-9805					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-626-0	01	1	9806-0203				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9807-0203					●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-222-0	01	1	9101-9504	●	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-250-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9101-9504	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0204-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9703-9709					●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9710-					●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9101-9504	●	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9505-0203				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9101-9504	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9505-9702				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9703-9709				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9703-9709					●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9710-0203				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9710-0203					●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812				●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9101-9504	●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9505-0203				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9101-9504	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9505-9702				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9703-9709				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9703-9709					●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9710-0203				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9710-0203					●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812				●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9101-9504	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9505-0203				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0204-0812				●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-008-0	02	1	9101-9504	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9703-9709					●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9710-0812					●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-					●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-011-0	01	1	9101-9504	●	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-017-0	01	1	9505-0203				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9101-9504	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9505-9702				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9703-9709				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9703-9709					●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9710-0203				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9710-0203					●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202				●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1203-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9101-9504	●	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9505-0203				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9101-9504	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9505-9702				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9703-9709				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9703-9709					●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9710-0203				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9710-0203					●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812				●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9101-9504	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9505-9805				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9703-9709				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9710-0203				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9710-0203					●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-				●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9703-9709				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9710-0203				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9710-0203					●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-				●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9101-9504	●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0203				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0204-				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	9-02051-025-0	04	1	9101-9504	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9505-9702				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9703-9709				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9703-9709					●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9710-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9710-9805					●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-					●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-331-0	04	1	9101-9504	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9101-9504	●		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9505-0203				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0204-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9703-9709					●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9710-					●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9101-9504	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9505-9702				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9703-9709				●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9710-				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9101-9504	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9505-9702				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9703-9709				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9710-9805				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-					●	●
45	WASHER; PL,COVER FIX,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.4	9-09160-508-0	04	1	9101-9504	●		●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9505-0203				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0204-				●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9505-0203				●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0204-				●

8 9 27 27 30 43 13 15 20 23 12 1 25 21 24 23 13 2 15 3 4 12 20 45 39 38 21 3 5 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-048-0	01	1	9101-9504	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-044-0	01	1	9101-9504	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-053-2	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0204-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-050-1	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9703-9709					●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9710-0812					●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-					●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-241-0	01	1	9101-9504	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-255-0	01	1	9101-9504	●		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9505-0203				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0204-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9703-9709					●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9710-					●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	02	1	9101-9504	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9710-				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9710-1202				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-037-0	01	1	9101-9504	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-042-0	01	1	9101-9504	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-048-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-047-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9703-9709					●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9710-1202					●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-					●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-019-0	01	1	9101-9504	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9101-9504	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9505-9702				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9703-9709				●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9710-1107				●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-				●	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-040-0	01	1	9101-9504	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-041-1	01	1	9101-9504	●		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9505-0203				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9703-9709					●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9710-1202					●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-					●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-018-1	01	1	9101-9504	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-024-1	01	1	9101-9504	●		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9505-0203				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9101-9504	●	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-013-1	01	1	9101-9203	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-048-0	01	1	9204-9504	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-052-1	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9703-9709					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9710-					●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-005-0	01	1	9101-9203	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-0	01	1	9204-9504	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9505-9702				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9703-9709				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9703-9709					●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9710-0203				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9710-0203					●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0204-				●	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-020-0	01	1	9101-9504	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-539-0	01	1	9101-9504	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9505-9702				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9703-9709				●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9710-1107				●	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-				●	●	●
13	GASKET; AIR CMPR (A)	8-98112-947-0	01	1	0204-				●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-					●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-0	01	1	9101-9504	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-1	01	1	9505-0203				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19139-004-0	01	1	9101-9504	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-004-0	01	1	9505-9702				●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9703-9709					●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9710-0203					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9703-9709				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9703-9709					●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9710-9805				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9710-9805					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-626-0	01	1	9806-0203				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9807-0203					●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-222-0	01	1	9101-9504	●	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-250-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9101-9504	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0204-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9703-9709					●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9710-					●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9101-9504	●	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9505-0203				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9101-9504	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9505-9702				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9703-9709				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9703-9709					●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9710-0203				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9710-0203					●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812				●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9101-9504	●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9505-0203				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9101-9504	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9505-9702				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9703-9709				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9703-9709					●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9710-0203				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9710-0203					●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812				●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9101-9504	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9505-0203				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0204-0812				●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-008-0	02	1	9101-9504	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9703-9709					●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9710-0812					●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-					●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-011-0	01	1	9101-9504	●	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-017-0	01	1	9505-0203				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9101-9504	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9505-9702				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9703-9709				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9703-9709					●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9710-0203				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9710-0203					●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202				●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1203-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9101-9504	●	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9505-0203				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9101-9504	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9505-9702				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9703-9709				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9703-9709					●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9710-0203				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9710-0203					●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812				●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9101-9504	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9505-9805				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9703-9709				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9710-0203				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9710-0203					●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-				●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9703-9709				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9710-0203				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9710-0203					●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-				●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9101-9504	●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0203				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0204-				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	9-02051-025-0	04	1	9101-9504	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9505-9702				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9703-9709				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9703-9709					●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9710-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9710-9805					●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-					●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-331-0	04	1	9101-9504	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9101-9504	●		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9505-0203				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0204-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9703-9709					●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9710-					●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9101-9504	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9505-9702				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9703-9709				●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9710-				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9101-9504	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9505-9702				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9703-9709				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9710-9805				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-					●	●
45	WASHER; PL,COVER FIX,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=8.4	9-09160-508-0	04	1	9101-9504	●		●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9505-0203				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0204-				●

1 13 15 27 12 8 28 29 30 28 20 47 13 21 20 21 15 23 25 12 23 2 3 3 4 39 38 5 6 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-048-0	01	1	9101-9504	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-044-0	01	1	9101-9504	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-053-2	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0204-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-050-1	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9703-9709					●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9710-0812					●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-					●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-241-0	01	1	9101-9504	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-255-0	01	1	9101-9504	●		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9505-0203				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0204-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9703-9709					●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9710-					●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	02	1	9101-9504	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9710-				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9710-1202				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-037-0	01	1	9101-9504	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-042-0	01	1	9101-9504	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-048-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-047-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9703-9709					●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9710-1202					●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-					●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-019-0	01	1	9101-9504	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9101-9504	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9505-9702				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9703-9709				●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9710-1107				●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-				●	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-040-0	01	1	9101-9504	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-041-1	01	1	9101-9504	●		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9505-0203				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9703-9709					●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9710-1202					●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-					●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-018-1	01	1	9101-9504	●	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-024-1	01	1	9101-9504	●		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9505-0203				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9101-9504	●	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-013-1	01	1	9101-9203	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-048-0	01	1	9204-9504	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-052-1	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9703-9709					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9710-					●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-020-0	01	1	9101-9504	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-539-0	01	1	9101-9504	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9505-9702				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9703-9709				●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9710-1107				●	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-				●	●	●
13	GASKET; AIR CMPR (A)	8-98112-947-0	01	1	0204-				●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-					●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-0	01	1	9101-9504	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-1	01	1	9505-0203				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19139-004-0	01	1	9101-9504	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-004-0	01	1	9505-9702				●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9703-9709					●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9710-0203					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9703-9709				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9703-9709					●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9710-9805				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9710-9805					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-626-0	01	1	9806-0203				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9807-0203					●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-222-0	01	1	9101-9504	●	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-250-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9101-9504	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0204-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9703-9709					●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9710-					●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9101-9504	●	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9505-0203				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9101-9504	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9505-9702				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9703-9709				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9703-9709					●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9710-0203				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9710-0203					●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812				●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9101-9504	●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9505-0203				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9101-9504	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9505-9702				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9703-9709				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9703-9709					●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9710-0203				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9710-0203					●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812				●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9101-9504	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9505-0203				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0204-0812				●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-008-0	02	1	9101-9504	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9703-9709					●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9710-0812					●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-					●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-011-0	01	1	9101-9504	●	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-017-0	01	1	9505-0203				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9101-9504	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9505-9702				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9703-9709				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9703-9709					●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9710-0203				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9710-0203					●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202				●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1203-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9101-9504	●	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9505-0203				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9101-9504	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9505-9702				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9703-9709				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9703-9709					●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9710-0203				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9710-0203					●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812				●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9101-9504	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9505-9805				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9703-9709				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9710-0203				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9710-0203					●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-				●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9703-9709				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9710-0203				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9710-0203					●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-				●	●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	08	1	9101-9504	●	●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9505-9805				●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9101-9504	●	●	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9101-9504	●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0203				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0204-				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	9-02051-025-0	04	1	9101-9504	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9505-9702				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9703-9709				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9703-9709					●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9710-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9710-9805					●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-					●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-331-0	04	1	9101-9504	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9101-9504	●		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9505-0203				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0204-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9703-9709					●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9710-					●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9101-9504	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9505-9702				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9703-9709				●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9710-				●	●	●
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-057-0	01	1	9101-9504	●	●	●

2 3 4 5 3 6 39 38 21 24 23 25 23 20 12 15 13 1 15 12 20 21 13 13 13 27 27 8 9 13 30 13 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-048-0	01	1	9101-9504	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-044-0	01	1	9101-9504	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-053-2	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0204-0812				●
1	LINER KIT; CYL,AIR CMPR	1-19163-074-0	01	1	0901-				●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-050-1	01	1	9505-0203				●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9703-9709					●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9710-0812					●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-					●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-241-0	01	1	9101-9504	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-255-0	01	1	9101-9504	●		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9505-0203				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0204-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9703-9709					●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9710-					●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	02	1	9101-9504	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	9-00006-206-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	9-00090-152-0	01	1	9101-9504	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9710-				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9505-9702				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9703-9709				●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9710-1202				●	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1203-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-037-0	01	1	9101-9504	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-042-0	01	1	9101-9504	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-048-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19171-047-1	01	1	9505-0203				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9703-9709					●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9710-1202					●	●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-					●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-019-0	01	1	9101-9504	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-361-0	01	1	9101-9504	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9505-9702				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9703-9709				●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9710-1107				●	●	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-				●	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-040-0	01	1	9101-9504	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19156-041-1	01	1	9101-9504	●		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9505-0203				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9703-9709					●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9710-1202					●	●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-					●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9101-9504	●	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-019-0	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19111-013-1	01	1	9101-9203	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-048-0	01	1	9204-9504	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19110-052-1	01	1	9505-0203				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0204-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9703-9709					●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9710-					●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-005-0	01	1	9101-9203	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-0	01	1	9204-9504	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9505-9702				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9703-9709				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9703-9709					●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19120-017-1	01	1	9710-0203				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9710-0203					●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0204-				●	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19158-020-0	01	1	9101-9504	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09623-539-0	01	1	9101-9504	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9505-9702				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9703-9709				●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9710-1107				●	●	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-				●	●	●
13	GASKET; AIR CMPR (A)	8-98112-947-0	01	1	0204-				●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0204-					●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-0	01	1	9101-9504	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19115-006-1	01	1	9505-0203				●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19139-004-0	01	1	9101-9504	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19139-004-0	01	1	9505-9702				●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9703-9709					●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9710-0203					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9703-9709				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9703-9709					●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A) T=0.8	1-19139-004-0	01	1	9710-9805				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9710-9805					●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-626-0	01	1	9806-0203				●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9807-0203					●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-222-0	01	1	9101-9504	●	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-250-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9101-9504	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19151-219-0	01	1	9505-0203				●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0204-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9703-9709					●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9710-					●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9101-9504	●	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-043-0	01	1	9505-0203				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-034-0	01	1	9101-9504	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9505-9702				●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9703-9709				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9703-9709					●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19163-051-1	01	1	9710-0203				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9710-0203					●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0204-0812				●	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9101-9504	●	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-021-0	01	1	9505-0203				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9101-9504	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9505-9702				●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9703-9709				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9703-9709					●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19161-016-0	01	1	9710-0203				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9710-0203					●	●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0204-0812				●	●	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-003-0	02	1	9101-9504	●	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9505-0203				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0204-0812				●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19168-008-0	02	1	9101-9504	●		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9703-9709					●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9710-0812					●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●	●	●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-					●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-011-0	01	1	9101-9504	●	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-017-0	01	1	9505-0203				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9101-9504	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9505-9702				●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9703-9709				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9703-9709					●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19173-010-0	01	1	9710-0203				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9710-0203					●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0204-1202				●	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1203-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9101-9504	●	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-006-0	01	1	9505-0203				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9101-9504	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9505-9702				●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9703-9709				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9703-9709					●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	9-19167-003-0	01	1	9710-0203				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9710-0203					●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0204-0812				●	●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9101-9504	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M10X30	9-02061-030-0	04	1	9505-9805				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9703-9709				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9710-0203				●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9710-0203					●	●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	0204-				●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9101-9504	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9505-9702				●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9703-9709				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9703-9709					●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9710-0203				●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9710-0203					●	●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	0204-				●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9101-9504	●	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-332-0	04	1	9505-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-0203				●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0204-				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q>	9-02051-025-0	04	1	9101-9504	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9505-9702				●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9703-9709				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9703-9709					●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY<E1Q> M10X25	9-02051-025-0	04	1	9710-9805				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9710-9805					●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-					●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09000-331-0	04	1	9101-9504	●	●	●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY<E1Q>	9-81385-023-0	04	1	9101-9504	●		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9505-0203				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0204-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9703-9709					●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9710-					●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9101-9504	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9505-9702				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9703-9709				●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9710-				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.2	9-09150-610-0	04	1	9101-9504	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9505-9702				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9703-9709				●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9710-9805				●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
