2-03 — CLUTCH PEDAL AND CONTROL (#43565) — 18 parça

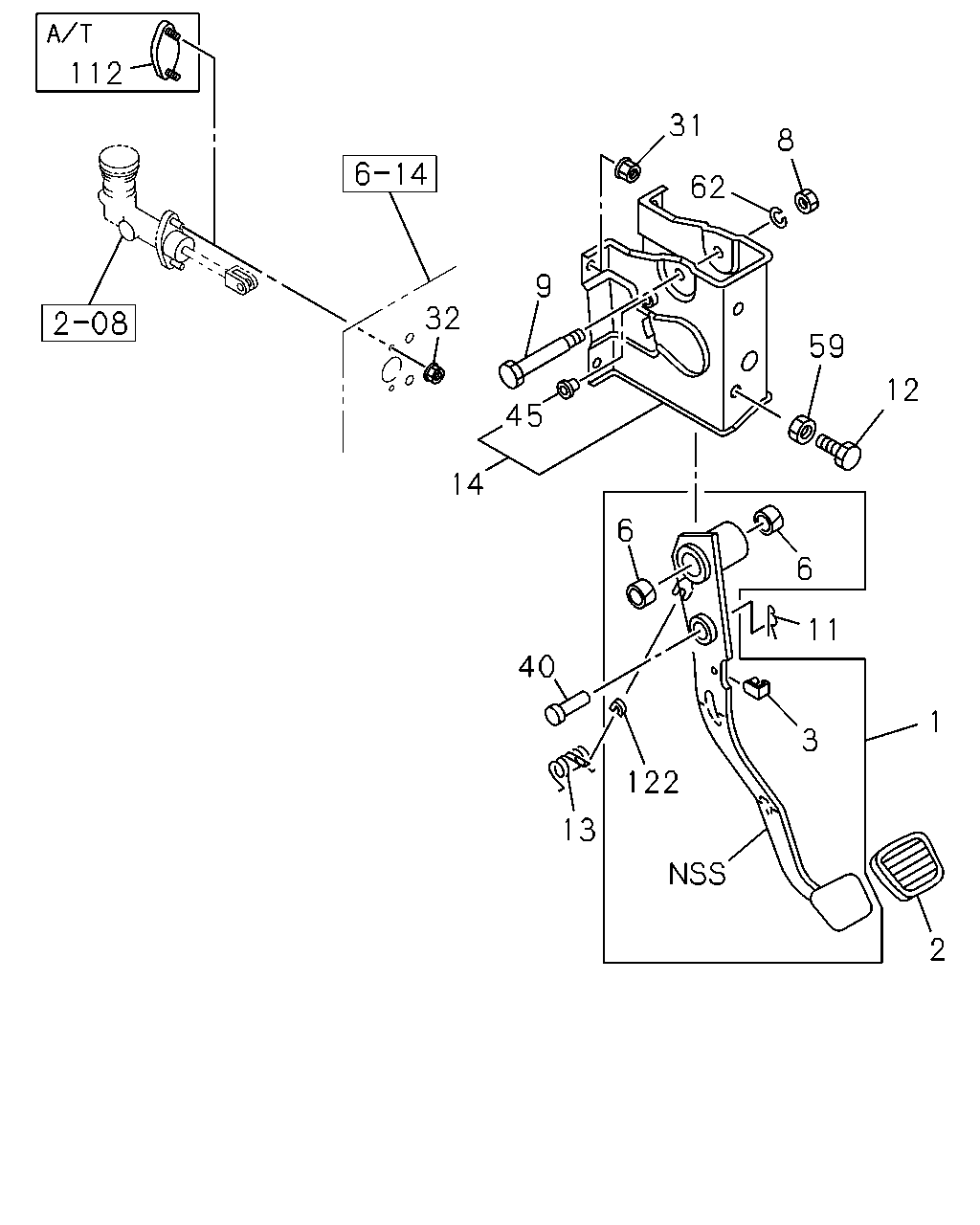

çizim 46994
112 31 8 62 9 32 59 12 45 14 6 6 11 40 1 3 122 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 PEDAL; CLU
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97911-274-1 01 1 0009- ● ● ● ● ● ● ● ●
2 COVER; CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-151-0 01 1 0009- ● ● ● ● ● ● ● ●
3 RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-315-0 01 1 0009- ● ● ● ● ● ● ● ●
6 BUSHING; CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-314-0 02 1 0009- ● ● ● ● ● ● ● ●
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10 		9-09110-410-0 01 1 0009- ● ● ● ● ● ● ● ●
9 PIN; CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94455-308-0 01 1 0009- ● ● ● ● ● ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> L=27.7 		1-09747-005-0 01 1 0009- ● ● ● ● ● ● ● ●
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10X35 		0-20801-035-0 01 1 0009- ● ● ● ● ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-400-0 01 1 0009- ● ● ● ● ● ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-240-0 01 1 0009- ● ● ● ● ● ● ● ●
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M8 FLANGE THA 		5-09440-005-0 04 1 0009- ● ● ● ● ● ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ● ● ● ● ● ●
40 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94432-133-1 01 1 0009- ● ● ● ● ● ● ● ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94175-433-0 02 1 0009- ● ● ● ● ● ● ● ●
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10 		9-09110-410-0 01 1 0009- ● ● ● ● ● ● ● ●
62 WASHER; LK,PIN TO PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> ID=10.2 THA 		9-09150-510-0 01 1 0009- ● ● ● ● ● ● ● ●
112 PLUG; METAL,M/CYL
A/T AISIN<RMD> THA 		8-97911-271-0 01 1 0009- ● ● ●
122 BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97913-317-0 01 1 0009- ● ● ● ● ● ● ● ●
