Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

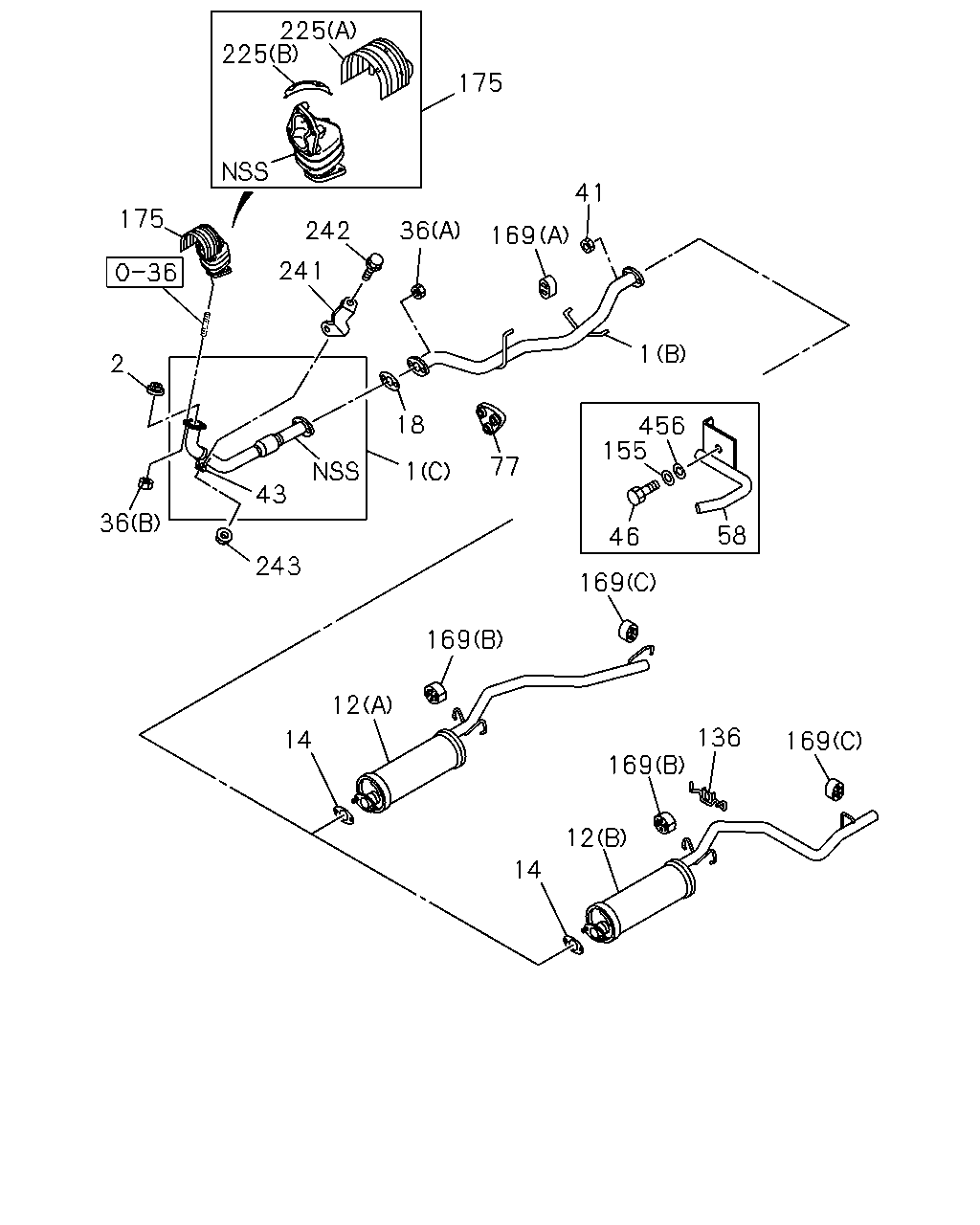

1-50 — EXHAUST PIPE AND SILENCER (#43563) — 118 parça

136 169 169 169 169 12 12 14 14 169 169 2 243 41 175 241 242 225 225 456 155 36 43 1 58 46 243 169 2 77 1 18 84 151 41 32 36 1 241 422 242 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4X2<TFB***> A/T AISIN<RMD> (C) THA	8-97921-604-1	01	1	0009-	●
1	PIPE; EXH THAIRUNG DOUBLE CAB<TF*Q> (A) THA	8-97920-475-0	01	1	0009-		●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) THA	8-97920-309-0	01	1	0009-		●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> A/T AISIN<RMD> (B) THA	8-97915-521-2	01	1	0009-	●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-984-2	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> (B) THA	8-97911-306-3	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-983-2	01	1	0009-	●
1	PIPE; EXH 4X4<TFS***> (E) THA	8-97910-723-2	01	1	0009-0107	●
1	PIPE; EXH 4X4<TFS***> THA	8-97922-061-0	01	1	0108-	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97918-987-3	01	1	0009-	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0009-	●	●
12	SILENCER ASM; EXH 4X4 THAIRUNG STATION WAGON<TFSP> THA	8-97919-015-0	01	1	0009-	●
12	SILENCER ASM; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (A) THA	8-97919-014-0	01	1	0009-	●	●
12	SILENCER ASM; EXH 4X2 THAIRUNG STATION WAGON<TFBP> (B) THA	8-97921-305-1	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-1	01	1	0009-	●	●
18	GASKET; EXH PIPE TO PIPE 4X2<TFB***> A/T AISIN<RMD> ID=55	8-97093-574-1	01	1	0009-	●
18	GASKET; EXH PIPE TO PIPE 4X4<TFS***> ID=55	8-97093-574-1	01	1	0009-	●
32	PIPE; EXH,FRT 4X4 THAIRUNG STATION WAGON<TFSP> THA	8-97918-574-0	01	1	0009-	●
32	PIPE; EXH,FRT 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA	8-97911-307-1	01	1	0009-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0009-	●	●
36	NUT; EXH PIPE 4X2<TFB***> A/T AISIN<RMD> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
36	NUT; EXH PIPE 4X4<TFS***> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●	●
43	CLAMP; EXH PIPE 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA	8-97910-779-1	01	1	0009-		●
43	CLAMP; EXH PIPE 4X2<TFB***> THA	8-97910-779-1	01	1	0009-	●
46	BOLT; BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> THA	8-97912-137-0	01	1	0009-	●
58	BRACKET; EXH PIPE,RR THAIRUNG STATION WAGON<TF*P> THA	8-97911-308-0	01	1	0009-	●
77	RUBBER; CUSHION,BRKT 4X2<TFB***> A/T AISIN<RMD>	8-97120-442-0	01	1	0009-	●
77	RUBBER; CUSHION,BRKT 4X4<TFS***>	8-97120-442-0	01	1	0009-	●
84	GASKET; EXH PIPE 4X4<TFS***> ID=55	8-97093-574-1	01	1	0009-	●
136	BRACKET; MTG,EXH PIPE THAIRUNG STATION WAGON<TF*P> THA	8-97166-085-0	01	1	0009-	●
151	PROTECTOR; HEAT,EXH PIPE 4X4<TFS***> THA	8-97910-796-0	01	1	0009-	●
155	WASHER; PL,BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> ID=8.4 THA	9-09160-508-0	01	1	0009-	●
169	RING; DAMPER,EXH PIPE (B) THA	8-97915-535-0	04	1	0009-	●	●
169	RING; DAMPER,EXH PIPE (C) THA	8-97915-537-0	01	1	0009-	●	●
169	RING; DAMPER,EXH PIPE 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97915-534-0	02	1	0009-	●	●
175	CONVERTER; CATALYST	8-97234-203-2	01	1	0009-		●
175	CONVERTER; CATALYST	8-97258-201-1	01	1	0009-	●
241	BRACKET; EXH PIPE TO TRANS THA	8-97911-295-0	01	1	0009-	●	●
242	BOLT; PIPE BRKT M8X45 FLANGE	0-28080-845-0	01	1	0009-	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-208-0	01	1	0009-0109	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
422	NUT; PIPE 4X4<TFS***> M10 FLANGE	0-91150-110-0	02	1	0009-	●
456	WASHER; LK,BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> ID=8.2 THA	9-09150-508-0	01	1	0009-	●

41 3 505 175 169 505 259 180 180 241 169 242 243 2 259 36 43 169 1 169 169 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4X2<TFB***> A/T AISIN<RMD> (C) THA	8-97921-604-1	01	1	0009-	●
1	PIPE; EXH THAIRUNG DOUBLE CAB<TF*Q> (A) THA	8-97920-475-0	01	1	0009-		●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) THA	8-97920-309-0	01	1	0009-		●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> A/T AISIN<RMD> (B) THA	8-97915-521-2	01	1	0009-	●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-984-2	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> (B) THA	8-97911-306-3	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-983-2	01	1	0009-	●
1	PIPE; EXH 4X4<TFS***> (E) THA	8-97910-723-2	01	1	0009-0107	●
1	PIPE; EXH 4X4<TFS***> THA	8-97922-061-0	01	1	0108-	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97918-987-3	01	1	0009-	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0009-	●	●
3	PIPE; EXH,CENTER THAIRUNG DOUBLE CAB<TF*Q> THA	8-97920-477-1	01	1	0009-		●
3	PIPE; EXH,CENTER 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA	8-97920-308-0	01	1	0009-		●
12	SILENCER ASM; EXH 4X4 THAIRUNG STATION WAGON<TFSP> THA	8-97919-015-0	01	1	0009-	●
12	SILENCER ASM; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (A) THA	8-97919-014-0	01	1	0009-	●	●
12	SILENCER ASM; EXH 4X2 THAIRUNG STATION WAGON<TFBP> (B) THA	8-97921-305-1	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-1	01	1	0009-	●	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0009-	●	●
36	NUT; EXH PIPE 4X2<TFB***> A/T AISIN<RMD> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
36	NUT; EXH PIPE 4X4<TFS***> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●	●
43	CLAMP; EXH PIPE 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA	8-97910-779-1	01	1	0009-		●
43	CLAMP; EXH PIPE 4X2<TFB***> THA	8-97910-779-1	01	1	0009-	●
169	RING; DAMPER,EXH PIPE (B) THA	8-97915-535-0	04	1	0009-	●	●
169	RING; DAMPER,EXH PIPE (C) THA	8-97915-537-0	01	1	0009-	●	●
169	RING; DAMPER,EXH PIPE 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97915-534-0	02	1	0009-	●	●
175	CONVERTER; CATALYST	8-97234-203-2	01	1	0009-		●
175	CONVERTER; CATALYST	8-97258-201-1	01	1	0009-	●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	08	1	0009-		●
241	BRACKET; EXH PIPE TO TRANS THA	8-97911-295-0	01	1	0009-	●	●
242	BOLT; PIPE BRKT M8X45 FLANGE	0-28080-845-0	01	1	0009-	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-208-0	01	1	0009-0109	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
259	NUT; CONV MTG M10	8-94201-308-1	08	1	0009-		●
505	GASKET; CONV TO EXH PIPE ID=71	8-94324-194-0	02	1	0009-		●

225 225 175 41 175 242 36 169 241 1 2 18 456 155 77 1 43 36 58 46 243 169 169 12 136 169 14 169 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4X2<TFB***> A/T AISIN<RMD> (C) THA	8-97921-604-1	01	1	0009-	●
1	PIPE; EXH THAIRUNG DOUBLE CAB<TF*Q> (A) THA	8-97920-475-0	01	1	0009-		●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) THA	8-97920-309-0	01	1	0009-		●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> A/T AISIN<RMD> (B) THA	8-97915-521-2	01	1	0009-	●
1	PIPE; EXH 4X2 THAIRUNG STATION WAGON<TFBP> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-984-2	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> (B) THA	8-97911-306-3	01	1	0009-	●
1	PIPE; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> (A) THA	8-97918-983-2	01	1	0009-	●
1	PIPE; EXH 4X4<TFS***> (E) THA	8-97910-723-2	01	1	0009-0107	●
1	PIPE; EXH 4X4<TFS***> THA	8-97922-061-0	01	1	0108-	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97918-987-3	01	1	0009-	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	0009-	●	●
12	SILENCER ASM; EXH 4X4 THAIRUNG STATION WAGON<TFSP> THA	8-97919-015-0	01	1	0009-	●
12	SILENCER ASM; EXH 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (A) THA	8-97919-014-0	01	1	0009-	●	●
12	SILENCER ASM; EXH 4X2 THAIRUNG STATION WAGON<TFBP> (B) THA	8-97921-305-1	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE ID=55	8-97093-574-1	01	1	0009-	●	●
18	GASKET; EXH PIPE TO PIPE 4X2<TFB***> A/T AISIN<RMD> ID=55	8-97093-574-1	01	1	0009-	●
18	GASKET; EXH PIPE TO PIPE 4X4<TFS***> ID=55	8-97093-574-1	01	1	0009-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	02	1	0009-	●	●
36	NUT; EXH PIPE 4X2<TFB***> A/T AISIN<RMD> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
36	NUT; EXH PIPE 4X4<TFS***> (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●	●
43	CLAMP; EXH PIPE 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA	8-97910-779-1	01	1	0009-		●
43	CLAMP; EXH PIPE 4X2<TFB***> THA	8-97910-779-1	01	1	0009-	●
46	BOLT; BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> THA	8-97912-137-0	01	1	0009-	●
58	BRACKET; EXH PIPE,RR THAIRUNG STATION WAGON<TF*P> THA	8-97911-308-0	01	1	0009-	●
77	RUBBER; CUSHION,BRKT 4X2<TFB***> A/T AISIN<RMD>	8-97120-442-0	01	1	0009-	●
77	RUBBER; CUSHION,BRKT 4X4<TFS***>	8-97120-442-0	01	1	0009-	●
136	BRACKET; MTG,EXH PIPE THAIRUNG STATION WAGON<TF*P> THA	8-97166-085-0	01	1	0009-	●
155	WASHER; PL,BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> ID=8.4 THA	9-09160-508-0	01	1	0009-	●
169	RING; DAMPER,EXH PIPE (B) THA	8-97915-535-0	04	1	0009-	●	●
169	RING; DAMPER,EXH PIPE (C) THA	8-97915-537-0	01	1	0009-	●	●
169	RING; DAMPER,EXH PIPE 4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97915-534-0	02	1	0009-	●	●
175	CONVERTER; CATALYST	8-97234-203-2	01	1	0009-		●
175	CONVERTER; CATALYST	8-97258-201-1	01	1	0009-	●
241	BRACKET; EXH PIPE TO TRANS THA	8-97911-295-0	01	1	0009-	●	●
242	BOLT; PIPE BRKT M8X45 FLANGE	0-28080-845-0	01	1	0009-	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-208-0	01	1	0009-0109	●	●
243	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	01	1	0110-	●	●
456	WASHER; LK,BRKT,EXH PIPE THAIRUNG STATION WAGON<TF*P> ID=8.2 THA	9-09150-508-0	01	1	0009-	●
