1-41 — FUEL PIPING; CHASSIS (#43562) — 109 parça

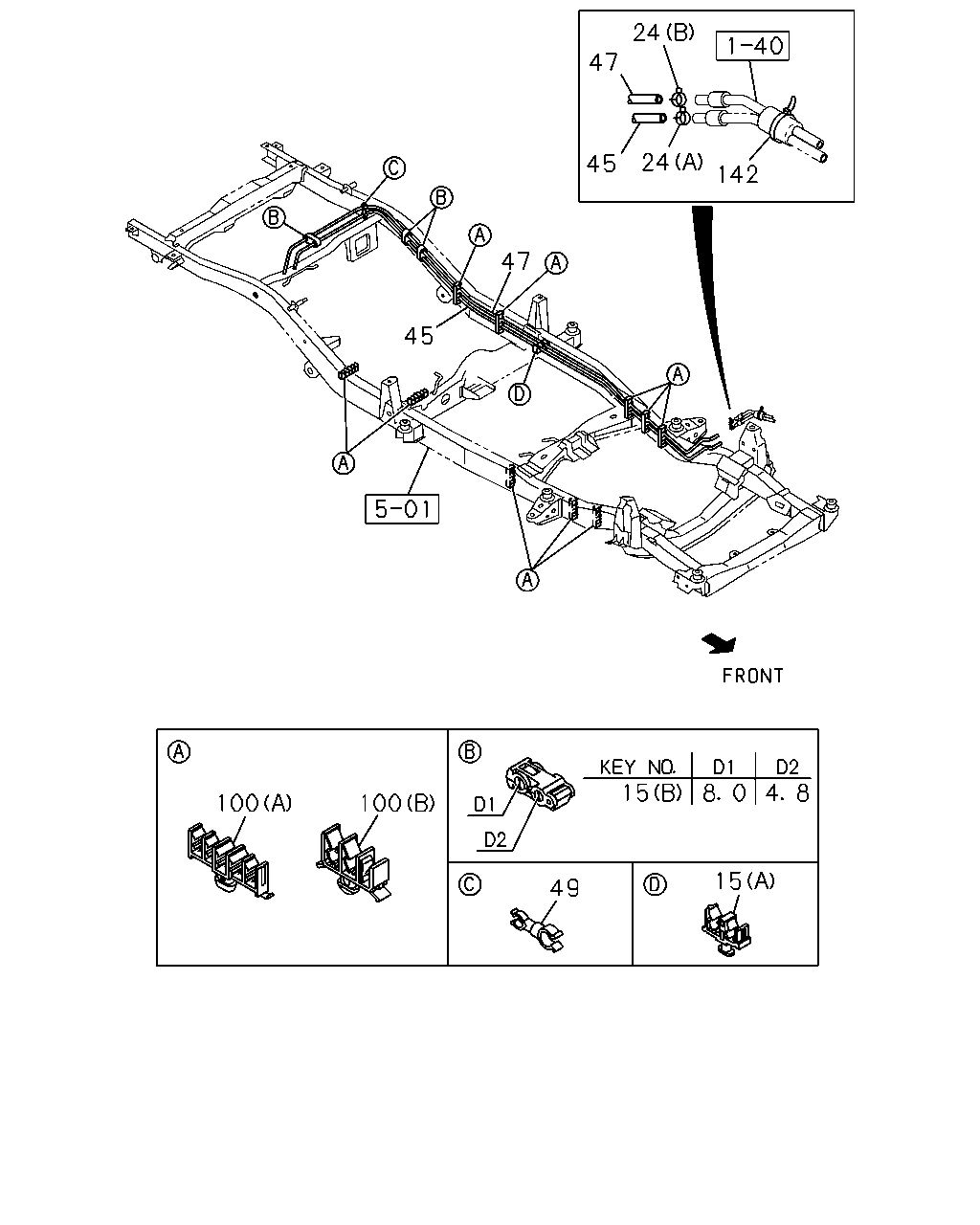

çizim 50244
24 47 24 142 45 47 45 15 100 100 15 49
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; FUEL PIPE
(B) BLACK 		8-94222-876-0 05 1 0009- ●
15 CLIP; FUEL PIPE
(A) THA 		8-97918-433-0 01 1 0009- ●
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(A) ID=17.1 		8-94122-679-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(C) ID=20 		8-94410-200-0 01 1 0009- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> SPECIAL PACKAGE<7BB> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED<RMN> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-649-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
SINGLE CAB<TF**S*> THA 		8-97910-546-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> THA 		8-97920-203-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-600-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-602-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-551-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-549-1 01 1 0009-0010 ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-604-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-547-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-650-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
SINGLE CAB<TF**S*> THA 		8-97910-547-3 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB<TFB*C*> THA 		8-97920-204-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-601-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-603-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-552-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-550-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-605-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-548-1 01 1 0009- ●
49 CLIP; PIPE TO FRAME
ID=8 & 4.8 THA 		8-94430-297-0 01 1 0009- ●
100 CLIP; FUEL PIPE
THAIRUNG DOUBLE CAB<TF**Q*> (A) THA 		8-97911-282-0 04 1 0009- ●
100 CLIP; FUEL PIPE
4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) THA 		8-97911-282-0 05 1 0009- ●
100 CLIP; FUEL PIPE
4X2<TFB***> A/T AISIN<RMD> (B) 		8-97245-523-0 10 1 0009- ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) 		8-97245-523-0 10 1 0009- ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED<RMN> (B) 		8-97245-523-0 11 1 0009- ●
142 CLIP; BAND,FUEL HOSE
L=170 		5-09707-054-0 01 1 0009- ●
142 CLIP; BAND,FUEL HOSE
L=140 THA 		5-09707-031-1 01 1 0009- ●
çizim 50721
47 45 136 146 136 146 135 289
BalonParca AdiParca NoAdetTipApplied Date A B
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> SPECIAL PACKAGE<7BB> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED<RMN> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-649-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
SINGLE CAB<TF**S*> THA 		8-97910-546-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> THA 		8-97920-203-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-600-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-602-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-551-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-549-1 01 1 0009-0010 ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-604-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-547-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-650-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
SINGLE CAB<TF**S*> THA 		8-97910-547-3 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB<TFB*C*> THA 		8-97920-204-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-601-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-603-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-552-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-550-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-605-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-548-1 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97910-059-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA 		8-97911-285-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
SPACE CAB<TF**C*> L=550 SERVICED BY L=3000 		0-01262-300-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
THAIRUNG STATION WAGON<TF**P*> THA 		8-97920-612-1 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
DOUBLE CAB<TF**W*> L=430 SERVICED BY L=3000 		0-01262-300-0 01 1 0009- ●
136 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 0009- ●
136 CLIP; HOSE,FUEL TANK
ID=17.1 		8-94122-679-0 02 1 0009- ●
146 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-97173-219-0 02 1 0009- ●
146 CLIP; HOSE,FUEL RETURN PIPE
ID=13 		8-97173-220-0 02 1 0009- ●
289 CLIP; BAND,HOSE
L=350 		8-94152-256-1 02 1 0009- ● ●

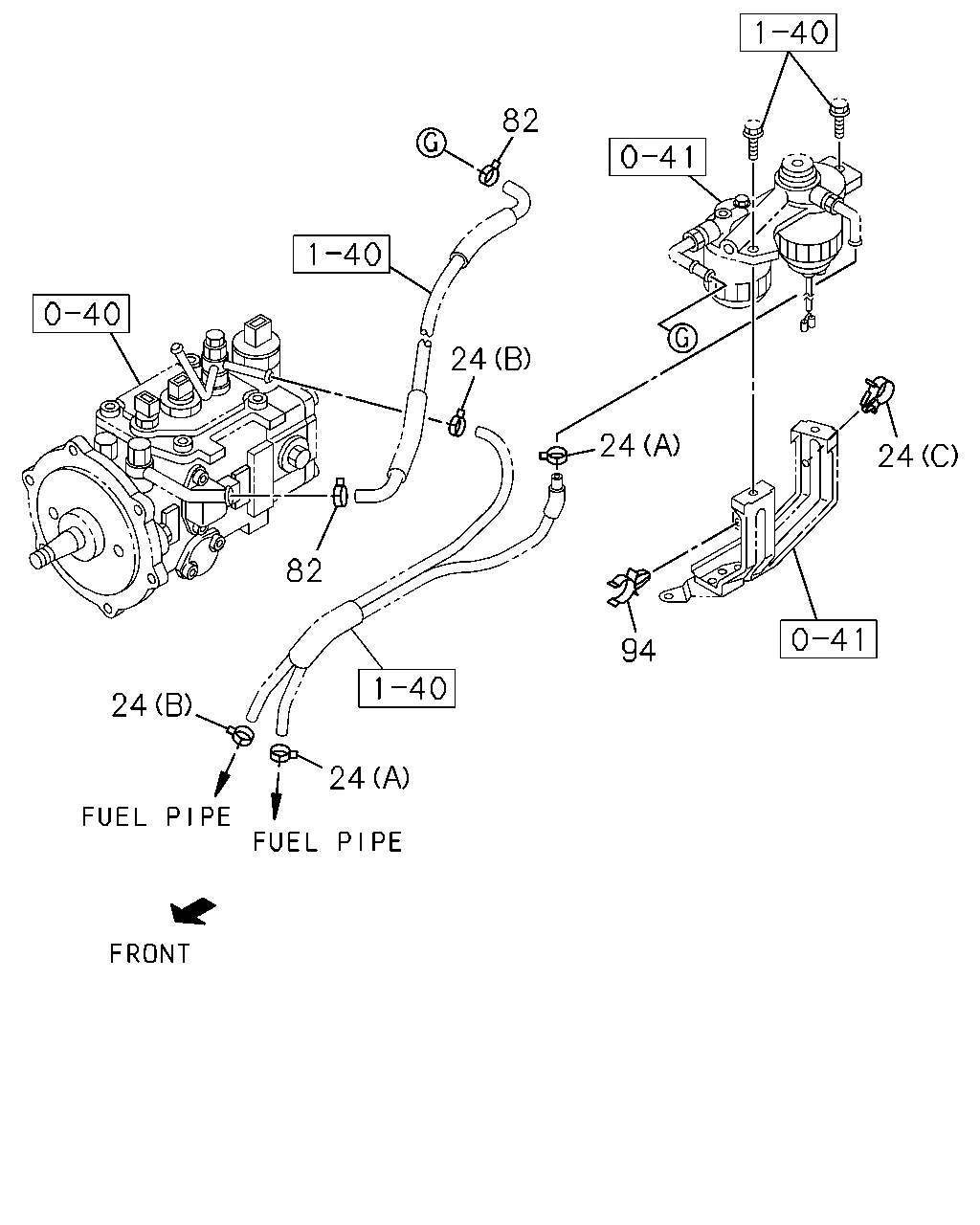

çizim 50757
82 24 24 24 82 94 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(B) ID=11 		8-97173-219-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(A) ID=14 		8-97173-221-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(A) ID=17.1 		8-94122-679-0 02 1 0009- ●
24 CLIP; FUEL HOSE
(C) ID=20 		8-94410-200-0 01 1 0009- ●
24 CLIP; FUEL HOSE
(B) ID=13 		8-97173-220-0 02 1 0009- ●
82 CLIP; FUEL HOSE
ID=14 		8-94238-572-0 02 1 0009- ●
82 CLIP; FUEL HOSE
ID=17.1 		8-94122-679-0 02 1 0009- ● ●
94 CLIP; HOSE,FILTER
POWER STEERING<N40> ID=21 BLACK 		8-94422-733-0 01 1 0009- ● ●

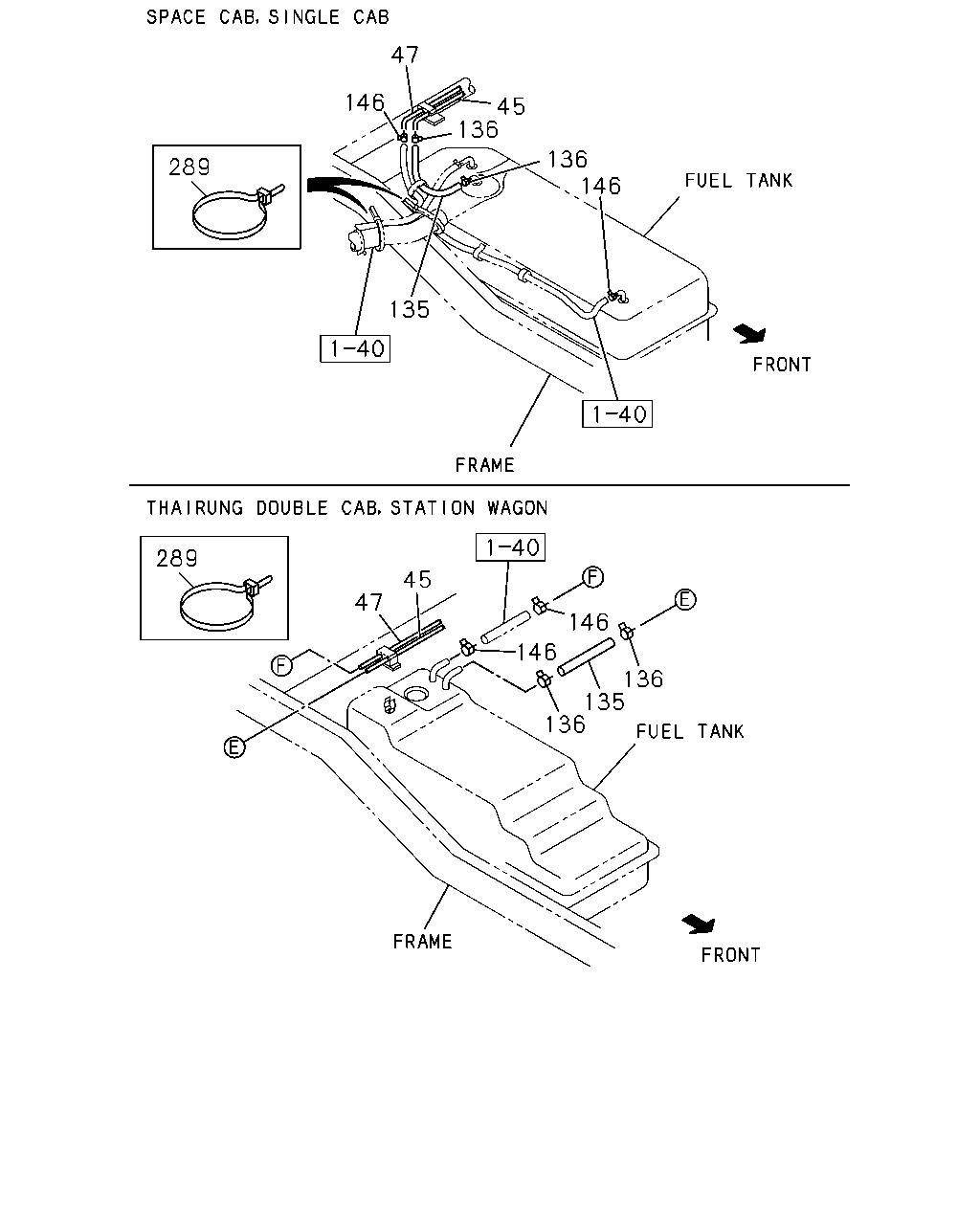

çizim 51725
47 146 45 136 136 146 289 135 289 45 47 146 146 136 135 136
BalonParca AdiParca NoAdetTipApplied Date A B
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> SPECIAL PACKAGE<7BB> EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED<RMN> THA 		8-97921-770-0 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-649-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
SINGLE CAB<TF**S*> THA 		8-97910-546-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> THA 		8-97920-203-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-600-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-602-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-551-1 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-549-1 01 1 0009-0010 ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> HIGH INTENSITY DISCHARGE HEAD LAMPS<TGR> SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED<RMN> EXC. SPECIAL PACKAGE<7BB> THA 		8-97920-549-1 01 1 0011- ●
45 PIPE; FUEL,DELIVERY
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-604-0 01 1 0009- ●
45 PIPE; FUEL,DELIVERY
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-547-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97916-650-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
SINGLE CAB<TF**S*> THA 		8-97910-547-3 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB<TFB*C*> THA 		8-97920-204-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> A/T AISIN<RMD> THA 		8-97920-601-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 THAIRUNG STATION WAGON<TFB*P*> M/T MUA 5 SPEED<RMN> THA 		8-97920-603-0 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> A/T AISIN<RMD> THA 		8-97920-552-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> M/T MUA 5 SPEED<RMN> THA 		8-97920-550-2 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 THAIRUNG STATION WAGON<TFS*P*> THA 		8-97920-605-1 01 1 0009- ●
47 PIPE; FUEL,RETURN
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97920-548-1 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
THAIRUNG DOUBLE CAB<TF**Q*> THA 		8-97910-059-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA 		8-97911-285-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
SPACE CAB<TF**C*> L=550 SERVICED BY L=3000 		0-01262-300-0 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
THAIRUNG STATION WAGON<TF**P*> THA 		8-97920-612-1 01 1 0009- ●
135 HOSE; FUEL TANK TO FUEL PIPE
DOUBLE CAB<TF**W*> L=430 SERVICED BY L=3000 		0-01262-300-0 01 1 0009- ●
136 CLIP; HOSE,FUEL TANK
ID=14 		8-97173-221-0 02 1 0009- ●
136 CLIP; HOSE,FUEL TANK
ID=17.1 		8-94122-679-0 02 1 0009- ●
146 CLIP; HOSE,FUEL RETURN PIPE
ID=11 		8-97173-219-0 02 1 0009- ●
146 CLIP; HOSE,FUEL RETURN PIPE
ID=13 		8-97173-220-0 02 1 0009- ●
289 CLIP; BAND,HOSE
L=350 		8-94152-256-1 02 1 0009- ● ●
