Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#43561) — 117 parça

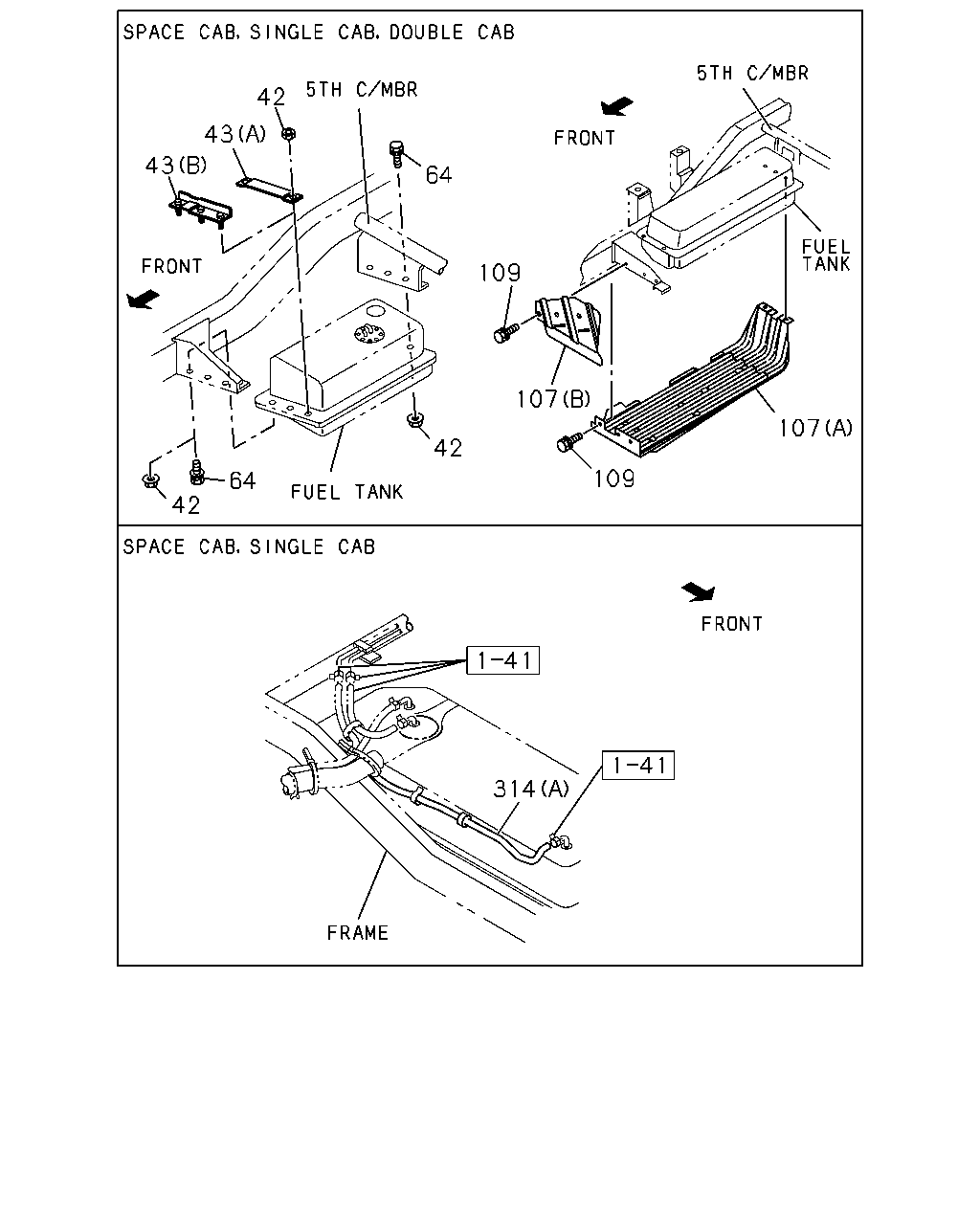

42 43 43 64 109 107 107 42 42 109 64 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	NUT; SUPPORT BELT 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> M8 FLANGE	8-94328-243-0	05	1	0009-	●	●
42	NUT; SUPPORT BELT 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8 FLANGE	8-94328-243-0	06	1	0009-	●	●
43	BRACKET; FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> (A)	8-94328-269-0	01	1	0009-	●	●
43	BRACKET; FUEL TANK DOUBLE CAB<TF*W> (B)	8-94318-376-1	01	1	0009-	●
64	BOLT; FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> M8X24	8-97034-130-1	05	1	0009-	●	●
64	BOLT; FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> M8X24	8-97034-130-1	06	1	0009-	●	●
64	BOLT; FUEL TANK DOUBLE CAB<TF*W> M8X24	8-97034-130-1	03	1	0009-	●
107	PROTECTOR; HEAT,FUEL TANK 4X2 DOUBLE CAB<TFBW> (B)	8-94313-765-0	01	1	0009-	●
107	PROTECTOR; HEAT,FUEL TANK 4X4 SPACE CAB<TFSC> (A)	8-94434-723-1	01	1	0009-	●
107	PROTECTOR; HEAT,FUEL TANK 4X4 DOUBLE CAB<TFSW> (A)	8-97211-786-0	01	1	0009-	●
109	BOLT; HEAT PROTECTOR 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> M8X20 FLANGE	0-28480-820-0	03	1	0009-	●
314	HOSE; RUBBER,FUEL RETURN THAIRUNG DOUBLE CAB<TF*Q> (B) THA	8-97910-060-0	01	1	0009-		●
314	HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) L=1060 SERVICED BY L=3000	0-01154-300-0	01	1	0009-		●
314	HOSE; RUBBER,FUEL RETURN SPACE CAB<TF*C> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
314	HOSE; RUBBER,FUEL RETURN THAIRUNG STATION WAGON<TF*P> (B) THA	8-97920-613-0	01	1	0009-	●
314	HOSE; RUBBER,FUEL RETURN DOUBLE CAB<TF*W> (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●

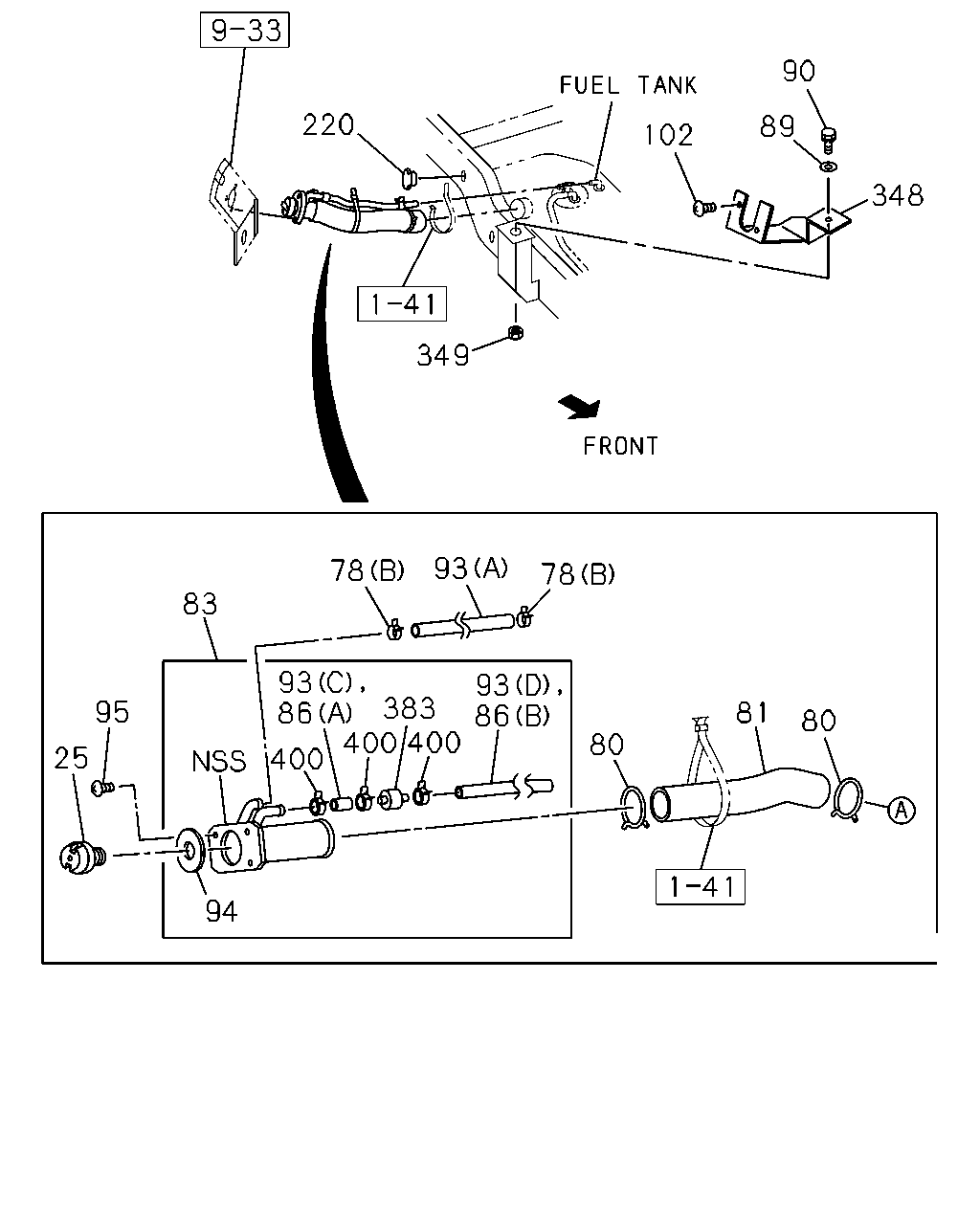

90 220 89 102 348 349 93 78 78 83 93 93 86 383 86 400 400 95 81 80 80 25 94 400

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	CAP; FILLER,FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF>	8-94310-199-4	01	1	0009-	●	●
25	CAP; FILLER,FUEL TANK SINGLE CAB<TF*S> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>	8-94310-199-4	01	1	0009-	●	●
25	CAP; FILLER,FUEL TANK 4X4 SPACE CAB<TFSC> RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>, RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ>	8-94310-199-4	01	1	0009-	●	●
78	CLIP; BREATHER HOSE (B) ID=16 THA	8-94238-568-0	02	1	0009-	●	●
78	CLIP; BREATHER HOSE 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (A) ID=11	8-94238-570-0	01	1	0009-	●	●
80	CLIP; FILLER HOSE 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> ID=59	8-94435-876-0	02	1	0009-	●	●
80	CLIP; FILLER HOSE DOUBLE CAB<TF*W> ID=59	8-94435-876-0	01	1	0009-	●
80	CLIP; FILLER HOSE DOUBLE CAB<TF*W> ID=54	9-09915-412-1	01	1	0009-0108	●
80	CLIP; FILLER HOSE DOUBLE CAB<TF*W> ID=57	9-09915-036-1	01	1	0109-	●
81	HOSE; FUEL FILLER SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>	8-94468-249-2	01	1	0009-		●
81	HOSE; FUEL FILLER 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97117-704-1	01	1	0009-	●	●
81	HOSE; FUEL FILLER 4X2 SPACE CAB<TFBC> THA	8-97911-277-0	01	1	0009-	●	●
81	HOSE; FUEL FILLER SINGLE CAB<TF*S> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97911-277-0	01	1	0009-	●	●
81	HOSE; FUEL FILLER 4X4 SPACE CAB<TFSC> RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>, RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> THA	8-97911-277-0	01	1	0009-	●	●
81	HOSE; FUEL FILLER DOUBLE CAB<TF*W> THA	8-97921-342-0	01	1	0009-	●
83	NECK; FUEL FILLER 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97914-388-2	01	1	0009-		●
83	NECK; FUEL FILLER 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97914-388-2	01	1	0009-	●
83	NECK; FUEL FILLER DOUBLE CAB<TF*W>	8-97223-088-0	01	1	0009-	●
86	HOSE; EVAP DOUBLE CAB<TF*W> (B) L=380 SERVICED BY L=3000	8-94128-826-0	01	1	0009-	●
86	HOSE; EVAP DOUBLE CAB<TF*W> (A) L=80 SERVICED BY L=3000	8-94128-826-0	01	1	0009-	●
89	WASHER; PL,FILLER NECK SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=8.4 OD=22	9-09160-708-0	01	1	0009-		●
90	BOLT; FILLER TO BODY SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X20 FLANGE	0-28680-820-0	01	1	0009-		●
93	HOSE; BREATHER,FUEL TANK DOUBLE CAB<TF*W> (A) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (C) THA	8-97915-212-1	01	1	0009-		●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (C) THA	8-97915-212-1	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (D) THA	8-97919-488-0	01	1	0009-		●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (D) THA	8-97919-488-0	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (B) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	0009-	●	●
94	GASKET; FILLER NECK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97915-213-0	01	1	0009-		●
94	GASKET; FILLER NECK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97915-213-0	01	1	0009-	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	0009-0010	●	●
95	SCREW; FILLER NECK 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M6X16	8-94381-646-0	03	1	0011-	●	●
95	SCREW; FILLER NECK SINGLE CAB<TF*S> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16	8-94381-646-0	03	1	0011-	●	●
95	SCREW; FILLER NECK 4X4 SPACE CAB<TFSC> RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>, RR BODY DOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ> M6X16	8-94381-646-0	03	1	0011-	●	●
102	SCREW; FUEL FILLER THAIRUNG DOUBLE CAB<TF*Q> M6X16	8-94381-646-0	02	1	0009-0009	●	●
102	SCREW; FUEL FILLER SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16	8-94381-646-0	02	1	0009-0009	●	●
102	SCREW; FUEL FILLER SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16	8-94381-646-0	02	1	0009-		●
220	GROMMET; BREATHER HOSE,FUEL TANK THA	8-94482-493-1	01	1	0009-	●	●
348	BRACKET; FUEL FILLER SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>	8-94313-471-1	01	1	0009-		●
349	NUT; FUEL FILLER SINGLE CAB<TF*S> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8	9-09110-408-0	01	1	0009-		●
383	VALVE; 2 WAY 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF>	8-97076-391-0	01	1	0009-	●	●
383	VALVE; 2 WAY 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>, RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODYDOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ>	8-97076-391-0	01	1	0009-	●	●
383	VALVE; 2 WAY DOUBLE CAB<TF*W>	8-97178-373-0	01	1	0009-	●
400	CLIP; HOSE,EVAP 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97915-210-2	03	1	0009-		●
400	CLIP; HOSE,EVAP 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97915-210-2	03	1	0009-	●
400	CLIP; HOSE,EVAP DOUBLE CAB<TF*W> ID=8.5	8-94166-071-0	03	1	0009-0105	●
400	CLIP; HOSE,EVAP DOUBLE CAB<TF*W> ID=8.5	8-94166-071-0	02	1	0106-	●

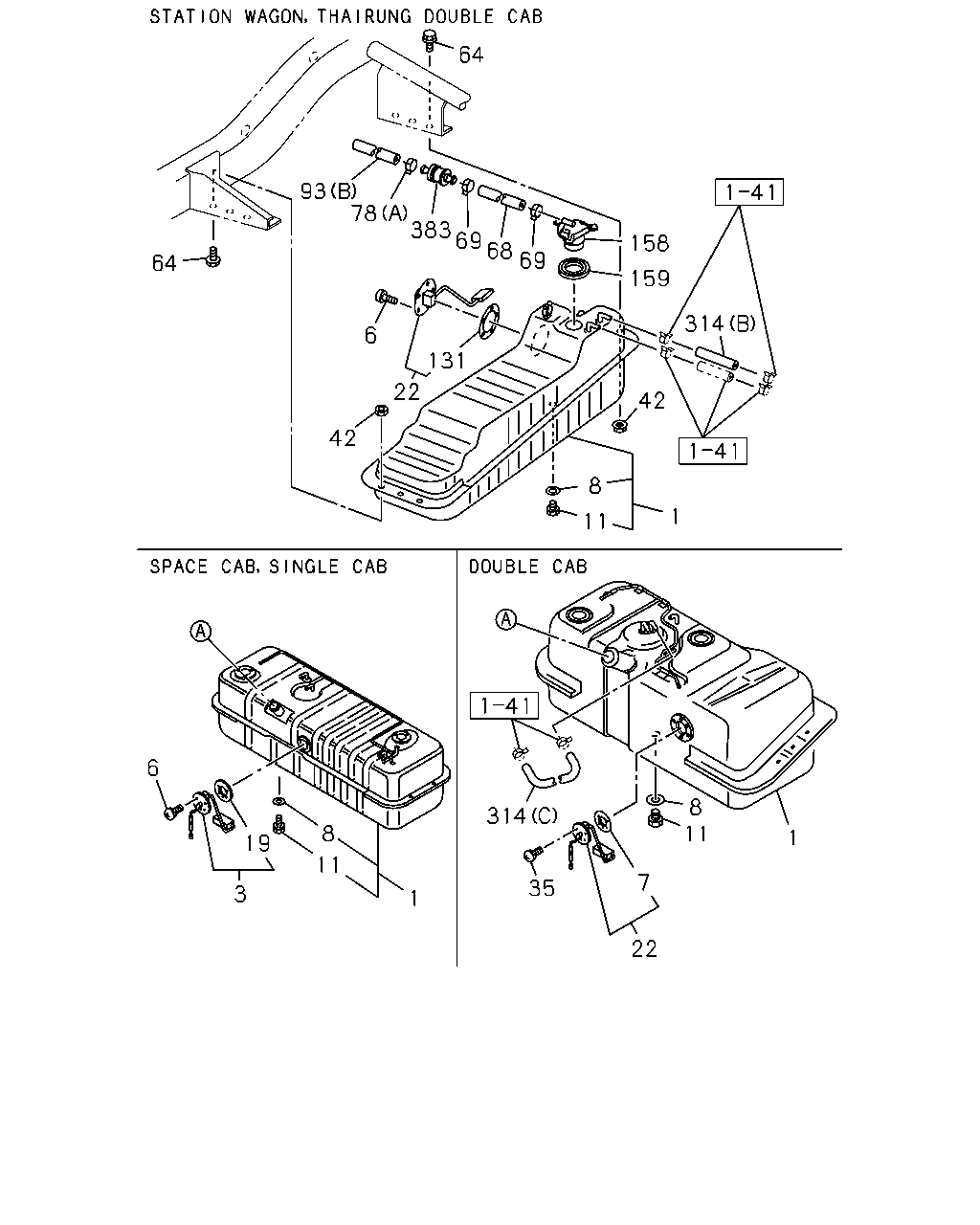

64 93 78 383 69 68 69 158 64 159 314 6 131 22 42 42 8 1 11 6 8 11 314 8 11 1 19 7 35 3 1 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL THAIRUNG DOUBLE CAB<TF*Q> THA	8-97910-890-2	01	1	0009-		●
1	TANK; FUEL 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> THA	8-97911-276-3	01	1	0009-		●
1	TANK; FUEL SPACE CAB<TF*C> THA	8-97920-560-3	01	1	0009-	●
1	TANK; FUEL THAIRUNG STATION WAGON<TF*P> THA	8-97920-562-0	01	1	0009-	●
1	TANK; FUEL DOUBLE CAB<TF*W>	8-97260-039-3	01	1	0009-	●
3	UNIT; FUEL TANK,SUB 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> THA	8-97918-824-1	01	1	0009-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> M5X10 W/LK WASHER	9-03910-510-0	05	1	0009-	●	●
7	GASKET; TANK UNIT,SUB TANK DOUBLE CAB<TF*W> ID=42 OD=71	5-83148-001-0	01	1	0009-	●
8	GASKET; DRAIN PLUG,FUEL TANK THAIRUNG STATION WAGON<TF*P> THA	8-97914-505-0	01	1	0009-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> THA	8-97913-627-0	01	1	0009-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK DOUBLE CAB<TF*W> ID=8.2 OD=17	9-09572-008-0	01	1	0009-0105	●
8	GASKET; DRAIN PLUG,FUEL TANK THAIRUNG STATION WAGON<TF*P> ID=8.2 OD=17	9-09572-008-0	01	1	0106-	●	●
11	PLUG; DRAIN,FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> M8X16 FLANGE	0-28080-816-0	01	1	0009-0105	●	●
11	PLUG; DRAIN,FUEL TANK THAIRUNG STATION WAGON<TF*P> M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●
11	PLUG; DRAIN,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> THA	8-97913-628-0	01	1	0009-	●	●
19	GASKET; FUEL TANK UNIT 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> THA	8-97920-267-1	01	1	0009-	●	●
22	UNIT; FUEL TANK THAIRUNG STATION WAGON<TF*P>	8-97093-104-0	01	1	0009-	●	●
22	UNIT; FUEL TANK DOUBLE CAB<TF*W>	8-94318-396-0	01	1	0009-	●
35	SCREW; FUEL TANK UNIT DOUBLE CAB<TF*W> M5X10 W/LK WASHER	9-03910-510-0	05	1	0009-	●
42	NUT; SUPPORT BELT 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> M8 FLANGE	8-94328-243-0	05	1	0009-	●	●
42	NUT; SUPPORT BELT 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8 FLANGE	8-94328-243-0	06	1	0009-	●	●
64	BOLT; FUEL TANK 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> M8X24	8-97034-130-1	05	1	0009-	●	●
64	BOLT; FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> M8X24	8-97034-130-1	06	1	0009-	●	●
64	BOLT; FUEL TANK DOUBLE CAB<TF*W> M8X24	8-97034-130-1	03	1	0009-	●
68	HOSE; RUBBER,FUEL TANK TO EVAP PIPE 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> L=90 SERVICED BY L=3000	8-94128-826-0	01	1	0009-	●	●
69	CLIP; FUEL TANK TO EVAP PIPE 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> ID=8.5	8-94166-071-0	02	1	0009-	●	●
78	CLIP; BREATHER HOSE (B) ID=16 THA	8-94238-568-0	02	1	0009-	●	●
78	CLIP; BREATHER HOSE 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (A) ID=11	8-94238-570-0	01	1	0009-	●	●
93	HOSE; BREATHER,FUEL TANK DOUBLE CAB<TF*W> (A) L=660 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (C) THA	8-97915-212-1	01	1	0009-		●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (C) THA	8-97915-212-1	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 SINGLE CAB LONG<TFB5SF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (D) THA	8-97919-488-0	01	1	0009-		●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (D) THA	8-97919-488-0	01	1	0009-	●
93	HOSE; BREATHER,FUEL TANK 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> (B) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	0009-	●	●
131	GASKET; SAFETY VENT 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> ID=42 OD=71	5-83148-001-0	01	1	0009-	●	●
158	VALVE; ROLL OVER & FLOAT 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF>	8-94344-101-1	01	1	0009-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF>	8-94340-385-0	01	1	0009-	●	●
314	HOSE; RUBBER,FUEL RETURN THAIRUNG DOUBLE CAB<TF*Q> (B) THA	8-97910-060-0	01	1	0009-		●
314	HOSE; RUBBER,FUEL RETURN 4X2 SPACE CAB LONG<TFB5CF> 4X2 SINGLE CAB LONG<TFB5SF> (A) L=1060 SERVICED BY L=3000	0-01154-300-0	01	1	0009-		●
314	HOSE; RUBBER,FUEL RETURN SPACE CAB<TF*C> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
314	HOSE; RUBBER,FUEL RETURN THAIRUNG STATION WAGON<TF*P> (B) THA	8-97920-613-0	01	1	0009-	●
314	HOSE; RUBBER,FUEL RETURN DOUBLE CAB<TF*W> (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
383	VALVE; 2 WAY 4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF>	8-97076-391-0	01	1	0009-	●	●
383	VALVE; 2 WAY 4X2 SINGLE CAB LONG<TFB5SF> 4X4 SPACE CAB LONG<TFS5CF> RR BODY DOUBLE WALL CTR PULL WO/GUARD FRAME<S7R>, RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S>,RR BODYDOUBLE WALL SIDE LOCK WO/GUARD FRAME<7HJ>	8-97076-391-0	01	1	0009-	●	●
383	VALVE; 2 WAY DOUBLE CAB<TF*W>	8-97178-373-0	01	1	0009-	●

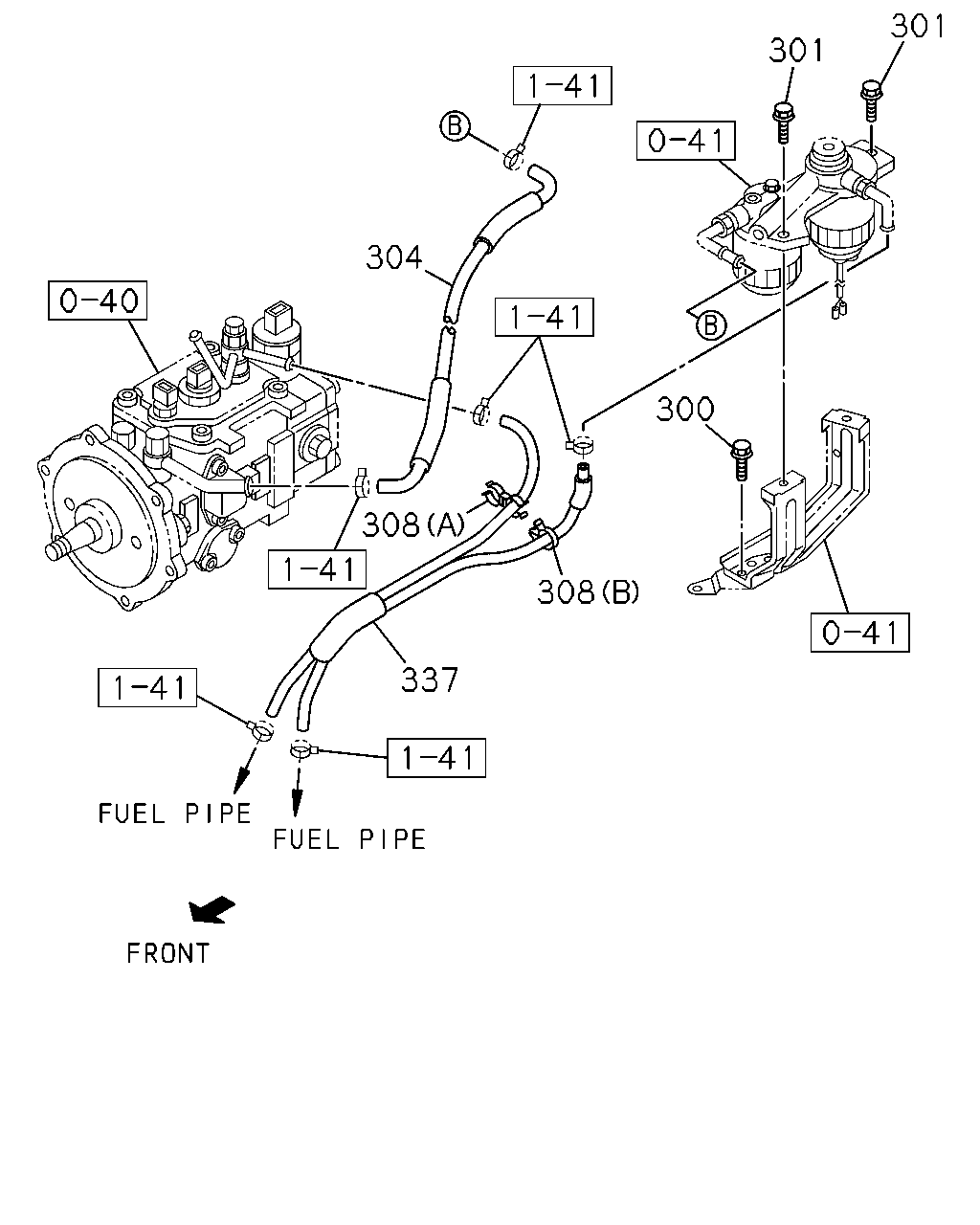

301 301 304 300 308 308 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; BRKT TO BODY M8X16 FLANGE	0-28080-816-0	03	1	0009-	●	●
301	BOLT; BRKT TO SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0009-	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP THA	8-97911-284-0	01	1	0009-		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP THA	8-97920-486-0	01	1	0009-	●
308	CLIP; HOSE (A) ID=14.5 & 6	8-94312-791-0	01	1	0009-		●
308	CLIP; HOSE (B) ID=20	8-94410-200-0	01	1	0009-	●	●
308	CLIP; HOSE (A) ID=10.5 & 13.2	8-94310-916-0	01	1	0009-	●
337	HOSE ASM; FUEL,DELIVERY & RETURN THA	8-97920-939-1	01	1	0009-		●
337	HOSE ASM; FUEL,DELIVERY & RETURN THA	8-97920-614-2	01	1	0009-	●
