◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#43560) — 23 parça
çizim 11170
5 2 297 297 5 26 5 209
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 8-97161-460-4 01 1 0009- ●
2 HOSE; ACL 8-97129-707-0 01 1 0009- ●
5 CLIP; AIR DUCT
(B) THA 		8-97918-435-0 01 1 0009- ● ●
5 CLIP; AIR DUCT
(A) THA 		8-97918-436-0 02 1 0009- ● ●
26 DUCT; AIR INT 8-97214-388-1 01 1 0009- ●
26 DUCT; AIR INT
(A) 		8-97249-557-1 01 1 0009- ●
26 DUCT; AIR INT
(B) THA 		8-97941-855-0 01 1 0009- ●
209 BRACKET; ACL
THA 		8-97919-731-0 01 1 0009- ●
209 BRACKET; ACL
THA 		8-97920-480-1 01 1 0009- ●
297 BOLT; DUCT
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0009-0107 ● ●
297 BOLT; DUCT
M8X30 FLANGE 		0-28680-830-0 02 1 0108- ● ●

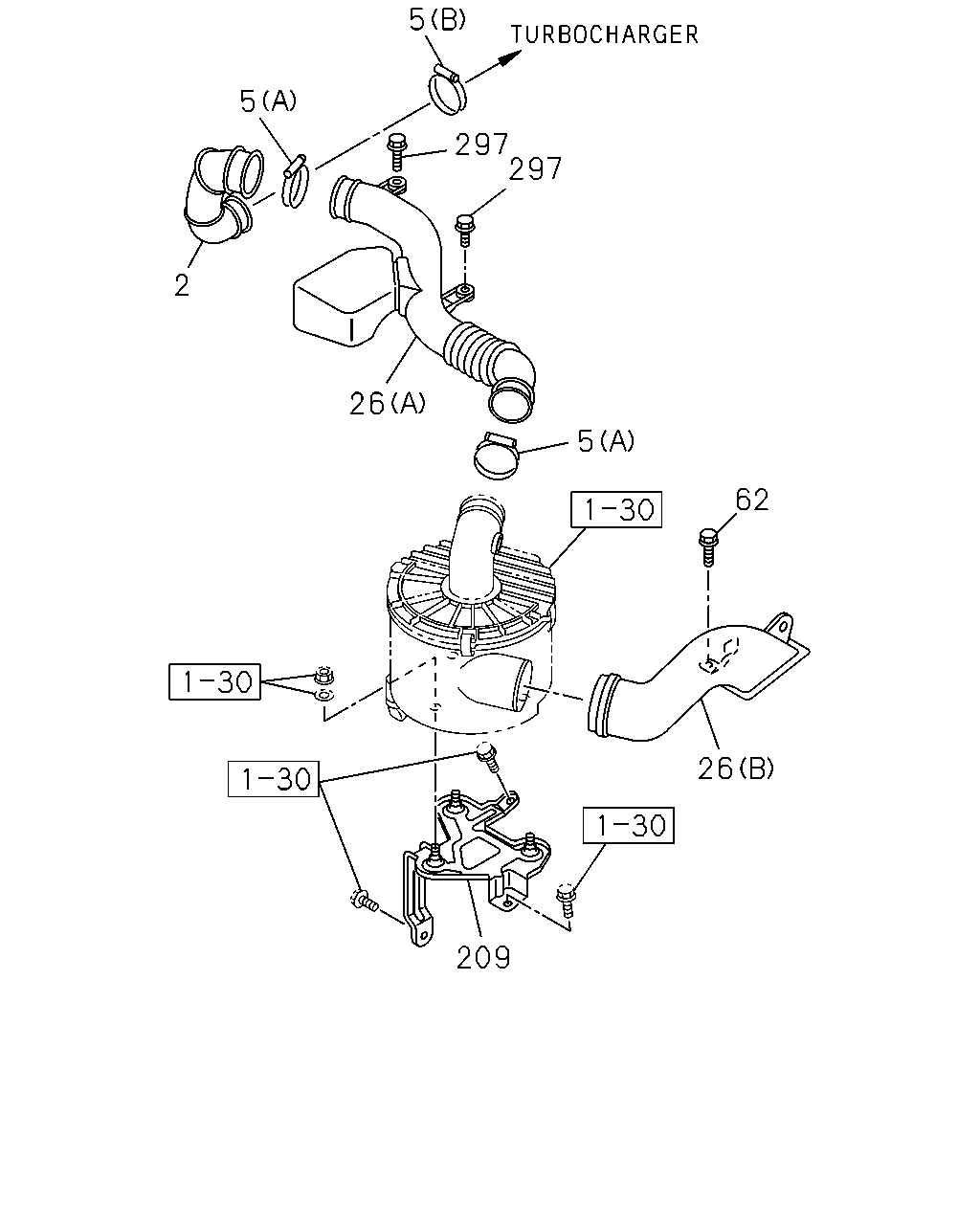

çizim 47763
5 5 2 297 297 26 5 62 26 209
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 8-97161-460-4 01 1 0009- ●
2 HOSE; ACL 8-97129-707-0 01 1 0009- ●
5 CLIP; AIR DUCT
(B) THA 		8-97918-435-0 01 1 0009- ● ●
5 CLIP; AIR DUCT
(A) THA 		8-97918-436-0 02 1 0009- ● ●
26 DUCT; AIR INT 8-97214-388-1 01 1 0009- ●
26 DUCT; AIR INT
(A) 		8-97249-557-1 01 1 0009- ●
26 DUCT; AIR INT
(B) THA 		8-97941-855-0 01 1 0009- ●
62 BOLT; AIR INT DUCT
M8X16 FLANGE 		0-28080-816-0 01 1 0009- ●
209 BRACKET; ACL
THA 		8-97919-731-0 01 1 0009- ●
209 BRACKET; ACL
THA 		8-97920-480-1 01 1 0009- ●
297 BOLT; DUCT
M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0009-0107 ● ●
297 BOLT; DUCT
M8X30 FLANGE 		0-28680-830-0 02 1 0108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
