Sayfa 0-38 - Isuzu EPC

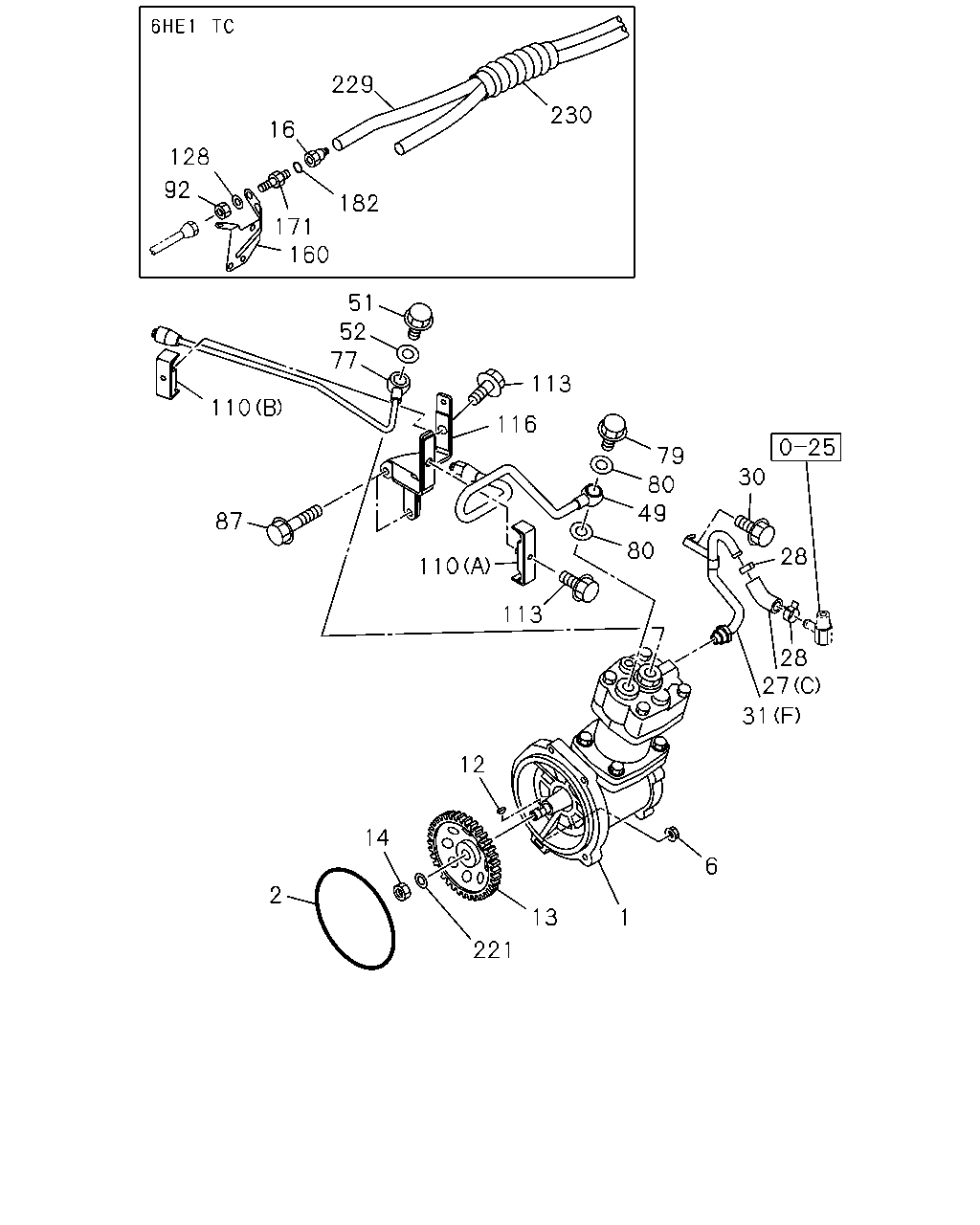

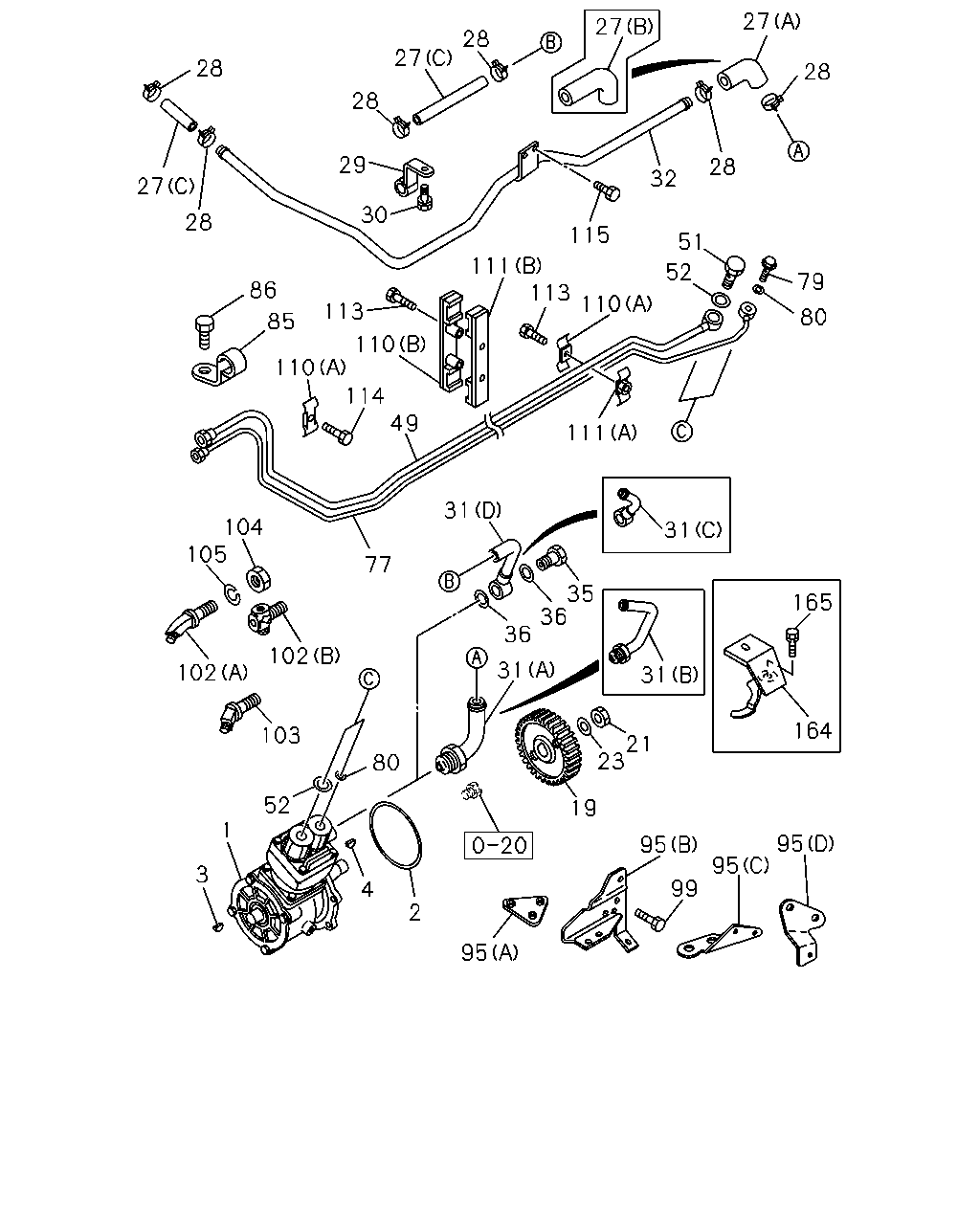

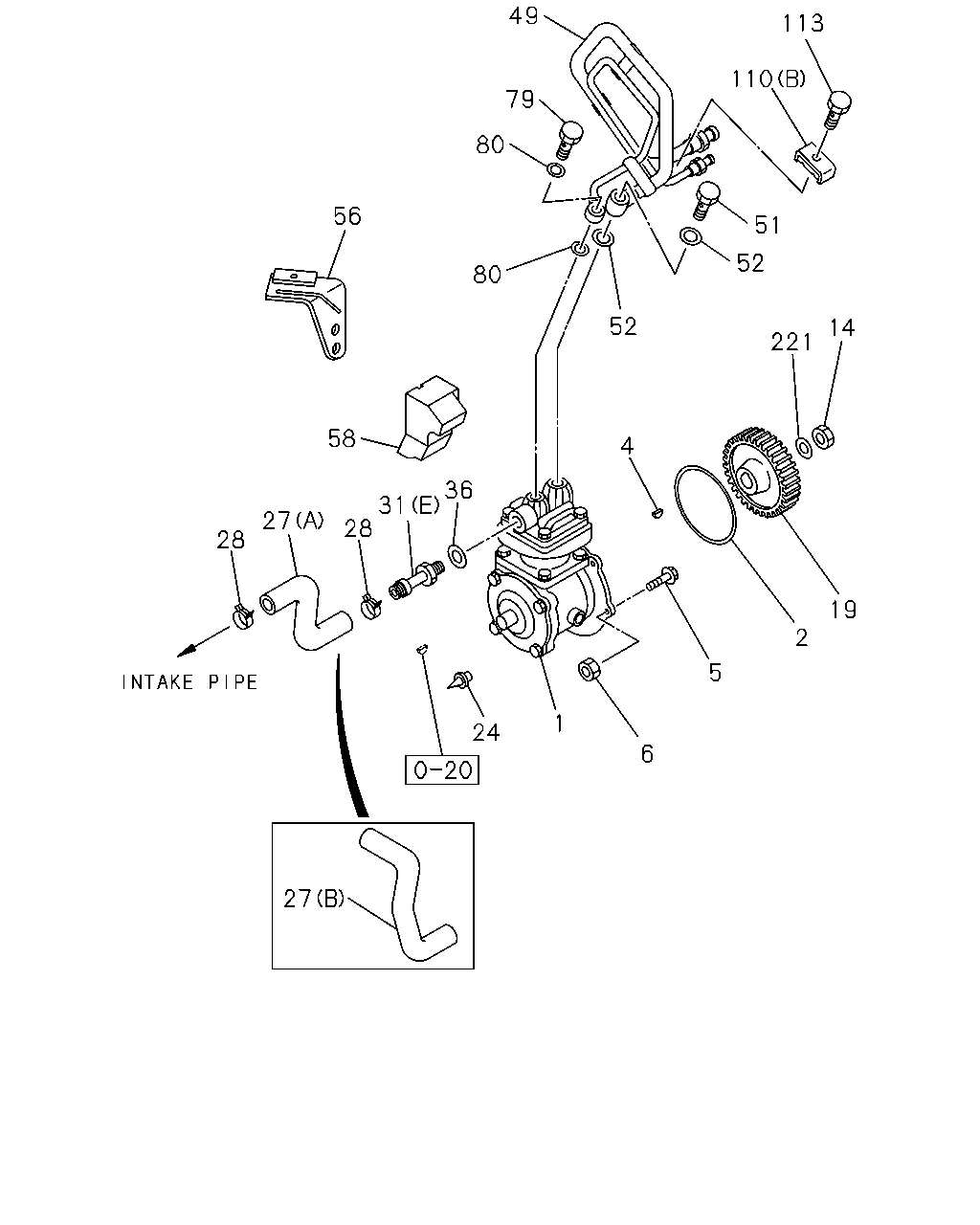

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#4356) — 573 parça

27 27 28 27 28 28 28 29 28 30 32 27 28 115 51 111 52 113 110 79 86 85 113 110 110 114 49 80 111 31 104 105 31 77 35 36 36 165 102 31 102 31 164 103 21 23 80 52 19 1 95 95 95 99 3 4 2 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-255-2	01	1	9101-9504	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-261-2	01	1	9101-9504	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-891-4	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0204-1107					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-892-8	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	0204-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9703-9709						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9710-9802					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9804-0203					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9101-9504	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9505-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9703-9709						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9710-					●	●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9101-9504	●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9101-9504	●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9505-				●
19	GEAR; INJ PUMP Z=50	1-12524-033-0	01	1	9101-9504	●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9505-				●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9101-9504	●	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9101-9504	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A) L=130	1-09360-406-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) L=200	9-09913-027-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION (C) L=200	9-09913-027-0	01	1	9101-9504		●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 SERVICED BY L=10000	9-09912-813-0	02	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=100	1-09360-430-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-09360-337-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=120	1-09360-189-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-164-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9606-9608				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9609-0203				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9505-9510				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9507-0203				●
27	HOSE; AIR CMPR,SUCTION EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-168-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,EMISSION SYSTEMECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-168-0	01	1	9606-0203				●
27	HOSE; AIR CMPR,SUCTION ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-163-0	01	1	9601-0203				●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9703						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9703-9709						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9101-9504	●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=32	9-09915-692-1	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	04	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9505-9512				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=26	1-09707-091-0	02	1	9601-9605				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9606-9702				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9703-9709				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9703-9709						●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9710-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=28.5	1-09707-150-0	02	1	9505-9608				●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> ID=28.5	1-09707-150-0	02	1	9609-				●
29	CLIP; AIR PIPE	1-09700-584-0	01	1	9101-9504			●
30	BOLT; PIPE CLIP M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9101-9504			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9703-9709						●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9710-0512					●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-					●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-847-2	01	1	9101-9504	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-839-0	01	1	9101-9504	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19191-835-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19191-690-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-942-1	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	0204-					●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-954-0	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (E)	8-94399-954-0	01	1	0204-				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9703-9709						●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9710-0203					●	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19191-968-1	01	1	9101-9504			●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-282-0	01	1	9101-9504			●
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9101-9504	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9101-9504	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19191-976-2	01	1	9101-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19191-976-2	01	1	9101-9212			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-742-0	01	1	9301-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-742-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-021-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-748-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19191-708-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19192-755-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-149-1	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9301-9310	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9311-9504	●	●	●
49	PIPE; AIR,CHARGE LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-747-0	01	1	9311-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-19192-147-1	01	1	9101-9201			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-147-1	01	1	9202-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-147-1	01	1	9202-9212			●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-746-0	01	1	9301-9504	●		●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-746-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-231-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94395-231-0	01	1	0204-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-232-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9703-9709						●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9710-					●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9101-9504	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9505-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9101-9504	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9505-9702				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9703-9709				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9703-9709						●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9710-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9710-0203					●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0204-1404				●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-				●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9101-9504	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9505-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9101-9504	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9505-9702				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-				●	●	●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19191-977-1	01	1	9101-9212	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19191-977-1	01	1	9101-9212			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-743-0	01	1	9301-9504	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-743-0	01	1	9301-9504			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-022-0	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-754-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19191-745-1	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19192-751-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-150-1	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-150-1	01	1	9101-9212	●
77	PIPE; AIR,GOV MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-753-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-753-0	01	1	9301-9504	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-19192-148-1	01	1	9101-9201			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-148-1	01	1	9202-9212	●		●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-148-1	01	1	9202-9212			●
77	PIPE; AIR,GOV ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-752-0	01	1	9301-9504	●		●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-752-0	01	1	9301-9504			●
77	PIPE; AIR,GOV	8-94391-540-0	01	1	9703-9709						●
77	PIPE; AIR,GOV	8-94391-540-1	01	1	9710-					●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9101-9504	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9505-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9101-9504	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9505-9702				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9703-9709				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9703-9709						●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9710-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9710-0203					●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-9504	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9505-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-1312				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●	●
85	CLIP; PIPE ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09700-584-0	01	1	9101-9504			●
86	BOLT; CLIP ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9101-9504			●
95	BRACKET; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (C)	1-19199-109-0	01	1	9101-9504	●	●	●
95	BRACKET; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-19199-103-0	01	1	9101-9504	●	●	●
95	BRACKET; PIPE CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-19199-111-0	01	1	9101-9504	●	●	●
95	BRACKET; PIPE CLIP MT643 A/T ALLISON(PR7) (D)	1-19199-130-0	01	1	9101-9504	●	●	●
95	BRACKET; PIPE CLIP FLYWHEEL HSG SAE #2<E4C> (D)	1-19199-130-0	01	1	9101-9504	●		●
99	BOLT; BRKT AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER	0-50051-020-0	01	1	9101-9504	●	●	●
102	NIPPLE; AIR PIPE,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (B) M20	1-09654-199-2	01	1	9101-9504	●	●	●
102	NIPPLE; AIR PIPE,CHARGE MT643 A/T ALLISON(PR7) (A)	1-09654-081-1	01	1	9101-9504	●	●	●
102	NIPPLE; AIR PIPE,CHARGE FLYWHEEL HSG SAE #2<E4C> (A)	1-09654-081-1	01	1	9101-9504	●		●
103	NIPPLE; AIR PIPE,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09654-200-2	01	1	9101-9504	●	●	●
104	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M20	9-99111-420-0	02	1	9101-9504	●	●	●
105	WASHER; LK,NIPPLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=20.2	9-09150-520-0	02	1	9101-9504	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> (A)	1-09700-051-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9101-9201	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-					●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9202-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) WO/NUT	1-09700-079-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-09700-560-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE MT643 A/T ALLISON(PR7) (A)	5-09700-133-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> (A)	5-09700-133-0	02	1	9101-9402	●		●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-133-0	02	1	9403-9504	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9505-9702				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9703-9703				●		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9704-				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9703-9709						●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9710-9805					●	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9704-9709						●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9710-					●	●
111	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) W/NUT	1-09700-080-0	01	1	9101-9504	●	●	●
111	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-09700-561-0	01	1	9101-9504	●	●	●
111	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-243-0	01	1	9101-9504	●	●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	9-01900-628-0	04	1	9101-9204	●	●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	0-50040-628-0	04	1	9205-9504	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9505-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0108				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0109-0512				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●	●	●
114	BOLT; CLIP,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	9-01900-628-0	02	1	9101-9204	●	●	●
114	BOLT; CLIP,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	0-50040-628-0	02	1	9205-9504	●	●	●
115	BOLT; AIR PIPE M8X16 W/LK WASHER	0-50040-816-0	02	1	9101-9504			●
164	BRACKET; OIL PIPE CLIP FIX EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13345-166-0	01	1	9101-9504	●	●	●
165	BOLT; BRKT OIL PIPE CLIP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10X20 W/LK WASHER	0-50041-020-0	01	1	9101-9504	●	●	●

49 113 110 79 80 56 51 52 80 52 14 221 58 4 36 31 28 27 28 19 2 5 1 24 6 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-255-2	01	1	9101-9504	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-261-2	01	1	9101-9504	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-891-4	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0204-1107					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-892-8	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	0204-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9703-9709						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9710-9802					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9804-0203					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9101-9504	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9505-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9703-9709						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9710-					●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9101-9504	●	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9505-				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9505-				●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9505-0602				●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0603-				●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9505-0602				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	0603-				●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9703-9709						●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9710-0602					●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0603-					●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9505-9702				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9703-9709				●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9710-0512				●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●	●	●
19	GEAR; INJ PUMP Z=50	1-12524-033-0	01	1	9101-9504	●	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9505-				●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9505-				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A) L=130	1-09360-406-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) L=200	9-09913-027-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION (C) L=200	9-09913-027-0	01	1	9101-9504		●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 SERVICED BY L=10000	9-09912-813-0	02	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=100	1-09360-430-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-09360-337-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=120	1-09360-189-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-164-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9606-9608				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9609-0203				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9505-9510				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9507-0203				●
27	HOSE; AIR CMPR,SUCTION EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-168-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,EMISSION SYSTEMECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-168-0	01	1	9606-0203				●
27	HOSE; AIR CMPR,SUCTION ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-163-0	01	1	9601-0203				●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9703						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9703-9709						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9101-9504	●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=32	9-09915-692-1	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	04	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9505-9512				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=26	1-09707-091-0	02	1	9601-9605				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9606-9702				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9703-9709				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9703-9709						●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9710-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=28.5	1-09707-150-0	02	1	9505-9608				●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> ID=28.5	1-09707-150-0	02	1	9609-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-847-2	01	1	9101-9504	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-839-0	01	1	9101-9504	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19191-835-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19191-690-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-942-1	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	0204-					●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-954-0	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (E)	8-94399-954-0	01	1	0204-				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9703-9709						●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9710-0203					●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9101-9504	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19191-976-2	01	1	9101-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19191-976-2	01	1	9101-9212			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-742-0	01	1	9301-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-742-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-021-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-748-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19191-708-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19192-755-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-149-1	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9301-9310	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9311-9504	●	●	●
49	PIPE; AIR,CHARGE LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-747-0	01	1	9311-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-19192-147-1	01	1	9101-9201			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-147-1	01	1	9202-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-147-1	01	1	9202-9212			●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-746-0	01	1	9301-9504	●		●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-746-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-231-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94395-231-0	01	1	0204-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-232-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9703-9709						●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9710-					●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9101-9504	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9505-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9101-9504	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9505-9702				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9703-9709				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9703-9709						●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9710-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9710-0203					●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0204-1404				●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-				●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9101-9504	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9505-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9101-9504	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9505-9702				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-				●	●	●
56	BRACKET; AIR PIPE FIX	8-94395-277-0	01	1	9505-				●
58	SPACER; AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-675-1	01	1	9505-9605				●
58	SPACER; AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>	8-94395-675-1	01	1	9606-0203				●
58	SPACER; AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-675-1	01	1	0204-				●
58	SPACER; AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>	8-94395-675-1	01	1	0204-				●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9101-9504	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9505-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9101-9504	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9505-9702				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9703-9709				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9703-9709						●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9710-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9710-0203					●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-9504	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9505-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-1312				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> (A)	1-09700-051-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9101-9201	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-					●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9202-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) WO/NUT	1-09700-079-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-09700-560-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE MT643 A/T ALLISON(PR7) (A)	5-09700-133-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> (A)	5-09700-133-0	02	1	9101-9402	●		●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-133-0	02	1	9403-9504	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9505-9702				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9703-9703				●		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9704-				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9703-9709						●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9710-9805					●	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9704-9709						●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9710-					●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	9-01900-628-0	04	1	9101-9204	●	●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	0-50040-628-0	04	1	9205-9504	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9505-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0108				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0109-0512				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9505-9702				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9703-9709				●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9710-0605				●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●	●	●

229 230 16 128 92 182 171 160 51 52 77 113 110 116 79 30 80 49 87 80 28 110 113 28 27 31 12 14 6 2 13 1 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-255-2	01	1	9101-9504	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19100-261-2	01	1	9101-9504	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-891-4	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0204-1107					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94396-892-8	01	1	9505-0203				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-9	01	1	0204-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-310-1	01	1	1108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9703-9709						●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9710-9802					●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9804-0203					●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9101-9504	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9505-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9703-9709						●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	9710-					●	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9505-0602				●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0603-				●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9505-0602				●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	01	1	0603-				●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9703-9709						●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9710-0602					●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0603-					●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9703-9709						●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9710-					●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9703-9709						●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9710-					●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9505-9702				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9703-9709				●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9710-0512				●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●	●	●
16	ADAPTER	1-09660-769-2	01	1	9711-9711					●
16	ADAPTER DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9712-					●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A) L=130	1-09360-406-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C) L=200	9-09913-027-0	01	1	9101-9504	●
27	HOSE; AIR CMPR,SUCTION (C) L=200	9-09913-027-0	01	1	9101-9504		●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=100 SERVICED BY L=10000	9-09912-813-0	02	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=100	1-09360-430-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-09360-337-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=120	1-09360-189-0	01	1	9101-9504			●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-164-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9606-9608				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	9609-0203				●
27	HOSE; AIR CMPR,SUCTION EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-164-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9505-9510				●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	9507-0203				●
27	HOSE; AIR CMPR,SUCTION EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-169-0	01	1	0204-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-168-0	01	1	9505-9605				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,EMISSION SYSTEMECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-168-0	01	1	9606-0203				●
27	HOSE; AIR CMPR,SUCTION ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94395-163-0	01	1	9601-0203				●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9703-9703						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9703-9709						●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9101-9504	●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=32	9-09915-692-1	02	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=26	1-09707-091-0	04	1	9101-9504			●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9505-9512				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=26	1-09707-091-0	02	1	9601-9605				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9606-9702				●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9703-9709				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9703-9709						●
28	CLIP; HOSE,AIR CMPR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=26	1-09707-091-0	02	1	9710-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9710-					●	●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=28.5	1-09707-150-0	02	1	9505-9608				●
28	CLIP; HOSE,AIR CMPR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> ID=28.5	1-09707-150-0	02	1	9609-				●
30	BOLT; PIPE CLIP M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9101-9504			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9703-9709						●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9710-0512					●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-					●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-19191-847-2	01	1	9101-9504	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (C)	1-19191-839-0	01	1	9101-9504	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-19191-835-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-19191-690-0	01	1	9101-9504			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-942-1	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	0204-					●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY<E1Q> (E)	8-94399-954-0	01	1	9505-0203				●
31	PIPE; AIR,AIR CMPR SUCTION (E)	8-94399-954-0	01	1	0204-				●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9703-9709						●
31	PIPE; AIR,AIR CMPR SUCTION (F)	8-94391-538-0	01	1	9710-0203					●	●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19191-976-2	01	1	9101-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19191-976-2	01	1	9101-9212			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-742-0	01	1	9301-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-742-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-021-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-748-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19191-708-0	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19192-755-0	01	1	9301-9504	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-149-1	01	1	9101-9212	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9301-9310	●	●	●
49	PIPE; AIR,CHARGE MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-747-0	01	1	9311-9504	●	●	●
49	PIPE; AIR,CHARGE LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-747-0	01	1	9311-9504	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-19192-147-1	01	1	9101-9201			●
49	PIPE; AIR,CHARGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-147-1	01	1	9202-9212	●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-147-1	01	1	9202-9212			●
49	PIPE; AIR,CHARGE ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-746-0	01	1	9301-9504	●		●
49	PIPE; AIR,CHARGE RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-746-0	01	1	9301-9504			●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-231-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94395-231-0	01	1	0204-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-232-0	01	1	9505-0203				●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9703-9709						●
49	PIPE; AIR,CHARGE	8-94391-539-0	01	1	9710-					●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9101-9504	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9505-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9101-9504	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9505-9702				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9703-9709				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9703-9709						●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9710-0203				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9710-0203					●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0204-1404				●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-				●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9101-9504	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9505-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9101-9504	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q> ID=24.5 OD=32.0	9-09571-424-0	02	1	9505-9702				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9703-9709						●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY<E1Q>. ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9710-0203					●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0204-				●	●	●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19191-977-1	01	1	9101-9212	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19191-977-1	01	1	9101-9212			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-743-0	01	1	9301-9504	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-743-0	01	1	9301-9504			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-022-0	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HSG SAE #2<E4C>	1-19192-754-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19191-745-1	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-19192-751-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-150-1	01	1	9101-9212	●	●	●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-150-1	01	1	9101-9212	●
77	PIPE; AIR,GOV MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19192-753-0	01	1	9301-9504	●	●	●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-19192-753-0	01	1	9301-9504	●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-19192-148-1	01	1	9101-9201			●
77	PIPE; AIR,GOV BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-148-1	01	1	9202-9212	●		●
77	PIPE; AIR,GOV LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-148-1	01	1	9202-9212			●
77	PIPE; AIR,GOV ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-19192-752-0	01	1	9301-9504	●		●
77	PIPE; AIR,GOV RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-19192-752-0	01	1	9301-9504			●
77	PIPE; AIR,GOV	8-94391-540-0	01	1	9703-9709						●
77	PIPE; AIR,GOV	8-94391-540-1	01	1	9710-					●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9101-9504	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9505-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9101-9504	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9505-9702				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9703-9709				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9703-9709						●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9710-0203				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9710-0203					●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0204-				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9101-9504	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9505-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709						●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0203					●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0204-1312				●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●	●	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9703-9709						●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9710-0512					●	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	0601-					●	●
92	NUT; UNION M12	9-09840-280-0	01	1	9712-					●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> (A)	1-09700-051-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9101-9201	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-					●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	02	1	9202-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) WO/NUT	1-09700-079-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-09700-560-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-132-0	01	1	9101-9504	●	●	●
110	CLIP; AIR PIPE MT643 A/T ALLISON(PR7) (A)	5-09700-133-0	02	1	9101-9402	●	●	●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> (A)	5-09700-133-0	02	1	9101-9402	●		●
110	CLIP; AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-09700-133-0	02	1	9403-9504	●	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9505-9702				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9703-9703				●		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9704-				●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9703-9709						●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9710-9805					●	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9704-9709						●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9710-					●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	9-01900-628-0	04	1	9101-9204	●	●	●
113	BOLT; CLIP,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X28 W/LK WASHER	0-50040-628-0	04	1	9205-9504	●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9505-9702				●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9703-9709				●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9710-0108				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	0109-0512				●	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●	●	●
116	BRACKET; AIR PIPE	8-94391-541-1	01	1	9703-9709						●
116	BRACKET; AIR PIPE	8-94391-541-1	01	1	9710-					●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9712-0603					●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-					●
160	BRACKET; AIR PIPE	8-94391-073-0	01	1	9710-9711					●
160	BRACKET; AIR PIPE	8-94392-289-0	01	1	9712-					●
171	UNION	1-09654-185-1	01	1	9712-					●
182	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=18	9-09572-510-0	01	1	9712-					●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9505-9702				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9703-9709				●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9710-0605				●	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●	●	●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9710-					●
230	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9801-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
