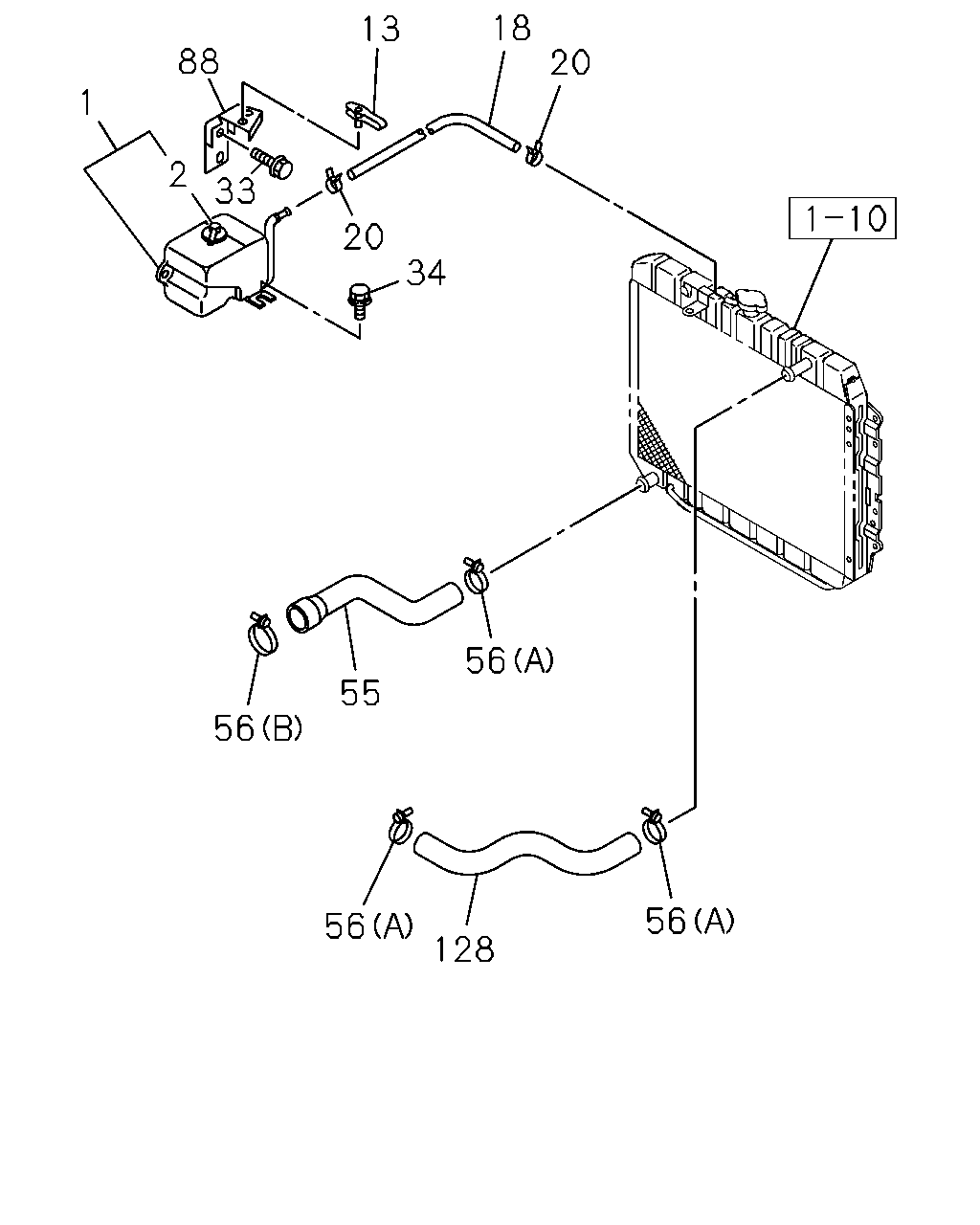

1-11 — RADIATOR HOSE AND SUB TANK
(#43558) — 21 parça
Tümü
A - 4JH1 ENG
B - 4JA1 ENG
18
20
13
88
1
33
2
20
34
56
55
56
56
56
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
THA
8-97916-613-0
01
1
0009-
●
●
2
CAP; SURGE TANK
8-97130-964-0
01
1
0009-
●
●
13
CLIP; HOSE,SURGE TANK
L=103
8-94239-339-0
01
1
0009-
●
●
18
HOSE; RAD TO SURGE TANK
THA
8-97919-051-0
01
1
0009-
●
18
HOSE; RAD TO SURGE TANK
THA
8-97921-018-1
01
1
0009-
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
02
1
0009-0103
●
●
33
BOLT; BRKT
M6X18
8-97071-681-0
02
1
0009-
●
34
BOLT; RESERVE TANK
M8X25
8-97091-076-0
02
1
0009-0203
●
●
34
BOLT; RESERVE TANK
M8X25
8-97327-634-0
02
1
0204-
●
●
55
HOSE; WATER,RAD OUTLET
PCR THA
8-97914-735-0
01
1
0009-
●
55
HOSE; WATER,RAD OUTLET
IRC THA
8-97914-736-0
01
1
0009-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97913-757-0
01
1
0009-
●
56
CLIP; WATER HOSE,RAD
(A) ID=42 THA
8-97916-393-0
03
1
0009-
●
56
CLIP; WATER HOSE,RAD
(B) ID=48 THA
8-97916-394-0
01
1
0009-
●
56
CLIP; WATER HOSE,RAD
(B) ID=51
5-09704-050-1
01
1
0009-0105
●
56
CLIP; WATER HOSE,RAD
ID=52
1-09704-057-0
01
1
0106-
●
56
CLIP; WATER HOSE,RAD
(A) ID=48 THA
8-97916-394-0
03
1
0009-
●
88
BRACKET; SUB TANK HOSE
8-94473-988-3
01
1
0009-
●
128
HOSE; WATER,RAD INL
IRC THA
8-97910-679-1
01
1
0009-
●
128
HOSE; WATER,RAD INL
PCR THA
8-97910-690-1
01
1
0009-
●
128
HOSE; WATER,RAD INL
THA
8-97920-538-0
01
1
0009-
●
