1-10 — RADIATOR (#43557) — 30 parça

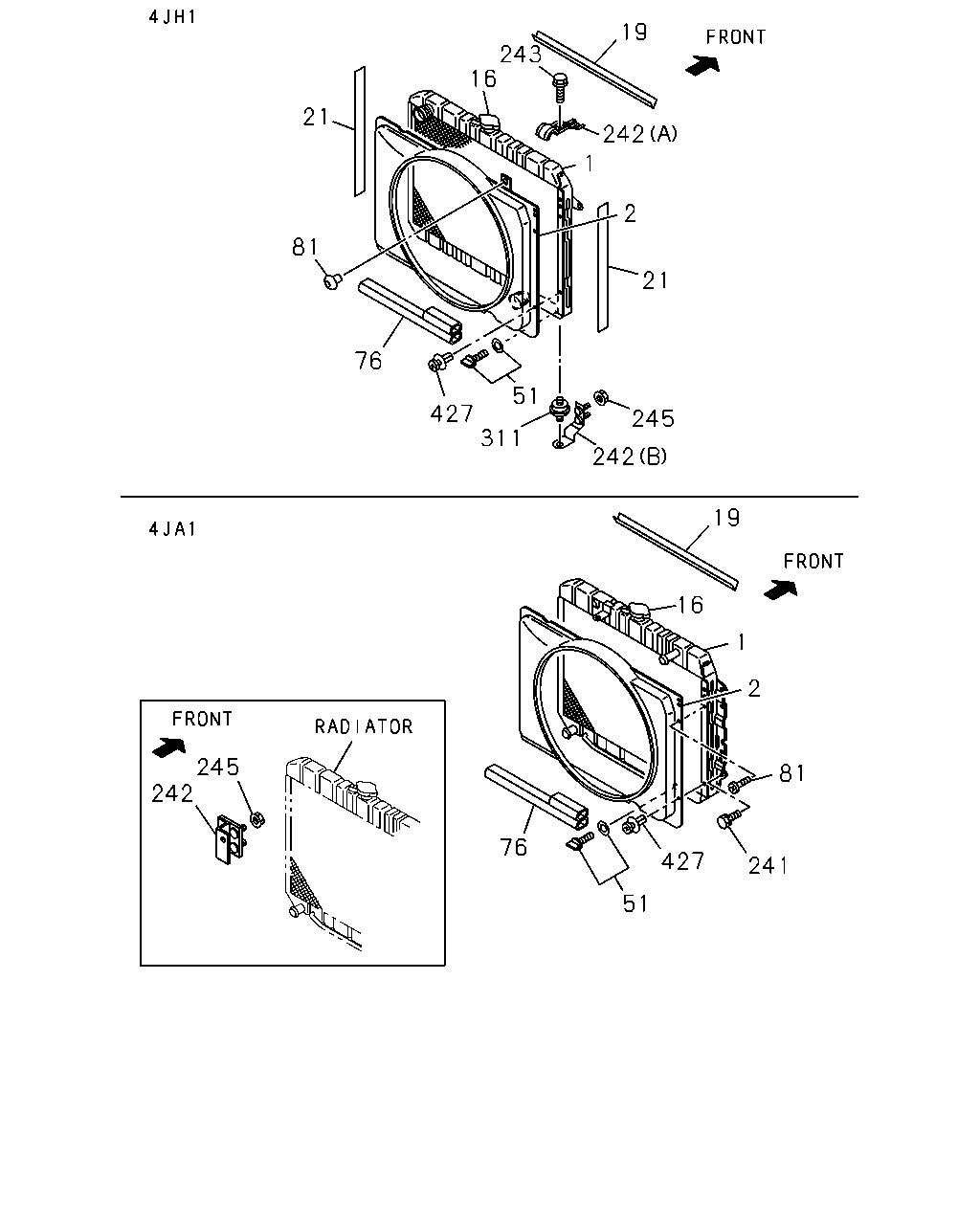

çizim 48239
19 243 16 21 242 1 2 81 21 76 51 427 311 245 242 19 16 1 2 245 242 81 76 427 241 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
THA 		8-97913-276-0 01 1 0009- ●
1 RADIATOR ASM
A/T AISIN<RMD> THA 		8-97920-311-0 01 1 0009- ●
1 RADIATOR ASM
M/T MUA 5 SPEED<RMN> THA 		8-97920-313-0 01 1 0009- ●
2 GUIDE; FAN
THA 		8-97913-318-1 01 1 0009- ●
2 GUIDE; FAN
THA 		8-97921-510-0 01 1 0009- ●
16 CAP; RAD
THA 		8-97913-271-0 01 1 0009- ●
16 CAP; RAD
THA 		8-97913-789-0 01 1 0009- ●
19 SEAL; RAD UPR
THA 		8-97911-167-0 01 1 0009- ●
19 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0009- ●
19 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0009- ●
21 SEAL; RAD
THA 		8-97920-340-0 02 1 0009- ●
51 PLUG; DRAIN
THA 		8-97913-272-0 01 1 0009- ●
51 PLUG; DRAIN
THA 		8-97913-788-0 01 1 0009-0106 ●
51 PLUG; DRAIN
THA 		8-97922-129-0 01 1 0107- ●
76 SEAL; RAD,LWR
THA 		8-94316-413-0 02 1 0009- ●
76 SEAL; RAD,LWR 8-97257-011-0 02 1 0009- ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97913-319-0 04 1 0009- ●
81 SCREW; FAN GUIDE,RAD
THA 		8-97921-536-0 02 1 0009- ●
241 BOLT; RAD TO BODY
M8X16 FLANGE 		0-28080-816-0 04 1 0009- ●
242 BRACKET; RAD
THA 		8-97919-727-0 01 1 0009- ●
242 BRACKET; RAD
THA 		8-97919-456-0 01 1 0009- ●
242 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0009- ●
242 BRACKET; RAD
(B) THA 		8-97919-975-0 01 1 0009- ●
242 BRACKET; RAD
(B) THA 		8-97919-413-0 01 1 0009- ●
243 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 02 1 0009- ●
245 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0009- ●
245 NUT; BRKT
M8 FLANGE 		8-97046-127-0 04 1 0009- ●
311 RUBBER; MTG,RAD 8-97231-024-0 02 1 0009- ●
427 CLIP; FAN GUIDE
THA 		8-97143-177-0 04 1 0009- ●
427 CLIP; FAN GUIDE
THA 		8-97043-862-0 02 1 0009- ●
