Sayfa 0-84 - Isuzu EPC

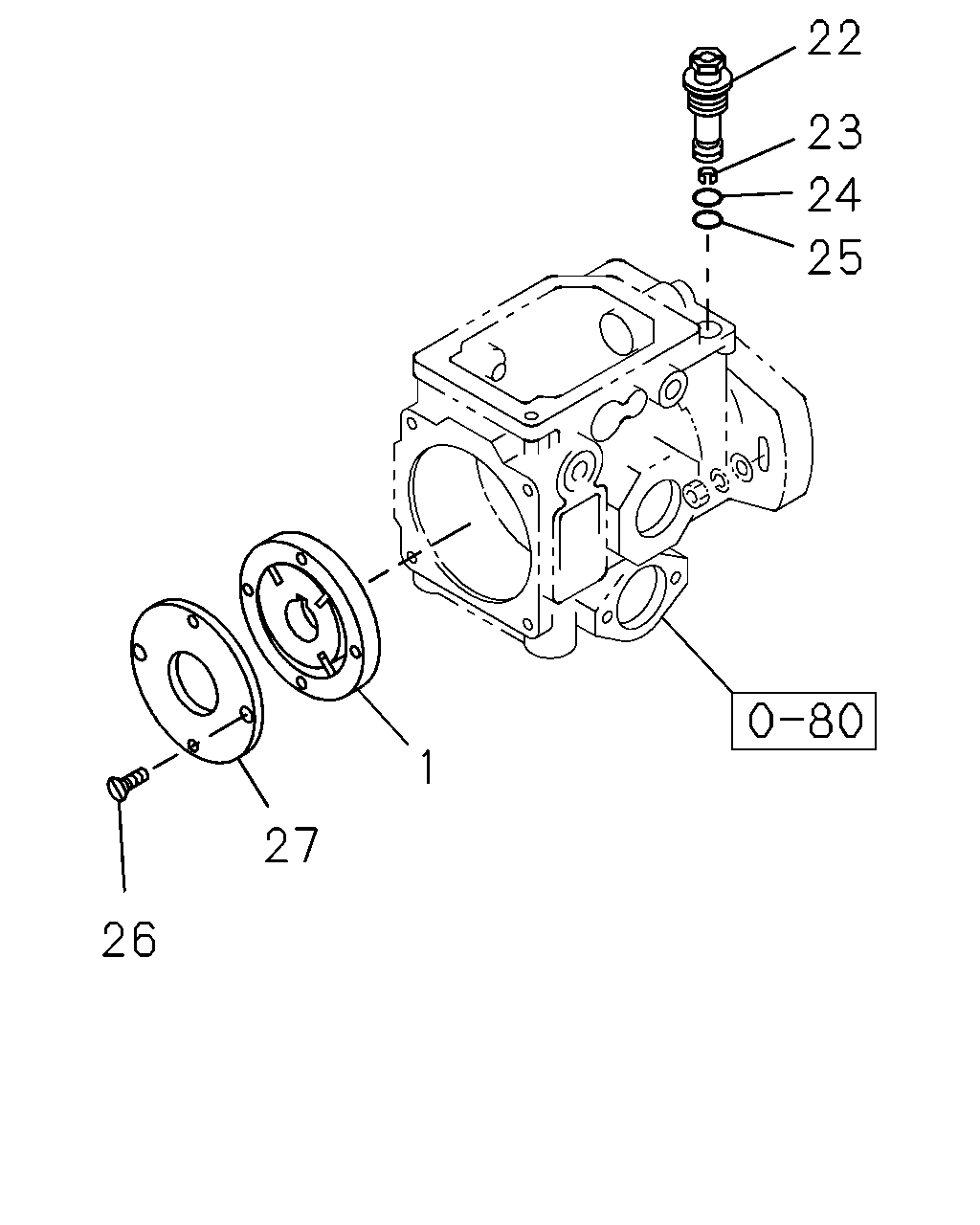

0-84 — FEED PUMP; INJECTION PUMP (#43554) — 7 parça

22 23 24 25 1 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-477-0	01	1	-
22	VALVE; REGULATING,INJ PUMP STAMP 07 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94454-253-0	01	1	-
23	RING; SPRING,REGULATING VLV,INJ PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-643-0	01	1	-
24	GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-641-0	01	1	-
25	GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-640-0	01	1	-
26	SCREW; COVER FIX,FUEL FEED PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-479-0	02	1	-
27	COVER; FUEL FEED PUMP ASM PART: A = 8-97226-332-1, B = 8-97226-333-1	8-94227-478-0	01	1	-
