◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#43553) — 93 parça

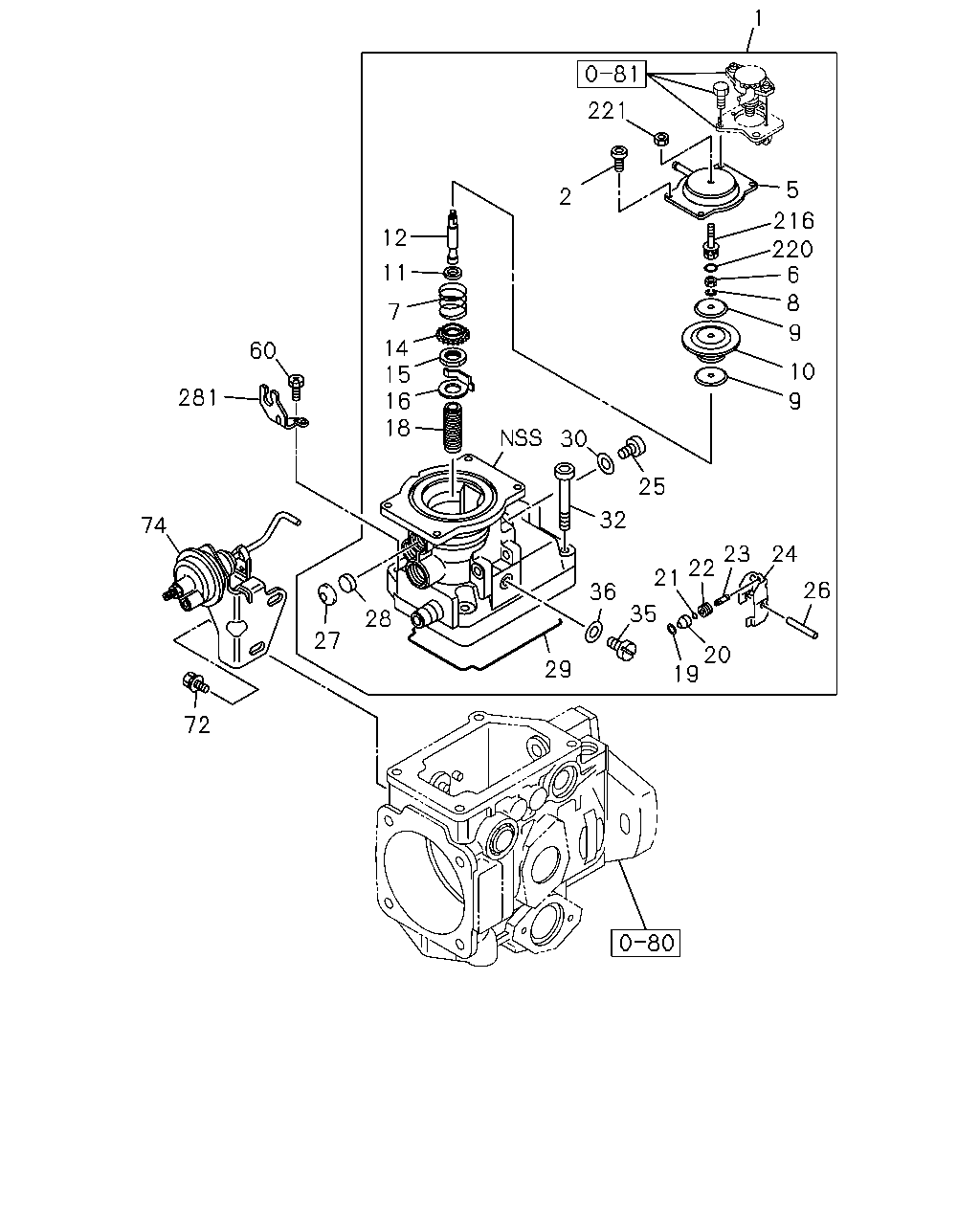

çizim 10778
1 221 5 216 220 6 8 9 2 12 11 7 14 15 16 18 60 10 9 281 30 25 32 74 22 21 26 36 35 28 27 20 19 29 72 23 24
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97261-588-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
M6X14, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94331-551-0 03 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97214-503-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		9-88410-525-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97026-775-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-725-0 01 1 -
9 PLATE; DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-723-0 02 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-724-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-729-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-730-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-731-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-732-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-733-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-734-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-735-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-736-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-737-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-738-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-739-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-740-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-741-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-742-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-743-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-744-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-745-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-746-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-747-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-748-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-749-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-750-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-751-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-752-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-753-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-754-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-755-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-756-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-757-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-758-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-510-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-511-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-512-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-513-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-514-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-515-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-516-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-517-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94169-518-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-102-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-103-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-104-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-105-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-106-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-107-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-108-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-109-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-110-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-111-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-112-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-113-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-114-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97046-115-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97169-970-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97169-971-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97169-972-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97169-973-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97169-974-0 01 1 -
12 PIN; ADJ,DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97120-314-0 01 1 -
14 NUT; DIAPH ADJ,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-726-0 01 1 -
15 NUT; BUSHING LK,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-720-0 01 1 -
16 PLATE; BUSHING,ADJ
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-719-0 01 1 -
18 BUSHING; ADJ PIN,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94151-391-0 01 1 -
19 GASKET; BUSHING,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-686-0 01 1 -
20 BUSHING; CONT PIN,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-685-0 01 1 -
21 GASKET; CONT PIN,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-684-0 01 1 -
22 NUT; BUSHING,CONT PIN,BOOST COMPENSATO
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-683-0 01 1 -
23 PIN; CONT,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94151-392-0 01 1 -
24 LEVER; BOOST COMPENSATOR,GOV
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94177-918-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-687-0 01 1 -
26 PIN; CONT LEVER,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-693-0 01 1 -
27 PLUG; ELEMENT
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94151-395-0 01 1 -
28 ELEMENT; BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94159-096-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97136-413-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94144-588-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94242-298-0 04 1 -
35 PLUG; CONT LEVER PIN,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94257-694-0 02 1 -
36 GASKET; LEVER PIN,BOOST COMPENSATOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		5-15729-099-0 02 1 -
60 BOLT; BRKT
M6X12 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94313-267-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
THA ASM PART: B = 8-97226-333-1 		8-97071-946-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
THA ASM PART: B = 8-97226-333-1 		8-94367-344-0 01 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97214-478-0 01 1 -
220 GASKET; ADJ SCREW,BOOST COMPENSATOR
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94122-761-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		1-15729-006-0 01 1 -
281 BRACKET; CONNECTOR
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97126-371-0 01 1 -
