◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-81 - GOVERNOR; INJECTION PUMP ▶

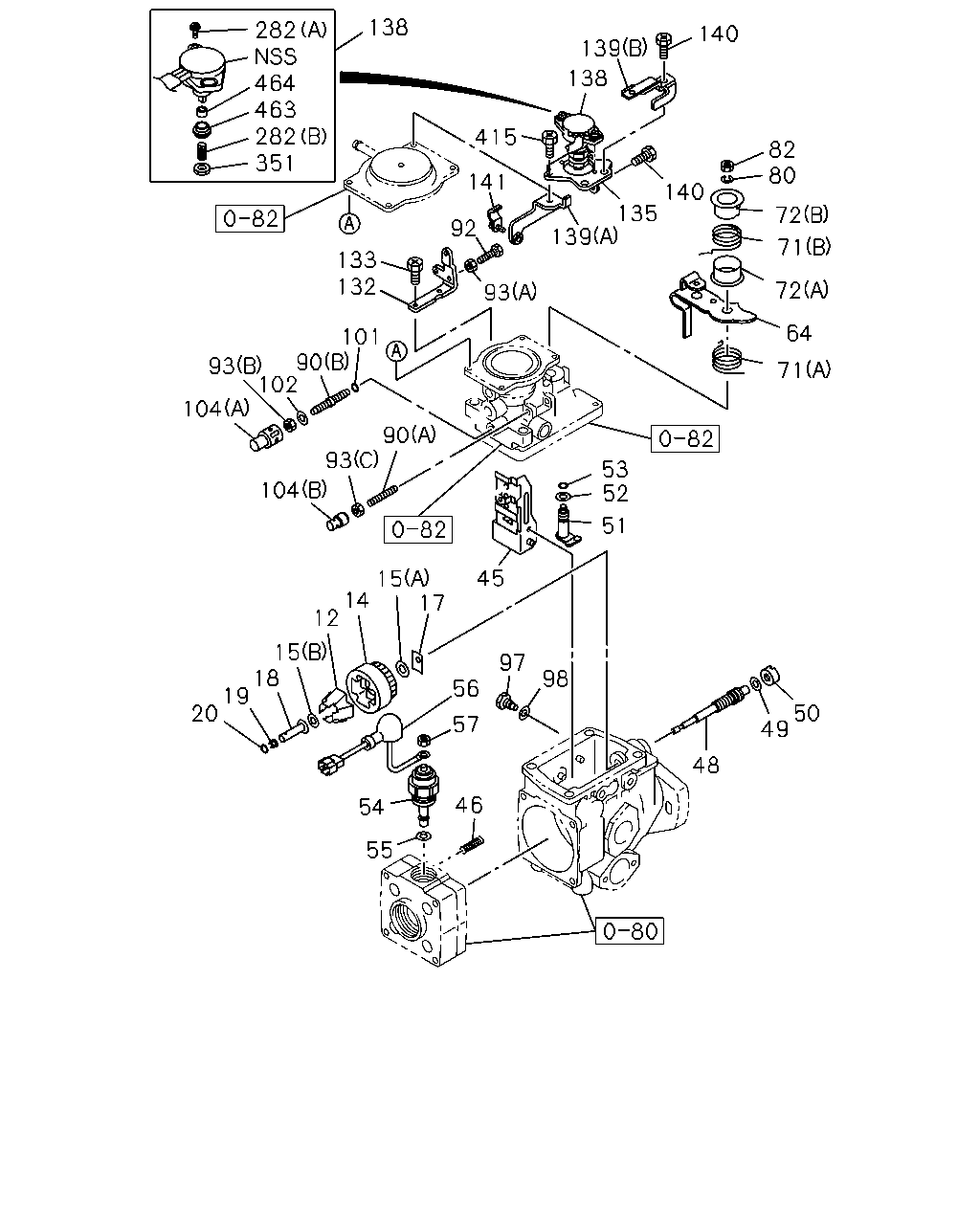

0-81 — GOVERNOR; INJECTION PUMP (#43552) — 105 parça
çizim 47767
138 282 464 463 282 351 140 139 138 415 141 82 80 140 135 139 72 71 92 93 133 132 72 64 101 93 90 102 104 71 90 93 104 53 52 51 45 15 14 17 12 15 18 19 20 97 98 56 50 49 57 48 46 54 55
BalonParca AdiParca NoAdetTipApplied Date
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94228-403-0 01 1 -
14 HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-613-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-612-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-614-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-607-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-608-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-609-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-610-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-611-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94231-123-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94231-124-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94231-125-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94231-126-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97214-475-0 01 1 -
19 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-519-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94372-499-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94372-500-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94372-501-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94372-502-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-520-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-521-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-522-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-523-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-524-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-525-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-526-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-527-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-528-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-529-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-530-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-531-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-532-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-533-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-534-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94408-535-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-868-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-869-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-870-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-871-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-872-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-873-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-874-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-875-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-876-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-877-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-878-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-879-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-880-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-881-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94428-882-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97163-167-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97163-168-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97163-169-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97163-170-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97261-589-0 01 1 -
46 SPRING; GOV,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94473-128-0 02 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94248-002-0 01 1 -
49 GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-606-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94473-129-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97119-180-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-590-0 01 1 -
53 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-585-0 01 1 -
54 VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94242-275-0 01 1 -
55 GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94239-373-0 01 1 -
56 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94470-582-0 01 1 -
57 NUT; VLV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94473-135-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 126, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97166-957-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 127, THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97166-958-0 01 1 -
71 SPRING; CONT LEVER,GOV
(A), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97071-942-0 01 1 -
71 SPRING; CONT LEVER,GOV
(B), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97071-943-0 01 1 -
72 SEAT; SPRING,CONT LEVER,GOV
(A), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94389-434-0 01 1 -
72 SEAT; SPRING,CONT LEVER,GOV
(B), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97047-009-0 01 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=6.1 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		9-09150-506-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94380-342-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94313-253-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-274-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-275-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-276-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94426-049-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		1-15729-006-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94426-047-1 01 1 -
97 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-601-0 02 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-602-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-598-0 01 1 -
102 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94227-593-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-262-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-263-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-264-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-265-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94316-266-0 01 1 -
132 BRACKET; ADJ SCREW,GOV
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97028-884-0 01 1 -
133 BOLT; BRKT FIX,GOV
M6X12 ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94313-267-0 02 1 -
135 BRACKET; POTENTIO METER
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97138-029-0 01 1 -
138 POTENTIO METER
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97180-270-0 01 1 -
139 BRACKET; INJ PUMP
(A), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97028-890-0 01 1 -
139 BRACKET; INJ PUMP
(B), THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97138-056-0 01 1 -
140 BOLT; BRKT,INJ PUMP
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94313-203-0 02 1 -
141 PLATE ASM; PIPE BRKT
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94174-822-0 01 1 -
282 SCREW; POTENTIO METER
(A) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97148-143-0 02 1 -
282 SCREW; POTENTIO METER
(B) ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97180-271-0 01 1 -
351 NUT; SCREW
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97173-772-0 01 1 -
415 BOLT; BRKT TO HOUSING
ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-94313-254-0 01 1 -
463 BOOT; POTENTIO METER
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97173-775-0 01 1 -
464 JOINT; POTENTIO METER
THA ASM PART: A = 8-97226-332-1, B = 8-97226-333-1 		8-97173-773-0 01 1 -
