4-60 — REAR SUSPENSION (#43551) — 171 parça

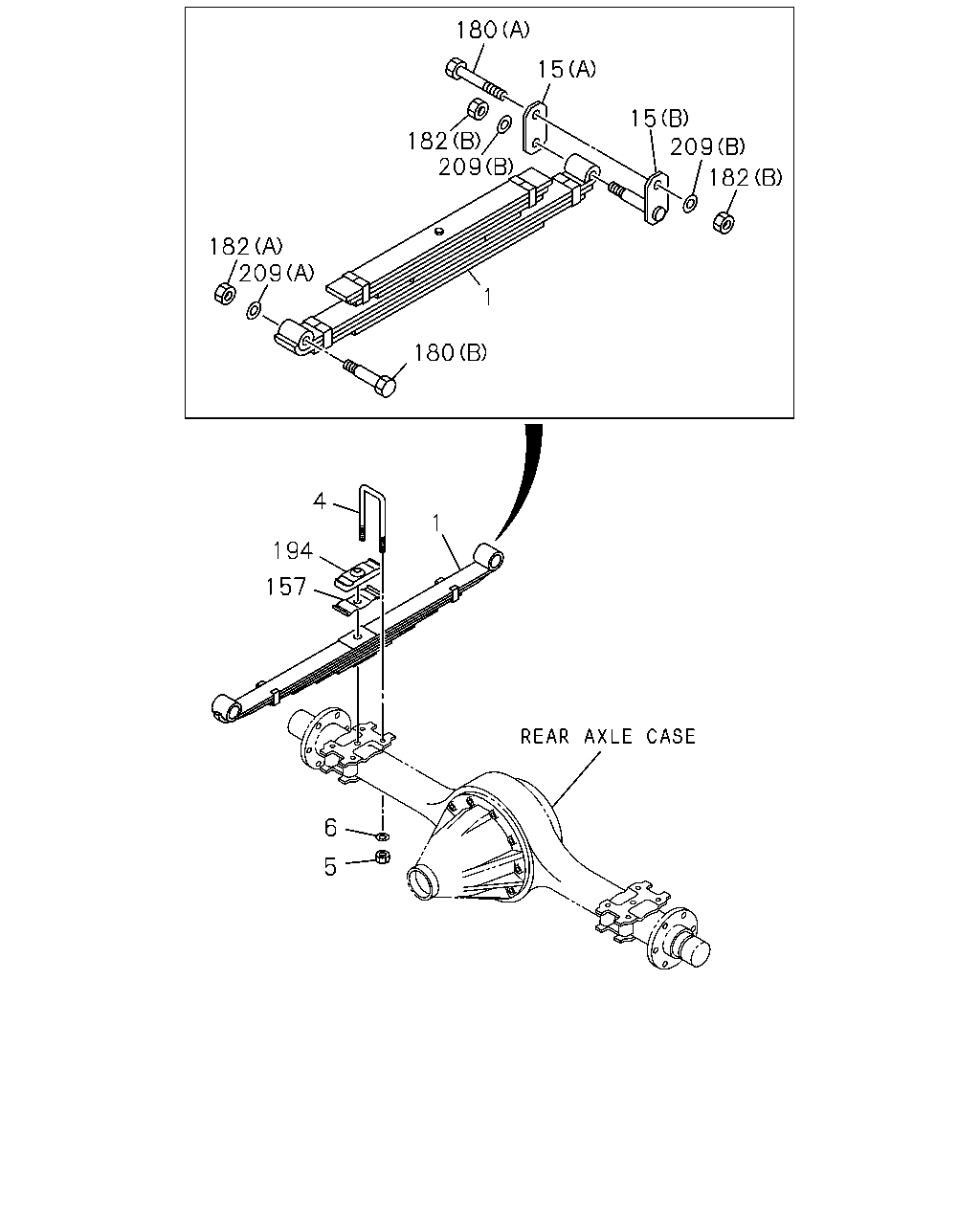

çizim 52109
180 1 15 209 182 209 182 182 209 1 180 4 1 194 157 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-97214-124-1 02 1 0302-0506 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-97214-124-1 02 1 0507-0606 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 8-LEAF 		8-97225-580-0 02 1 0302-0506 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 8-LEAF 		8-97225-580-0 02 1 0507-0606 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-562-3 02 1 0607- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-97033-562-3 02 1 0607- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97353-118-0 02 1 0302-0506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-97353-118-0 02 1 0507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-97353-118-0 02 1 0507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 3-LEAF 		8-97353-120-0 02 1 0302-0506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-97353-120-0 02 1 0507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 0302-0401 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF 		8-97122-382-0 02 1 0302-0506 ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97225-581-0 02 1 0302-0506 ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 7-LEAF 		8-98000-683-0 02 1 0507-0606 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 7-LEAF 		8-98000-683-0 02 1 0607- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 7-LEAF 		8-98000-683-0 02 1 0607- ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 0302-0506 ● ● ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 0507-0606 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 0607- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.5-4.0TON(RPQ) L=225 		8-94127-919-2 04 1 0302-0506 ●
4 07.516 U-BOLT; RR SPR
L=225 		8-94127-919-3 04 1 0507- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 3.5-4.0TON(RPQ) L=225 		8-94127-919-3 04 1 0507- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT) L=255 		8-94127-922-2 04 1 0302-0606 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 0302-0401 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=295 		8-94132-358-2 04 1 0302-0606 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 0607- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 0607- ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 0607- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 0302-0606 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0302-0506 ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0507-0606 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0607- ● ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0607- ● ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0302-0506 ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0302-0506 ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0507-0606 ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0507-0606 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0607- ● ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0607- ● ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0302-0506 ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0302-0506 ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0507-0606 ●
5 07.529 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0507-0606 ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0507-0606 ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0607-0611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 0607-0611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0612- ● ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 0612- ● ●
6 07.516 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0302-0506 ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0302-0506 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0507-0606 ●
6 07.516 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0507-0606 ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0507-0606 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0607-0610 ● ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0607-0610 ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0611- ● ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 0611- ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0302-0506 ● ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0507- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 0302-0506 ● ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 0507-0611 ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0612- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5 		8-94119-069-2 02 1 0302-0506 ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0507- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5 		8-94119-069-2 02 1 0507- ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0302-0506 ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0302-0506 ●
157 07.518 CLAMP; UPR,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0507-0606 ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0507-0606 ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0607- ● ●
157 07.518 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0607- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0302-0506 ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0507-0611 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0302-0506 ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0507-0611 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0302-0506 ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0507-0610 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0302-0506 ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0507-0610 ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (A) M18 		9-99110-518-0 02 1 0302-0506 ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (A) M18 		9-99110-518-0 02 1 0507-0512 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M18 		0-91110-518-0 02 1 0601- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (B) M16 		9-99110-516-0 04 1 0302-0506 ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (B) M16 		9-99110-516-0 04 1 0507-0512 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE 		8-97147-389-0 04 1 0302-0506 ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE 		8-97147-389-0 04 1 0507-0610 ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ● ● ● ● ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0302-0506 ● ● ● ● ● ●
194 07.158 PAD; CONTACT
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0302-0506 ●
194 07.158 PAD; CONTACT
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0507-0606 ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0507-0606 ● ● ● ●
194 07.158 PAD; CONTACT
FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0607- ● ●
194 07.158 PAD; CONTACT
07.518 		1-51372-059-0 02 1 0607- ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97073-435-1 02 1 0302-0506 ● ● ● ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97073-435-1 02 1 0507-0611 ● ● ● ● ● ●
209 07.529 WASHER; PL
(A) ID=19 		8-97360-119-0 02 1 0612- ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5 		8-97070-925-1 04 1 0302-0506 ● ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5 		8-97070-925-1 04 1 0507-0611 ● ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ● ● ● ●
çizim 54267
227 225 225 317 323 62 25 318 323 314 274 294 308 320 285 285 318 308 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97225-578-0 01 1 0302-0506 ● ● ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-97225-578-0 01 1 0302-0506 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-97225-578-0 01 1 0507-0606 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97225-578-0 01 1 0507-0606 ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-97225-578-0 01 1 0607-0912 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97225-578-0 01 1 0607-0912 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1001- ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1001- ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97174-089-0 01 1 0302-0506 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 0507-0606 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97174-089-0 01 1 0507-0606 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 0607- ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97174-089-0 01 1 0607- ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 0302-0506 ● ● ● ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 0507- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-94379-470-1 02 1 0302-0506 ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-1 02 1 0302-0506 ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-1 02 1 0507-0606 ●
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-94379-470-1 02 1 0507-0606 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-1 02 1 0607-1103 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-94379-470-1 02 1 0607-1103 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98187-342-0 02 1 1104- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(B) 		8-98187-342-0 02 1 1104- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 0302-0506 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-5 02 1 0507-0606 ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-5 02 1 0507-0606 ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-5 02 1 0607- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-5 02 1 0607- ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0302-0506 ● ● ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0507-0602 ● ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 0302-0506 ● ● ● ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 0507- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> LOWER L=18 		8-97089-556-0 02 1 0302-0506 ● ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> LOWER L=18 		8-97089-556-0 02 1 0507- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> UPPER L=29 		8-97089-557-0 02 1 0302-0506 ● ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> UPPER L=29 		8-97089-557-0 02 1 0507- ● ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 0302-0506 ● ● ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 0507-0610 ● ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 		8-97360-120-0 02 1 0611- ● ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 0302-0506 ● ● ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 0507-0610 ● ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-97360-055-0 04 1 0611- ● ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 0302-0506 ● ● ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 0507-0603 ● ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 05.605 ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 0302-0506 ● ● ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 0507- ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0506 ● ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512 ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 0302-0506 ● ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 0507-0512 ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28851-470-0 02 1 0601- ● ● ● ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 0302-0506 ● ● ● ● ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 0507- ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 0302-0306 ● ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE 		8-94137-483-0 02 1 0307-0506 ● ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE 		8-94137-483-0 02 1 0507-0610 ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 06.174 (A) M14 FLANGE 		8-97360-124-0 02 1 0611- ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0507-0602 ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0302-0506 ● ● ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0507-0603 ● ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 0604- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
