0-37 — TURBOCHARGER (#4355) — 151 parça

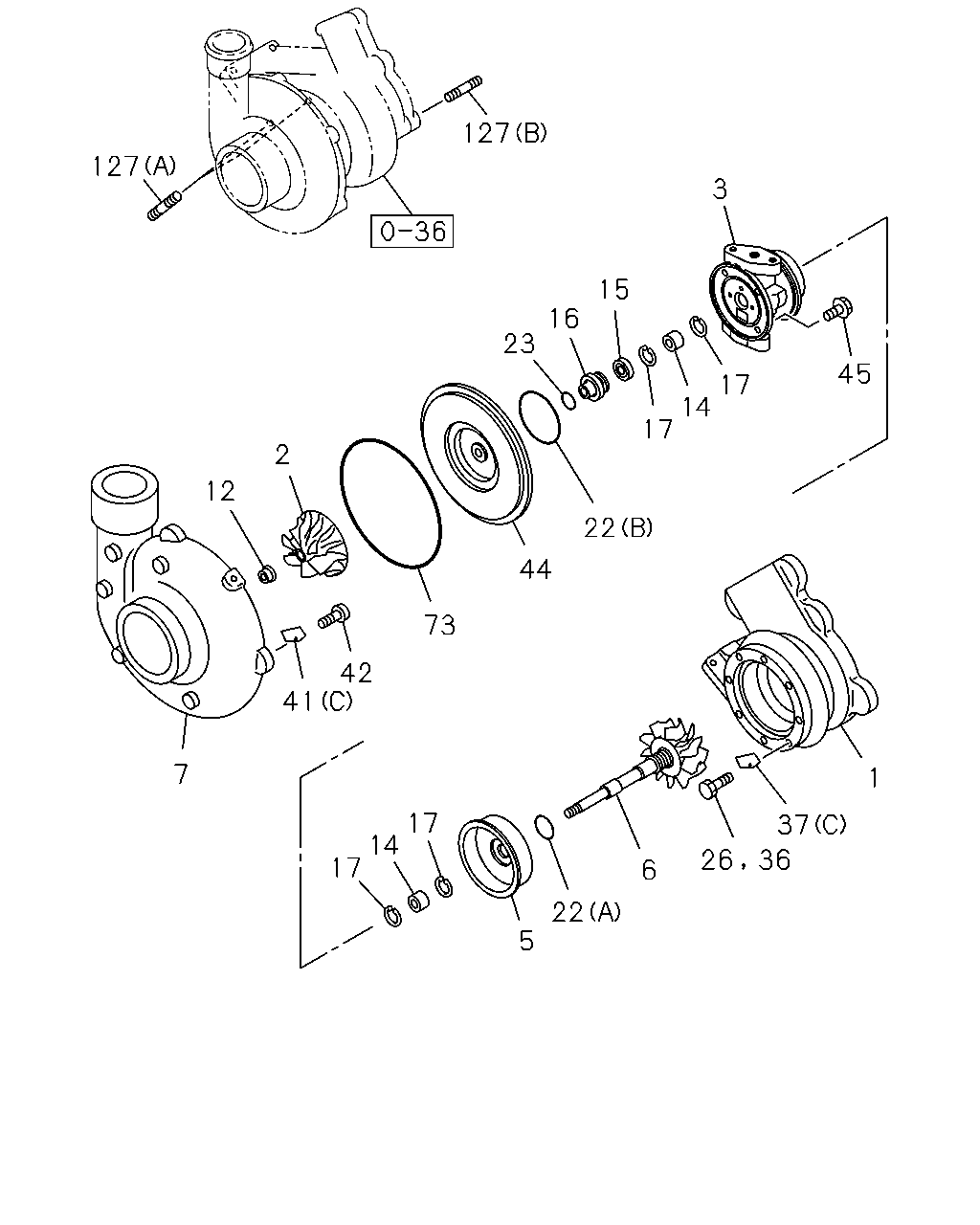

127 3 127 17 14 17 44 22 45 73 15 16 23 2 12 42 41 6 7 22 1 37 36 25 26 17 5 130 14 29 17 9 129 8 87 29 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14415-015-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14415-105-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14452-019-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14452-001-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14411-001-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14451-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14414-073-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14414-001-0	01	1	-
8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-122-0	01	1	-
9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-123-0	02	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 5-14400-004-0	1-14459-015-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-021-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-044-0	02	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-002-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-061-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-001-0	01	1	-
16	COLLAR; THRUST,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-019-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-011-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-017-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14429-004-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14419-010-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: C = 8-94394-608-0	1-14419-121-0	01	1	-
25	ACTUATOR; TURBOCHARGER ASM PART: D = 8-97605-177-0	1-14419-132-0	01	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-104-0	02	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (A) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-125-0	01	1	-
29	NUT; WASTE GATE CONT,TURBOCHARGER (B) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-127-0	02	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 5-14400-004-0	5-14419-004-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-005-0	03	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-006-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-002-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-003-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14419-075-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-105-0	06	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14459-016-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14459-052-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14459-054-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-130-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14419-144-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-008-0	04	1	-
73	GASKET; BRG HSG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-037-0	01	1	-
87	RING; ACTUATOR,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-108-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-126-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-129-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: B = 8-94390-581-0	1-14419-138-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: B = 8-94390-581-0	1-14419-142-0	01	1	-
129	ROD END; TURBO ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-124-0	01	1	-
130	BRACKET; ACTUATOR,TURBO ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-128-0	01	1	-

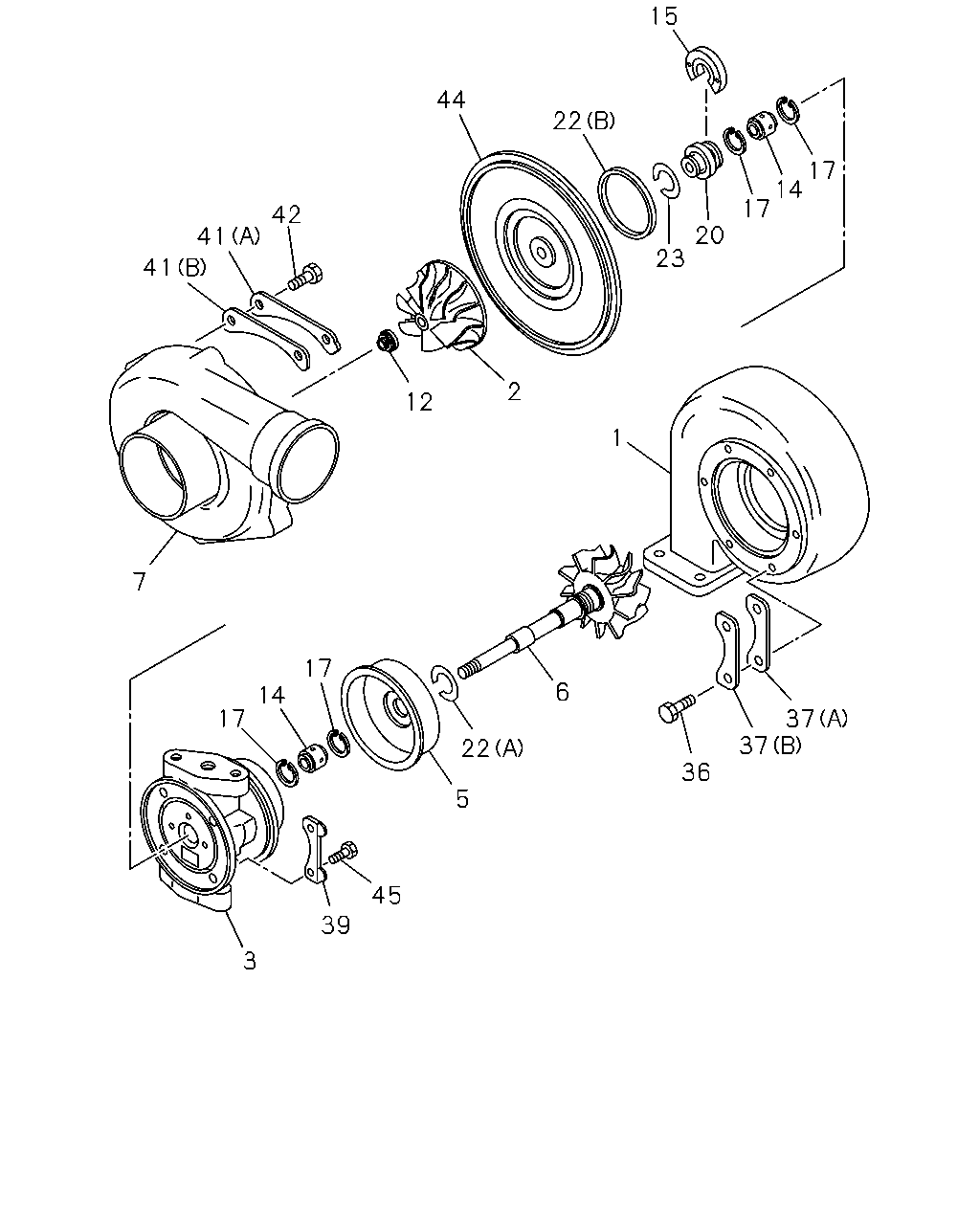

15 44 22 17 14 17 42 20 23 41 41 2 12 1 7 17 6 14 17 37 37 22 36 5 45 39 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14415-015-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14415-105-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14452-019-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14452-001-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14411-001-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14451-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14414-073-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14414-001-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 5-14400-004-0	1-14459-015-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-021-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-044-0	02	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-002-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-061-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-001-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-011-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14459-003-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-017-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14429-004-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14419-010-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 5-14400-004-0	5-14419-004-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-005-0	03	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-006-0	03	1	-
39	PLATE; LK,BRG HSG ASM PART: A = 5-14400-004-0	5-14419-009-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-002-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-003-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14419-075-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-105-0	06	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14459-016-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14459-052-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14459-054-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-130-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14419-144-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-008-0	04	1	-

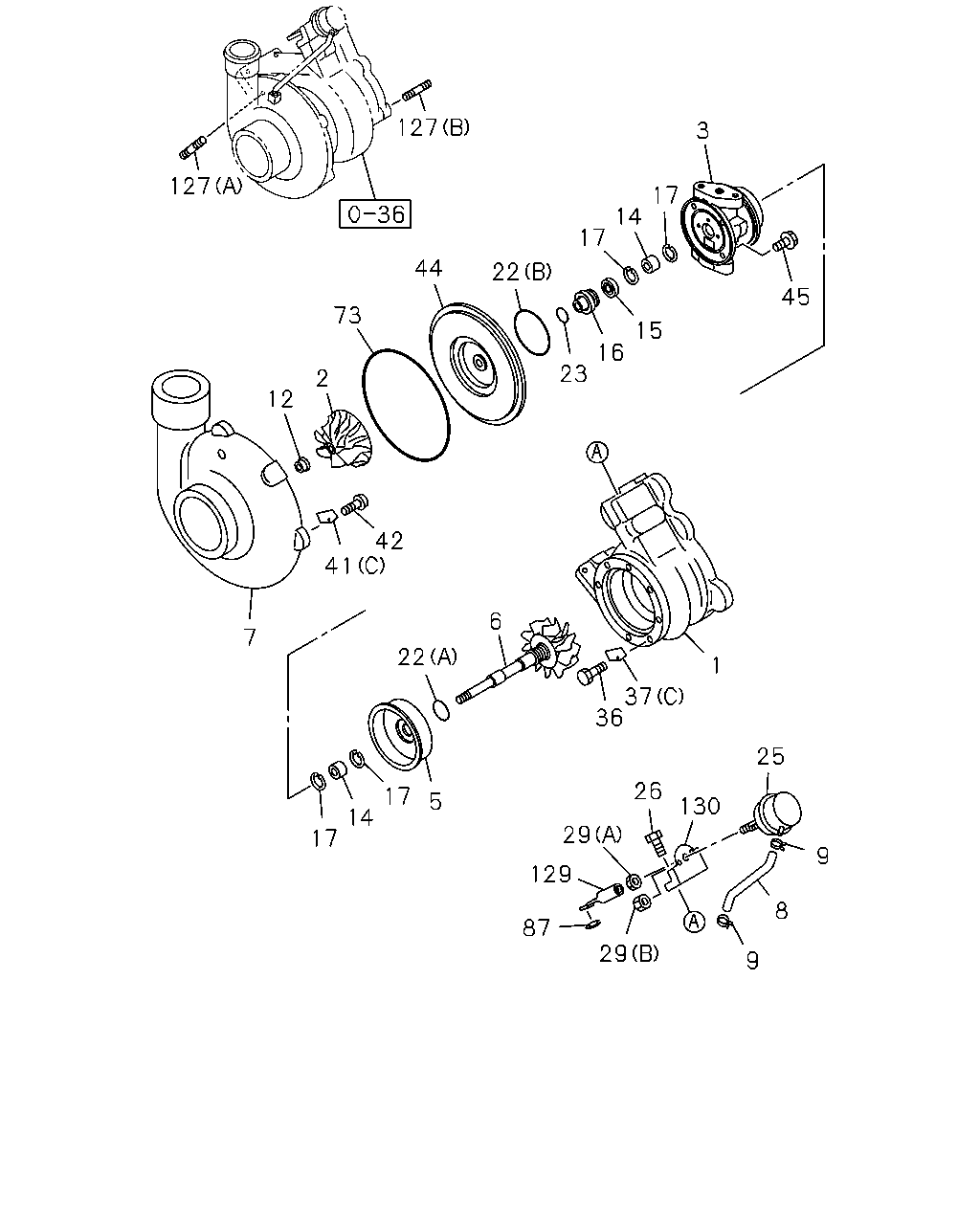

127 127 3 15 16 23 45 17 14 17 2 12 22 44 73 42 41 7 1 17 14 17 37 26 36 6 22 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14415-015-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14415-104-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14415-105-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14452-019-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14452-001-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14411-029-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14411-001-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14429-003-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14451-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14451-038-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14414-073-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14414-086-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14414-001-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 5-14400-004-0	1-14459-015-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-021-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-044-0	02	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-002-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14453-061-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14453-001-0	01	1	-
16	COLLAR; THRUST,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-019-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-083-0	04	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-011-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-102-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14429-059-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-017-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14429-004-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: A = 5-14400-004-0, B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	5-14419-010-0	01	1	-
26	BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-104-0	02	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-104-0	06	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 5-14400-004-0	5-14419-004-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-103-0	02	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-005-0	03	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-006-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (C) ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-093-0	02	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (A) ASM PART: A = 5-14400-004-0	5-14419-002-0	03	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER (B) ASM PART: A = 5-14400-004-0	5-14419-003-0	03	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14419-075-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14419-105-0	06	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 5-14400-004-0	1-14459-016-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14459-052-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14459-054-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-130-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 8-94390-581-0	1-14419-144-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 5-14400-004-0	5-14419-008-0	04	1	-
73	GASKET; BRG HSG,TURBOCHARGER ASM PART: B = 8-94390-581-0, C = 8-94394-608-0, D = 8-97605-177-0	1-14459-037-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-126-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: C = 8-94394-608-0, D = 8-97605-177-0	1-14419-129-0	01	1	-
127	STUD; TURBOCHARGER (A) ASM PART: B = 8-94390-581-0	1-14419-138-0	02	1	-
127	STUD; TURBOCHARGER (B) ASM PART: B = 8-94390-581-0	1-14419-142-0	01	1	-
