◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#43548) — 63 parça

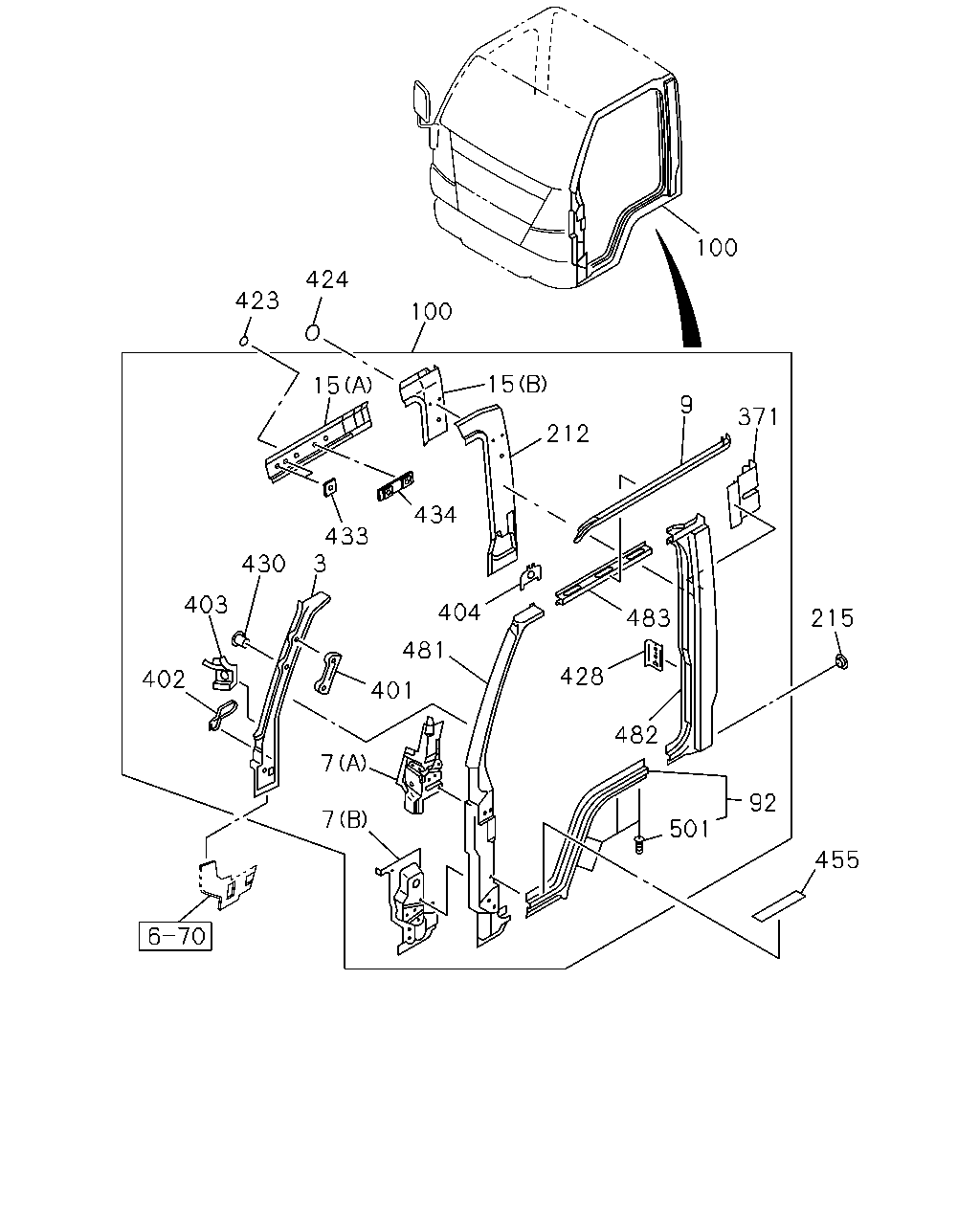

çizim 119130
100 424 423 100 15 15 9 371 212 434 433 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B C
3 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0508- ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0508- ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0508- ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0508- ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0508- ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0508- ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0508-1106 ● ● ●
9 MOLDING; DRIP,CAB SIDE
THA 		8-98177-623-0 01 1 1107- ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0508-1106 ● ● ●
9 MOLDING; DRIP,CAB SIDE
THA 		8-98177-624-0 01 1 1107- ● ● ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97851-334-5 01 1 0508- ● ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97851-336-6 01 1 0508- ● ● ●
15 PANEL; CANT RAIL SIDE
(A) THA 		8-97851-335-5 01 1 0508- ● ● ●
15 PANEL; CANT RAIL SIDE
(B) THA 		8-97851-337-6 01 1 0508- ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0508- ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0508- ● ● ●
100 PANEL ASM; BODY SIDE
4HG1-T ENG<RDP> 		8-97890-288-1 01 1 0508- ● ●
100 PANEL ASM; BODY SIDE 8-97890-393-1 01 1 0508- ● ● ●
100 PANEL ASM; BODY SIDE
4HE1-TCS ENG<RDS> 		8-97890-284-1 01 1 0508-0509 ● ●
100 PANEL ASM; BODY SIDE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> 		8-97890-284-1 01 1 0510- ● ●
212 CLOSING; PILLAR 8-97890-452-4 01 1 0508- ● ● ●
212 CLOSING; PILLAR 8-97890-453-4 01 1 0508- ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0508- ● ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 0508- ● ● ●
371 PATCH; SEAT BELT 8-97851-049-1 01 1 0508- ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0508- ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0508- ● ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 0508- ● ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 0508- ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0508- ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0508- ● ● ●
404 BRACKET 8-97890-317-1 01 1 0508- ● ● ●
404 BRACKET 8-97890-317-1 01 1 0508- ● ● ●
423 SEAL; CANTRAIL SIDE
OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0508- ● ● ●
424 SEAL; CLOSING
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0508- ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 0508- ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 0508- ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0508-0805 ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ●
430 NUT; PANEL
4HG1-T ENG<RDP> M8 POP NUT 		8-94279-538-0 02 1 0508-0805 ● ●
430 NUT; PANEL
4HG1-T ENG<RDP> M8 POP NUT 		8-98021-404-0 02 1 0806- ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 0508- ● ● ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 0508- ● ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0508- ● ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 0508-0511 ● ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512- ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0508- ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0508- ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0508- ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0508- ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0508- ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0508- ● ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0508- ● ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0508- ● ● ●

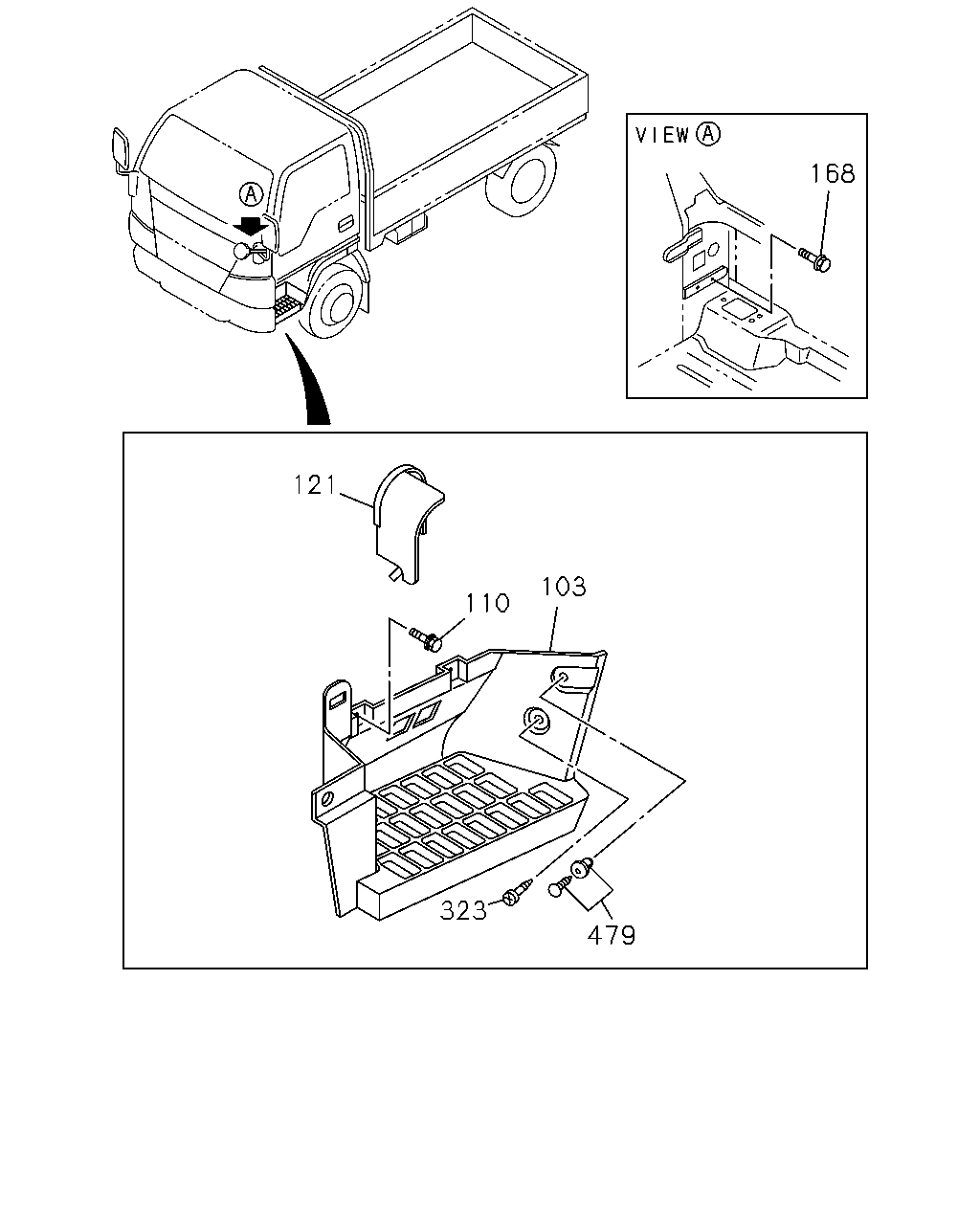

çizim 119401
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C
103 PLATE; STEP 8-97997-853-0 01 1 0508- ● ● ●
103 PLATE; STEP 8-97997-854-0 01 1 0508- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0508-0908 ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ●
121 COVER; STEP PLATE 8-97997-855-0 01 1 0508- ● ● ●
121 COVER; STEP PLATE 8-97997-856-0 01 1 0508- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER THA 		8-94139-963-0 04 1 0508- ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0508- ● ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0508- ● ● ●
