6-01 — FRONT BUMPER (#43544) — 38 parça

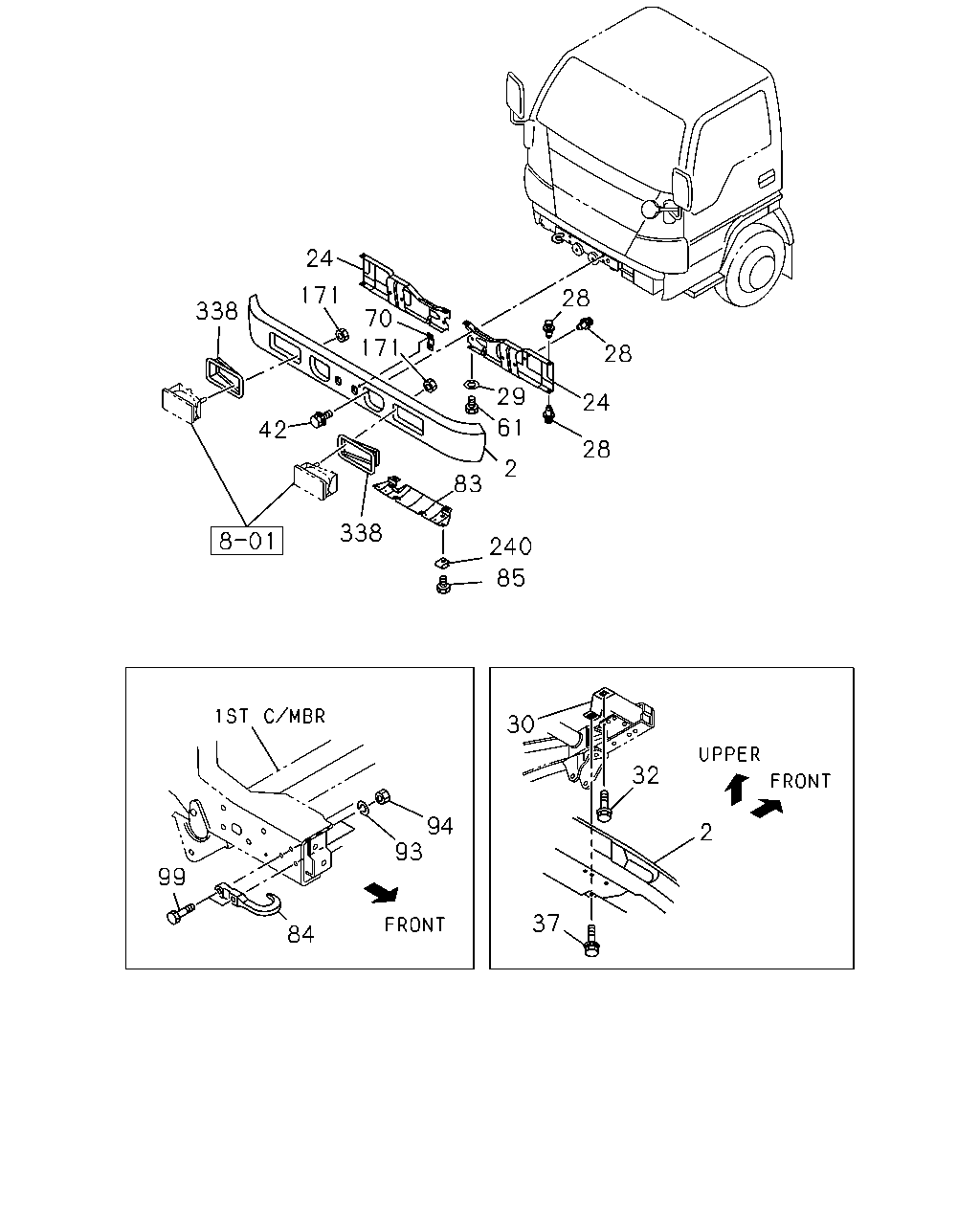

çizim 119407
24 28 171 70 171 338 28 29 24 61 42 28 2 83 338 240 85 30 32 94 93 2 99 37 84
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97581-579-0 01 1 0508- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97581-578-0 01 1 0508- ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97589-231-0 01 1 0508- ● ● ●
24 BAR; FRT BUMPER 8-97073-671-4 01 1 0508- ● ● ●
24 BAR; FRT BUMPER 8-97073-672-4 01 1 0508- ● ● ●
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0508- ● ● ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 0508- ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-639-3 02 1 0508- ●
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 0508- ●
32 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ●
32 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0508- ● ● ●
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0508- ● ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0508-0909 ● ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50540-818-0 02 1 0910- ● ● ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0508- ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 0508- ● ● ●
84 HOOK
FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-519-0 01 1 0508- ●
84 HOOK
THA 		8-97918-519-0 01 1 0508- ●
84 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-518-0 01 1 0508- ●
84 HOOK
THA 		8-97918-518-0 01 1 0508- ●
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER THA 		8-97012-072-0 04 1 0508- ● ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0508-0603 ● ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0604- ● ● ●
94 NUT; HOOK
M14 THA 		9-99110-514-0 02 1 0508-0512 ● ● ●
94 NUT; HOOK
M14 THA 		0-91110-514-0 02 1 0601- ● ● ●
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0508-0512 ● ● ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601- ● ● ●
171 NUT; BACK BAR
M8 FLANGE 		1-09464-018-1 06 1 0508- ● ● ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 04 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-867-0 01 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-871-0 01 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-869-0 01 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-873-0 01 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97589-232-0 01 1 0508- ● ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97589-233-0 01 1 0508- ● ● ●
