◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#43543) — 24 parça

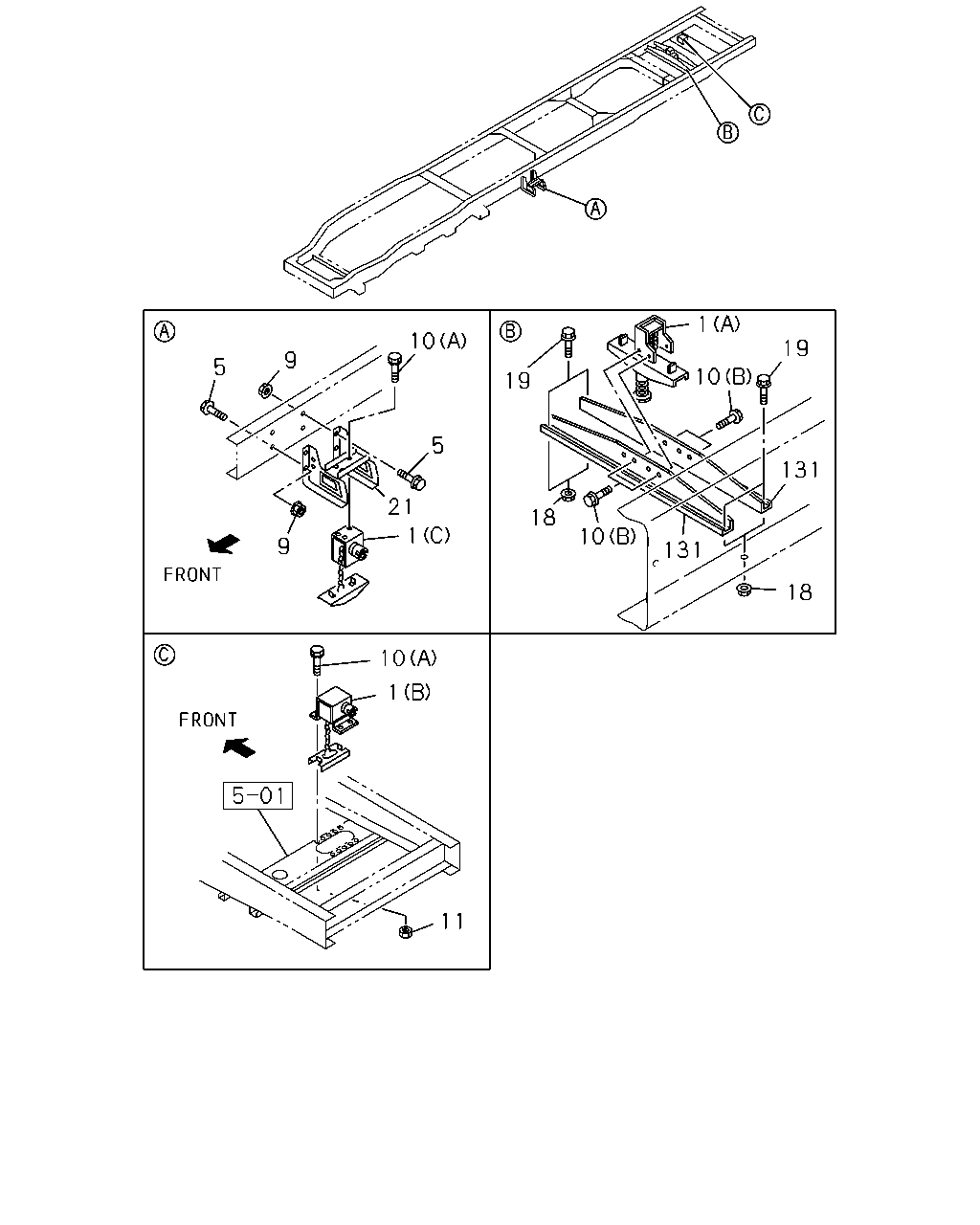

çizim 119082
1 10 19 9 5 10 19 5 131 21 18 1 10 9 131 18 10 1 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ> (A) REAR 		1-53630-188-3 01 1 0508- ●
1 HANGER ASM; TIRE FT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97182-115-1 01 1 0508- ●
1 HANGER ASM; TIRE FT
(B) REAR 		8-97182-115-1 01 1 0508- ●
1 HANGER ASM; TIRE FT
(C) FRONT 		8-97010-955-1 01 1 0508- ●
5 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28681-030-0 04 1 0508-0611 ●
5 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ●
9 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 04 1 0508-0602 ●
9 NUT; BRKT TO FRAME
M10 FLANGE THA 		0-91180-110-0 04 1 0603- ●
10 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> (B) M10X25 FLANGE 		0-28681-025-0 04 1 0508-0611 ●
10 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> (B) M10X25 FLANGE THA 		0-28651-025-0 04 1 0612- ●
10 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE 		0-28680-820-0 04 1 0508-0611 ●
10 BOLT; TIRE HANGER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0508-0611 ●
10 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE THA 		0-28650-820-0 04 1 0612- ●
10 BOLT; TIRE HANGER
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 0612- ●
10 BOLT; TIRE HANGER
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0508-0611 ●
10 BOLT; TIRE HANGER
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 0612- ●
11 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE 		0-91150-108-0 04 1 0508- ●
11 NUT; TIRE HANGER
M8 FLANGE 		0-91150-108-0 04 1 0508- ●
18 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 04 1 0508-0602 ●
18 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA 		0-91180-110-0 04 1 0603- ●
19 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28681-030-0 04 1 0508-0611 ●
19 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ●
21 BRACKET; SPARE TIRE HANGER 8-97188-263-1 01 1 0508- ●
131 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 0508- ●
