◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#43542) — 26 parça

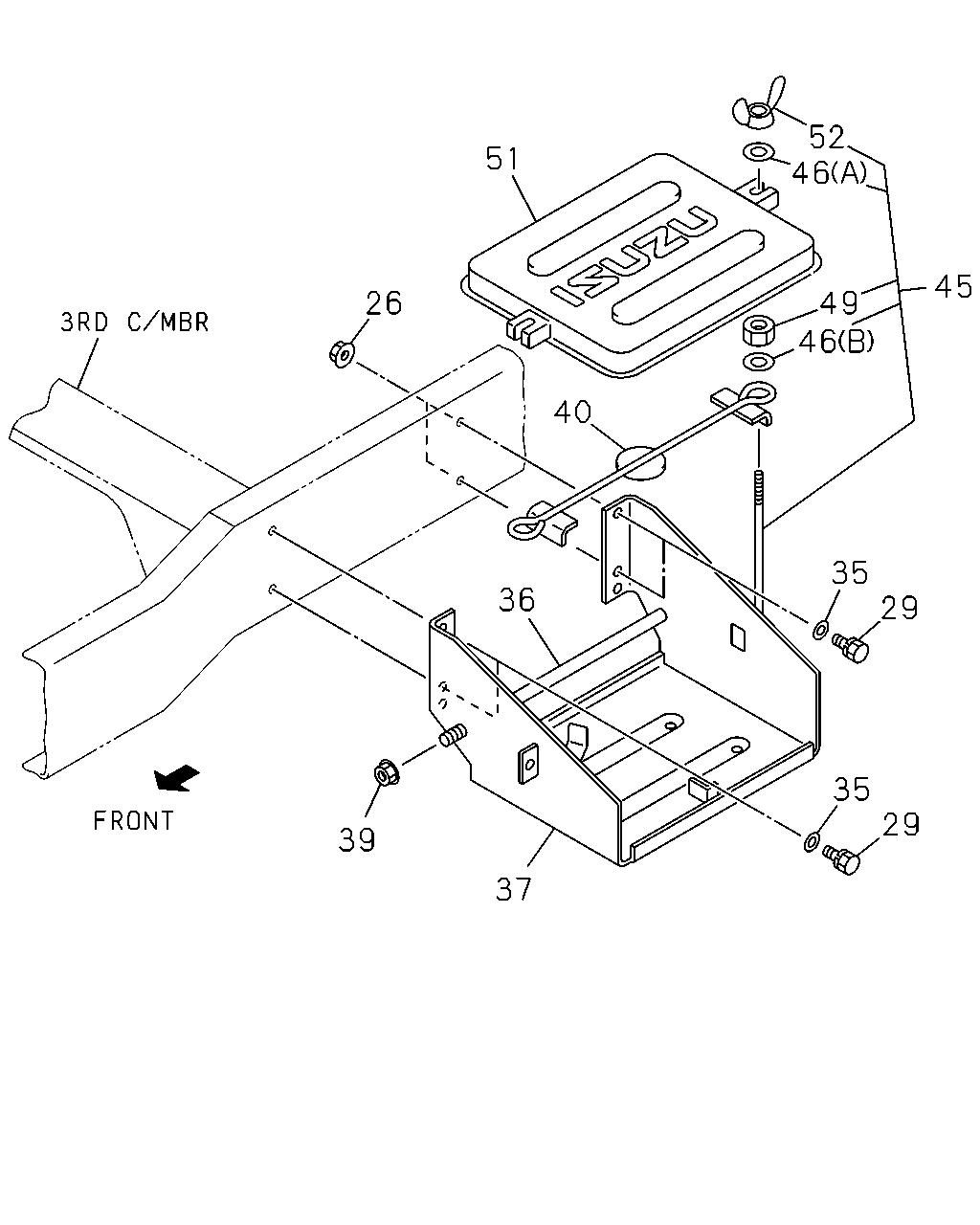

çizim 119096
52 46 51 45 26 49 46 40 35 29 36 35 29 39 37
BalonParca AdiParca NoAdetTipApplied Date A B C
26 NUT; BRKT
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-210-0 04 1 0508- ●
26 NUT; BRKT
4HG1-T ENG<RDP> M10 FLANGE 		0-91150-210-0 04 1 0508- ●
26 NUT; BRKT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-210-0 02 1 0508-0509 ●
26 NUT; BRKT
4HE1-TCS ENG<RDS> M10 FLANGE 		0-91150-210-0 02 1 0508-0509 ●
26 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-210-0 02 1 0510- ●
26 NUT; BRKT
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE 		0-91150-210-0 02 1 0510- ●
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 04 1 0508-0512 ● ● ●
29 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601- ● ● ●
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 		9-09160-610-0 04 1 0508-0605 ● ● ●
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0606- ● ● ●
36 STOPPER; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> THA 		8-94145-894-0 01 1 0508- ● ● ●
37 BRACKET; BATTERY
THA 		8-97915-703-2 01 1 0508- ● ● ●
39 NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE 		0-91150-106-0 01 1 0508-0508 ● ● ●
40 CLAMP; BATTERY
THA 		8-97910-232-0 01 1 0508- ● ● ●
45 ROD; TENSION,BATTERY
THA 		8-97915-640-1 02 1 0508-1304 ● ● ●
45 ROD; TENSION,BATTERY
THA 		8-97926-647-0 02 1 1305- ● ● ●
46 WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA 		9-09160-608-0 02 1 0508-0605 ● ● ●
46 WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 		0-91610-608-0 02 1 0606-1304 ● ● ●
46 WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 		0-91614-608-0 02 1 1305- ● ● ●
46 WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 		9-09164-708-0 02 1 0508-0605 ● ● ●
46 WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA 		0-91614-708-0 02 1 0606- ● ● ●
49 NUT; ROD,BATTERY
M8 		9-09110-408-0 02 1 0508-0512 ● ● ●
49 NUT; ROD,BATTERY
M8 		0-91110-508-0 02 1 0601- ● ● ●
51 COVER; BATTERY
THA 		8-97915-940-0 01 1 0508- ● ● ●
52 NUT; WING,COVER FIX
M8 WING NUT 		9-09118-408-0 02 1 0508-0512 ● ● ●
52 NUT; WING,COVER FIX
M8 WING NUT THA 		0-91118-408-0 02 1 0601- ● ● ●
