5-10 — CAB MOUNTING; FRAME SIDE (#43540) — 137 parça

7 1 20 7 1 20 104 72 105 7 23 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97101-358-1	01	1	0508-	●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>	8-97101-358-1	01	1	0508-		●
1	BRACKET; CAB MTG 4HE1-TCS ENG<RDS>	8-97101-358-1	01	1	0508-			●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97101-359-0	01	1	0508-	●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>	8-97101-359-0	01	1	0508-		●
1	BRACKET; CAB MTG 4HE1-TCS ENG<RDS>	8-97101-359-0	01	1	0508-			●
1	BRACKET; CAB MTG 4HK1-TCS ENG<RJS>	8-97330-270-1	01	1	0510-	●		●
1	BRACKET; CAB MTG 4HK1-TCS ENG<RJS>	8-98000-402-2	01	1	0510-	●		●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0508-0512	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-	●
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP> (C)	8-97076-469-2	01	1	0508-		●
18	PLATE; MTG BRKT FIX 4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-			●
18	PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0508-	●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0508-			●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX 4HK1-TCS ENG<RJS> (E)	8-97388-371-0	01	1	0510-	●		●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97095-148-0	02	1	0508-0509	●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>	8-97095-148-0	02	1	0508-0509		●
20	RUBBER; MTG,CAB BRKT 4HE1-TCS ENG<RDS>	8-97095-148-0	02	1	0508-0509			●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0510-	●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>	8-97095-148-1	02	1	0510-		●
20	RUBBER; MTG,CAB BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97095-148-1	02	1	0510-			●
23	NUT; MTG BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	02	1	0508-	●
23	NUT; MTG BRKT M12 FLANGE	0-91150-112-0	02	1	0508-		●
72	WASHER; PL,BRKT TO FRAME 4HK1-TCS ENG<RJS> ID=15 OD=36	9-09164-714-0	01	1	0510-0605	●		●
72	WASHER; PL,BRKT TO FRAME 4HK1-TCS ENG<RJS> ID=15 OD=36	0-91614-714-0	01	1	0606-	●		●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97033-624-3	01	1	0508-	●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HG1-T ENG<RDP>	8-97033-624-3	01	1	0508-		●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HE1-TCS ENG<RDS>	8-97033-624-3	01	1	0508-			●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCS ENG<RJS>	8-97164-690-3	01	1	0510-	●		●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512	●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512		●
105	BOLT; BRKT TO CAB FRAME 4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512			●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28851-635-0	01	1	0601-	●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP> M16X35 FLANGE	0-28851-635-0	01	1	0601-		●
105	BOLT; BRKT TO CAB FRAME 4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28851-635-0	01	1	0601-			●
105	BOLT; BRKT TO CAB FRAME 4HK1-TCS ENG<RJS> M14X35 FLANGE	0-28681-435-0	01	1	0510-0512	●		●
105	BOLT; BRKT TO CAB FRAME 4HK1-TCS ENG<RJS> M14X35 FLANGE	0-28651-435-0	01	1	0601-	●		●

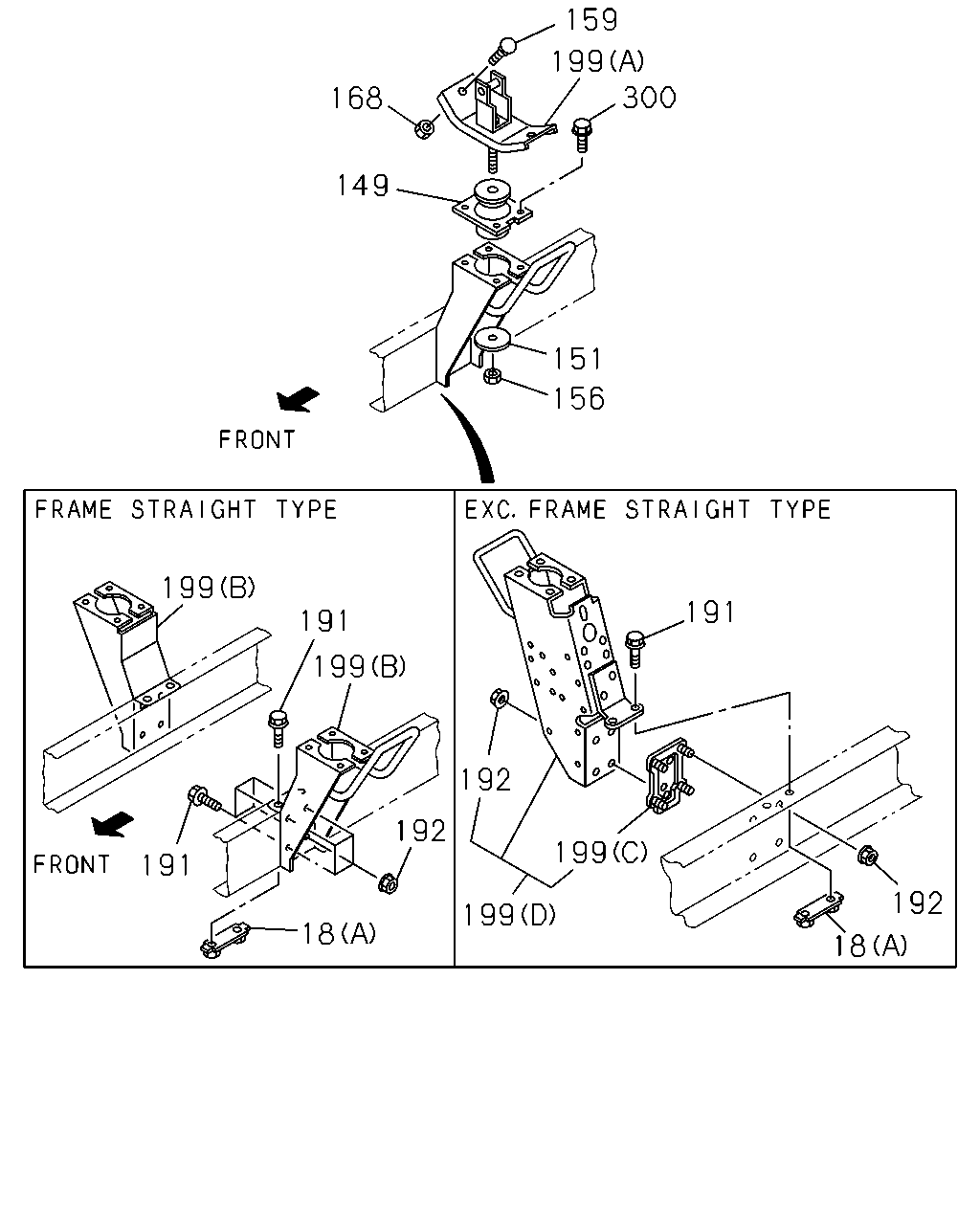

159 199 300 168 149 151 156 199 191 191 199 192 192 199 191 192 199 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-	●
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP> (C)	8-97076-469-2	01	1	0508-		●
18	PLATE; MTG BRKT FIX 4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-			●
18	PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0508-	●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0508-			●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX 4HK1-TCS ENG<RJS> (E)	8-97388-371-0	01	1	0510-	●		●
149	RUBBER; MTG,CAB,UPR RR THA	8-97916-740-0	02	1	0508-	●	●	●
151	WASHER; CAB MTG,RR UPR ID=16.4 OD=62	8-97034-382-0	02	1	0508-0611	●	●	●
151	WASHER; CAB MTG,RR UPR ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
156	NUT; CAB MTG RR M16	9-99111-416-0	02	1	0508-0512	●	●	●
156	NUT; CAB MTG RR M16 THA	0-91111-516-0	02	1	0601-	●	●	●
159	RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	0508-	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG M8 FLANGE	0-91150-108-0	04	1	0508-0602	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG M8 FLANGE THA	0-91180-108-0	04	1	0603-	●	●	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28681-240-0	08	1	0508-0512	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	08	1	0508-0512			●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	0601-	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28681-240-0	04	1	0508-0512	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28681-240-0	04	1	0508-0512		●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	04	1	0601-		●
192	NUT; BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	04	1	0508-0602	●
192	NUT; BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	04	1	0508-0602	●
192	NUT; BRKT FIX 4HG1-T ENG<RDP> M12 FLANGE	0-91150-112-0	04	1	0508-0602		●
192	NUT; BRKT FIX 4HG1-T ENG<RDP> M12 FLANGE	0-91150-112-0	04	1	0508-0602		●
192	NUT; BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE THA	0-91180-112-0	04	1	0603-	●
192	NUT; BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE THA	0-91180-112-0	04	1	0603-	●
192	NUT; BRKT FIX 4HG1-T ENG<RDP> M12 FLANGE THA	0-91180-112-0	04	1	0603-		●
192	NUT; BRKT FIX 4HG1-T ENG<RDP> M12 FLANGE THA	0-91180-112-0	04	1	0603-		●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0508-	●	●	●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B) THA	8-97326-507-0	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) THA	8-97326-507-0	01	1	0508-			●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97326-510-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97326-510-1	01	1	0508-			●
199	BRACKET; CAB RR MTG (A)	8-97035-310-4	02	1	0508-	●	●	●
199	BRACKET; CAB RR MTG 4HK1-TCS ENG<RJS> TIRE SIZE 8.25-16<7QP> (B)	8-97376-711-0	01	1	0510-	●		●
199	BRACKET; CAB RR MTG 4HK1-TCS ENG<RJS> TIRE SIZE 8.25-16<7QP> (B)	8-97376-712-0	01	1	0510-	●		●
199	BRACKET; CAB RR MTG 4HK1-TCS ENG<RJS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97330-163-1	01	1	0510-	●		●
199	BRACKET; CAB RR MTG 4HK1-TCS ENG<RJS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97330-165-1	01	1	0510-	●		●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97917-244-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97917-244-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP> (C) THA	8-97917-244-1	01	1	0508-		●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP> (C) THA	8-97917-244-1	01	1	0508-		●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97910-254-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP> (D) THA	8-97910-254-1	01	1	0508-		●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97910-255-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HG1-T ENG<RDP> (D) THA	8-97910-255-1	01	1	0508-		●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-936-1	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-936-1	01	1	0508-			●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (B) THA	8-97920-937-2	01	1	0508-	●
199	BRACKET; CAB RR MTG 4HE1-TCS ENG<RDS> TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-937-2	01	1	0508-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0508-0611	●	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE THA	0-28651-020-0	08	1	0612-	●	●	●

7 1 7 20 1 20 104 7 105 23 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97101-358-1	01	1	0508-	●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>	8-97101-358-1	01	1	0508-		●
1	BRACKET; CAB MTG 4HE1-TCS ENG<RDS>	8-97101-358-1	01	1	0508-			●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97101-359-0	01	1	0508-	●
1	BRACKET; CAB MTG 4HG1-T ENG<RDP>	8-97101-359-0	01	1	0508-		●
1	BRACKET; CAB MTG 4HE1-TCS ENG<RDS>	8-97101-359-0	01	1	0508-			●
1	BRACKET; CAB MTG 4HK1-TCS ENG<RJS>	8-97330-270-1	01	1	0510-	●		●
1	BRACKET; CAB MTG 4HK1-TCS ENG<RJS>	8-98000-402-2	01	1	0510-	●		●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0508-0512	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●	●
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-	●
18	PLATE; MTG BRKT FIX 4HG1-T ENG<RDP> (C)	8-97076-469-2	01	1	0508-		●
18	PLATE; MTG BRKT FIX 4HE1-TCS ENG<RDS> (C)	8-97076-469-2	01	1	0508-			●
18	PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0508-	●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0508-			●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	0508-	●	●	●
18	PLATE; MTG BRKT FIX 4HK1-TCS ENG<RJS> (E)	8-97388-371-0	01	1	0510-	●		●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97095-148-0	02	1	0508-0509	●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>	8-97095-148-0	02	1	0508-0509		●
20	RUBBER; MTG,CAB BRKT 4HE1-TCS ENG<RDS>	8-97095-148-0	02	1	0508-0509			●
20	RUBBER; MTG,CAB BRKT	8-97095-148-1	02	1	0510-	●
20	RUBBER; MTG,CAB BRKT 4HG1-T ENG<RDP>	8-97095-148-1	02	1	0510-		●
20	RUBBER; MTG,CAB BRKT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97095-148-1	02	1	0510-			●
23	NUT; MTG BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	02	1	0508-	●
23	NUT; MTG BRKT M12 FLANGE	0-91150-112-0	02	1	0508-		●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97033-624-3	01	1	0508-	●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HG1-T ENG<RDP>	8-97033-624-3	01	1	0508-		●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HE1-TCS ENG<RDS>	8-97033-624-3	01	1	0508-			●
104	BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCS ENG<RJS>	8-97164-690-3	01	1	0510-	●		●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512	●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512		●
105	BOLT; BRKT TO CAB FRAME 4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28881-635-0	01	1	0508-0512			●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28851-635-0	01	1	0601-	●
105	BOLT; BRKT TO CAB FRAME 4HG1-T ENG<RDP> M16X35 FLANGE	0-28851-635-0	01	1	0601-		●
105	BOLT; BRKT TO CAB FRAME 4HE1-TCS ENG<RDS> M16X35 FLANGE	0-28851-635-0	01	1	0601-			●
105	BOLT; BRKT TO CAB FRAME 4HK1-TCS ENG<RJS> M14X35 FLANGE	0-28681-435-0	01	1	0510-0512	●		●
105	BOLT; BRKT TO CAB FRAME 4HK1-TCS ENG<RJS> M14X35 FLANGE	0-28651-435-0	01	1	0601-	●		●
