0-36 — TURBOCHARGER SYSTEM (#4354) — 88 parça

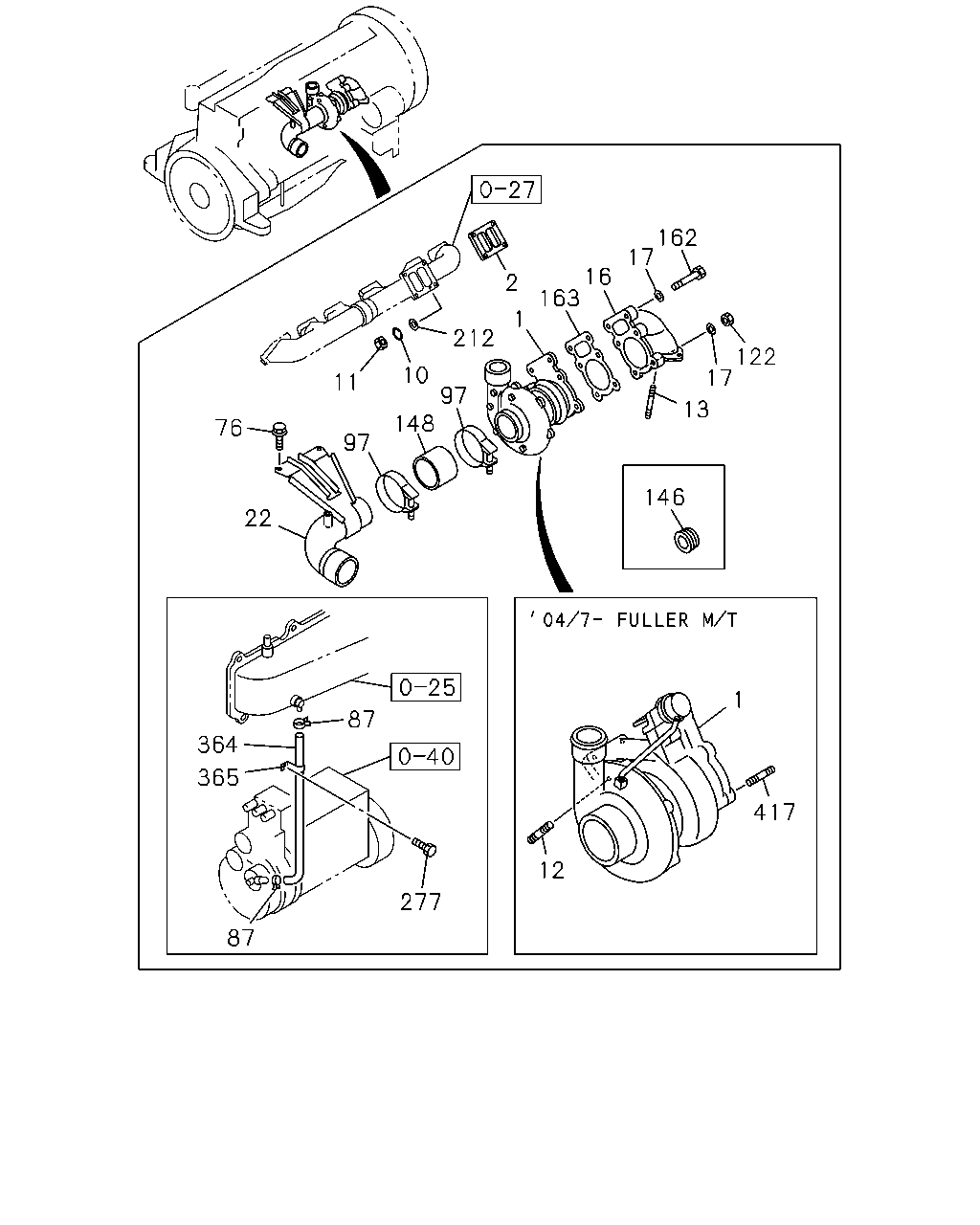

çizim 36841
162 17 16 163 2 1 212 122 17 10 11 97 148 13 76 97 146 22 1 87 364 365 417 12 277 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. FULLER M/T<X9B> 		8-97605-177-0 01 1 0407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		5-14400-004-0 01 1 9101-9504 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-581-0 01 1 9703-0406 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. ISUZU M/T<X9A> 		8-94390-581-0 01 1 0407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-608-0 01 1 9710- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-0 01 1 9101-9504 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9703-9709 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9710- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9703-9709 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9710- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 9101-9111 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9112-9504 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9703-9709 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9710- ● ●
12 STUD; TURBOCHARGER
FULLER M/T<X9B> M10X80 		9-04731-080-0 02 1 0407- ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9703-9709 ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 9710- ● ●
16 ADAPTER; EXH PIPE 1-14144-431-1 01 1 9101-9504 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9703-9709 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9710- ● ●
17 WASHER; PL,ADAPTER
ID=10 		1-09503-033-1 02 1 9101-9504 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9703-9709 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9710- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94391-544-0 01 1 9703-9709 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94391-544-0 01 1 9710- ● ●
76 BOLT; AIR DUCT
M8X30 FLANGE 		0-28680-830-0 02 1 9703-9705 ●
76 BOLT; AIR DUCT
M8X30 FLANGE 		0-28680-830-0 01 1 9706-9709 ●
76 BOLT; AIR DUCT
M8X30 FLANGE 		0-28680-830-0 01 1 9710-0512 ● ●
76 BOLT; AIR DUCT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
76 BOLT; AIR DUCT
M8X40 FLANGE 		0-28680-840-0 01 1 9706-9709 ●
76 BOLT; AIR DUCT
M8X40 FLANGE 		0-28680-840-0 01 1 9710-0512 ● ●
76 BOLT; AIR DUCT
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
87 CLIP; RUBBER HOSE FIX
ID=11 		8-94238-570-0 02 1 9703-9709 ●
87 CLIP; RUBBER HOSE FIX
ID=11 		8-94238-570-0 02 1 9710- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9703-9709 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 02 1 9710-0306 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-198-0 04 1 0307-0810 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=77-95 		1-09707-114-0 04 1 0811- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9703-9709 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9710- ● ●
146 PLUG; INL PIPE
PT1 		1-09605-021-0 01 1 9710-9711 ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9703-9709 ●
148 HOSE; TURBOCHARGER,INL 5-09360-846-0 01 1 9710- ● ●
162 BOLT; ADAPTER 9-09804-206-0 02 1 9101-9504 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9703-9709 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9710- ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9703-9709 ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-2 01 1 9710- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9101-9504 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9703-9709 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9710- ● ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 9703-9709 ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28080-610-0 01 1 9710-0512 ● ●
277 BOLT; CLIP
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
364 HOSE; BOOST
L=200 SERVICED BY L=3000 		0-04770-300-0 01 1 9703-9709 ●
364 HOSE; BOOST
L=200 SERVICED BY L=3000 		0-04770-300-0 01 1 9710- ● ●
365 CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20 		8-94246-610-0 01 1 9703-9709 ●
365 CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20 		8-94246-610-0 01 1 9710- ● ●
417 STUD; ADAPTER TO EXH PIPE
FULLER M/T<X9B> M8X25 		9-04130-825-0 01 1 0407- ●
çizim 37122
143 98 20 143 1 11 212 167 167 2 16 17 162 66
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. FULLER M/T<X9B> 		8-97605-177-0 01 1 0407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		5-14400-004-0 01 1 9101-9504 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-581-0 01 1 9703-0406 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. ISUZU M/T<X9A> 		8-94390-581-0 01 1 0407- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-608-0 01 1 9710- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-0 01 1 9101-9504 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9703-9709 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9710- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 9101-9111 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9112-9504 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9703-9709 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9710- ● ●
16 ADAPTER; EXH PIPE 1-14144-431-1 01 1 9101-9504 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9703-9709 ●
16 ADAPTER; EXH PIPE 8-94391-161-1 01 1 9710- ● ●
17 WASHER; PL,ADAPTER
ID=10 		1-09503-033-1 02 1 9101-9504 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9703-9709 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9710- ● ●
20 PIPE; INL,TURBOCHARGER OUT 1-14111-641-2 01 1 9101-9504 ●
66 STUD; EXH PIPE 5-09303-002-0 04 1 9101-9504 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-782-0 01 1 9101-9504 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET 9-09915-551-1 02 1 9101-9504 ●
162 BOLT; ADAPTER 9-09804-206-0 02 1 9101-9504 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9703-9709 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 9710- ● ●
167 RING 1-14149-040-0 02 1 9101-9504 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9101-9504 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9703-9709 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9710- ● ●
