◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶

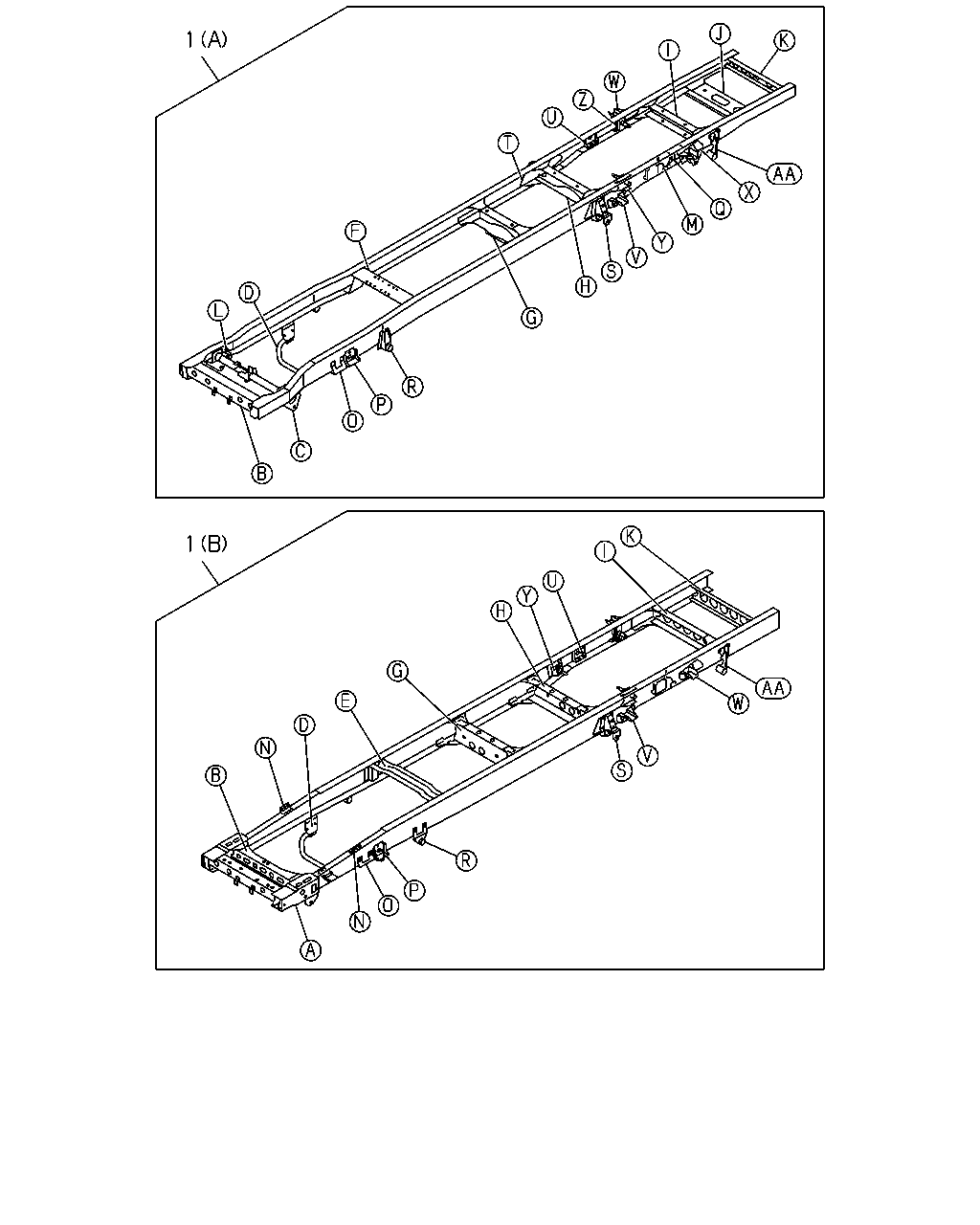

5-01 — FRAME AND OTHER PARTS (#43539) — 161 parça
çizim 119377
331 331 437 2 2 219 219 17 17 24 20 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97912-909-0 01 1 0508- ● ●
2 MEMBER; CROSS,1ST
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97920-938-1 01 1 0508-0509 ● ●
2 MEMBER; CROSS,1ST
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97920-938-1 01 1 0510- ● ●
17 GUSSET; 1ST C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97916-470-0 02 1 0508- ● ●
20 MEMBER; CROSS,2ND
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97912-897-1 01 1 0508- ● ●
24 BRACKET; FRT SPR,FRT
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97915-063-0 01 1 0508- ● ●
24 BRACKET; FRT SPR,FRT
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97915-064-0 01 1 0508- ● ●
219 BRACKET; BACK BAR,FRT BUMPER,FRAME SID
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-205-0 01 1 0508- ● ●
219 BRACKET; BACK BAR,FRT BUMPER,FRAME SID
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-206-0 01 1 0508- ● ●
331 BRACKET; STRG UNIT
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-174-1 01 1 0508-0509 ● ●
331 BRACKET; STRG UNIT
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-174-1 01 1 0510- ● ●
331 BRACKET; STRG UNIT
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-175-0 01 1 0508-0509 ● ●
331 BRACKET; STRG UNIT
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-175-0 01 1 0510- ● ●
437 MEMBER; CROSS,BUMPER
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97912-911-1 01 1 0508-0509 ● ●
437 MEMBER; CROSS,BUMPER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97912-911-1 01 1 0510- ● ●
çizim 119382
376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 316 118 317
BalonParca AdiParca NoAdetTipApplied Date A B C
118 NUT; STOPPER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M8 LOCK NUT 		9-09131-508-0 02 1 0508-0509 ● ● ●
118 NUT; STOPPER
M8 LOCK NUT 		9-09131-508-0 02 1 0510-0601 ● ● ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0602- ● ● ●
176 BOLT; C/MBR,ENG MTG
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X25 FLANGE 		0-28081-025-0 08 1 0508-0509 ● ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 0510-0512 ● ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE THA 		0-28051-025-0 08 1 0601- ● ● ●
316 BOLT; STIFFENER
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M12X35 W/LK WASHER 		0-50041-235-0 16 1 0508-0509 ● ●
316 BOLT; STIFFENER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M12X35 W/LK WASHER 		0-50041-235-0 16 1 0510-0512 ● ●
316 BOLT; STIFFENER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M12X35 W/LK WASHER 		0-50541-235-0 16 1 0601- ● ●
317 NUT; STIFFENER
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-212-0 16 1 0508-0509 ● ●
317 NUT; STIFFENER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-212-0 16 1 0510-0602 ● ●
317 NUT; STIFFENER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> M12 FLANGE THA 		0-91180-212-0 16 1 0603- ● ●
376 RIVET; FRAME
(A) D8X22 TAPER END 		9-06750-822-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(B) D8X26 TAPER END 		9-06750-826-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(C) D8X30 TAPER END 		9-06750-830-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(J) D11X26 TAPER END 		9-06751-126-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(K) D11X30 TAPER END 		9-06751-130-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(L) D12X30 TAPER END 		9-06751-230-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(M) D12X34 TAPER END 		9-06751-234-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(N) D12X36 TAPER END 		9-06751-236-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(O) D12X38 TAPER END 		9-06751-238-0 AR 1 0508- ● ● ●
376 RIVET; FRAME
(P) D12X40 TAPER END 		9-06751-240-0 AR 1 0508- ● ● ●

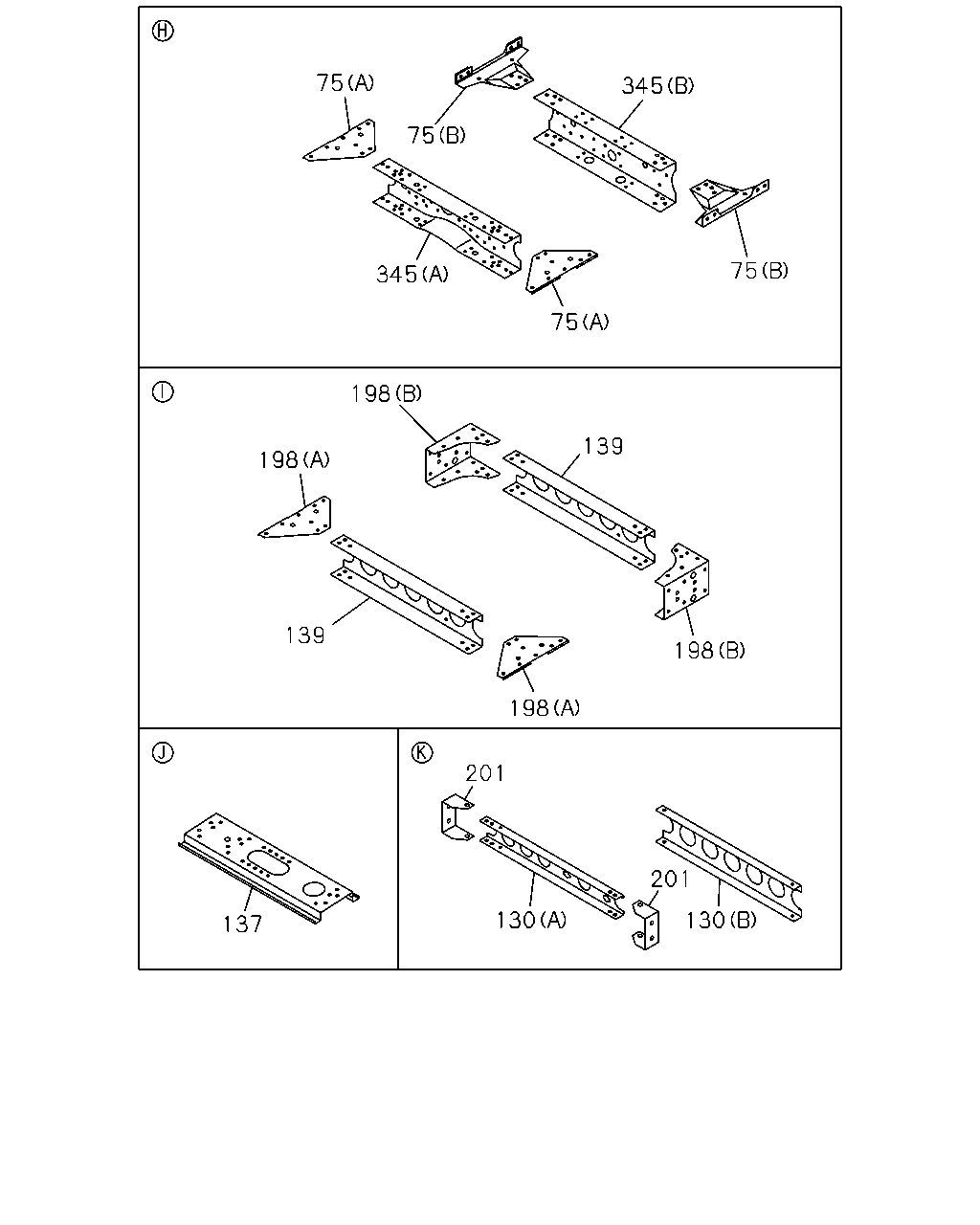

çizim 119387
75 345 75 75 345 75 198 139 198 139 198 198 201 201 130 130 137
BalonParca AdiParca NoAdetTipApplied Date A B C
75 GUSSET; 5TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA 		8-97916-485-0 02 1 0508- ● ●
75 GUSSET; 5TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA 		8-97916-486-0 02 1 0508- ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-490-0 01 1 0508-0509 ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-490-0 01 1 0510- ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-491-0 01 1 0508-0509 ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-491-0 01 1 0510- ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-492-0 01 1 0508-0509 ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-492-0 01 1 0510- ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-493-0 01 1 0508-0509 ● ●
75 GUSSET; 5TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-493-0 01 1 0510- ● ●
130 MEMBER; CROSS,END
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-496-0 01 1 0508- ● ●
130 MEMBER; CROSS,END
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-618-0 01 1 0508-0509 ●
130 MEMBER; CROSS,END
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-618-0 01 1 0510- ●
137 BRACKET; SPARE TIRE
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-235-1 01 1 0508- ● ●
139 MEMBER; CROSS,6TH
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97917-051-0 01 1 0508- ● ●
139 MEMBER; CROSS,6TH
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97913-619-0 01 1 0508-0509 ● ●
139 MEMBER; CROSS,6TH
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97913-619-0 01 1 0510- ● ●
198 GUSSET; 6TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA 		8-97916-485-0 02 1 0508- ● ●
198 GUSSET; 6TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA 		8-97916-486-0 02 1 0508- ● ●
198 GUSSET; 6TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-746-0 02 1 0508-0509 ● ●
198 GUSSET; 6TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-746-0 02 1 0510- ● ●
201 GUSSET; C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-747-0 02 1 0508-0509 ●
201 GUSSET; C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-747-0 02 1 0510- ●
345 MEMBER; CROSS,5TH
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97910-430-0 01 1 0508- ● ●
345 MEMBER; CROSS,5TH
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-744-0 01 1 0508-0509 ● ●
345 MEMBER; CROSS,5TH
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-744-0 01 1 0510- ● ●

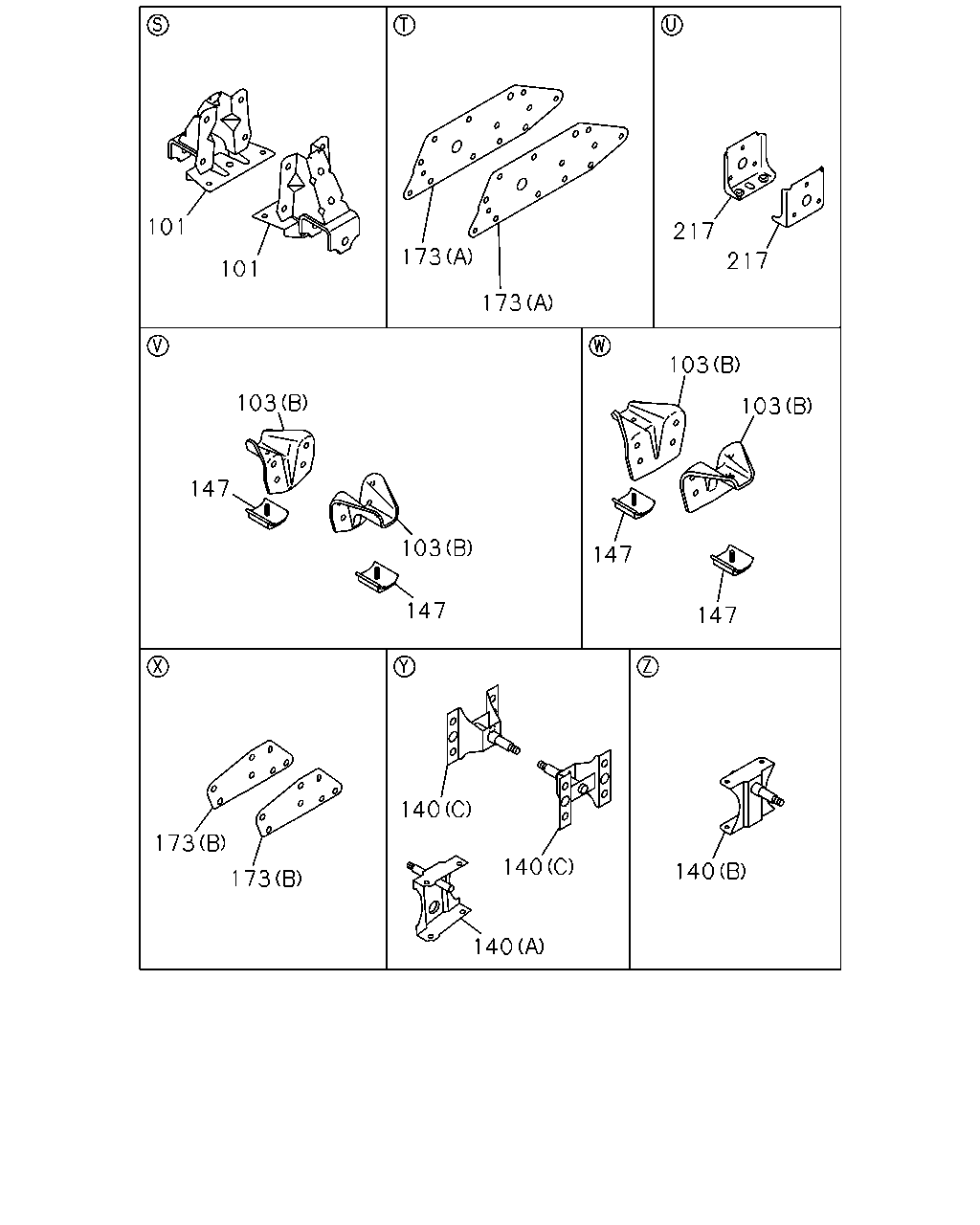

çizim 119392
101 217 173 217 101 173 103 103 103 147 103 147 147 147 140 173 140 140 173 140
BalonParca AdiParca NoAdetTipApplied Date A B C
101 BRACKET; RR SPR,FRT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97205-912-0 02 1 0508-0509 ● ● ●
101 BRACKET; RR SPR,FRT
THA 		8-97205-912-0 02 1 0510- ● ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97205-236-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) FRONT THA 		8-97223-749-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR THA 		8-97223-751-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-237-1 02 1 0508-0509 ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-237-1 02 1 0510- ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97223-749-0 04 1 0508-0509 ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97223-749-0 04 1 0510- ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97302-511-0 02 1 0508-0509 ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97302-511-0 02 1 0510- ● ●
140 BRACKET; S/ABS,RR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97205-223-0 01 1 0508- ● ●
140 BRACKET; S/ABS,RR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-228-0 01 1 0508- ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97080-884-0 02 1 0508-0509 ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97080-884-0 02 1 0510- ● ●
147 RUBBER; SUB SPRING
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 		8-97254-387-0 04 1 0508-0509 ● ● ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 0510- ● ● ●
173 STIFFENER; RR SPRING
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-484-0 01 1 0508- ● ●
173 STIFFENER; RR SPRING
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97916-487-0 02 1 0508- ● ●
173 STIFFENER; RR SPRING
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-778-1 01 1 0508- ● ●
217 BRACKET; HELPER RUBBER,RR SPRING
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97917-266-0 02 1 0508-0509 ● ● ●
217 BRACKET; HELPER RUBBER,RR SPRING
THA 		8-97917-266-0 02 1 0510- ● ● ●
çizim 119395
105 215 215 201 131 325 130 132 201 325
BalonParca AdiParca NoAdetTipApplied Date A B C
105 BRACKET; RR SPR,RR
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97915-065-0 01 1 0508-0509 ● ● ●
105 BRACKET; RR SPR,RR
THA 		8-97915-065-0 01 1 0510- ● ● ●
105 BRACKET; RR SPR,RR
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97915-072-0 01 1 0508-0509 ● ● ●
105 BRACKET; RR SPR,RR
THA 		8-97915-072-0 01 1 0510- ● ● ●
130 MEMBER; CROSS,END
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-496-0 01 1 0508- ● ●
130 MEMBER; CROSS,END
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-618-0 01 1 0508-0509 ●
130 MEMBER; CROSS,END
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-618-0 01 1 0510- ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28691-025-0 08 1 0508-0512 ●
131 BOLT; END C/MBR
M10X25 FLANGE THA 		0-28661-025-0 08 1 0601- ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 08 1 0508-0602 ●
132 NUT; END C/MBR
M10 FLANGE THA 		0-91180-110-0 08 1 0603- ●
201 GUSSET; C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-747-0 02 1 0508-0509 ●
201 GUSSET; C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-747-0 02 1 0510- ●
215 BUSHING; BRKT,RR SPRING
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97184-699-1 04 1 0508-0509 ● ● ●
215 BUSHING; BRKT,RR SPRING
THA 		8-97184-699-1 04 1 0510- ● ● ●
325 EXTENSION; FRAME
THA 		8-97912-457-3 01 1 0508- ●
325 EXTENSION; FRAME
THA 		8-97912-458-1 01 1 0508- ●
çizim 119396
214 140 142 103 51 229 31 31 39 31 39 31 103
BalonParca AdiParca NoAdetTipApplied Date A B C
31 BUSHING; FRT SPR,RR
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97184-699-1 04 1 0508-0509 ● ● ●
31 BUSHING; FRT SPR,RR
THA 		8-97184-699-1 04 1 0510- ● ● ●
39 BRACKET; FRT SPR,RR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97046-283-1 02 1 0508- ● ●
39 BRACKET; FRT SPR,RR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97079-495-1 02 1 0508-0509 ● ●
39 BRACKET; FRT SPR,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97079-495-1 02 1 0510- ● ●
51 BRACKET; ENG SUPPORT,OUTER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97916-811-0 02 1 0508-0509 ● ● ●
51 BRACKET; ENG SUPPORT,OUTER
THA 		8-97916-811-0 02 1 0510- ● ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97205-236-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) FRONT THA 		8-97223-749-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR THA 		8-97223-751-0 02 1 0508- ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-237-1 02 1 0508-0509 ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-237-1 02 1 0510- ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97223-749-0 04 1 0508-0509 ● ●
103 STOPPER; SUB SPR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97223-749-0 04 1 0510- ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97302-511-0 02 1 0508-0509 ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97302-511-0 02 1 0510- ● ●
140 BRACKET; S/ABS,RR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97205-223-0 01 1 0508- ● ●
140 BRACKET; S/ABS,RR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97205-228-0 01 1 0508- ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97080-884-0 02 1 0508-0509 ● ●
140 BRACKET; S/ABS,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97080-884-0 02 1 0510- ● ●
142 BRACKET; FLEX HOSE,BRAKE
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-199-1 01 1 0508- ● ●
214 BRACKET; GEAR CONT
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-811-2 01 1 0508- ● ●
229 REINFORCEMENT; S/ABS RR,FRAME
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-441-0 01 1 0508- ● ●
çizim 119404
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FRAME ASM
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97922-317-0 01 1 0508- ●
1 FRAME ASM
4HG1-T ENG<RDP> (A) THA 		8-97922-318-0 01 1 0508- ●
1 FRAME ASM
4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97922-319-0 01 1 0508-0509 ●
1 FRAME ASM
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97922-319-0 01 1 0510- ●
1 FRAME ASM
4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> (B) THA 		8-97922-320-0 01 1 0508-0509 ●
1 FRAME ASM
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) THA 		8-97922-320-0 01 1 0510- ●
çizim 119405
42 34 34 80 372 80 372 188 74 344 74 74 344 74
BalonParca AdiParca NoAdetTipApplied Date A B C
34 MEMBER; CROSS,3RD
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-483-0 01 1 0508- ● ●
34 MEMBER; CROSS,3RD
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-624-0 01 1 0508-0509 ● ●
34 MEMBER; CROSS,3RD
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97913-624-0 01 1 0510- ● ●
42 MEMBER; CROSS,ENG MTG
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97917-487-0 01 1 0508- ● ●
42 MEMBER; CROSS,ENG MTG
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-402-0 01 1 0508-0509 ● ●
42 MEMBER; CROSS,ENG MTG
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-402-0 01 1 0510- ● ●
74 GUSSET; 4TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA 		8-97916-660-1 02 1 0508- ● ●
74 GUSSET; 4TH C/MBR
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA 		8-97916-814-1 02 1 0508- ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-490-0 01 1 0508-0509 ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-490-0 01 1 0510- ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-491-0 01 1 0508-0509 ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) UPPER THA 		8-97914-491-0 01 1 0510- ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-492-0 01 1 0508-0509 ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-492-0 01 1 0510- ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-493-0 01 1 0508-0509 ● ●
74 GUSSET; 4TH C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) LOWER THA 		8-97914-493-0 01 1 0510- ● ●
80 BRACKET; C/MBR
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-176-0 02 1 0508-0509 ● ●
80 BRACKET; C/MBR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97205-176-0 02 1 0510- ● ●
188 BRACKET; SUPPORT,CTR BRG
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97083-157-1 01 1 0508- ● ●
344 MEMBER; CROSS,4TH
4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97910-429-0 01 1 0508- ● ●
344 MEMBER; CROSS,4TH
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-744-0 01 1 0508-0509 ● ●
344 MEMBER; CROSS,4TH
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-97914-744-0 01 1 0510- ● ●
372 BRACKET
4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97139-128-0 02 1 0508-0509 ● ●
372 BRACKET
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> THA 		8-97139-128-0 02 1 0510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
