Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#43538) — 60 parça

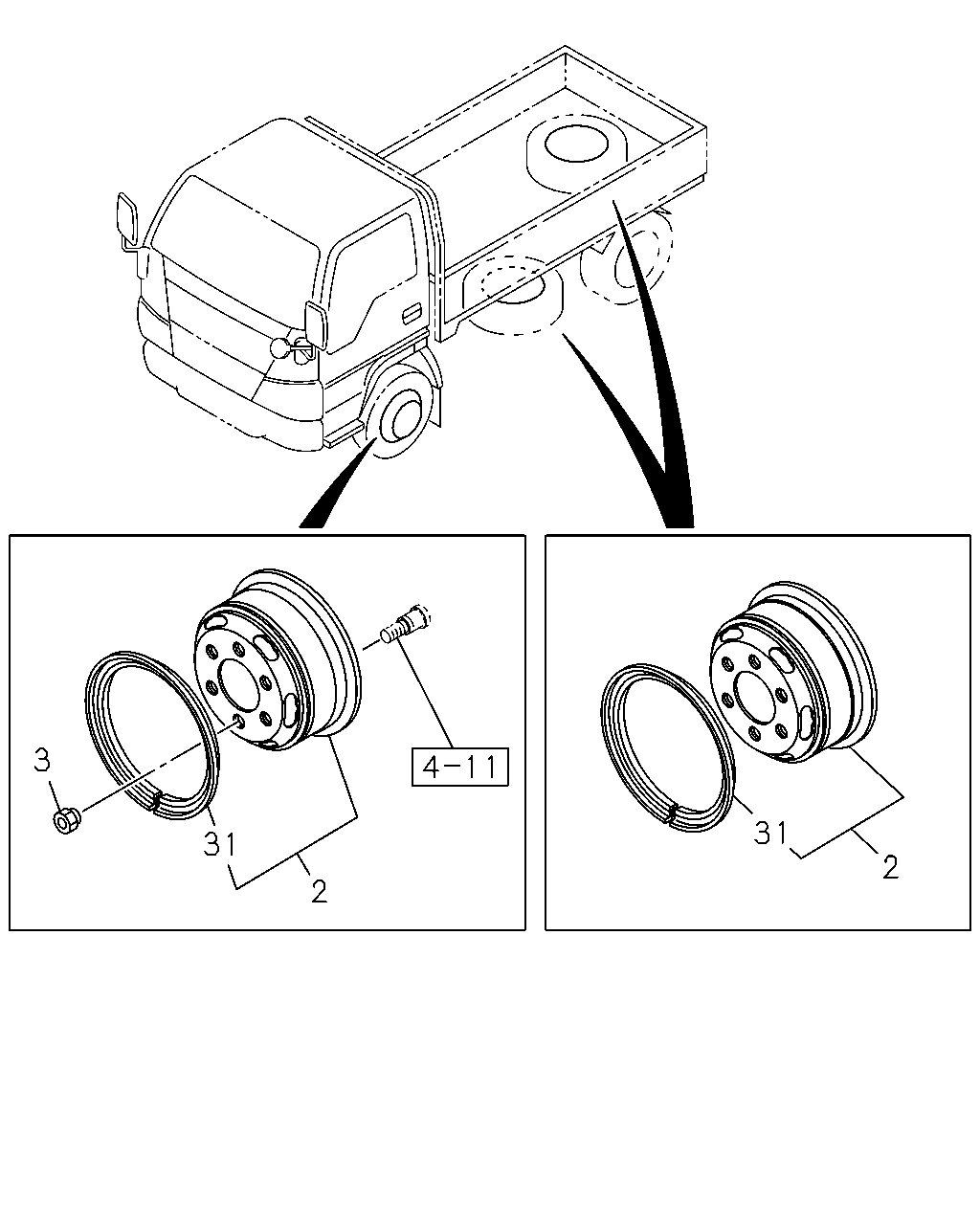

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-	●
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-		●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-			●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-	●
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-		●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-			●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	1-42350-417-0	01	1	0508-	●		●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	1-42350-417-0	06	1	0508-	●		●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0508-	●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0508-		●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0508-	●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0508-		●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	8-97915-587-0	07	1	0508-	●		●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-94427-548-1	06	1	0508-0610	●	●	●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0611-	●	●	●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-94427-549-1	06	1	0508-0610	●	●	●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0611-	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-			●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-			●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> SPARE 16X6.00GS STAMP, BLACK THA	1-42355-015-2	01	1	0508-	●		●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRONT,REAR 16X6.00GS STAMP, BLACK THA	1-42355-015-2	06	1	0508-	●		●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0508-	●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE THA	8-97915-588-0	07	1	0508-	●		●

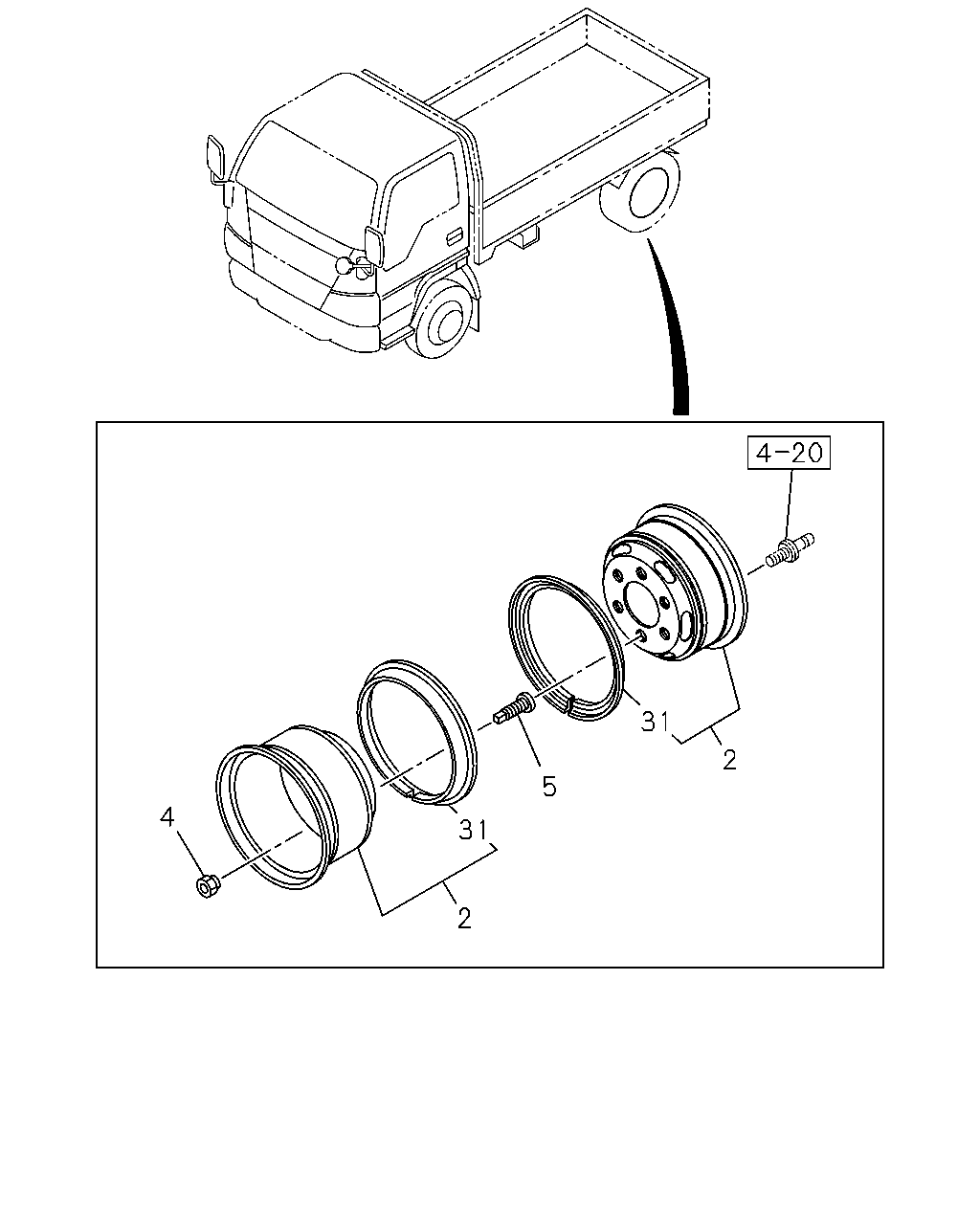

31 2 5 4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-	●
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-		●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	01	1	0508-			●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-	●
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-		●
2	WHEEL; DISC FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-94438-670-4	06	1	0508-			●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	1-42350-417-0	01	1	0508-	●		●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	1-42350-417-0	06	1	0508-	●		●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0508-	●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	01	1	0508-		●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0508-	●
2	WHEEL; DISC F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA	8-97915-604-0	06	1	0508-		●
2	WHEEL; DISC FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA	8-97915-587-0	07	1	0508-	●		●
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	06	1	0508-	●	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	06	1	0508-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	06	1	0508-	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	06	1	0508-	●	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> SPARE 16X6.00GS STAMP, BLACK THA	8-94412-585-0	01	1	0508-			●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-94412-585-0	06	1	0508-			●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> SPARE 16X6.00GS STAMP, BLACK THA	1-42355-015-2	01	1	0508-	●		●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRONT,REAR 16X6.00GS STAMP, BLACK THA	1-42355-015-2	06	1	0508-	●		●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA	8-97916-942-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0508-	●
31	RING; SIDE,DISC WHEEL F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA	8-97916-942-0	06	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE THA	8-97915-588-0	07	1	0508-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
