4-65B — REAR LEAF SPRING (#43537) — 44 parça

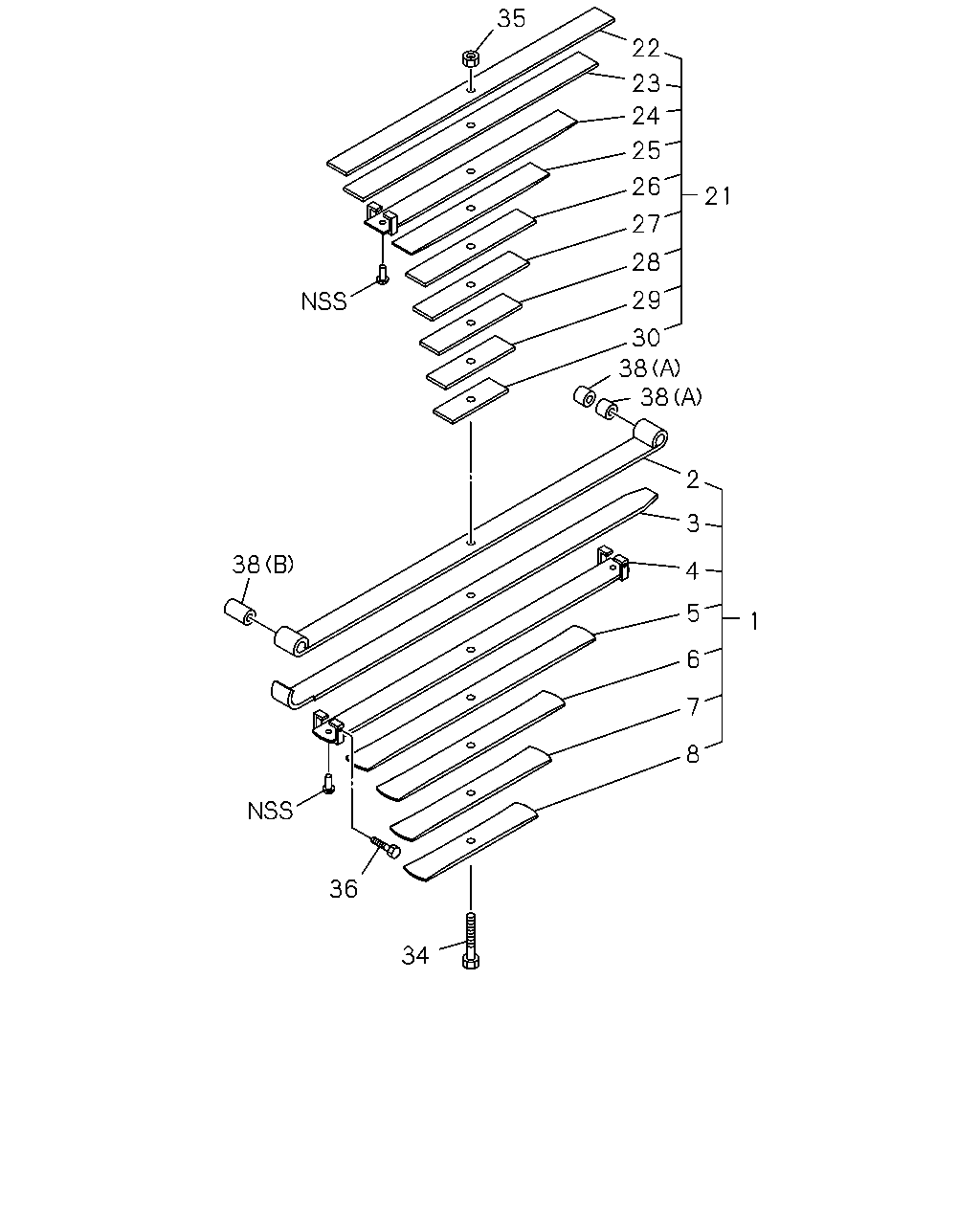

çizim 119380
35 22 23 24 25 26 21 27 28 29 30 38 38 2 3 38 4 5 1 6 7 8 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-889-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-694-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-873-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-586-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-874-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-587-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-875-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-588-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-876-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-589-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-877-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-590-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-878-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-591-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 8-97073-225-2 		8-97107-879-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: B = 8-97910-229-0 		8-97918-592-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-890-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-695-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-880-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-593-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-881-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-594-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-882-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-595-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-883-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-596-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-884-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-597-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-885-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-598-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-886-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-767-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-887-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-768-0 01 1 -
30 SPRING; LEAF,NO 9,RR SUB
THA ASM PART: A = 8-97073-225-2 		8-97107-888-0 01 1 -
30 SPRING; LEAF,NO 9,RR SUB
THA ASM PART: B = 8-97910-229-0 		8-97918-769-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
M12X170, THA ASM PART: A = 8-97073-225-2 		8-97108-633-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=170, THA ASM PART: B = 8-97910-229-0 		8-97918-642-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97073-225-2, B = 8-97910-229-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X89, THA ASM PART: A = 8-97073-225-2 		8-97129-689-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
THA ASM PART: B = 8-97910-229-0 		8-97918-577-0 01 1 -
38 BUSHING; LEAF SPR,RR
OD=40 L=43.7, THA ASM PART: A = 8-97073-225-2 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97073-225-2, B = 8-97910-229-0 		8-97074-826-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), THA ASM PART: B = 8-97910-229-0 		8-97184-699-0 02 1 -
