4-65A — REAR LEAF SPRING (#43536) — 38 parça

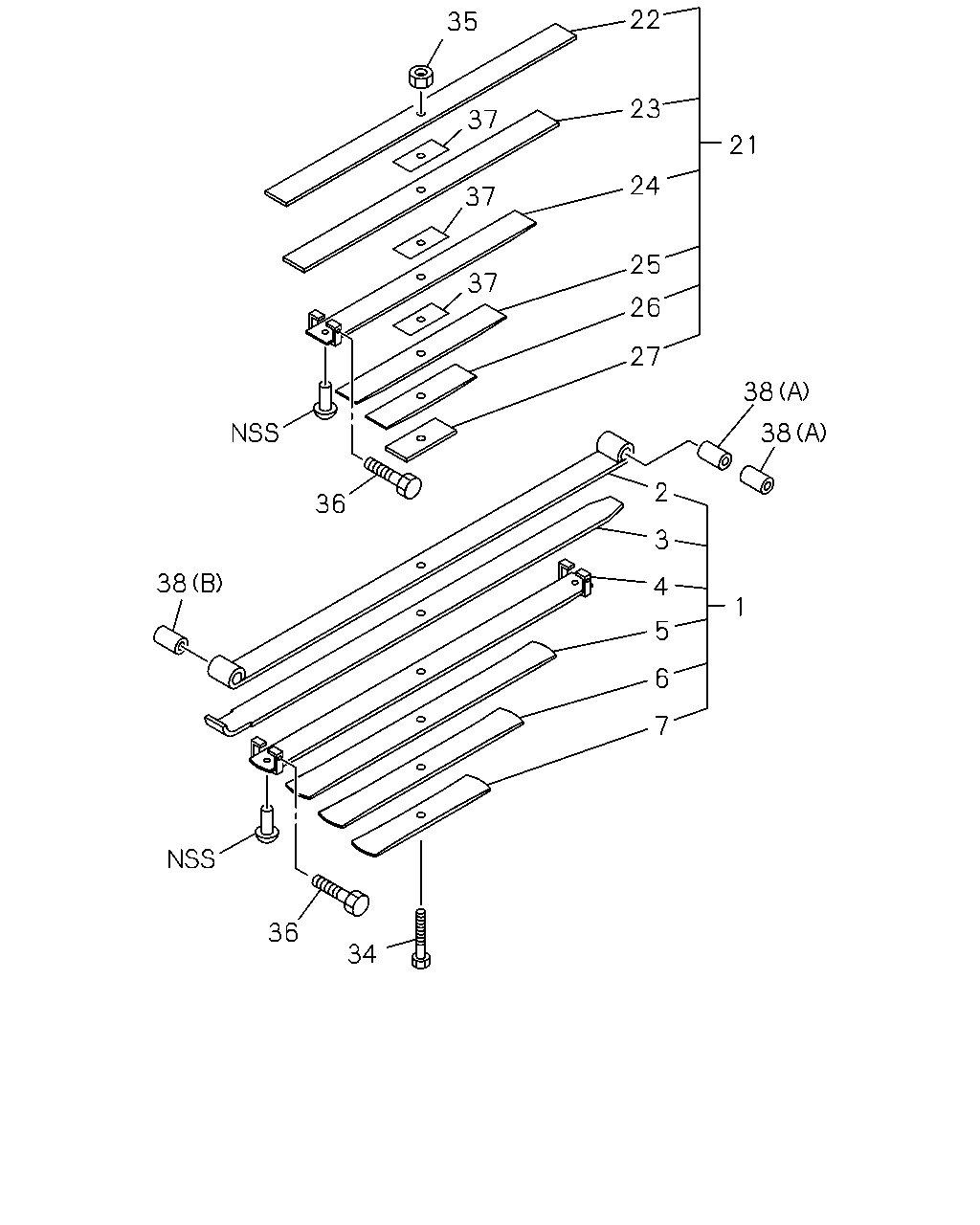

çizim 119381
22 35 23 37 21 24 37 25 37 26 27 38 38 2 36 3 38 4 1 5 6 7 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-503-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-434-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-504-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-422-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-505-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-423-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-506-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-424-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-507-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-425-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-508-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-426-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97184-493-0 		8-97189-509-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: B = 8-97917-421-1 		8-97917-427-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-510-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-435-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-511-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-428-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-512-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-429-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-513-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-430-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-514-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-431-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-515-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-432-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 8-97184-493-0 		8-97189-516-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: B = 8-97917-421-1 		8-97917-433-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150, THA ASM PART: A = 8-97184-493-0 		8-94165-316-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=150, THA ASM PART: B = 8-97917-421-1 		8-97917-436-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97184-493-0, B = 8-97917-421-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X90.5, THA ASM PART: A = 8-97184-493-0 		8-94407-133-0 03 1 -
36 BOLT; CLIP,LEAF SPR,RR
THA ASM PART: B = 8-97917-421-1 		8-97914-745-0 03 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1, THA ASM PART: A = 8-97184-493-0 		8-97084-102-0 03 1 -
37 SPACER; CENTER,LEAF SPR,RR
THA ASM PART: B = 8-97917-421-1 		8-97918-770-0 03 1 -
38 BUSHING; LEAF SPR,RR
OD=40 L=43.7, THA ASM PART: A = 8-97184-493-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97184-493-0, B = 8-97917-421-1 		8-97074-826-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), THA ASM PART: B = 8-97917-421-1 		8-97184-699-0 02 1 -
