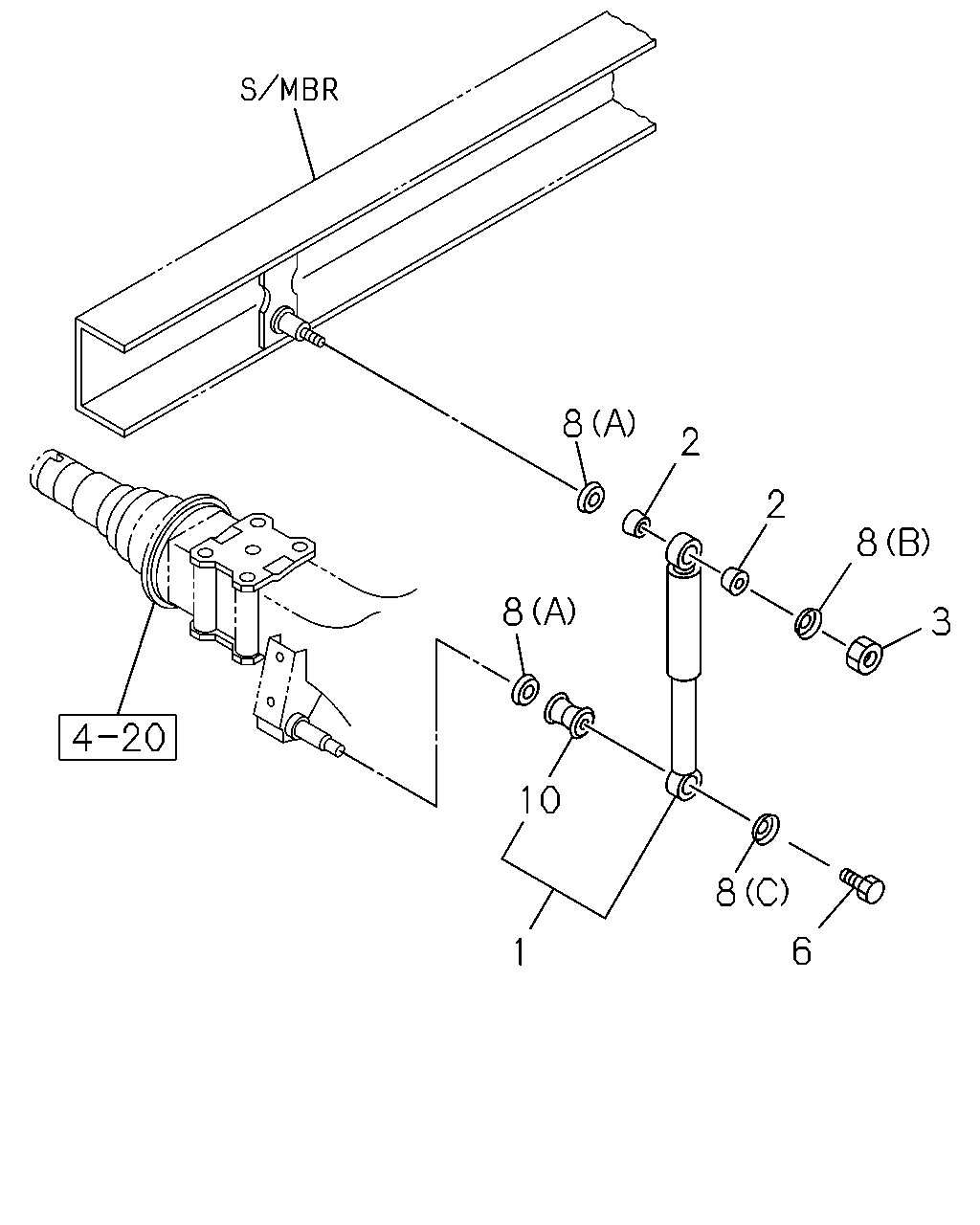

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#43535) — 14 parça

8 2 2 8 8 3 10 8 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ABSORBER ASM; SHOCK,RR THA	8-97915-711-0	02	1	0508-	●	●	●
2	BUSHING; RUBBER,S/ABS,LWR THA	8-97917-417-0	04	1	0508-	●	●	●
3	NUT; S/ABS M14	9-99111-414-0	02	1	0508-0512	●	●	●
3	NUT; S/ABS M14	0-91111-514-0	02	1	0601-0612	●	●	●
3	NUT; S/ABS M14 THA	0-91110-514-0	02	1	0701-	●	●	●
6	BOLT; S/ABS,RR SUSP M10X16 FLANGE	0-28081-016-0	02	1	0508-0611	●	●	●
6	BOLT; S/ABS,RR SUSP M10X16 FLANGE THA	0-28051-016-0	02	1	0612-	●	●	●
8	WASHER; S/ABS (B) ID=15.0	9-51679-012-0	02	1	0508-0611	●	●	●
8	WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0612-	●	●	●
8	WASHER; S/ABS (A) ID=20.0	9-51679-013-0	04	1	0508-0611	●	●	●
8	WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	0612-	●	●	●
8	WASHER; S/ABS (C) ID=10.5	9-51679-603-0	02	1	0508-0611	●	●	●
8	WASHER; S/ABS (C) ID=10.5	8-97360-058-0	02	1	0612-	●	●	●
10	BUSHING; RUBBER,S/ABS THA	8-97915-860-0	02	1	0508-	●	●	●
