◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#43533) — 34 parça

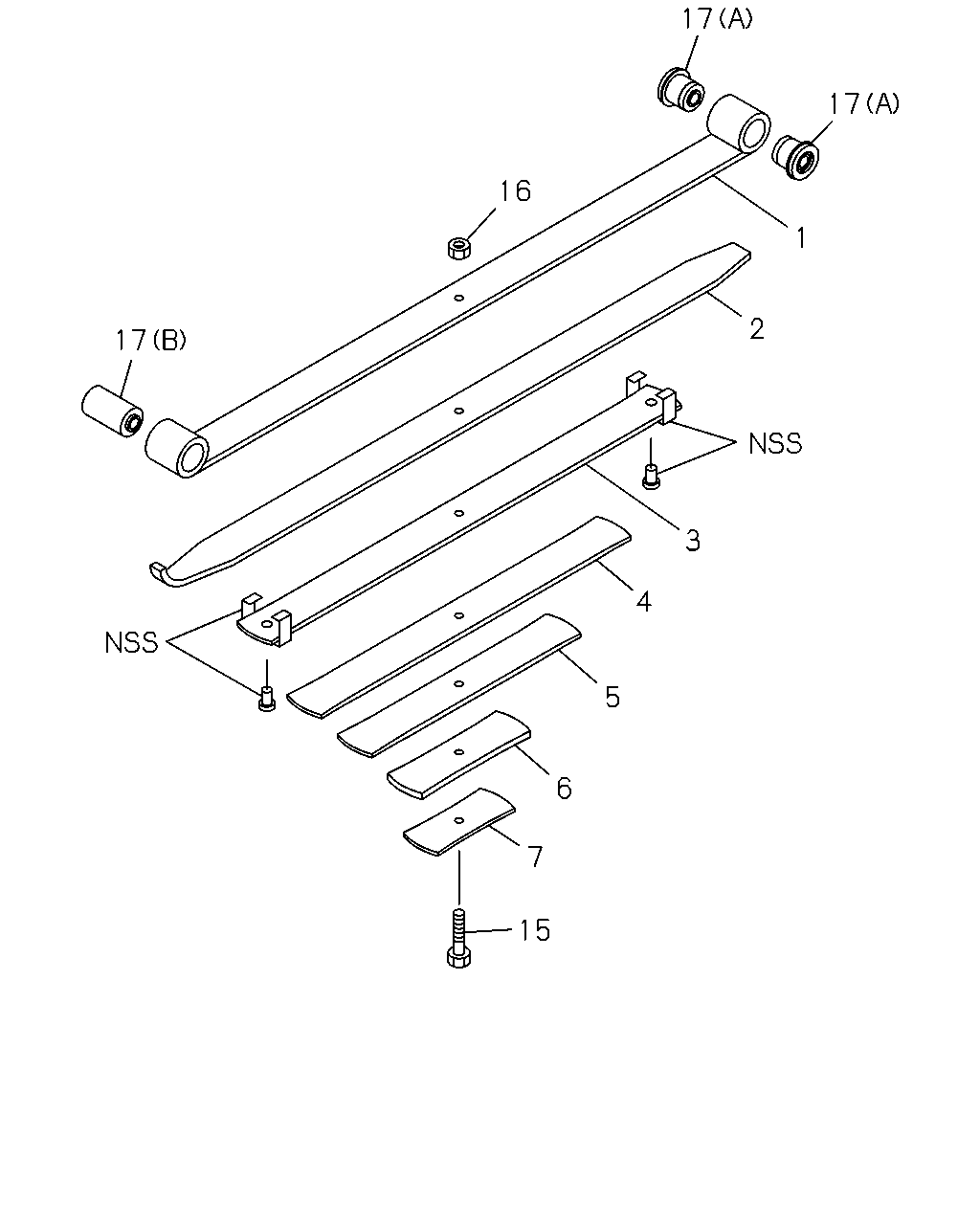

çizim 119385
17 17 16 1 2 17 3 4 5 6 7 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-357-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-364-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-599-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-606-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-358-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-365-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-600-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-607-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-359-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-366-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-601-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-608-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-360-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-367-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-602-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-609-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-361-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-368-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-603-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-610-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-362-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-369-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-604-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-611-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: A = 8-97092-449-1 		8-97108-363-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: B = 8-97092-450-1 		8-97108-370-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: C = 8-97910-226-0 		8-97918-605-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: D = 8-97910-230-0 		8-97918-612-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75, THA ASM PART: A = 8-97092-449-1, B = 8-97092-450-1 		8-94476-373-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=75, THA ASM PART: C = 8-97910-226-0, D = 8-97910-230-0 		8-97918-638-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, THA ASM PART: A = 8-97092-449-1, B = 8-97092-450-1 		1-09400-055-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
THA ASM PART: C = 8-97910-226-0, D = 8-97910-230-0 		8-97918-647-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=40 L=43.7 ASM PART: A = 8-97092-449-1, B = 8-97092-450-1, C = 8-97910-226-0, D = 8-97910-230-0 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97092-449-1, B = 8-97092-450-1, C = 8-97910-226-0, D = 8-97910-230-0 		8-97081-586-0 01 1 -
