0-35 — ENGINE CONTROL VALVE AND LEVER (#4353) — 80 parça

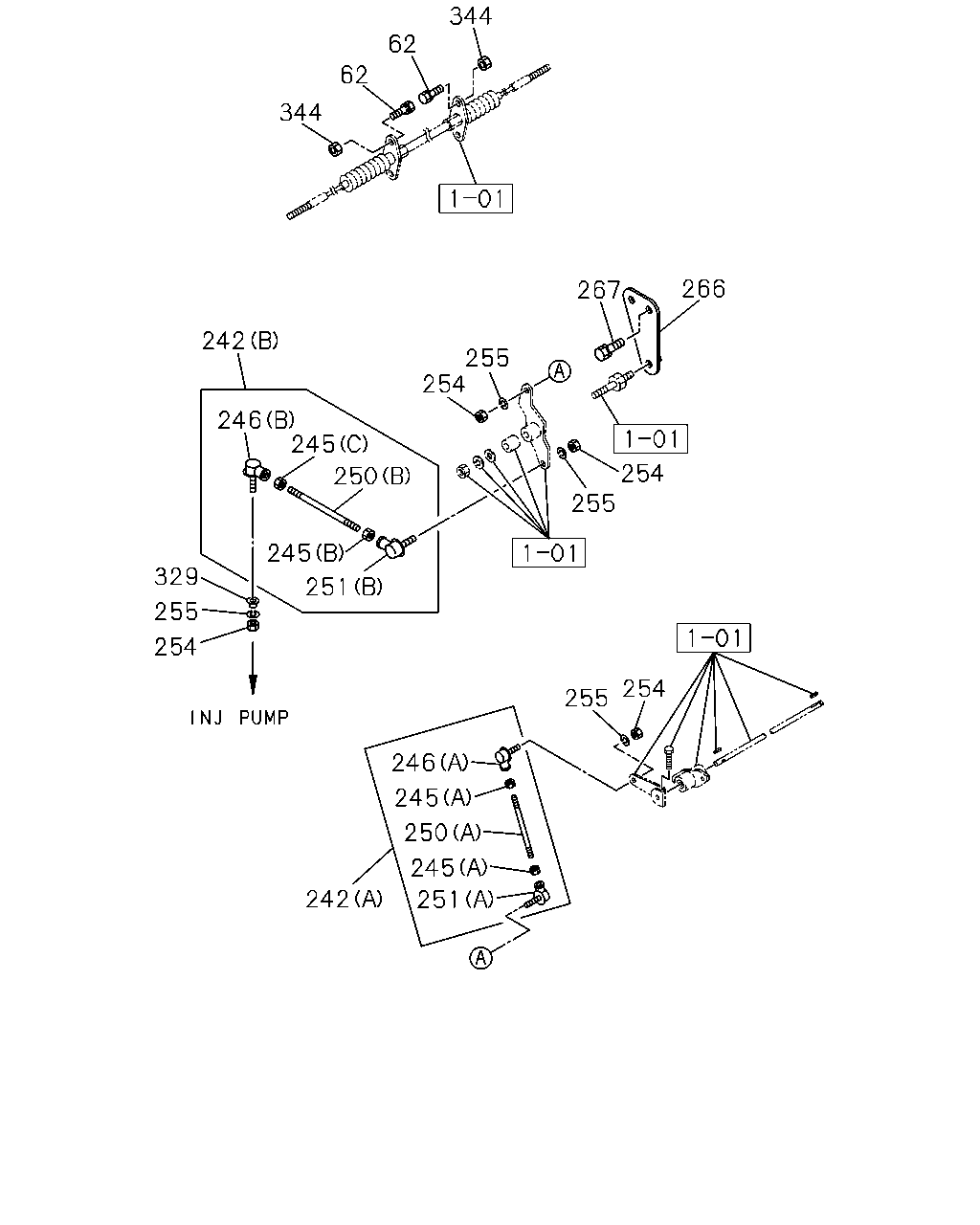

çizim 36468
344 62 62 344 266 267 242 255 254 246 245 254 255 250 245 329 251 255 254 254 255 246 245 250 245 242 251
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 BOLT; CABLE END
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X16 W/LK WASHER 		0-50040-616-0 04 1 9101-9504 ● ● ●
242 LINK ASM
(B) L=125 		1-14332-018-0 01 1 9101-9504 ● ● ●
242 LINK ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-23310-490-0 01 1 9101-9504 ● ● ●
242 LINK ASM
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		8-94394-761-0 01 1 9711-9805 ●
245 NUT; LINK
(C) M5 LH THREAD 		9-09840-277-0 01 1 9101-9504 ● ● ●
245 NUT; LINK
(B) M5 		9-99110-405-0 01 1 9101-9504 ● ● ●
245 NUT; LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M6 		9-09110-406-0 02 1 9101-9504 ● ● ●
245 NUT; LINK
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (D) M5 		9-99110-405-0 02 1 9711-9805 ●
246 JOINT; BALL,ENG CONT LINK
(B) 		1-09760-102-0 01 1 9101-9504 ● ● ●
246 JOINT; BALL,ENG CONT LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09760-004-0 01 1 9101-9504 ● ● ●
250 ROD; ROD TO JOINT
(B) 		9-09882-355-0 01 1 9101-9504 ● ● ●
250 ROD; ROD TO JOINT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		9-08400-620-0 01 1 9101-9504 ● ● ●
250 ROD; ROD TO JOINT
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) M5X120 		9-08400-512-0 01 1 9711-9805 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
(B) 		1-09760-101-0 01 1 9101-9504 ● ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09760-004-0 01 1 9101-9504 ● ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		1-09760-103-1 02 1 9711-9805 ●
254 NUT; LEVER
M5 		9-99110-405-0 02 1 9101-9504 ● ● ●
254 NUT; LEVER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 02 1 9101-9504 ● ● ●
255 WASHER; LK,LEVER
ID=5.1 		9-09150-505-0 02 1 9101-9504 ● ● ●
255 WASHER; LK,LEVER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.1 		9-09150-506-0 02 1 9101-9504 ● ● ●
266 BRACKET; CONT LEVER 5-14334-081-0 01 1 9101-9504 ● ● ●
267 BOLT; ENG CONT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9504 ● ● ●
329 WASHER; CONT LINK 1-09509-042-0 01 1 9101-9504 ● ● ●
344 NUT; CABLE END
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 04 1 9101-9504 ● ● ●

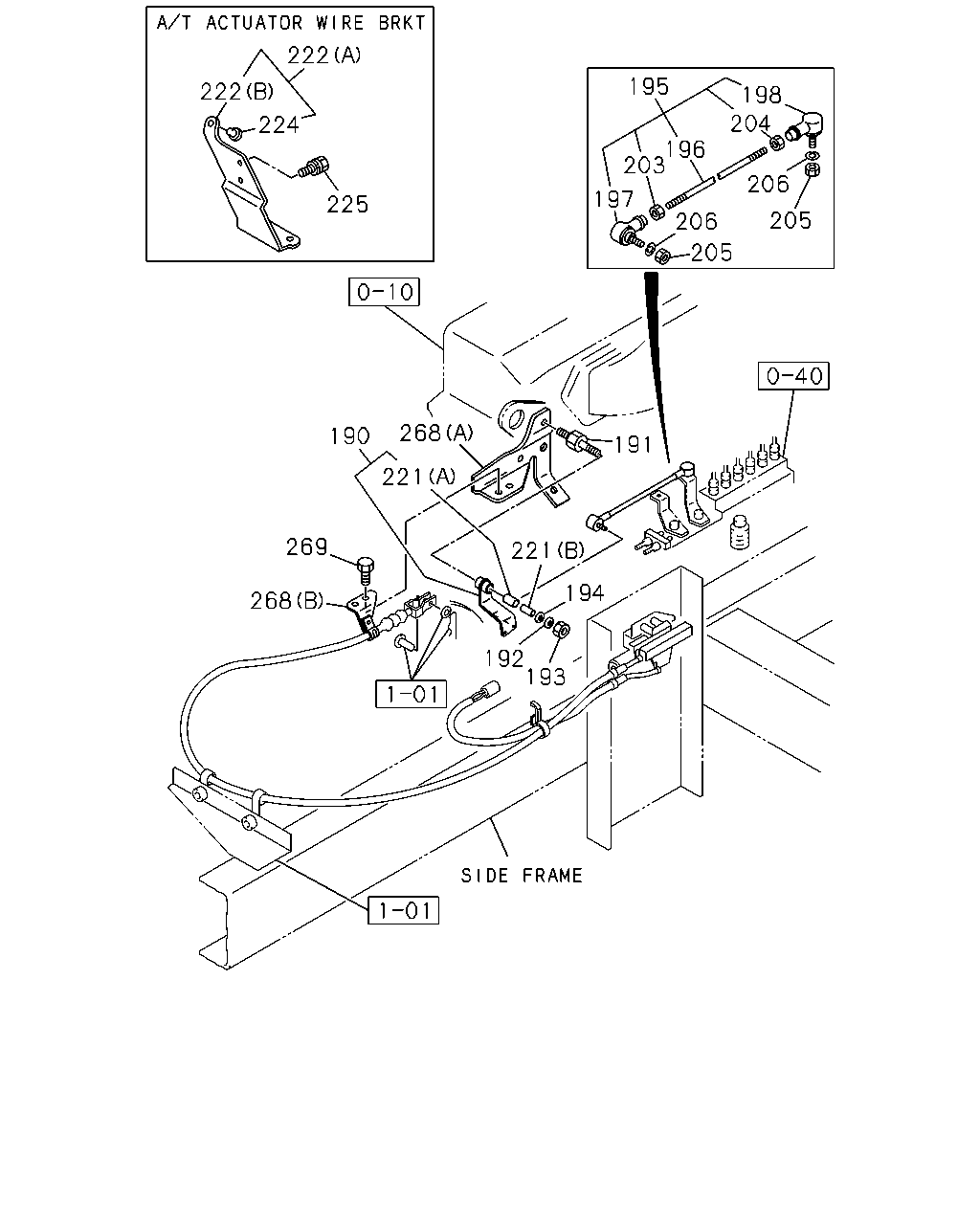

çizim 36863
222 195 222 198 204 224 196 203 206 197 225 205 206 205 268 190 191 221 269 221 194 268 192 193
BalonParca AdiParca NoAdetTipApplied Date A B C D
190 LEVER; ENG CONT
W/BUSH 		1-14333-060-0 01 1 9101-9504 ● ● ●
191 SHAFT; LEVER,ENG STOP 1-14336-002-1 01 1 9101-9504 ● ● ●
192 WASHER; PL,LEVER 5-09503-135-0 01 1 9101-9504 ● ● ●
193 NUT; LEVER
M8 		9-09111-508-0 01 1 9101-9504 ● ● ●
194 WASHER; LK,LEVER
ID=8.2 		9-09150-508-0 01 1 9101-9504 ● ● ●
195 ROD; ENG STOP 5-14332-036-0 01 1 9101-9504 ● ● ●
196 LINK ASM; ENG STOP 9-09882-382-0 01 1 9101-9504 ● ● ●
197 JOINT; BALL,RIGHT SCREW,ENG STOP LINK
RH THREAD 		1-09760-002-0 01 1 9101-9504 ● ● ●
198 JOINT; BALL,ENG STOP LINK
LH THREAD 		1-09760-003-0 01 1 9101-9504 ● ● ●
203 NUT; BALL JOINT,RIGHT SCREW,ENG STOP
M5 		9-99110-405-0 01 1 9101-9504 ● ● ●
204 NUT; BALL JOINT,ENG STOP
M5 LH THREAD 		9-09840-277-0 01 1 9101-9504 ● ● ●
205 NUT; BALL JOINT,LINK
M5 		9-99110-405-0 02 1 9101-9504 ● ● ●
206 WASHER; LK,BALL JOINT
ID=5.1 		9-09150-505-0 02 1 9101-9504 ● ● ●
221 BUSHING; LEVER
(B) 		1-09330-057-0 01 1 9101-9504 ● ● ●
221 BUSHING; LEVER
(A) 		1-09330-058-0 01 1 9101-9504 ● ● ●
222 BRACKET; ACTUATOR WIRE
MT643 A/T ALLISON(PR7) (A) W/BUSHING 		1-15649-021-0 01 1 9101-9504 ● ● ●
222 BRACKET; ACTUATOR WIRE
MT643 A/T ALLISON(PR7) (B) 		1-15649-026-0 01 1 9101-9504 ● ● ●
222 BRACKET; ACTUATOR WIRE
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		8-94395-974-0 01 1 9711-9805 ●
224 BUSHING; BRKT,ACTUATOR WIRE
MT643 A/T ALLISON(PR7) 		1-09330-072-0 01 1 9101-9504 ● ● ●
225 BOLT; CLIP FIX
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9101-9504 ● ● ●
268 BRACKET; FUEL CUT CONT
(B) 		5-14334-115-0 01 1 9101-9504 ● ● ●
268 BRACKET; FUEL CUT CONT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-19199-111-0 01 1 9101-9504 ● ● ●
269 BOLT; BRKT FIX
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9101-9504 ● ● ●
269 BOLT; BRKT FIX
M8X14 FLANGE 		0-28080-814-0 04 1 9505- ●

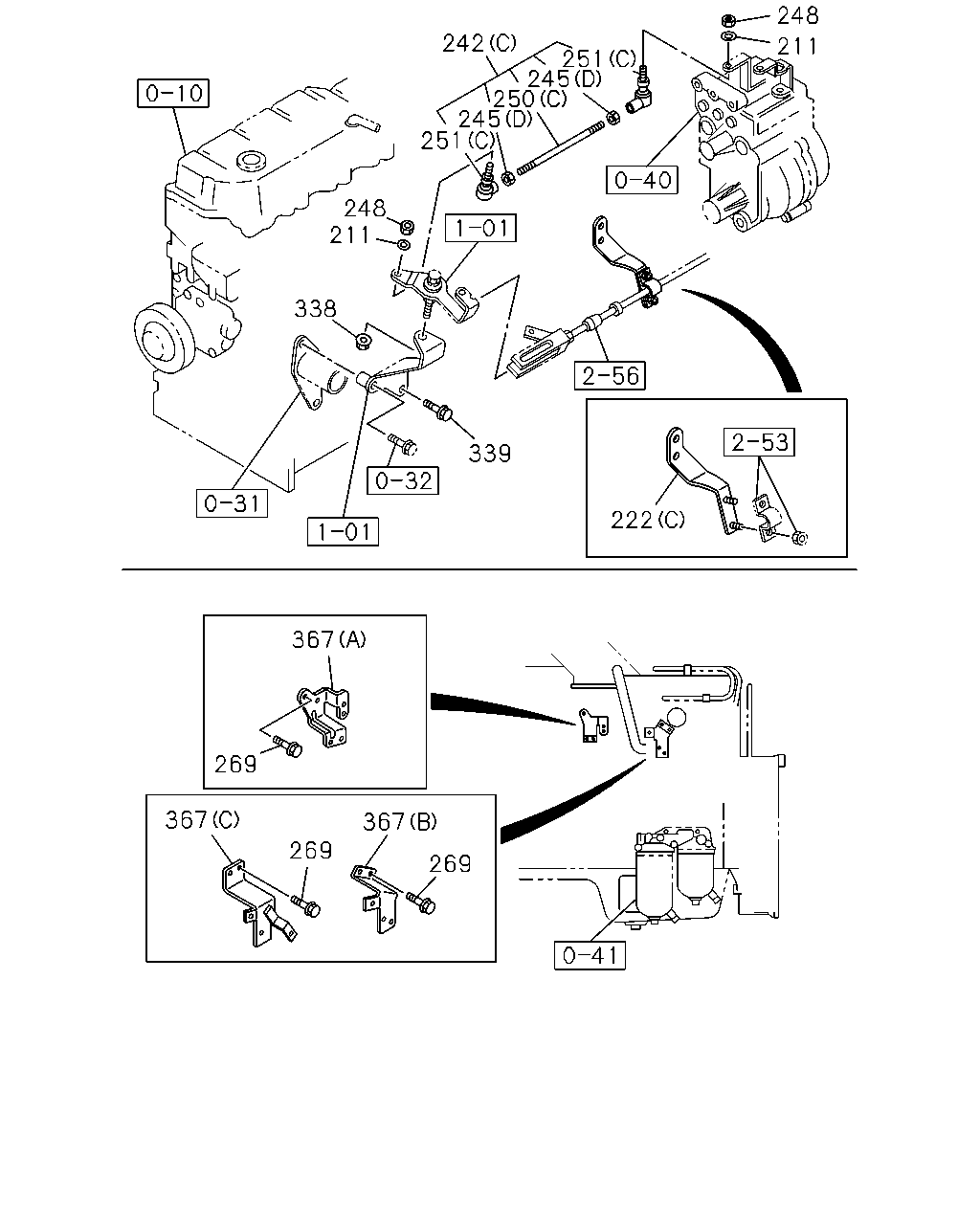

çizim 37076
248 242 211 251 245 250 245 251 248 211 338 339 222 367 269 367 367 269 269
BalonParca AdiParca NoAdetTipApplied Date A B C D
211 WASHER; PL,JOINT BALL
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) ID=5.3 		9-09160-505-0 02 1 9711-9805 ●
222 BRACKET; ACTUATOR WIRE
MT643 A/T ALLISON(PR7) (A) W/BUSHING 		1-15649-021-0 01 1 9101-9504 ● ● ●
222 BRACKET; ACTUATOR WIRE
MT643 A/T ALLISON(PR7) (B) 		1-15649-026-0 01 1 9101-9504 ● ● ●
222 BRACKET; ACTUATOR WIRE
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		8-94395-974-0 01 1 9711-9805 ●
242 LINK ASM
(B) L=125 		1-14332-018-0 01 1 9101-9504 ● ● ●
242 LINK ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-23310-490-0 01 1 9101-9504 ● ● ●
242 LINK ASM
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		8-94394-761-0 01 1 9711-9805 ●
245 NUT; LINK
(C) M5 LH THREAD 		9-09840-277-0 01 1 9101-9504 ● ● ●
245 NUT; LINK
(B) M5 		9-99110-405-0 01 1 9101-9504 ● ● ●
245 NUT; LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M6 		9-09110-406-0 02 1 9101-9504 ● ● ●
245 NUT; LINK
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (D) M5 		9-99110-405-0 02 1 9711-9805 ●
248 NUT; JOINT BALL
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M5 		9-99110-405-0 02 1 9711-9805 ●
250 ROD; ROD TO JOINT
(B) 		9-09882-355-0 01 1 9101-9504 ● ● ●
250 ROD; ROD TO JOINT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		9-08400-620-0 01 1 9101-9504 ● ● ●
250 ROD; ROD TO JOINT
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) M5X120 		9-08400-512-0 01 1 9711-9805 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
(B) 		1-09760-101-0 01 1 9101-9504 ● ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09760-004-0 01 1 9101-9504 ● ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) (C) 		1-09760-103-1 02 1 9711-9805 ●
269 BOLT; BRKT FIX
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9101-9504 ● ● ●
269 BOLT; BRKT FIX
M8X14 FLANGE 		0-28080-814-0 04 1 9505- ●
338 NUT; LEVER,ENG STOPPER
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M8 FLANGE 		0-91150-108-0 01 1 9711-9805 ●
339 BOLT; BRKT,ENG STOPPER
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M8X70 FLANGE 		0-28080-870-0 01 1 9711-9805 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94395-123-0 01 1 9505-9512 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-123-0 01 1 9601-9605 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94395-123-0 01 1 9606- ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		8-94395-125-0 01 1 9505-9512 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-125-0 01 1 9601-9605 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) 		8-94395-125-0 01 1 9606- ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-525-0 01 1 9505-9608 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A) 		8-94395-525-0 01 1 9609- ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) 		8-94396-658-1 01 1 9505-9608 ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		8-94396-658-1 01 1 9609- ●
