◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#43528) — 23 parça

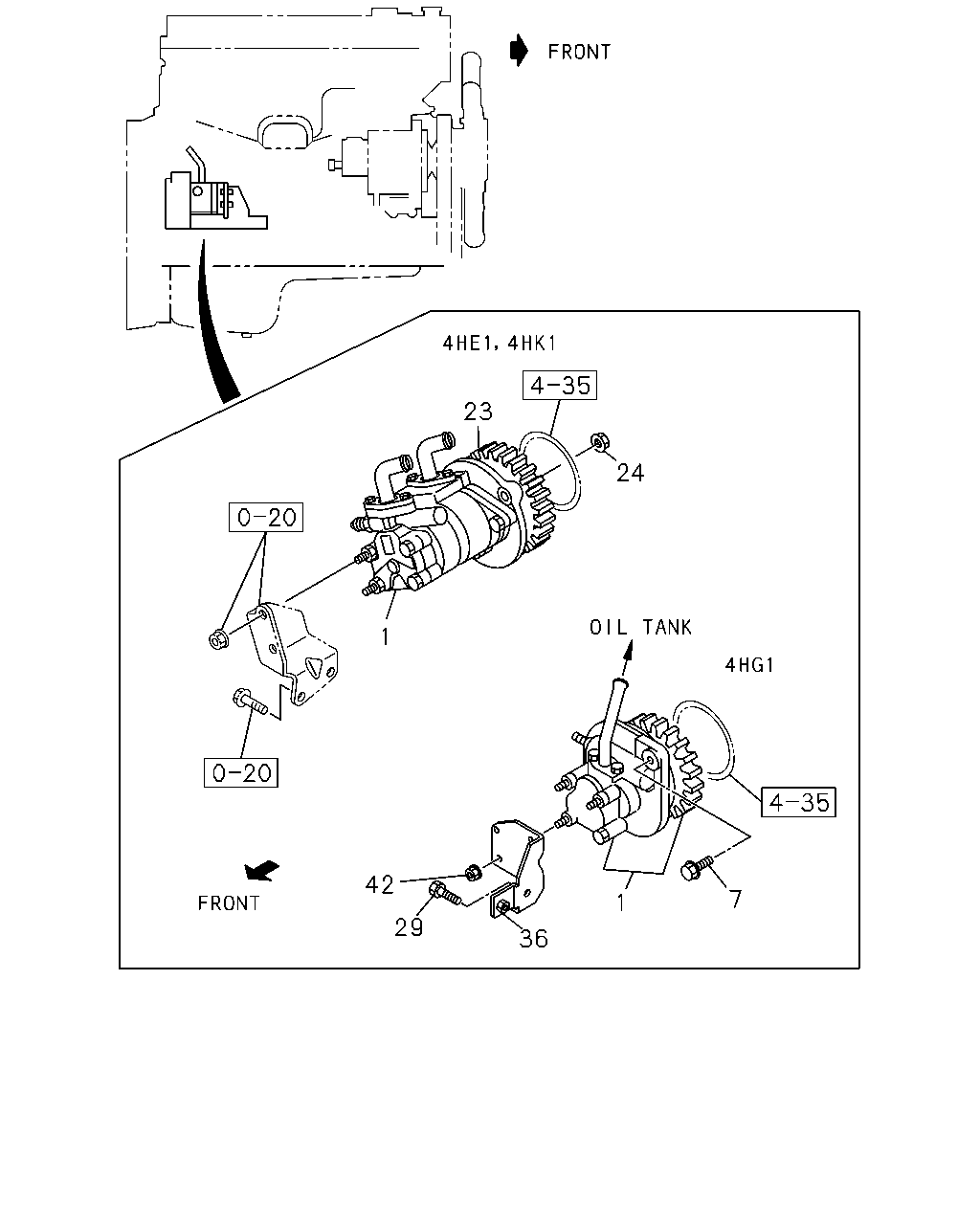

çizim 119364
23 24 1 42 7 1 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG<RDP> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> 		8-97388-652-1 01 1 0508- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97388-651-1 01 1 0508- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG<RDP> POWER STEERING<N40> 		8-97388-651-1 01 1 0508- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1-TCS ENG<RDS> 		8-97258-461-0 01 1 0508-0509 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1-TCS ENG<RDS> 		8-97258-461-3 01 1 0510- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> 		8-97258-461-3 01 1 0510- ● ●
7 BOLT; OIL PUMP,P/S
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0508-0509 ● ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0510-0805 ● ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ●
23 GEAR; OIL PUMP
4HE1-TCS ENG<RDS> 		8-97114-550-1 01 1 0508-0509 ● ●
23 GEAR; OIL PUMP
4HE1-TCS ENG<RDS> 		8-97114-550-1 01 1 0510- ● ●
23 GEAR; OIL PUMP
4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> 		8-97114-550-1 01 1 0510- ● ●
24 NUT; GEAR,P/S PUMP
4HE1-TCS ENG<RDS> M12 FLANGE 		0-91150-212-0 01 1 0508-0509 ● ●
24 NUT; GEAR,P/S PUMP
4HE1-TCS ENG<RDS> M12 FLANGE 		0-91150-212-0 01 1 0510-0602 ● ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> M12 FLANGE 		0-91150-212-0 01 1 0510-0602 ● ●
24 NUT; GEAR,P/S PUMP
4HE1-TCS ENG<RDS> M12 FLANGE THA 		0-91180-212-0 01 1 0603- ● ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> M12 FLANGE THA 		0-91180-212-0 01 1 0603- ● ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> M14X20 FLANGE 		0-28851-420-0 01 1 0601- ● ●
36 BRACKET; PLATE,P/S PUMP
4HG1-T ENG<RDP> POWER STEERING<N40> 		8-97112-866-0 01 1 0508- ● ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ● ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
