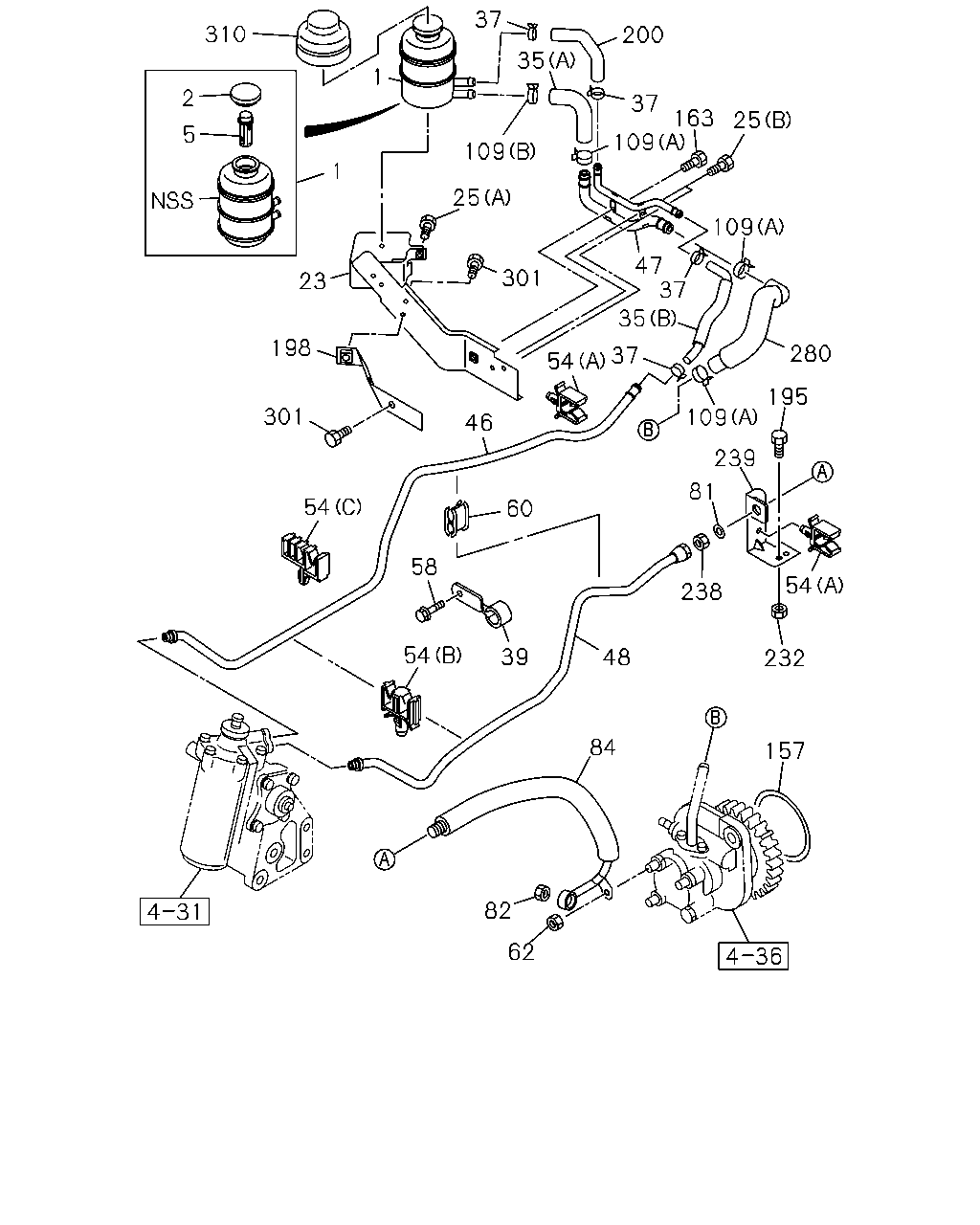

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#43527) — 115 parça

37 310 200 35 1 2 37 163 25 5 109 109 1 25 109 47 37 301 23 35 198 280 37 54 195 301 109 46 239 81 54 60 58 54 238 54 39 48 232 84 157 82 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0508-	●	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0508-			●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0508-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0508-			●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0508-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0508-			●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	0508-	●	●
23	BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0508-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0508-0512	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28480-620-0	01	1	0508-0512			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0508-0611			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-			●
35	HOSE; RETURN,P/S TANK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> (A)	8-97080-108-1	01	1	0508-0509	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	0510-	●	●	●
35	HOSE; RETURN,P/S TANK 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> (B)	8-97096-949-1	01	1	0508-0509	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B)	8-97096-949-1	01	1	0510-	●	●	●
37	CLIP; HOSE,P/S 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> ID=16	8-94238-568-0	04	1	0508-0509	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	04	1	0510-0911	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98008-098-0	04	1	0912-	●	●	●
39	CLIP; FLEX HOSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> ID=28 L=60	1-09700-585-1	01	1	0508-0509	●	●	●
39	CLIP; FLEX HOSE POWER STEERING<N40> ID=28 L=60	1-09700-585-1	01	1	0510-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97257-365-0	01	1	0508-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG<RDP> POWER STEERING<N40>	8-97257-365-0	01	1	0508-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97386-419-0	01	1	0508-0509	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS>	8-97386-419-0	01	1	0508-0509			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97386-419-0	01	1	0510-0510	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97386-419-0	01	1	0510-0510			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-98025-821-0	01	1	0511-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-98025-821-0	01	1	0511-			●
47	PIPE; RETURN 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40>	8-97378-860-0	01	1	0508-0509	●	●	●
47	PIPE; RETURN POWER STEERING<N40>	8-97378-860-0	01	1	0510-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97064-722-2	01	1	0508-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG<RDP> POWER STEERING<N40>	8-97064-722-2	01	1	0508-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97386-420-0	01	1	0508-0509	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HE1-TCS ENG<RDS>	8-97386-420-0	01	1	0508-0509			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97386-420-0	01	1	0510-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97386-420-0	01	1	0510-			●
54	CLIP; OIL PIPE 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-	●
54	CLIP; OIL PIPE 4HG1-T ENG<RDP> POWER STEERING<N40> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0508-		●
54	CLIP; OIL PIPE 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 & 4.8X3	8-97038-938-0	01	1	0508-	●
54	CLIP; OIL PIPE 4HG1-T ENG<RDP> POWER STEERING<N40> (C) ID=10 & 4.8X3	8-97038-938-0	01	1	0508-		●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	02	1	0508-0509	●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS> (A) ID=10 H=40	8-94462-219-0	02	1	0508-0509			●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	02	1	0510-	●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) ID=10 H=40	8-94462-219-0	02	1	0510-			●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0508-0509	●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0508-0509			●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0510-	●
54	CLIP; OIL PIPE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0510-			●
58	BOLT; CLIP 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
60	CLAMP; PIPE,RETURN 4HE1-TCS ENG<RDS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0508-0509	●
60	CLAMP; PIPE,RETURN 4HE1-TCS ENG<RDS> ID=10X2 H=22 THA	8-94252-455-2	01	1	0508-0509			●
60	CLAMP; PIPE,RETURN 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0510-	●
60	CLAMP; PIPE,RETURN 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=10X2 H=22 THA	8-94252-455-2	01	1	0510-			●
62	NUT; CLIP FIX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-0509	●	●	●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0510-0602	●	●	●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0508-0603	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0508-0603			●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-			●
82	NUT; FLEX HOSE,P/S 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0508-0509	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0510-	●	●	●
84	HOSE; FLEX,P/S 4HG1-T ENG<RDP> POWER STEERING<N40>	8-97358-345-2	01	1	0508-	●	●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97358-387-2	01	1	0508-0509	●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS>	8-97358-387-2	01	1	0508-0509			●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97358-387-2	01	1	0510-	●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97358-387-2	01	1	0510-			●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS> POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97358-337-2	01	1	0508-0509	●
84	HOSE; FLEX,P/S 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97358-337-2	01	1	0510-	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0508-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0508-1003			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-97359-141-0	01	1	1004-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-			●
109	CLIP; RUBBER HOSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> (A) ID=21	8-94242-034-0	03	1	0508-0509	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	03	1	0510-0911	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-98150-355-0	03	1	0912-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40>	8-97101-875-2	01	1	0508-0509	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0510-	●	●	●
163	BOLT; OIL PIPE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
195	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0509	●	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0510-0611	●	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
198	STAY; OIL TANK,POWER STEERING POWER STEERING<N40>	8-97081-778-2	01	1	0508-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0508-			●
200	HOSE; RUBBER,RETURN 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40>	8-97080-109-0	01	1	0508-0509	●	●	●
200	HOSE; RUBBER,RETURN POWER STEERING<N40>	8-97080-109-0	01	1	0510-	●	●	●
232	NUT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-0509	●	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0510-	●	●	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0508-	●	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	0508-			●
239	BRACKET; FLEX HOSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> POWER STEERING<N40>	8-97033-926-2	01	1	0508-0509	●	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97033-926-2	01	1	0510-	●	●	●
280	HOSE; P/S OIL PUMP,INL 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97107-524-1	01	1	0508-	●
280	HOSE; P/S OIL PUMP,INL 4HG1-T ENG<RDP> POWER STEERING<N40>	8-97107-524-1	01	1	0508-		●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97218-729-0	01	1	0508-0509	●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS>	8-97218-729-0	01	1	0508-0509			●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ>	8-97218-729-0	01	1	0510-	●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97218-729-0	01	1	0510-			●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS> POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-730-0	01	1	0508-0509	●
280	HOSE; P/S OIL PUMP,INL 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97218-730-0	01	1	0510-	●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0508-0611			●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0612-			●
310	COVER; OIL TANK POWER STEERING<N40>	8-97103-394-0	01	1	0508-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0508-			●
