◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#43525) — 89 parça

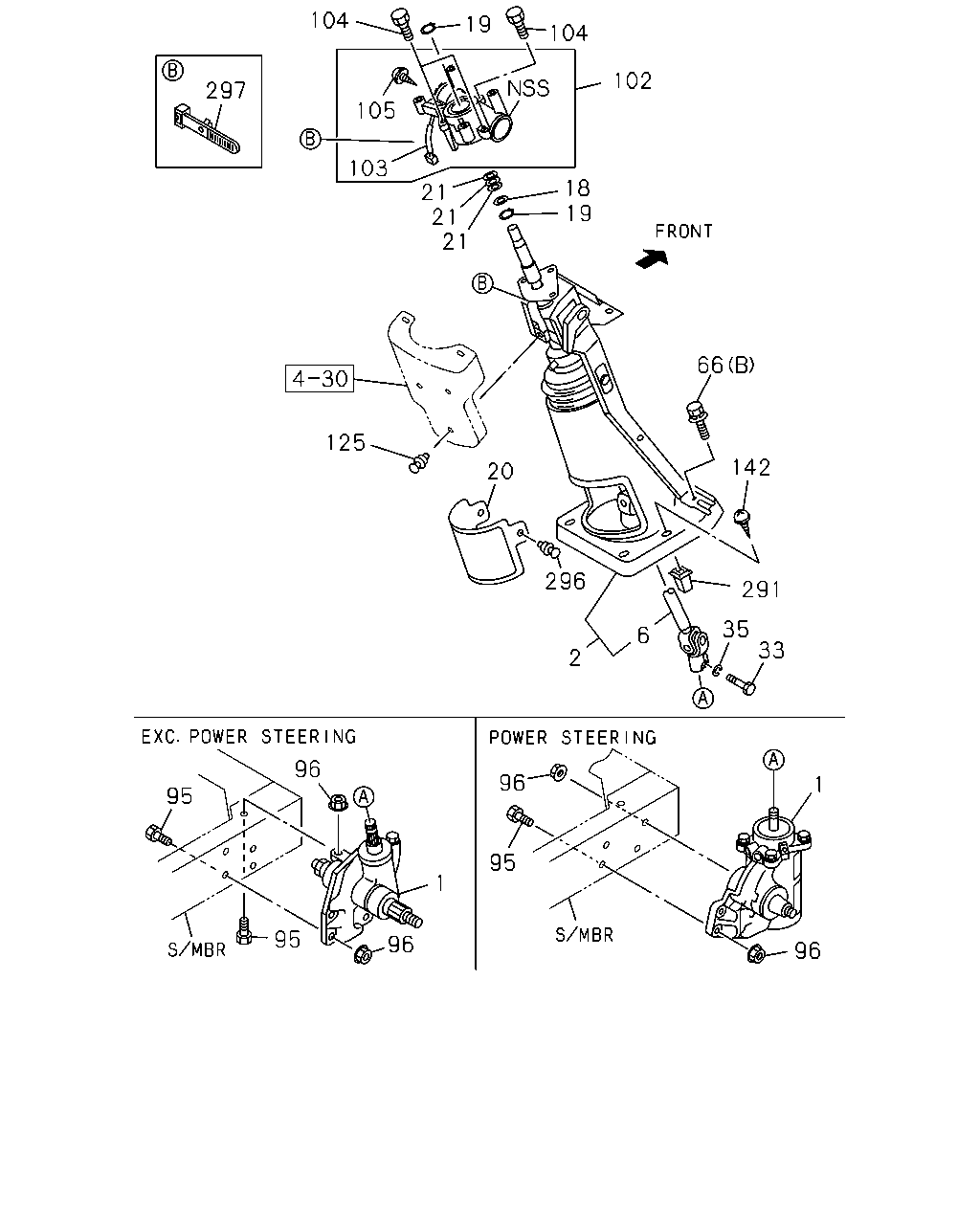

çizim 119361
104 19 104 102 297 105 103 18 19 21 21 21 66 125 142 20 296 291 35 33 6 2 96 96 1 95 95 1 95 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97287-197-8 01 1 0508-1308 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97287-197-8 01 1 0508-1308 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-98251-949-0 01 1 1309- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98251-949-0 01 1 1309- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97224-871-0 01 1 0508- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0508- ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0508- ● ● ●
18 WASHER; STEERING SHAFT
ID=19 		8-94146-919-0 01 1 0508- ● ● ●
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 0508- ● ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0508- ● ● ●
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0508- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0508-0805 ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0806- ● ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		9-09150-508-0 01 1 0508-0603 ● ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-508-0 01 1 0604- ● ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1201- ● ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0508- ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0508-0611 ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112 ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ● ●
95 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 0508- ● ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 0508-0610 ● ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 04 1 0611- ● ● ●
102 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97170-364-0 01 1 0508- ●
102 LOCK ASM; STRG 8-97170-364-0 01 1 0508- ● ●
103 SWITCH; IGNITION
FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 0508- ●
103 SWITCH; IGNITION 8-97088-268-0 01 1 0508- ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 03 1 0508- ● ● ●
105 SCREW; IGN SW
FLOOR REMOTE SHIFT<M11> M4X12 W/LK WASHER 		9-03910-412-0 01 1 0508- ●
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0508- ● ●
125 CLIP; STRG SHAFT
DARK GRAY 		8-97582-246-0 01 1 0508- ● ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0508-0604 ● ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74365-520-0 06 1 0605-0612 ● ● ●
142 SCREW; BRKT COWL
M5X18 TAPPING 		0-72180-518-0 06 1 0701- ● ● ●
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 0508- ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0508- ● ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0508- ● ● ●
297 CLIP; BAND
L=145 		8-94257-575-1 03 1 0508- ● ● ●

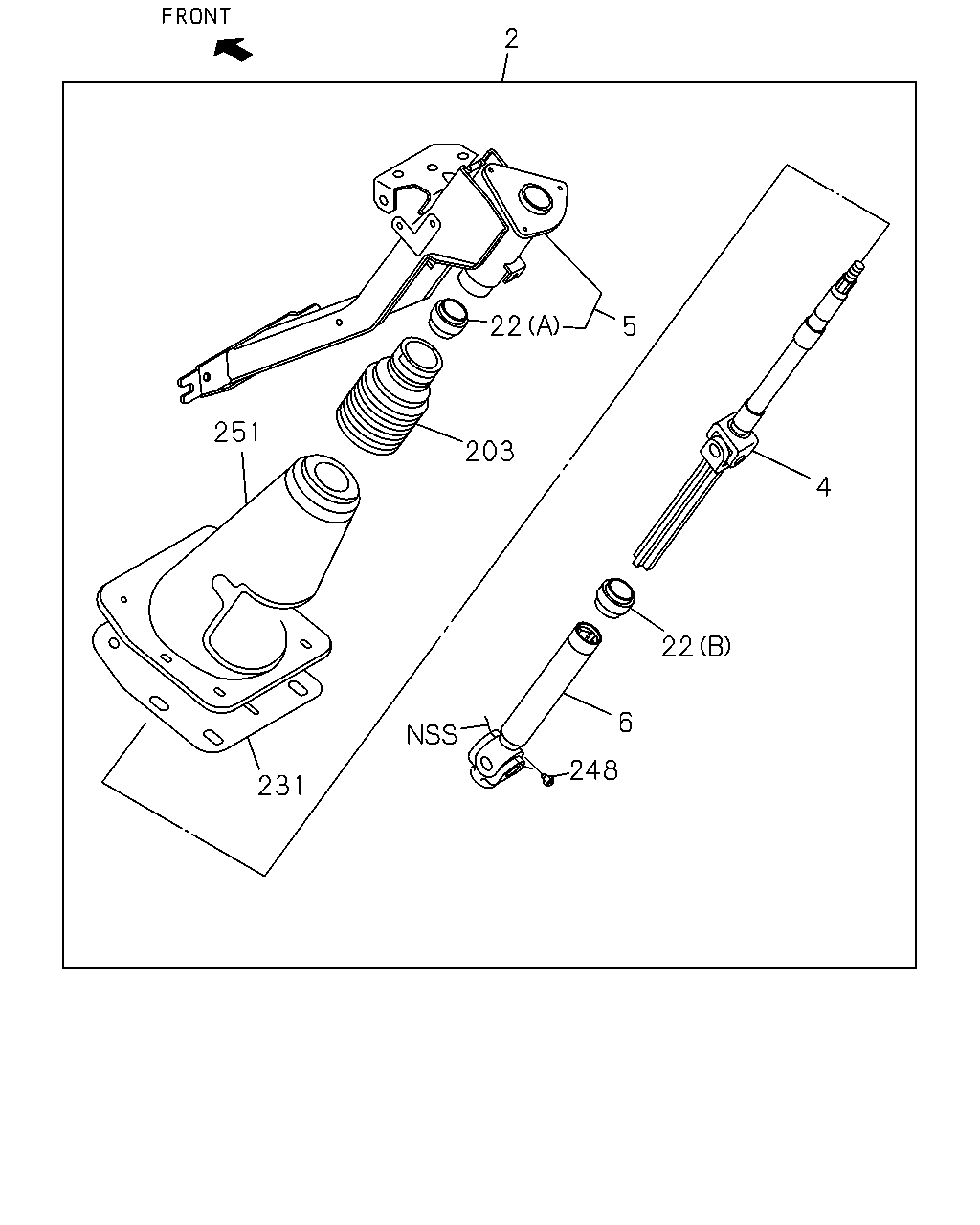

çizim 119368
2 22 5 251 203 4 22 6 248 231
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0508- ● ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0508- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0508- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0508- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0508- ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0508- ● ● ●
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0508- ● ● ●
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0508- ● ● ●
203 BOOT; STRG COLUMN LWR 8-97076-822-0 01 1 0508- ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0508- ● ● ●
248 SCREW; YOKE 8-97222-984-0 01 1 0508- ● ● ●
251 COVER; LWR
BLACK 		8-97159-168-2 01 1 0508- ● ● ●

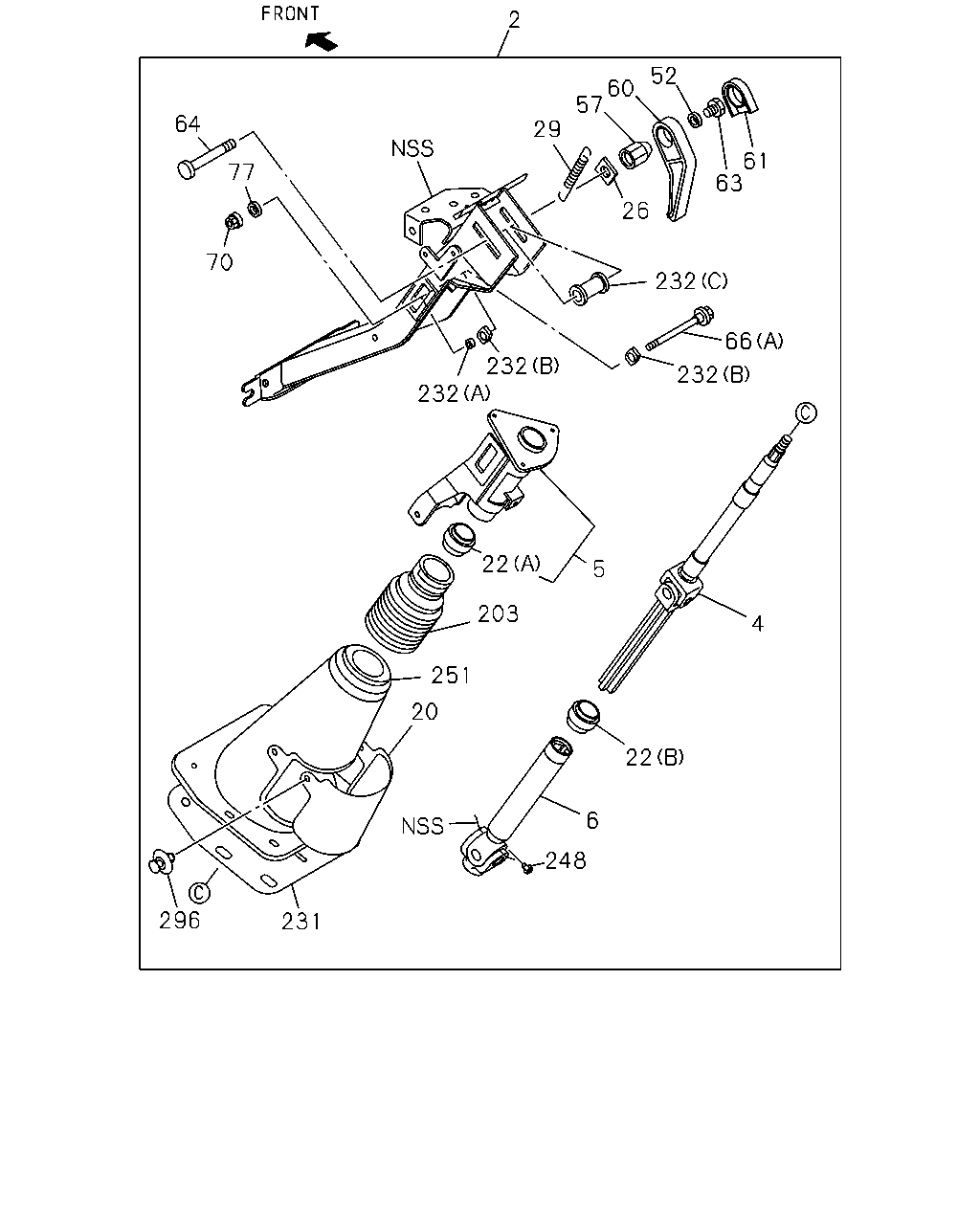

çizim 119388
2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 22 5 203 4 251 20 22 6 248 296 231
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0508- ● ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0508- ● ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0508- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0508- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0508- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0508- ● ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0508- ● ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0508- ● ● ●
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0508- ● ● ●
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0508- ● ● ●
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0508- ● ● ●
29 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0508- ● ● ●
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0508- ● ● ●
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0508- ● ● ●
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0508- ● ● ●
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0508- ● ● ●
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0508- ● ● ●
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0508- ● ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1201- ● ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0508- ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0508-0611 ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112 ● ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ● ●
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0508- ● ● ●
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0508- ● ● ●
203 BOOT; STRG COLUMN LWR 8-97076-822-0 01 1 0508- ● ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0508- ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0508- ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0508- ● ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0508- ● ● ●
248 SCREW; YOKE 8-97222-984-0 01 1 0508- ● ● ●
251 COVER; LWR
BLACK 		8-97159-168-2 01 1 0508- ● ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0508- ● ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 0508- ● ● ●
