4-20 — REAR AXLE CASE AND SHAFT (#43522) — 109 parça

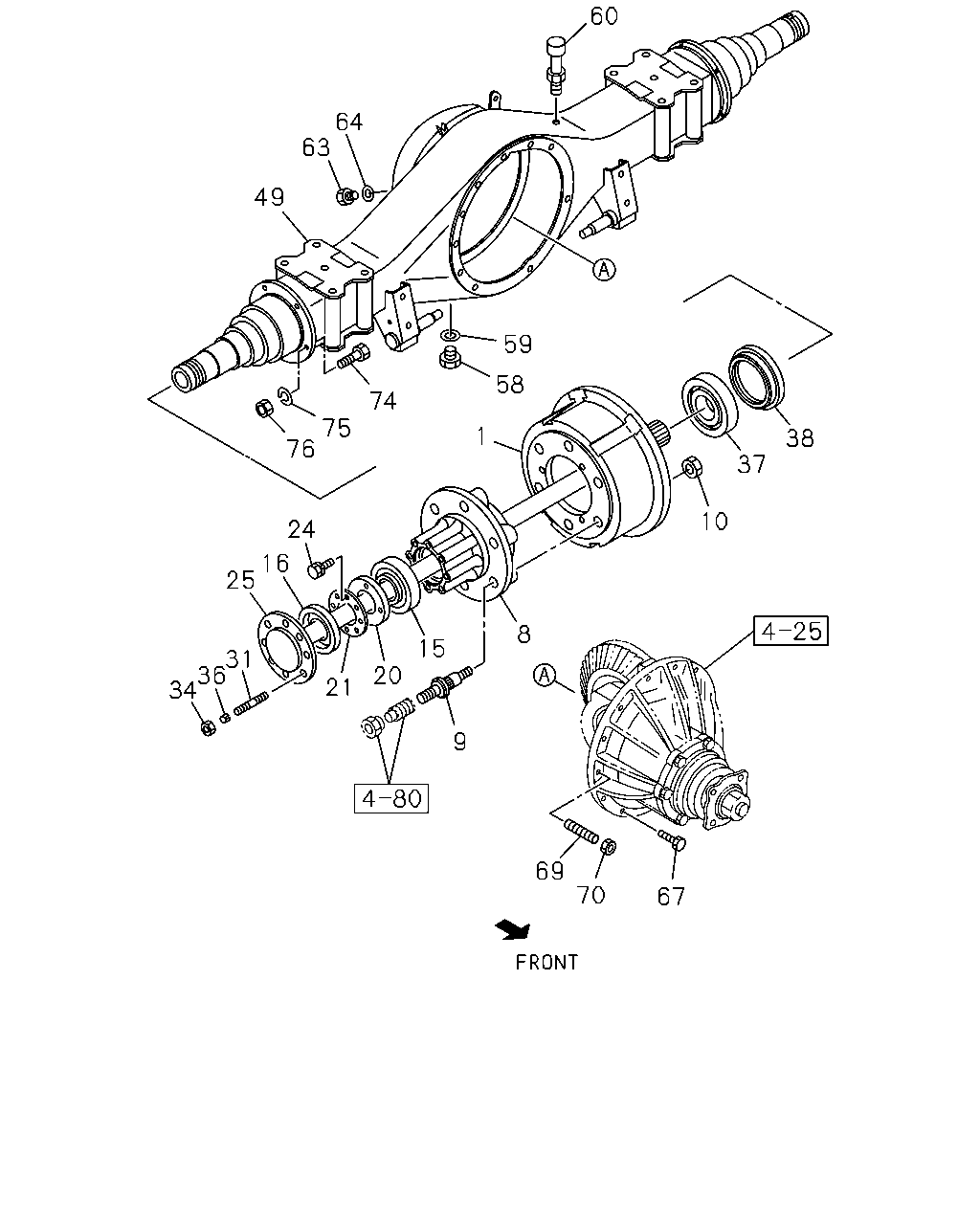

çizim 119372
60 64 63 49 59 58 74 75 76 1 38 37 10 24 16 25 8 15 31 36 34 20 21 9 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
4HG1-T ENG<RDP> THA 		8-97940-562-0 02 1 0508- ● ●
1 DRUM; BRK,RR
4HE1-TCS ENG<RDS> THA 		8-97940-563-0 02 1 0508-0509 ● ●
1 DRUM; BRK,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA 		8-97940-563-0 02 1 0510- ● ●
8 HUB; RR AXLE
4HG1-T ENG<RDP> THA 		8-97940-280-0 02 1 0508- ● ●
8 HUB; RR AXLE
4HE1-TCS ENG<RDS> THA 		8-97942-200-0 02 1 0508-0509 ● ●
8 HUB; RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA 		8-97942-200-0 02 1 0510- ● ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M20X28,M22X57 RH THREAD 		8-97081-584-1 18 1 0508-0509 ● ● ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-1 18 1 0510-1208 ● ● ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1209- ● ● ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 18 1 0508-0509 ● ● ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 18 1 0510-1208 ● ● ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1209- ● ● ●
9 PIN; WHEEL,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/8<RU1> M20X28,M22X57 RH THREAD 		8-97081-584-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> M20X28,M22X57 RH THREAD 		8-97081-584-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> M20X28,M22X57 RH THREAD 		8-97081-584-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 43/10<S7C> M20X28,M22X57 RH THREAD 		8-97081-584-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/8<RU1> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 24 1 0910- ●
9 PIN; WHEEL,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 43/10<S7C> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 24 1 0910- ●
10 NUT; WHEEL PIN,RR AXLE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M22 		9-09110-522-0 36 1 0508-0509 ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 36 1 0510-0512 ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		9-09110-522-0 12 1 0601-1208 ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 0601- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> NSK THA 		9-00093-607-0 02 1 0508-0509 ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK THA 		9-00093-607-0 02 1 0510- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> TKK 		8-94336-317-2 02 1 0508-0509 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-317-2 02 1 0510-1207 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1208- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> NOK 		8-94367-960-1 02 1 0508-0509 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-960-1 02 1 0510-1106 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 41/8<RU1> NOK 		8-98202-912-0 02 1 1208- ●
16 SEAL; OIL,RR HUB,OUTER
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1>,FINAL GEAR RATIO 39/6<R43> NOK 		8-98202-912-0 02 1 1208- ●
16 SEAL; OIL,RR HUB,OUTER
4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> NOK 		8-98202-912-0 02 1 1208- ●
16 SEAL; OIL,RR HUB,OUTER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> FINAL GEAR RATIO 43/10<S7C> NOK 		8-98202-912-0 02 1 1208- ●
20 NUT; BRG,RR HUB
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M55 		8-97137-094-0 02 1 0508-0509 ● ● ●
20 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 0510- ● ● ●
21 WASHER; LK,BRG NUT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=55 		9-09653-002-0 02 1 0508-0509 ● ● ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-0 02 1 0510- ● ● ●
24 BOLT; LK WASHER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M6X12 W/LK WASHER 		0-50040-612-0 04 1 0508-0509 ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50040-612-0 04 1 0510-0512 ● ● ●
24 BOLT; LK WASHER
M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ● ●
24 BOLT; LK WASHER
M6X10 FLANGE THA 		0-28050-610-0 04 1 0612- ● ● ●
25 SHAFT; AXLE,RR
4HG1-T ENG<RDP> L=822 		8-97079-903-1 02 1 0508-0804 ● ●
25 SHAFT; AXLE,RR
4HG1-T ENG<RDP> L=822 THA 		8-98098-426-0 02 1 0805- ● ●
25 SHAFT; AXLE,RR
4HE1-TCS ENG<RDS> L=885 		8-97134-439-0 02 1 0508-0509 ● ●
25 SHAFT; AXLE,RR
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> L=885 		8-97134-439-0 02 1 0510- ● ●
31 STUD; AXLE SHAFT TO HUB
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X30 L=49 		5-09300-066-1 16 1 0508-0509 ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0510-0802 ● ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0803- ● ● ●
34 NUT; AXLE SHAFT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10 FLANGE 		0-91150-210-0 16 1 0508-0509 ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE 		0-91150-210-0 16 1 0510-0602 ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE THA 		0-91180-210-0 16 1 0603- ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=10.5 		9-09855-207-0 16 1 0508-0509 ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0510-0802 ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0803- ● ● ●
37 BEARING; HUB INNER,RR AXLE
4HG1-T ENG<RDP> NSK THA 		9-00093-624-0 02 1 0508- ● ●
37 BEARING; HUB INNER,RR AXLE
4HE1-TCS ENG<RDS> NSK THA 		8-97122-938-0 02 1 0508-0509 ● ●
37 BEARING; HUB INNER,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NSK THA 		8-97122-938-0 02 1 0510- ● ●
37 BEARING; HUB INNER,RR AXLE
4HE1-TCS ENG<RDS> KOYO THA 		8-97123-119-0 02 1 0508-0509 ● ●
37 BEARING; HUB INNER,RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> KOYO THA 		8-97123-119-0 02 1 0510- ● ●
38 SEAL; OIL,RR HUB,INNER
4HG1-T ENG<RDP> TKK 		8-94336-316-1 02 1 0508- ● ●
38 SEAL; OIL,RR HUB,INNER
4HG1-T ENG<RDP> NOK 		8-94367-958-0 02 1 0508- ● ●
38 SEAL; OIL,RR HUB,INNER
4HE1-TCS ENG<RDS> NOK 		8-97147-681-0 02 1 0508-0509 ● ●
38 SEAL; OIL,RR HUB,INNER
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> NOK 		8-97147-681-0 02 1 0510- ● ●
49 CASE; RR AXLE
4HG1-T ENG<RDP> 		8-97048-635-8 01 1 0508- ● ●
49 CASE; RR AXLE
4HE1-TCS ENG<RDS> 		8-97287-599-0 01 1 0508-0509 ● ●
49 CASE; RR AXLE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> 		8-97287-599-3 01 1 0510- ● ●
58 PLUG; DRAIN,AXLE CASE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M16X12.5 		8-97109-869-0 01 1 0508-0509 ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0510-0611 ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ● ●
59 GASKET; DRAIN PLUG
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=16.2 OD=24 THA 		9-09571-416-0 01 1 0508-0509 ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 0510- ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0508-0606 ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M20X10.5 		9-09662-005-0 01 1 0508-0509 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0510-0611 ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> ID=20 OD=30 THA 		8-94462-734-0 01 1 0508-0509 ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 0510- ● ● ●
67 BOLT; FINAL DRIVE SETTING
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X40 W/LK WASHER 		0-50061-040-0 07 1 0508-0509 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 07 1 0510-0909 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 07 1 0910- ● ● ●
67 BOLT; FINAL DRIVE SETTING
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X50 W/LK WASHER 		0-50061-050-0 04 1 0508-0509 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0510-0610 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 		0-10956-050-0 04 1 0611-0611 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50061-050-0 04 1 0611-0909 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 0910- ● ● ●
69 STUD; AXLE CASE
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10X40.5 L=52.5 		8-97026-282-0 02 1 0508-0509 ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0510-0610 ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ●
70 NUT; CARRIER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10 FLANGE 		0-91150-210-0 02 1 0508-0509 ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0510-0602 ● ● ●
70 NUT; CARRIER
M10 FLANGE THA 		0-91180-210-0 02 1 0603- ● ● ●
74 BOLT; RR BRK ASM SETTING
4HG1-T ENG<RDP> M12X32 		5-09000-078-0 12 1 0508-0611 ● ●
74 BOLT; RR BRK ASM SETTING
4HG1-T ENG<RDP> M12X32 		8-97359-819-0 12 1 0612- ● ●
74 BOLT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS> M14X40 		8-97357-301-1 12 1 0508-0509 ● ●
74 BOLT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M14X40 		8-97357-301-1 12 1 0510-0805 ● ●
74 BOLT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M14X40 		8-98007-879-0 12 1 0806- ● ●
75 WASHER; LK,RR BRK ASM SETTING
4HG1-T ENG<RDP> ID=12.2 		9-09150-612-0 12 1 0508-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
4HG1-T ENG<RDP> ID=12.2 		0-91510-612-0 12 1 0604- ● ●
75 WASHER; LK,RR BRK ASM SETTING
4HE1-TCS ENG<RDS> ID=14.2 		9-09150-814-0 12 1 0508-0509 ● ●
75 WASHER; LK,RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=14.2 		9-09150-814-0 12 1 0510-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> ID=14.2 		0-91510-814-0 12 1 0604- ● ●
76 NUT; RR BRK ASM SETTING
4HG1-T ENG<RDP> M12 		9-99110-512-0 12 1 0508-0512 ● ●
76 NUT; RR BRK ASM SETTING
4HG1-T ENG<RDP> M12 		0-91110-512-0 12 1 0601- ● ●
76 NUT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS> M14 THA 		9-99110-514-0 12 1 0508-0509 ● ●
76 NUT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M14 THA 		9-99110-514-0 12 1 0510-0512 ● ●
76 NUT; RR BRK ASM SETTING
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M14 THA 		0-91110-514-0 12 1 0601- ● ●
