Sayfa 0-33 - Isuzu EPC

0-33 — FAN AND FAN BELT (#4352) — 235 parça

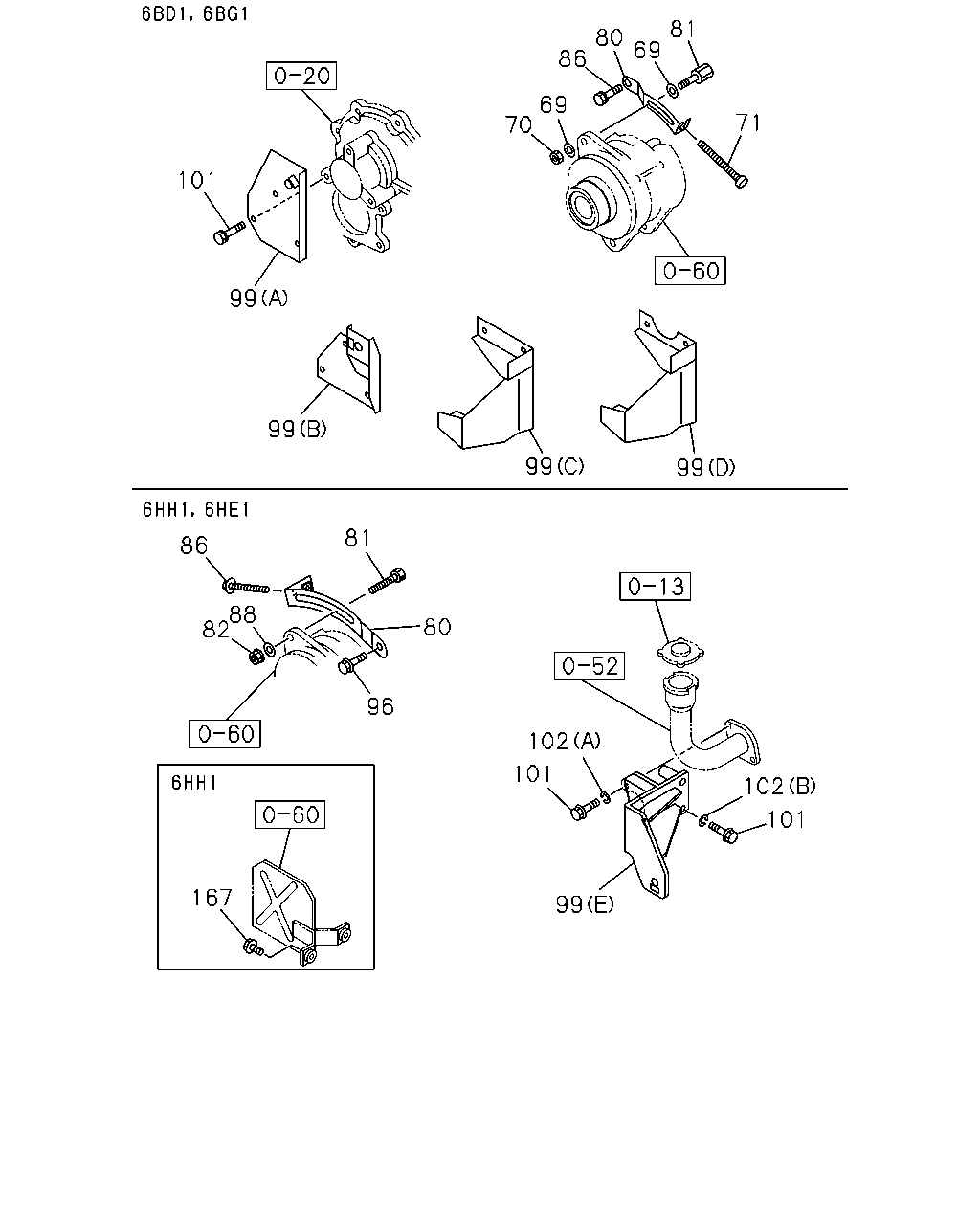

81 69 80 86 69 70 71 101 99 99 99 99 81 86 88 82 80 96 102 101 102 101 167 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	02	1	9101-9504	●	●	●
70	NUT; ADJ PLATE,GEN M12	9-99110-412-0	01	1	9101-9504	●	●	●
71	BOLT; ADJ PLATE,GEN M10X155 FLANGE	1-09009-114-1	01	1	9101-9504	●	●	●
80	PLATE; ADJ	1-13674-118-1	01	1	9208-9504	●	●	●
80	PLATE; ADJ OVERHEAD COOLING SYSTEM<YS9>	8-94396-975-1	01	1	9505-9605				●
80	PLATE; ADJ GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94396-975-1	01	1	9606-9807				●
80	PLATE; ADJ GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94396-975-1	01	1	9808-0203				●	●
80	PLATE; ADJ STARTER NIKKO HEAVY DUTY TYPE(E8H)	8-94396-975-1	01	1	0204-0306				●
80	PLATE; ADJ GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94396-975-1	01	1	0307-				●
80	PLATE; ADJ GENERATOR NIKKO 24V-110A 3KW(PU1)	8-94396-975-1	01	1	0307-					●
80	PLATE; ADJ EXC. OVERHEAD COOLING SYSTEM<YS9>	8-94390-021-1	01	1	9505-9605				●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94390-021-1	01	1	9606-9702				●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94390-021-1	01	1	9703-9709				●
80	PLATE; ADJ	8-94390-021-1	01	1	9703-9709						●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94390-021-1	01	1	9710-9806				●
80	PLATE; ADJ	8-94390-021-1	01	1	9710-9806					●	●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-94390-021-1	01	1	9807-0001				●	●
80	PLATE; ADJ	8-94390-021-1	01	1	9807-0001						●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-97601-021-0	01	1	0002-0203				●	●
80	PLATE; ADJ	8-97601-021-0	01	1	0002-0203						●
80	PLATE; ADJ EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2)	8-97601-021-0	01	1	0204-				●
80	PLATE; ADJ	8-97601-021-0	01	1	0204-					●	●
81	PIECE; SLIDING M12X59	1-13674-161-0	01	1	9101-9504	●	●	●
81	PIECE; SLIDING OVERHEAD COOLING SYSTEM<YS9> M12X59	1-13674-161-0	01	1	9505-9605				●
81	PIECE; SLIDING GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X59	1-13674-161-0	01	1	9606-9807				●
81	PIECE; SLIDING GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X59	1-13674-161-0	01	1	9808-0203				●	●
81	PIECE; SLIDING STARTER NIKKO HEAVY DUTY TYPE(E8H) M12X59	1-13674-161-0	01	1	0204-0306				●
81	PIECE; SLIDING GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X59	1-13674-161-0	01	1	0307-				●
81	PIECE; SLIDING GENERATOR NIKKO 24V-110A 3KW(PU1) M12X59	1-13674-161-0	01	1	0307-					●
81	PIECE; SLIDING EXC. OVERHEAD COOLING SYSTEM<YS9> M12X45	1-13674-160-0	01	1	9505-9605				●
81	PIECE; SLIDING EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X45	1-13674-160-0	01	1	9606-9702				●
81	PIECE; SLIDING EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X45	1-13674-160-0	01	1	9703-9802				●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9703-9802						●
81	PIECE; SLIDING EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X45	1-13674-160-0	01	1	9804-9806				●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9804-9806					●	●
81	PIECE; SLIDING EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X45	1-13674-160-0	01	1	9807-0203				●	●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9807-0203						●
81	PIECE; SLIDING EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M12X45	1-13674-160-0	01	1	0204-				●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	0204-					●	●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	9505-9702				●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	9703-9709				●		●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	9710-0602				●	●	●
82	NUT; ADJ PLATE M12 FLANGE	0-91180-112-0	01	1	0603-				●	●	●
86	BOLT; ADJ M10X25 W/LK WASHER	0-50041-025-0	01	1	9101-9504	●	●	●
86	BOLT; ADJ M10X155 FLANGE	1-09009-114-1	01	1	9505-9702				●
86	BOLT; ADJ M10X155 FLANGE	1-09009-114-1	01	1	9703-9709				●		●
86	BOLT; ADJ M10X155 FLANGE	1-09009-114-1	01	1	9710-				●	●	●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09164-712-0	01	1	9505-9702				●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09164-712-0	01	1	9703-9709				●		●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09164-712-0	01	1	9710-0605				●	●	●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	0-91614-712-0	01	1	0606-				●	●	●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28181-045-0	01	1	9505-9702				●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28181-045-0	01	1	9703-9709				●		●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28181-045-0	01	1	9710-0512				●	●	●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28151-045-0	01	1	0601-				●	●	●
99	BRACKET; ADJ LINK ROD,FAN BELT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. POWER STRG(N40),GENERATOR DENSO 24V-40A 1KW(SC4) (C)	1-21464-327-0	01	1	9101-9504	●	●	●
99	BRACKET; ADJ LINK ROD,FAN BELT EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	5-13676-003-1	01	1	9101-9504	●	●	●
99	BRACKET; ADJ LINK ROD,FAN BELT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STRG(N40) EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> (C)	1-21464-326-0	01	1	9101-9504	●		●
99	BRACKET; ADJ LINK ROD,FAN BELT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STRG(N40) (C)	1-21464-326-0	01	1	9101-9504		●
99	BRACKET; ADJ LINK ROD,FAN BELT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> POWER STRG(N40) ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> (D)	1-21464-328-0	01	1	9101-9504	●		●
99	BRACKET; ADJ LINK ROD,FAN BELT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-21464-328-0	01	1	9101-9504			●
99	BRACKET; ADJ LINK ROD,FAN BELT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) GENERATOR DENSO 24V-40A 1KW(SC4) EXC. POWER STRG(N40) (B)	1-13676-067-0	01	1	9101-9504		●
99	BRACKET; ADJ LINK ROD,FAN BELT (E)	8-94395-233-0	01	1	9505-9702				●
99	BRACKET; ADJ LINK ROD,FAN BELT (E)	8-94395-233-0	01	1	9703-9709				●		●
99	BRACKET; ADJ LINK ROD,FAN BELT (E)	8-94395-233-0	01	1	9710-				●	●	●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X40 W/LK WASHER	0-50040-840-0	02	1	9101-9504	●
101	BOLT; BRKT,ADJ LINK ROD BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 W/LK WASHER	0-50040-840-0	02	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X40 W/LK WASHER	0-50040-840-0	02	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9101-9504	●
101	BOLT; BRKT,ADJ LINK ROD BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X50 W/LK WASHER	0-50040-850-0	02	1	9101-9504	●
101	BOLT; BRKT,ADJ LINK ROD ISUZU M/T<X9A> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7>, BUS BODY MAKER KITAMURA<Y08> M8X50 W/LK WASHER	0-50040-850-0	02	1	9101-9504		●
101	BOLT; BRKT,ADJ LINK ROD MT643 A/T ALLISON(PR7) M8X50 W/LK WASHER	0-50040-850-0	02	1	9101-9504		●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X50 W/LK WASHER	0-50040-850-0	02	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9101-9504	●
101	BOLT; BRKT,ADJ LINK ROD ISUZU M/T<X9A> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7>, BUS BODY MAKER KITAMURA<Y08> M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9101-9504		●
101	BOLT; BRKT,ADJ LINK ROD MT643 A/T ALLISON(PR7) M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9101-9504		●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X45 W/LK&PL WASHER	0-50140-845-0	01	1	9101-9504			●
101	BOLT; BRKT,ADJ LINK ROD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X50 W/LK WASHER	0-50040-850-0	03	1	9101-9504	●	●	●
101	BOLT; BRKT,ADJ LINK ROD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> EXC. ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> M8X50 W/LK WASHER	0-50040-850-0	03	1	9101-9504		●
101	BOLT; BRKT,ADJ LINK ROD M8X60	9-01065-860-0	02	1	9505-9705				●
101	BOLT; BRKT,ADJ LINK ROD M10X60	9-01666-060-0	01	1	9505-9705				●
101	BOLT; BRKT,ADJ LINK ROD M10X22	9-02361-022-0	01	1	9505-9705				●
101	BOLT; BRKT,ADJ LINK ROD M8X60 FLANGE	0-28090-860-0	02	1	9703-9705						●
101	BOLT; BRKT,ADJ LINK ROD M8X60 FLANGE	0-28090-860-0	02	1	9706-9709				●		●
101	BOLT; BRKT,ADJ LINK ROD M8X60 FLANGE	0-28090-860-0	02	1	9710-0512				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M8X60 FLANGE	0-28060-860-0	02	1	0601-1308				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M8X60 FLANGE	0-29260-860-0	02	1	1309-				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M10X60 FLANGE	0-28191-060-0	01	1	9703-9705						●
101	BOLT; BRKT,ADJ LINK ROD M10X60 FLANGE	0-28191-060-0	01	1	9706-9709				●		●
101	BOLT; BRKT,ADJ LINK ROD M10X60 FLANGE	0-28191-060-0	01	1	9710-9805				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M10X25 FLANGE	0-28791-025-0	01	1	9703-9705						●
101	BOLT; BRKT,ADJ LINK ROD M10X25 FLANGE	0-28791-025-0	01	1	9706-9709				●		●
101	BOLT; BRKT,ADJ LINK ROD M10X60 FLANGE	0-28191-060-0	01	1	9806-0512				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M10X60 FLANGE	0-28161-060-0	01	1	0601-				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M10X25 FLANGE	0-28791-025-0	01	1	9710-0512				●	●	●
101	BOLT; BRKT,ADJ LINK ROD M10X25 FLANGE	0-28761-025-0	01	1	0601-				●	●	●
102	WASHER; LK,BRKT (A) ID=8.2	9-09150-508-0	02	1	9505-9702				●
102	WASHER; LK,BRKT (A) ID=8.2	9-09150-508-0	02	1	9703-9705				●		●
102	WASHER; LK,BRKT (B) ID=10.2	9-09150-510-0	02	1	9505-9702				●
102	WASHER; LK,BRKT (B) ID=10.2	9-09150-510-0	02	1	9703-9705				●		●
167	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28080-825-0	02	1	9505-0512				●
167	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28050-825-0	02	1	0601-				●

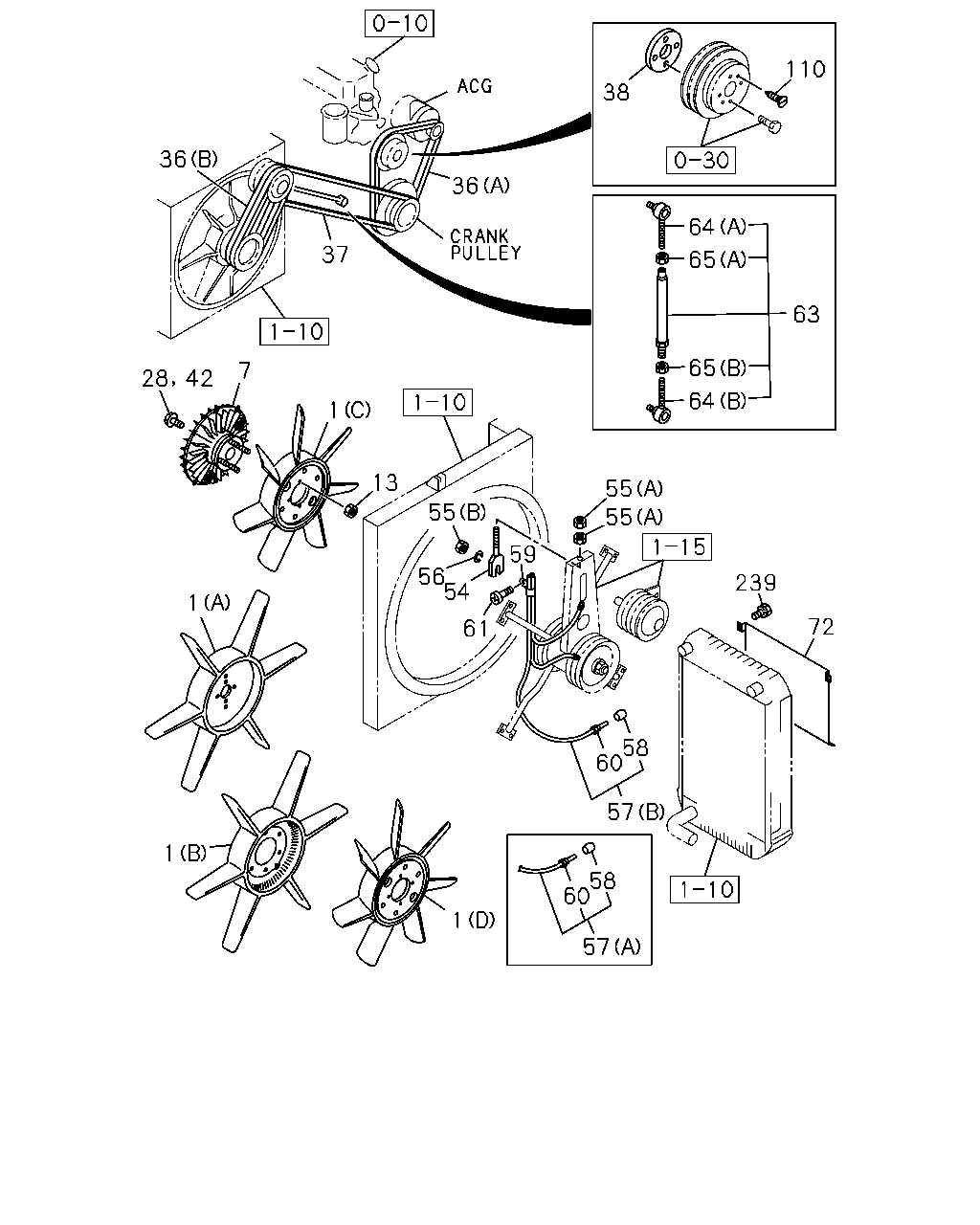

110 38 36 36 64 65 37 63 65 64 7 28 42 1 13 55 55 55 59 56 54 239 61 1 58 60 72 57 58 60 1 1 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FAN; COOLING RIGHT HAND DRIVE(LTR5FB) FLUID DRIVE FAN<KA3> (C)	1-13660-150-0	01	1	9203-9504	●	●	●
1	FAN; COOLING FLUID DRIVE FAN<KA3> (C)	1-13660-150-0	01	1	9505-9709				●
1	FAN; COOLING FLUID DRIVE FAN<KA3> (C)	1-13660-150-1	01	1	9710-				●		●
1	FAN; COOLING (B)	1-13660-128-0	01	1	9101-9202	●		●
1	FAN; COOLING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13660-128-0	01	1	9101-9202		●
1	FAN; COOLING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLUID DRIVE FAN<KA3> (B)	1-13660-128-0	01	1	9203-9504	●	●	●
1	FAN; COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13660-128-0	01	1	9203-9504	●		●
1	FAN; COOLING EXC. FLUID DRIVE FAN<KA3> (B)	1-13660-128-0	01	1	9505-9709				●
1	FAN; COOLING EXC. FLUID DRIVE FAN<KA3> (B)	1-13660-128-0	01	1	9710-				●		●
1	FAN; COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-13660-106-0	01	1	9101-9504		●
1	FAN; COOLING (D)	1-13660-288-1	01	1	9710-					●
7	COUPLING; FAN RIGHT HAND DRIVE(LTR5FB) FLUID DRIVE FAN<KA3>	1-21650-137-0	01	1	9203-9504	●	●	●
7	COUPLING; FAN FLUID DRIVE FAN<KA3>	1-21650-186-0	01	1	9505-9508				●
7	COUPLING; FAN FLUID DRIVE FAN<KA3>	1-21650-191-0	01	1	9509-9709				●
7	COUPLING; FAN FLUID DRIVE FAN<KA3>	1-21650-191-0	01	1	9710-				●		●
7	COUPLING; FAN	1-21650-193-1	01	1	9710-					●
13	NUT; COOLING FAN M10	9-09110-410-0	04	1	9101-9202	●	●	●
13	NUT; COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLUID DRIVE FAN<KA3> M8	9-09110-408-0	06	1	9203-9504	●	●	●
13	NUT; COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	06	1	9203-9504	●		●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8	9-09110-408-0	06	1	9505-9606				●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8 FLANGE	0-91150-108-0	06	1	9607-9709				●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8 FLANGE	0-91150-108-0	06	1	9710-0602				●		●
13	NUT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8 FLANGE	0-91180-108-0	06	1	0603-				●		●
28	BOLT; COOLING FAN M10X28 W/LK WASHER	0-50041-028-0	04	1	9101-9202	●	●	●
28	BOLT; COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLUID DRIVE FAN<KA3> M8X20 W/LK WASHER	0-50040-820-0	06	1	9203-9504	●	●	●
28	BOLT; COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	06	1	9203-9504	●		●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8X20 FLANGE	0-28080-820-0	06	1	9505-9606				●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8X25 FLANGE	0-28680-825-0	06	1	9607-9709				●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8X25 FLANGE	0-28680-825-0	06	1	9710-0512				●		●
28	BOLT; COOLING FAN EXC. FLUID DRIVE FAN<KA3> M8X25 FLANGE	0-28650-825-0	06	1	0601-				●		●
28	BOLT; COOLING FAN RIGHT HAND DRIVE(LTR5FB) FLUID DRIVE FAN<KA3> M8X12 W/LK WASHER	0-50040-812-0	04	1	9203-9504	●	●	●
28	BOLT; COOLING FAN FLUID DRIVE FAN<KA3> M8X12 FLANGE	0-28080-812-0	04	1	9505-9709				●
28	BOLT; COOLING FAN FLUID DRIVE FAN<KA3> M8X12 FLANGE	0-28080-812-0	04	1	9710-0512				●		●
28	BOLT; COOLING FAN FLUID DRIVE FAN<KA3> M8X12 FLANGE	0-28050-812-0	04	1	0601-				●		●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28181-016-0	06	1	9710-0512					●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28151-016-0	06	1	0601-					●
36	BELT; COOLING FAN GENERATOR DENSO 24V-40A 1KW(SC4) (A) 1 SET=2 PIECE(1136712380) MITSUBOSHI	1-13671-369-0	01	1	9101-9504	●	●	●
36	BELT; COOLING FAN GENERATOR HITACHI 24V-25A 600W(SC1) (A) 1 SET=2 PIECE(1136712270) MITSUBOSHI	1-13671-226-0	01	1	9101-9504	●	●	●
36	BELT; COOLING FAN (B) L=945 1 SET=2 PIECE(1136710360) MITSUBOSHI	1-13671-306-0	01	1	9101-9504	●		●
36	BELT; COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=945 1 SET=2 PIECE(1136710360) MITSUBOSHI	1-13671-306-0	01	1	9101-9504		●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) L=945 1 SET=2 PIECE(1136712020) MITSUBOSHI	1-13671-206-0	01	1	9101-9504	●		●
36	BELT; COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) MITSUBOSHI L=1003	9-13671-344-0	02	1	9101-9504		●
36	BELT; COOLING FAN (B) 1 SET=2 PIECE(9136713440) MITSUBOSHI	1-13671-315-0	01	1	9505-9709				●
36	BELT; COOLING FAN (B) 1 SET=2 PIECE(9136713440) MITSUBOSHI	1-13671-315-0	01	1	9710-				●		●
36	BELT; COOLING FAN OVERHEAD COOLING SYSTEM<YS9> (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9505-9605				●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9606-9807				●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9808-0203				●	●
36	BELT; COOLING FAN STARTER NIKKO HEAVY DUTY TYPE(E8H) (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	0204-0306				●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	0307-1402				●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1) (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	0307-1402					●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=3 PIECE(8982537050) MITSUBOSHI	8-98253-276-0	01	1	1403-				●
36	BELT; COOLING FAN GENERATOR NIKKO 24V-110A 3KW(PU1) (A) 1 SET=3 PIECE(8982537050) MITSUBOSHI	8-98253-276-0	01	1	1403-					●
36	BELT; COOLING FAN EXC. OVERHEAD COOLING SYSTEM<YS9> (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9505-9605				●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9606-9702				●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9703-9709				●
36	BELT; COOLING FAN (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9703-9709						●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9710-9806				●
36	BELT; COOLING FAN (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9710-9806					●	●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9807-0203				●	●
36	BELT; COOLING FAN (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9807-0203						●
36	BELT; COOLING FAN EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	0204-0204				●
36	BELT; COOLING FAN (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	0204-0204					●	●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	0205-1402				●
36	BELT; COOLING FAN (A) 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	0205-1402					●	●
36	BELT; COOLING FAN EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A)	8-98253-277-0	01	1	1403-				●
36	BELT; COOLING FAN (A)	8-98253-277-0	01	1	1403-					●	●
36	BELT; COOLING FAN (B) 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	9710-					●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-13671-332-0	02	1	9101-9504	●	●	●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-13671-249-0	02	1	9101-9504	●	●	●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-13671-102-0	02	1	9101-9504	●	●	●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE L=2149	1-13671-324-1	01	1	9505-				●	●	●
38	SPACER; FAN	5-13642-052-0	01	1	9101-9504	●	●	●
42	BOLT; FAN DRIVE M10X30 W/LK WASHER	0-50041-030-0	08	1	9101-9504	●	●	●
42	BOLT; FAN DRIVE M10X30 FLANGE	0-28081-030-0	08	1	9505-9606				●	●	●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28681-035-0	08	1	9607-0512				●	●	●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28651-035-0	08	1	0601-				●	●	●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9101-9504	●	●	●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9505-9709				●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9710-9805				●		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9806-				●	●	●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-410-0	02	1	9101-9504	●	●	●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-410-0	02	1	9505-9604				●		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9605-9709				●		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9710-0512				●	●	●
55	NUT; IDLE PULLEY RET (A) M10	0-91110-510-0	02	1	0601-				●	●	●
55	NUT; IDLE PULLEY RET (B) M24	9-09840-264-0	01	1	9101-9504	●	●	●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	9505-9709				●		●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	9710-0512				●	●	●
55	NUT; IDLE PULLEY RET (B) M24	0-91111-524-0	01	1	0601-				●	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	9101-9504	●	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	9505-9709				●		●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	9710-0603				●	●	●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	0-91510-524-0	01	1	0604-				●	●	●
57	PIPE; GREASE,IDLE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=1000	1-59461-277-0	03	1	9101-9504	●	●	●
57	PIPE; GREASE,IDLE PULLEY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=180	1-59461-674-0	01	1	9101-9504	●	●	●
57	PIPE; GREASE,IDLE PULLEY (A) L=180	1-59461-674-0	01	1	9505-9709				●		●
57	PIPE; GREASE,IDLE PULLEY (A) L=180	1-59461-674-0	01	1	9710-				●	●	●
57	PIPE; GREASE,IDLE PULLEY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=135	1-59461-675-0	01	1	9101-9504	●	●	●
57	PIPE; GREASE,IDLE PULLEY (A) L=135	1-59461-675-0	01	1	9505-9709				●		●
57	PIPE; GREASE,IDLE PULLEY (A) L=135	1-59461-675-0	01	1	9710-1503				●	●	●
57	PIPE; GREASE,IDLE PULLEY (A) L=135	1-59461-675-0	01	1	1504-					●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.1 T=6	9-83765-027-0	03	1	9101-9504	●	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.1 T=6	9-83765-027-0	02	1	9101-9504	●	●	●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	9505-9709				●		●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	9710-				●	●	●
59	CLIP; GREASE PIPE,FAN & IDLE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=13 L=20	9-09525-232-0	02	1	9101-9504	●	●	●
60	NIPPLE; SLEEVE,GREASE PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-83765-026-0	03	1	9101-9504	●	●	●
60	NIPPLE; SLEEVE,GREASE PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-83765-026-0	02	1	9101-9504	●	●	●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	9505-9709				●		●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	9710-				●	●	●
61	SCREW; CLIP,GREASE PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M5X10 W/LK WASHER	9-03910-510-0	02	1	9101-9504	●	●	●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21629-017-3	01	1	9101-9504	●	●	●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY BUS BODY MAKER KITAMURA<Y08>	1-21629-043-2	01	1	9101-9504	●	●	●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-034-4	01	1	9505-				●	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE (A) RH THREAD	1-09760-006-1	01	1	9101-9504	●	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE (B) LH THREAD	1-09760-007-1	01	1	9101-9504	●	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE (A) RH THREAD	1-09760-040-2	01	1	9505-				●	●	●
64	ROD ASM; END,SWING ARM,FAN DRIVE (B) LH THREAD	1-09760-041-2	01	1	9505-				●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (A) M12 LH THREAD	9-09840-247-0	01	1	9101-9504	●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (A) M12 LH THREAD	9-99111-462-0	01	1	9505-9909				●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (A) M12 LH THREAD	9-09840-247-1	01	1	9910-				●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (B) M12	9-99111-412-0	01	1	9101-9504	●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (B) M12	9-99111-412-0	01	1	9505-0512				●	●	●
65	NUT; LK,ADJ LINK,FAN PULLEY (B) M12	0-91111-512-0	01	1	0601-				●	●	●
72	COVER ASM; RAD MT643 A/T ALLISON(PR7) RAD CURTAIN<SK7>	1-21590-043-1	01	1	9101-9504	●	●	●
72	COVER ASM; RAD ISUZU M/T<X9A> RAD CURTAIN<SK7> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21590-043-1	01	1	9101-9504	●	●	●
110	SCREW; PULLEY M6X10	9-03490-610-0	02	1	9101-9504	●	●	●
239	SCREW; COVER MT643 A/T ALLISON(PR7) RAD CURTAIN<SK7> M6X16 W/LK WASHER	9-03910-616-0	04	1	9101-9201	●	●	●
239	SCREW; COVER ISUZU M/T<X9A> RAD CURTAIN<SK7> EXC. BUS BODY MAKER KITAMURA<Y08> M6X16 W/LK WASHER	9-03910-616-0	04	1	9101-9201	●	●	●
239	SCREW; COVER MT643 A/T ALLISON(PR7) RAD CURTAIN<SK7> M6X12 W/LK WASHER	9-03910-612-0	04	1	9202-9504	●	●	●
239	SCREW; COVER ISUZU M/T<X9A> RAD CURTAIN<SK7> EXC. BUS BODY MAKER KITAMURA<Y08> M6X12 W/LK WASHER	9-03910-612-0	04	1	9202-9504	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
