0-85 — AUTO TIMER; INJECTION PUMP (#43518) — 49 parça

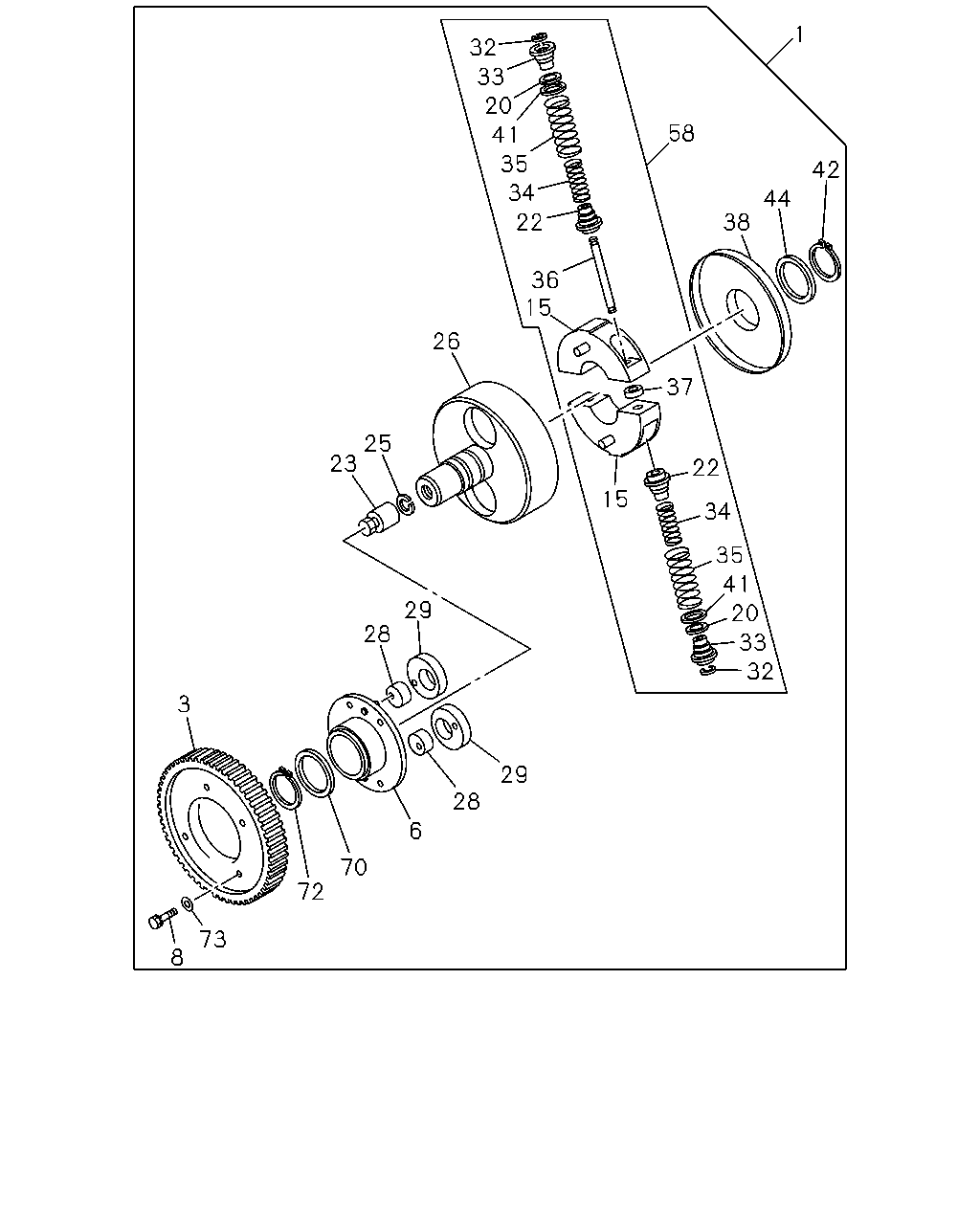

çizim 11129
1 32 33 20 58 41 35 42 34 44 22 38 36 15 26 37 25 23 22 15 34 35 41 29 20 28 33 32 3 29 28 6 70 72 73 8
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-287-0 01 1 -
3 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97214-465-0 01 1 -
6 FLANGE; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-409-0 01 1 -
8 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-410-0 04 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-402-0 02 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-97178-485-5 		1-15749-394-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97178-485-5 		1-15749-395-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97178-485-5 		1-15749-396-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97178-485-5 		1-15749-397-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-97178-485-5 		1-15749-495-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-97178-485-5 		1-15749-496-0 AR 1 -
22 SEAT; INNER SPRING,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97085-026-0 04 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15749-144-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15749-145-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-399-0 01 1 -
28 CAM; INNER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-94172-269-0 02 1 -
29 CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97085-030-0 02 1 -
32 RING; SNAP,SPRING SEAT,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15749-159-0 04 1 -
33 SEAT; OUTER SPRING,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97085-026-0 04 1 -
34 SPRING; TIMER,INNER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-404-0 04 1 -
35 SPRING; TIMER,OUTER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-405-0 04 1 -
36 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97085-029-0 02 1 -
37 SPACER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15749-402-0 02 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97085-037-0 01 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-97178-485-5 		1-15749-390-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97178-485-5 		1-15749-391-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97178-485-5 		1-15749-392-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97178-485-5 		1-15749-393-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-97178-485-5 		1-15749-493-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-97178-485-5 		1-15749-494-0 AR 1 -
42 RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15749-185-0 01 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.10 ASM PART: A = 8-97178-485-5 		8-97085-038-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.12 ASM PART: A = 8-97178-485-5 		8-97085-039-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.14 ASM PART: A = 8-97178-485-5 		8-97085-040-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.16 ASM PART: A = 8-97178-485-5 		8-97085-041-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.18 ASM PART: A = 8-97178-485-5 		8-97085-042-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=0.90 ASM PART: A = 8-97178-485-5 		8-97085-043-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=1.10 ASM PART: A = 8-97178-485-5 		8-97085-044-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=1.30 ASM PART: A = 8-97178-485-5 		8-97085-045-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=1.50 ASM PART: A = 8-97178-485-5 		8-97085-046-0 AR 1 -
44 SHIM; TIMER COVER,INJ PUMP
T=1.70 ASM PART: A = 8-97178-485-5 		8-97085-047-0 AR 1 -
58 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97223-400-0 01 1 -
70 SHIM; FLANGE,TIMER
T=0.20 ASM PART: A = 8-97178-485-5 		8-97085-032-0 AR 1 -
70 SHIM; FLANGE,TIMER
T=0.30 ASM PART: A = 8-97178-485-5 		8-97085-033-0 AR 1 -
70 SHIM; FLANGE,TIMER
T=0.40 ASM PART: A = 8-97178-485-5 		8-97085-034-0 AR 1 -
70 SHIM; FLANGE,TIMER
T=0.50 ASM PART: A = 8-97178-485-5 		8-97085-035-0 AR 1 -
70 SHIM; FLANGE,TIMER
T=0.80 ASM PART: A = 8-97178-485-5 		8-97085-036-0 AR 1 -
72 RING; SNAP,FLANGE TIMER
ASM PART: A = 8-97178-485-5 		1-15749-205-0 01 1 -
73 WASHER; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97211-797-0 04 1 -
