0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#43516) — 114 parça

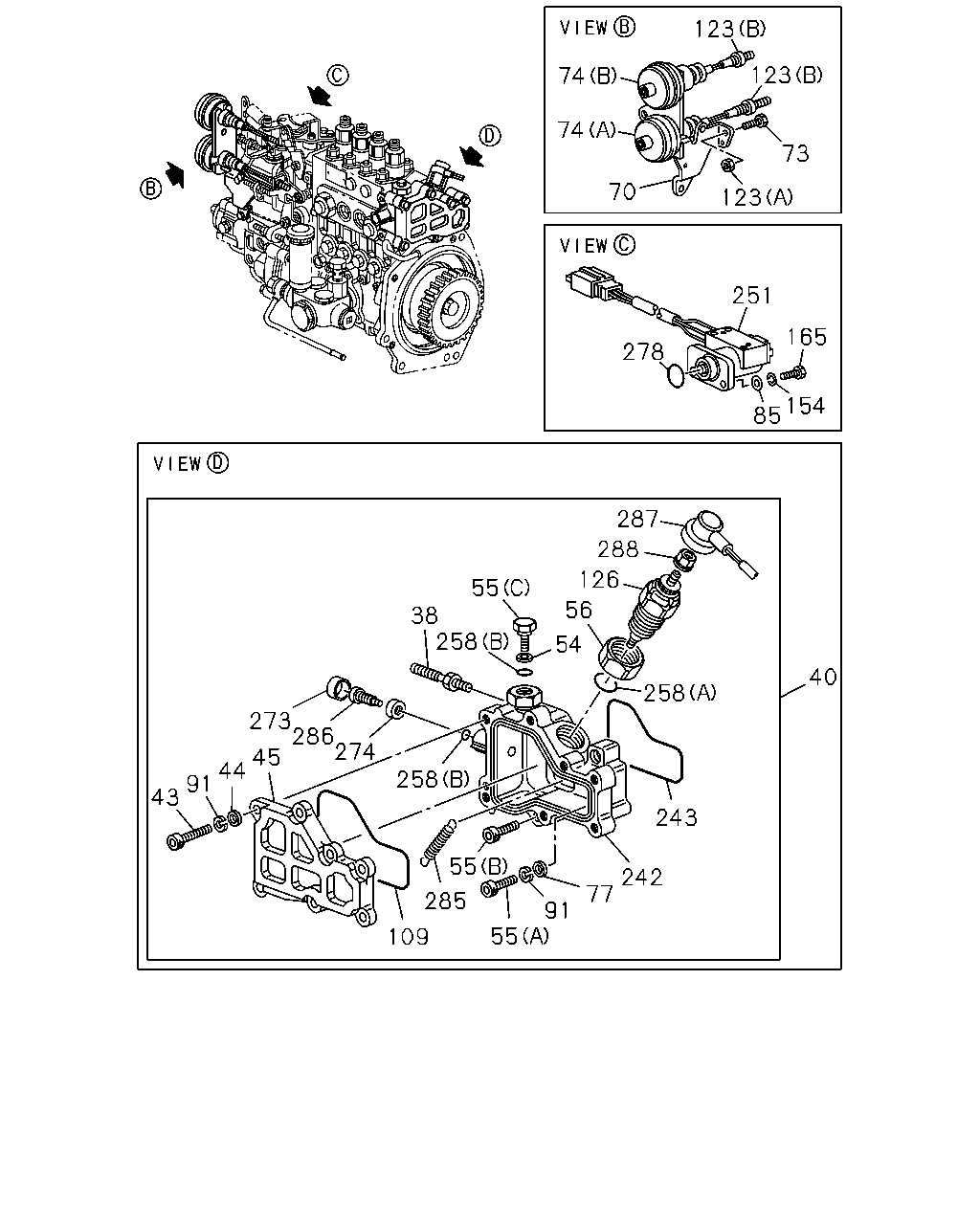

123 123 74 74 73 70 123 251 165 278 154 85 287 288 126 55 56 38 258 54 40 258 273 286 274 45 44 91 43 258 243 55 242 77 285 91 55 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	STUD; START ADVANCE TO HSG ASM PART: B = 8-97212-189-1	8-97212-809-0	01	1	-
40	ADVANCER ASM; STARTING,GOV ASM PART: B = 8-97212-189-1	8-97212-753-0	01	1	-
43	BOLT; COVER FIX,INJ PUMP ASM PART: B = 8-97212-189-1	8-97212-804-0	07	1	-
44	WASHER; COVER FIX,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-351-0	07	1	-
45	COVER; START ADVANCE,INJ PUMP ASM PART: B = 8-97212-189-1	8-97212-802-0	01	1	-
54	GASKET; HSG BOLT,START ADVANCE ASM PART: B = 8-97212-189-1	8-94227-602-0	01	1	-
55	BOLT; HSG,START ADVANCE (A) ASM PART: B = 8-97212-189-1	1-09054-030-0	02	1	-
55	BOLT; HSG,START ADVANCE (B) ASM PART: B = 8-97212-189-1	8-97212-804-0	02	1	-
55	BOLT; HSG,START ADVANCE (C) ASM PART: B = 8-97212-189-1	8-97212-805-1	01	1	-
56	NUT; START ADVANCE FIX ASM PART: B = 8-97212-189-1	8-97212-797-0	01	1	-
70	BRACKET; ACTUATOR,FAST IDLE,INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-139-0	01	1	-
73	BOLT; ACTUATOR ASM PART: B = 8-97212-189-1	1-15729-122-0	01	1	-
73	BOLT; ACTUATOR ASM PART: A = 8-97178-485-5	8-94121-627-0	02	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP ASM PART: A = 8-97178-485-5	8-97037-274-4	01	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP (A) ASM PART: B = 8-97212-189-1	8-97201-148-1	01	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP (B) ASM PART: B = 8-97212-189-1	8-97201-149-1	01	1	-
77	WASHER; LK,START ADVANCE FIX ASM PART: B = 8-97212-189-1	1-15619-351-0	04	1	-
85	WASHER; SENSOR ID=6.4 OD=14 ASM PART: B = 8-97212-189-1	9-09160-606-0	02	1	-
91	WASHER; LK ASM PART: B = 8-97212-189-1	8-94128-928-0	11	1	-
109	GASKET; COVER,START ADVANCE ASM PART: B = 8-97212-189-1	8-97212-783-0	01	1	-
123	NUT; ACTUATOR (A) ASM PART: B = 8-97212-189-1	9-81325-081-0	01	1	-
123	NUT; ACTUATOR (B), THA ASM PART: B = 8-97212-189-1	9-88410-525-0	04	1	-
126	SWITCH; SOLENOID,FUEL AID,GOV ASM PART: B = 8-97212-189-1	8-97212-787-1	01	1	-
154	WASHER; LK ASM PART: B = 8-97212-189-1	8-94128-928-0	02	1	-
165	BOLT; SENSOR ASM PART: B = 8-97212-189-1	1-09054-022-0	02	1	-
165	BOLT; SENSOR ASM PART: A = 8-97178-485-5	1-83579-438-0	02	1	-
242	HOUSING; START ADVANCE,INJ PUMP ASM PART: B = 8-97212-189-1	8-97212-781-1	01	1	-
243	GASKET; HSG ASM PART: B = 8-97212-189-1	8-97212-782-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5	8-97129-636-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-97212-189-1	8-97188-487-1	01	1	-
258	GASKET; HSG (A) ASM PART: B = 8-97212-189-1	8-97212-788-0	01	1	-
258	GASKET; HSG (B) ASM PART: B = 8-97212-189-1	8-97212-789-0	02	1	-
273	PLUG; HSG ASM PART: B = 8-97212-189-1	8-97212-808-1	01	1	-
274	NUT; HSG ASM PART: B = 8-97212-189-1	8-97212-798-0	01	1	-
278	GASKET; SENSOR ASM PART: B = 8-97212-189-1	1-15779-185-0	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-97178-485-5	8-97121-637-0	01	1	-
285	SPRING; START ADVANCE ASM PART: B = 8-97212-189-1	8-97212-786-0	01	1	-
286	SCREW; START ADVANCE ASM PART: B = 8-97212-189-1	8-97212-806-0	01	1	-
287	WIRE; START ADVANCE ASM PART: B = 8-97212-189-1	8-97212-807-0	01	1	-
288	NUT; SOLENOID ASM PART: B = 8-97212-189-1	8-94473-135-0	01	1	-

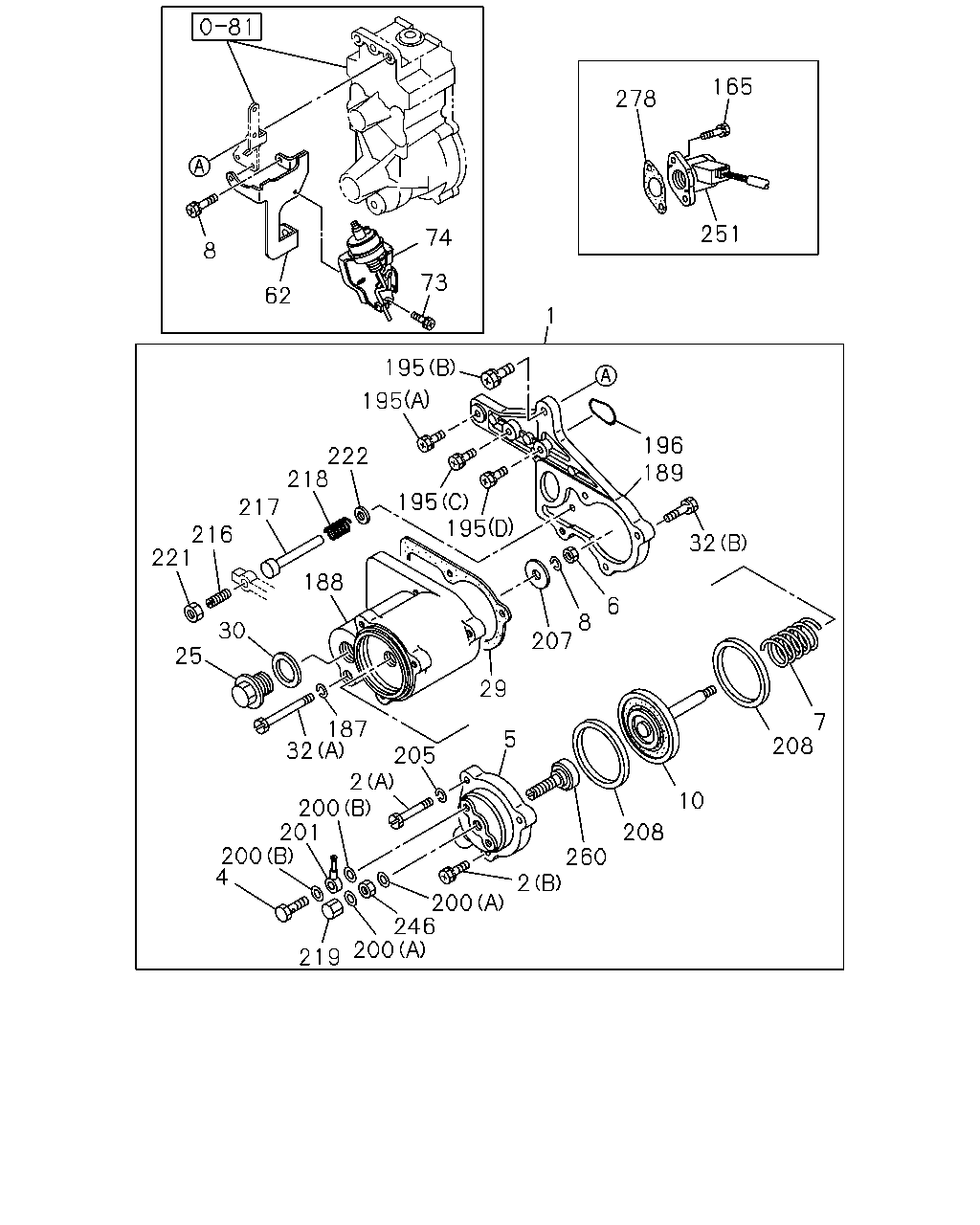

165 278 251 74 8 73 62 1 195 195 196 189 222 218 217 216 221 195 195 32 188 6 8 207 30 25 29 7 208 187 32 5 205 2 200 201 200 4 10 208 260 2 200 246 200 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-459-1	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5	1-15779-202-0	02	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B), M6X20 ASM PART: A = 8-97178-485-5	9-81325-187-0	01	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR THA ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-017-0	01	1	-
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-97178-485-5	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5	1-15712-004-0	01	1	-
25	PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-254-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-018-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-850-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: A = 8-97178-485-5	1-15729-251-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: A = 8-97178-485-5	9-88410-094-0	03	1	-
62	BRACKET; ACTUATOR ASM PART: A = 8-97178-485-5	8-97085-019-0	01	1	-
73	BOLT; ACTUATOR ASM PART: B = 8-97212-189-1	1-15729-122-0	01	1	-
73	BOLT; ACTUATOR ASM PART: A = 8-97178-485-5	8-94121-627-0	02	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP ASM PART: A = 8-97178-485-5	8-97037-274-4	01	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP (A) ASM PART: B = 8-97212-189-1	8-97201-148-1	01	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP (B) ASM PART: B = 8-97212-189-1	8-97201-149-1	01	1	-
165	BOLT; SENSOR ASM PART: B = 8-97212-189-1	1-09054-022-0	02	1	-
165	BOLT; SENSOR ASM PART: A = 8-97178-485-5	1-83579-438-0	02	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX ASM PART: A = 8-97178-485-5	8-94128-928-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-163-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97178-485-5	1-15729-851-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C), M6X25 ASM PART: A = 8-97178-485-5	1-15729-242-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M8X30 ASM PART: A = 8-97178-485-5	1-15729-243-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (D) ASM PART: A = 8-97178-485-5	9-81325-321-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5	9-88410-094-0	01	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-94424-220-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (B) ASM PART: A = 8-97178-485-5	1-15729-849-0	02	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5	1-15729-868-0	02	1	-
201	JOINT; HOSE ASM PART: A = 8-97178-485-5	8-94171-178-0	01	1	-
205	WASHER; LK,COVER FIX,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-97178-485-5	9-09150-506-0	02	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-248-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15779-129-0	02	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-94171-179-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97178-485-5	1-15729-245-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.5 ASM PART: A = 8-97178-485-5	8-94172-282-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97178-485-5	8-94172-283-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97178-485-5	8-94172-284-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97178-485-5	8-94172-285-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97178-485-5	8-94172-286-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97178-485-5	8-94172-287-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97178-485-5	8-94172-288-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97178-485-5	8-94172-289-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97178-485-5	8-94172-290-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97178-485-5	8-94172-291-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97178-485-5	8-94172-292-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97178-485-5	8-94172-293-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97178-485-5	8-94172-294-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97178-485-5	8-94172-295-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97178-485-5	8-94172-296-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97178-485-5	8-94172-297-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97178-485-5	8-94172-298-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97178-485-5	8-94443-435-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97178-485-5	8-94443-436-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97178-485-5	8-94443-437-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97178-485-5	8-94443-438-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97178-485-5	8-94443-439-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97178-485-5	8-94443-440-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97178-485-5	8-94443-441-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97178-485-5	8-94443-442-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97178-485-5	8-94443-443-0	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-94171-176-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR CAP NUT ASM PART: A = 8-97178-485-5	1-15729-093-0	01	1	-
221	NUT; ADJ SCREW LOCK,BOOST COMPENSATOR THA ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
222	WASHER; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-83539-045-0	01	1	-
246	NUT; SET BOLT THA ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5	8-97129-636-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-97212-189-1	8-97188-487-1	01	1	-
260	SCREW; DIAPHRAGM ASM PART: A = 8-97178-485-5	1-15729-386-0	01	1	-
278	GASKET; SENSOR ASM PART: B = 8-97212-189-1	1-15779-185-0	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-97178-485-5	8-97121-637-0	01	1	-
