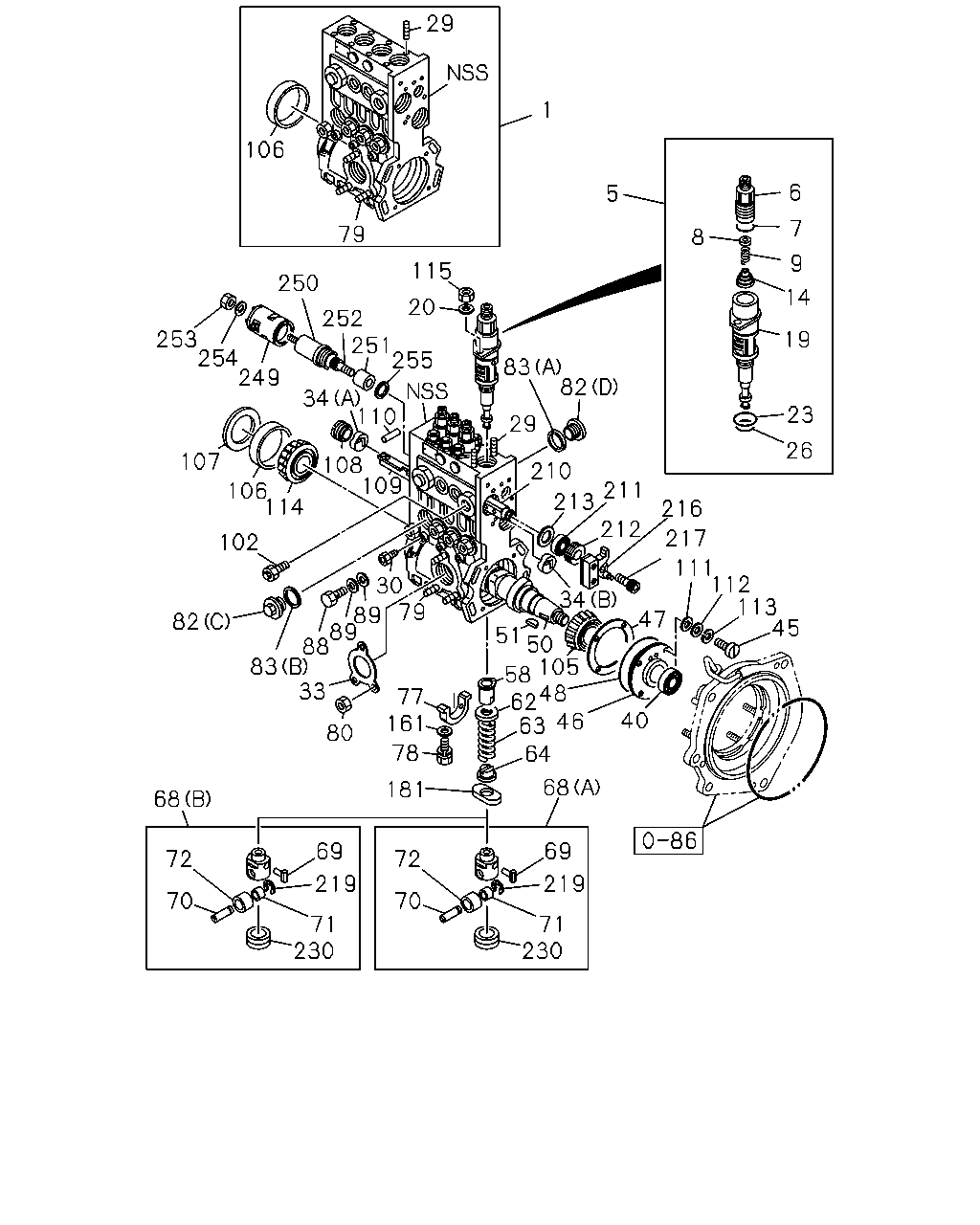

0-80 — INJECTION PUMP (#43514) — 423 parça

29 1 106 6 5 7 79 8 9 115 250 14 20 252 251 255 253 254 249 19 83 82 110 34 23 29 26 107 108 109 210 211 213 212 106 114 216 217 102 34 111 112 113 45 30 79 89 89 88 83 33 47 82 51 50 105 58 48 62 63 46 77 161 40 80 78 64 68 181 68 69 69 72 72 219 219 70 70 71 230 71 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97212-189-1	8-97201-040-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97178-485-5	8-97214-452-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 8-97212-189-1	8-97202-331-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-189-1	1-15644-018-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97354-038-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97212-189-1	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97178-485-5	8-97354-039-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-189-1	1-15639-104-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97178-485-5	1-15643-012-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97212-189-1	8-97202-333-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-406-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97212-189-1	1-15641-043-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 8-97212-189-1	8-97202-332-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-453-0	04	1	-
20	WASHER; PLUNGER BARREL ASM PART: B = 8-97212-189-1	1-15639-020-0	08	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 8-97212-189-1	1-15629-131-0	04	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 8-97212-189-1	1-15629-132-0	04	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 8-97212-189-1	1-15619-426-0	08	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: B = 8-97212-189-1	9-81215-130-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: B = 8-97212-189-1	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: B = 8-97212-189-1	9-81215-123-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-084-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97178-485-5	8-97084-999-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97212-189-1	8-97201-049-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 8-97212-189-1	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 8-97212-189-1	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 8-97212-189-1	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 8-97212-189-1	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 8-97212-189-1	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 8-97212-189-1	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 8-97212-189-1	1-15639-172-0	AR	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: A = 8-97178-485-5	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: A = 8-97178-485-5	8-97085-113-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 8-97212-189-1	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-047-0	01	1	-0211
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-454-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-009-0	01	1	-0211
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-189-1	8-97331-762-0	01	1	0212-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	1-15635-006-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97178-485-5	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-020-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	1-15639-022-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-022-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-125-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97178-485-5	1-15612-080-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 8-97212-189-1	1-15622-014-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 8-97212-189-1	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-134-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-431-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-123-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-122-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-133-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-430-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-121-0	04	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-433-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 8-97212-189-1	1-09054-030-0	04	1	0212-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-434-0	04	1	-0211
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97178-485-5	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97212-189-1	1-15619-436-0	04	1	-
82	PLUG; HSG,INJ PUMP (D) ASM PART: B = 8-97212-189-1	1-15619-437-0	05	1	-
83	GASKET; HSG PLUG (A) ASM PART: B = 8-97212-189-1	1-15619-102-0	05	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 8-97212-189-1	5-15729-021-0	04	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 8-97212-189-1	1-15639-009-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97178-485-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-290-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-321-0	01	1	-0211
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97178-485-5	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-97178-485-5	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-159-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97178-485-5	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97178-485-5	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97178-485-5	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 8-97212-189-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 8-97212-189-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 8-97212-189-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 8-97212-189-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97178-485-5	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97178-485-5	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97178-485-5	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97178-485-5	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97178-485-5	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97178-485-5	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 8-97212-189-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: B = 8-97212-189-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97178-485-5	8-97121-614-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-046-1	01	1	-0211
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	8-97331-759-0	01	1	0212-
110	PIN; CONT RACK,INJ PUMP ASM PART: B = 8-97212-189-1	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 8-97178-485-5	8-97085-001-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: B = 8-97212-189-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-97178-485-5	8-97084-989-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-337-0	08	1	-
161	GASKET; SCREW,CENTER BRG THA ASM PART: B = 8-97212-189-1	5-15729-099-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97178-485-5	9-81225-043-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: B = 8-97212-189-1	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: B = 8-97212-189-1	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: B = 8-97212-189-1	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: B = 8-97212-189-1	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: B = 8-97212-189-1	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: B = 8-97212-189-1	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: B = 8-97212-189-1	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: B = 8-97212-189-1	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: B = 8-97212-189-1	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: B = 8-97212-189-1	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: B = 8-97212-189-1	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: B = 8-97212-189-1	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: B = 8-97212-189-1	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: B = 8-97212-189-1	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: B = 8-97212-189-1	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: B = 8-97212-189-1	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: B = 8-97212-189-1	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: B = 8-97212-189-1	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: B = 8-97212-189-1	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: B = 8-97212-189-1	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: B = 8-97212-189-1	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: B = 8-97212-189-1	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: B = 8-97212-189-1	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: B = 8-97212-189-1	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: B = 8-97212-189-1	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: B = 8-97212-189-1	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: B = 8-97212-189-1	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: B = 8-97212-189-1	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: B = 8-97212-189-1	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: B = 8-97212-189-1	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: B = 8-97212-189-1	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: B = 8-97212-189-1	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: B = 8-97212-189-1	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: B = 8-97212-189-1	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: B = 8-97212-189-1	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: B = 8-97212-189-1	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: B = 8-97212-189-1	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: B = 8-97212-189-1	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: B = 8-97212-189-1	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: B = 8-97212-189-1	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: B = 8-97212-189-1	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: B = 8-97212-189-1	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: B = 8-97212-189-1	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: B = 8-97212-189-1	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: B = 8-97212-189-1	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: B = 8-97212-189-1	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: B = 8-97212-189-1	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: B = 8-97212-189-1	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: B = 8-97212-189-1	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: B = 8-97212-189-1	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: B = 8-97212-189-1	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: B = 8-97212-189-1	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: B = 8-97212-189-1	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: B = 8-97212-189-1	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: B = 8-97212-189-1	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: B = 8-97212-189-1	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: B = 8-97212-189-1	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: B = 8-97212-189-1	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: B = 8-97212-189-1	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: B = 8-97212-189-1	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97178-485-5	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97178-485-5	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97178-485-5	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97178-485-5	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97178-485-5	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97178-485-5	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97178-485-5	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97178-485-5	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97178-485-5	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97178-485-5	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97178-485-5	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97178-485-5	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97178-485-5	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97178-485-5	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97178-485-5	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97178-485-5	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97178-485-5	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97178-485-5	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97178-485-5	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97178-485-5	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97178-485-5	9-81235-045-0	AR	1	-
210	ROD; CONT ASM PART: B = 8-97212-189-1	8-97201-044-0	01	1	-
211	BEARING; CONT ROD ASM PART: B = 8-97212-189-1	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: B = 8-97212-189-1	1-15619-330-0	01	1	-
213	WASHER; CONT ROD ASM PART: B = 8-97212-189-1	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: B = 8-97212-189-1	8-97201-045-1	01	1	-
217	BOLT; CONT ROD ASM PART: B = 8-97212-189-1	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: B = 8-97212-189-1	1-15619-432-0	04	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-97178-485-5	1-15629-124-0	04	1	-
230	PLUG; TAPPET ASM PART: B = 8-97212-189-1	1-15619-435-0	04	1	-
249	YOKE ASM; INJ PUMP STAMP 2 ASM PART: B = 8-97212-189-1	8-97202-337-0	01	1	-
249	YOKE ASM; INJ PUMP STAMP 0 ASM PART: B = 8-97212-189-1	8-97202-338-0	01	1	-
249	YOKE ASM; INJ PUMP STAMP 1 ASM PART: B = 8-97212-189-1	8-97202-339-0	01	1	-
249	YOKE ASM; INJ PUMP STAMP 3 ASM PART: B = 8-97212-189-1	8-97202-340-0	01	1	-
249	YOKE ASM; INJ PUMP STAMP 4 ASM PART: B = 8-97212-189-1	8-97202-341-0	01	1	-
250	SHAFT; YOKE,INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-054-0	01	1	-
251	YOKE; SHAFT ASM PART: B = 8-97212-189-1	8-97202-336-0	01	1	-
252	BOLT; YOKE ASM PART: B = 8-97212-189-1	8-97201-053-0	01	1	-
253	NUT; YOKE THA ASM PART: B = 8-97212-189-1	9-88410-525-0	01	1	-
254	WASHER; YOKE ID=6.4 ASM PART: B = 8-97212-189-1	9-09160-506-0	01	1	-
255	GASKET; YOKE ASM PART: B = 8-97212-189-1	8-97201-051-0	01	1	-

82 176 127 6 7 8 9 10 126 102 103 127 14 82 1 126 79 106 74 73 148 167 109 1 75 50 106 159 107 33 79 177 80 114 162 162 49 51 178 89 89 88 58 107 77 105 161 160 62 63 45 113 112 111 64 68 181 46 69 70 71 219 48 72 48 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 8-97212-189-1	8-97201-040-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97178-485-5	8-97214-452-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-189-1	1-15644-018-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97354-038-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-97212-189-1	1-09623-052-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97178-485-5	8-97354-039-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97212-189-1	1-15639-104-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97084-987-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97178-485-5	1-15643-012-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97212-189-1	8-97202-333-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97178-485-5	9-81245-018-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-406-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97212-189-1	1-15641-043-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-97085-000-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97178-485-5	8-97084-999-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 8-97212-189-1	8-97201-049-0	01	1	-
48	GASKET; FRT COVER TO HSG (B) ASM PART: A = 8-97178-485-5	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG (A) ASM PART: A = 8-97178-485-5	8-97085-113-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 8-97212-189-1	9-81215-128-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97178-485-5	8-97084-990-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-047-0	01	1	-0211
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-454-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-009-0	01	1	-0211
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97212-189-1	8-97331-762-0	01	1	0212-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	1-15635-006-0	04	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97178-485-5	9-81231-523-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-020-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	1-15639-022-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15634-007-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-022-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-125-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97212-189-1	1-15634-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97178-485-5	1-15612-080-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 8-97212-189-1	1-15622-014-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 8-97212-189-1	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-018-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-134-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-431-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-123-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-122-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15629-133-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-430-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-121-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97178-485-5	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-109-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97178-485-5	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-264-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-433-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97178-485-5	1-15619-160-0	04	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97212-189-1	1-15619-436-0	04	1	-
82	PLUG; HSG,INJ PUMP (D) ASM PART: B = 8-97212-189-1	1-15619-437-0	05	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 8-97212-189-1	1-15639-009-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97178-485-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-290-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97212-189-1	1-15619-321-0	01	1	-0211
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97178-485-5	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97178-485-5	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-97178-485-5	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 8-97178-485-5	1-15619-159-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97178-485-5	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97178-485-5	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97178-485-5	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: B = 8-97212-189-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: B = 8-97212-189-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: B = 8-97212-189-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: B = 8-97212-189-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97178-485-5	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97178-485-5	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97178-485-5	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97178-485-5	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97178-485-5	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97178-485-5	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: B = 8-97212-189-1	9-88410-441-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97178-485-5	8-97121-614-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	8-97201-046-1	01	1	-0211
109	RACK; CONT,INJ PUMP ASM PART: B = 8-97212-189-1	8-97331-759-0	01	1	0212-
111	GASKET; FRT COVER FIX ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 8-97178-485-5	8-97085-001-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: B = 8-97212-189-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 8-97178-485-5, B = 8-97212-189-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-97178-485-5	8-97084-989-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-97212-189-1	9-81225-068-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: A = 8-97178-485-5	1-15619-190-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: A = 8-97178-485-5	1-15619-190-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97178-485-5	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-004-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97178-485-5	1-15629-017-0	04	1	-
161	GASKET; SCREW,CENTER BRG THA ASM PART: B = 8-97212-189-1	5-15729-099-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97178-485-5	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97178-485-5	8-97084-991-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97178-485-5	8-97084-992-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97178-485-5	8-97084-993-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97178-485-5	8-97084-994-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97178-485-5	8-97084-995-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97178-485-5	8-97084-996-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97178-485-5	8-97084-997-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97178-485-5	8-97084-998-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97178-485-5	8-97121-620-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97178-485-5	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97178-485-5	1-15649-034-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97178-485-5	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97178-485-5	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: B = 8-97212-189-1	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: B = 8-97212-189-1	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: B = 8-97212-189-1	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: B = 8-97212-189-1	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: B = 8-97212-189-1	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: B = 8-97212-189-1	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: B = 8-97212-189-1	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: B = 8-97212-189-1	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: B = 8-97212-189-1	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: B = 8-97212-189-1	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: B = 8-97212-189-1	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: B = 8-97212-189-1	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: B = 8-97212-189-1	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: B = 8-97212-189-1	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: B = 8-97212-189-1	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: B = 8-97212-189-1	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: B = 8-97212-189-1	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: B = 8-97212-189-1	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: B = 8-97212-189-1	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: B = 8-97212-189-1	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: B = 8-97212-189-1	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: B = 8-97212-189-1	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: B = 8-97212-189-1	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: B = 8-97212-189-1	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: B = 8-97212-189-1	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: B = 8-97212-189-1	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: B = 8-97212-189-1	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: B = 8-97212-189-1	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: B = 8-97212-189-1	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: B = 8-97212-189-1	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: B = 8-97212-189-1	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: B = 8-97212-189-1	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: B = 8-97212-189-1	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: B = 8-97212-189-1	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: B = 8-97212-189-1	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: B = 8-97212-189-1	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: B = 8-97212-189-1	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: B = 8-97212-189-1	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: B = 8-97212-189-1	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: B = 8-97212-189-1	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: B = 8-97212-189-1	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: B = 8-97212-189-1	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: B = 8-97212-189-1	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: B = 8-97212-189-1	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: B = 8-97212-189-1	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: B = 8-97212-189-1	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: B = 8-97212-189-1	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: B = 8-97212-189-1	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: B = 8-97212-189-1	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: B = 8-97212-189-1	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: B = 8-97212-189-1	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: B = 8-97212-189-1	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: B = 8-97212-189-1	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: B = 8-97212-189-1	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: B = 8-97212-189-1	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: B = 8-97212-189-1	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: B = 8-97212-189-1	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: B = 8-97212-189-1	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: B = 8-97212-189-1	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: B = 8-97212-189-1	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97178-485-5	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97178-485-5	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97178-485-5	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97178-485-5	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97178-485-5	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97178-485-5	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97178-485-5	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97178-485-5	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97178-485-5	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97178-485-5	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97178-485-5	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97178-485-5	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97178-485-5	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97178-485-5	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97178-485-5	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97178-485-5	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97178-485-5	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97178-485-5	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97178-485-5	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97178-485-5	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97178-485-5	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97178-485-5	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97178-485-5	9-81235-045-0	AR	1	-
219	RING; SNAP,ROLLER ASM PART: B = 8-97212-189-1	1-15619-432-0	04	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-97178-485-5	1-15629-124-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
