0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43510) — 83 parça

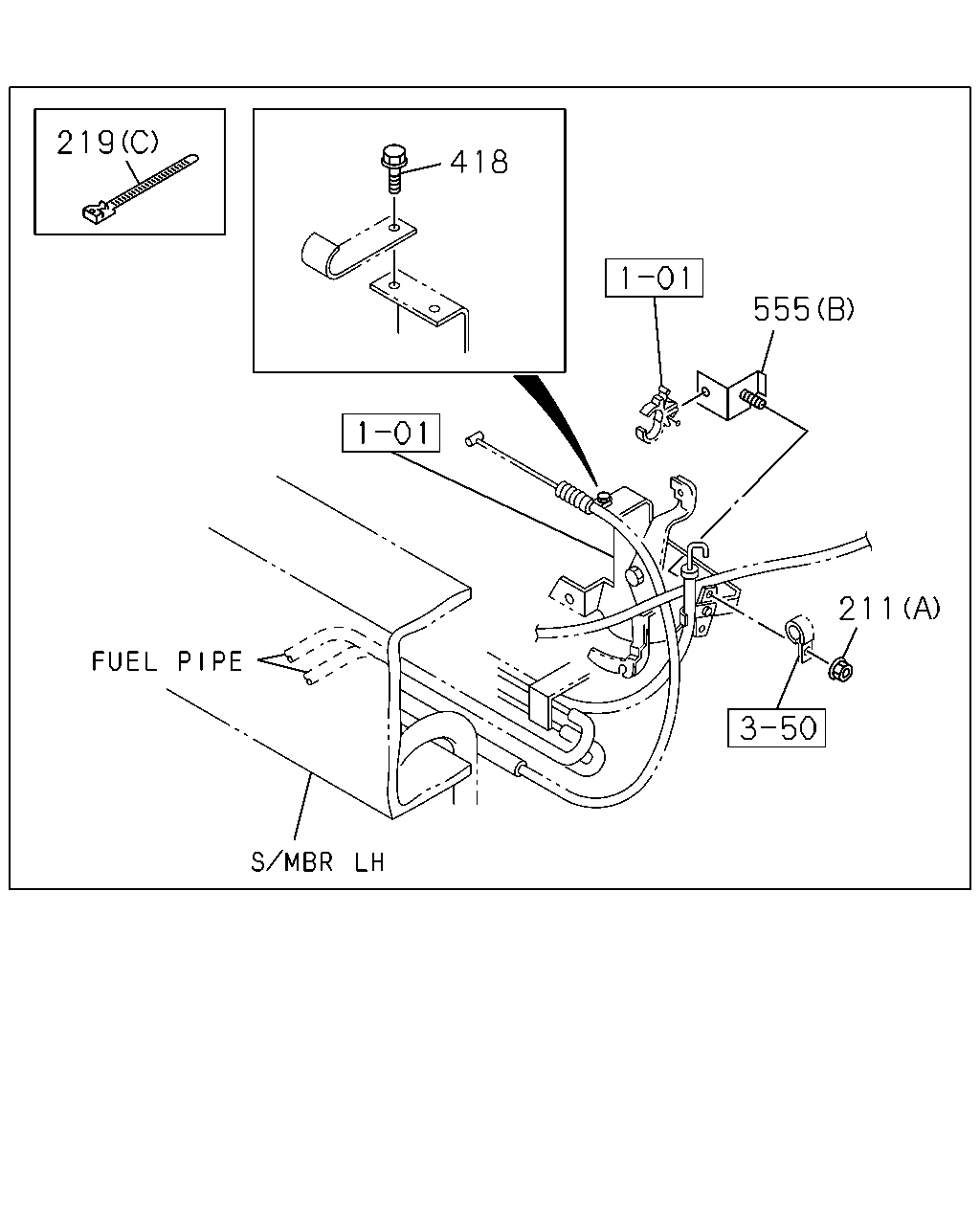

çizim 10374
219 418 555 211
BalonParca AdiParca NoAdetTipApplied Date A B
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0010- ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0009-0009 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=9 & 10.5 		8-97041-091-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(D) T=4.5 & 9 		5-09709-023-0 01 1 0009- ● ●
418 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0009- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0009- ● ●

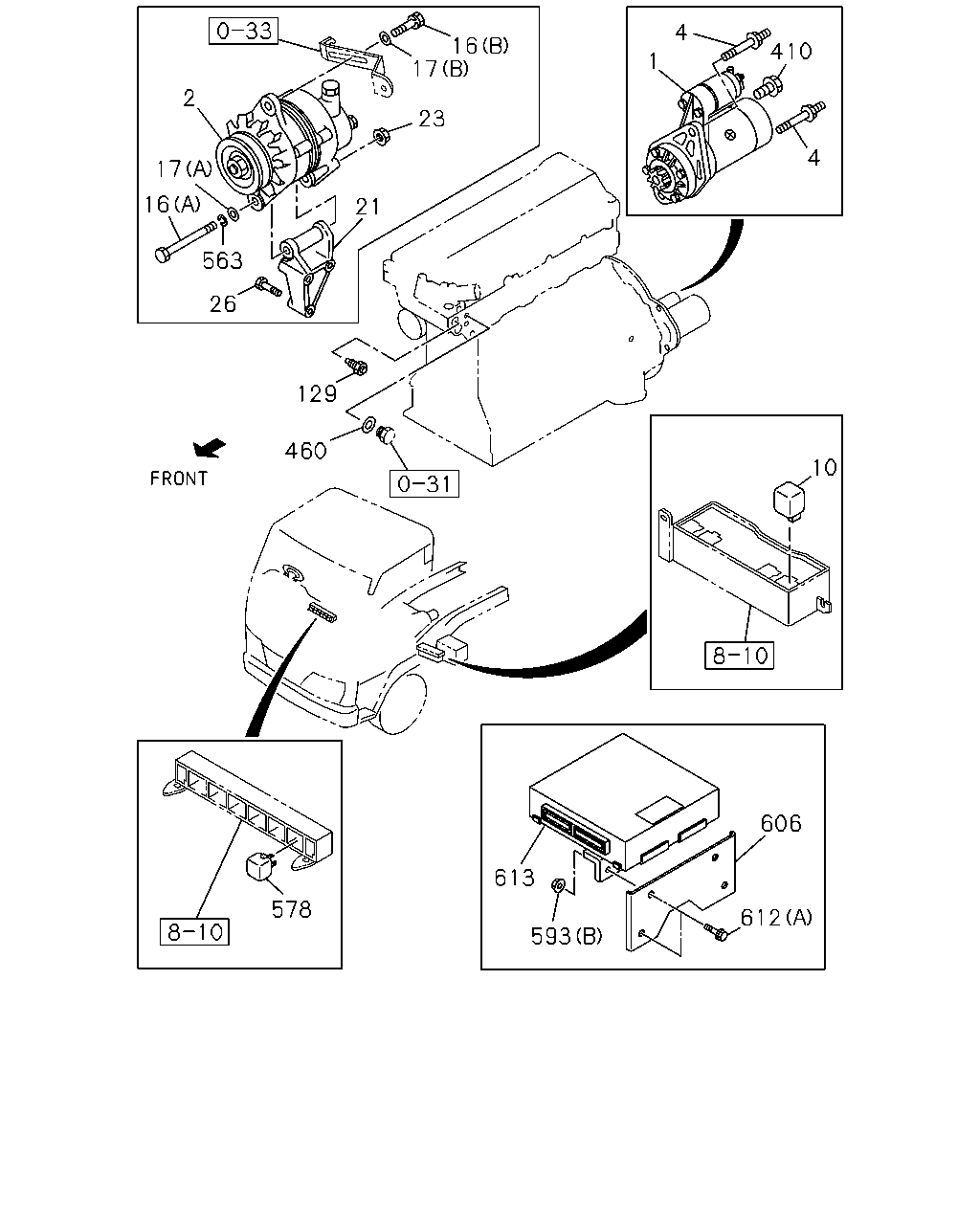

çizim 48700
4 16 17 410 1 2 23 4 17 16 21 563 26 129 460 10 606 613 578 612 593
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TURBOCHARGER<K51> 24V 4.0KW THA 		8-97920-966-1 01 1 0009- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97911-590-2 01 1 0009- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 35A THA 		8-97920-935-2 01 1 0009- ●
4 BOLT; STARTER
TURBOCHARGER<K51> M10X15,M14X75 L=103 		8-97212-602-0 02 1 0009- ● ●
10 RELAY; STARTER
24V 50A 		8-97173-947-0 01 1 0009- ● ●
16 BOLT; GEN
TURBOCHARGER<K51> (B) M8X32 W/LK WASHER 		0-50040-832-0 01 1 0009- ● ●
16 BOLT; GEN
TURBOCHARGER<K51> (A) M10X115 THA 		8-97916-754-0 01 1 0009- ● ●
17 WASHER; PL,GEN
TURBOCHARGER<K51> (B) ID=8.4 OD=18 		9-09160-608-0 01 1 0009- ● ●
17 WASHER; PL,GEN
TURBOCHARGER<K51> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 0009- ● ●
21 BRACKET; GEN
THA 		8-97916-345-0 01 1 0009- ● ●
23 NUT; GEN
TURBOCHARGER<K51> M10 FLANGE 		0-91150-210-0 01 1 0009- ● ●
26 BOLT; GEN BRKT
M10X50 FLANGE 		0-28181-050-0 01 1 0009- ● ●
26 BOLT; GEN BRKT
M10X70 FLANGE 		0-28181-070-0 02 1 0009- ● ●
129 SENSOR; GLOW PLUG,THERMO
UNISIA JECS 		8-97167-008-0 01 1 0009- ● ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0009- ● ●
410 BOLT; BRKT,GRAND
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0009- ● ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 0009- ● ●
563 WASHER; SPRING
TURBOCHARGER<K51> ID=10.2 		9-09150-510-0 01 1 0009- ● ●
578 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0009- ● ●
593 NUT; BRKT
TURBOCHARGER<K51> (B) M6 FLANGE 		0-91150-106-0 01 1 0009- ● ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
606 BRACKET; CONT UNIT
TURBOCHARGER<K51> 		8-97187-422-1 01 1 0009- ● ●
612 BOLT; BRKT
TURBOCHARGER<K51> (A) M6X12 FLANGE 		0-28080-612-0 02 1 0009- ● ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0009- ● ●
613 CONTROL UNIT; ENG 8-97187-466-5 01 1 0009- ●
613 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97223-182-1 01 1 0009- ●
çizim 48735
636 553 492 211 593 219 733 555 612 219
BalonParca AdiParca NoAdetTipApplied Date A B
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0010- ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0009-0009 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=9 & 10.5 		8-97041-091-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(D) T=4.5 & 9 		5-09709-023-0 01 1 0009- ● ●
492 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0009- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0009- ●
492 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97113-497-1 01 1 0009- ●
553 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0009- ●
553 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0009- ●
553 MOTOR ASM; ENG STOP 8-97255-071-0 01 1 0009- ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0009- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0009- ● ●
593 NUT; BRKT
TURBOCHARGER<K51> (B) M6 FLANGE 		0-91150-106-0 01 1 0009- ● ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
612 BOLT; BRKT
TURBOCHARGER<K51> (A) M6X12 FLANGE 		0-28080-612-0 02 1 0009- ● ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0009- ● ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ●
733 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0009- ● ●

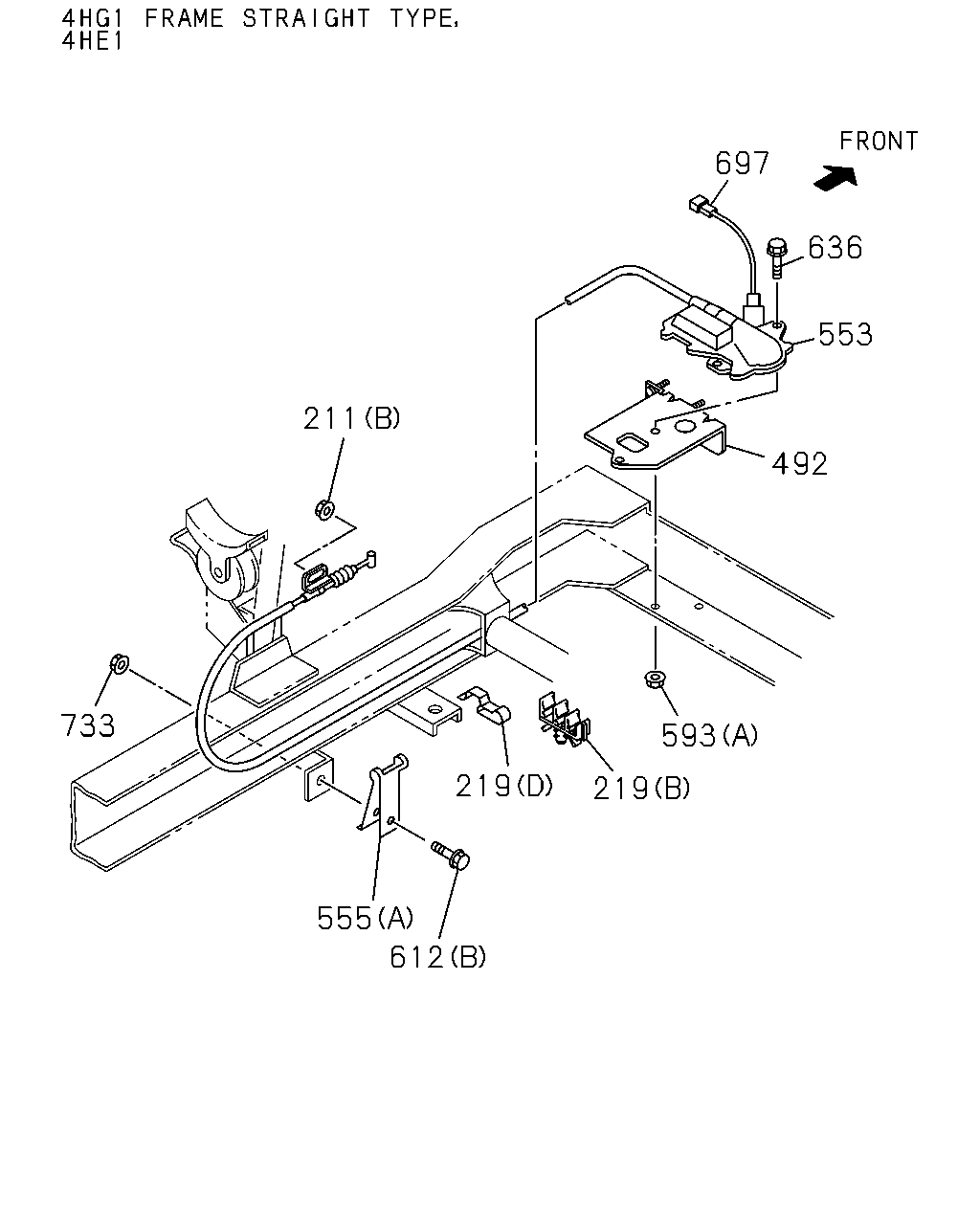

çizim 50213
697 636 553 211 492 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0010- ●
211 NUT; CABLE FIX
(B) M6 FLANGE 		0-91150-106-0 01 1 0009-0009 ●
211 NUT; CABLE FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=9 & 10.5 		8-97041-091-0 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(C) L=140 		5-09707-031-1 01 1 0009- ●
219 CLIP; ENG STOP CABLE
(D) T=4.5 & 9 		5-09709-023-0 01 1 0009- ● ●
492 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0009- ●
492 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0009- ●
492 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97113-497-1 01 1 0009- ●
553 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0009- ●
553 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0009- ●
553 MOTOR ASM; ENG STOP 8-97255-071-0 01 1 0009- ●
555 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0009- ●
555 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0009- ● ●
593 NUT; BRKT
TURBOCHARGER<K51> (B) M6 FLANGE 		0-91150-106-0 01 1 0009- ● ●
593 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0009- ● ●
612 BOLT; BRKT
TURBOCHARGER<K51> (A) M6X12 FLANGE 		0-28080-612-0 02 1 0009- ● ●
612 BOLT; BRKT
(B) M8X20 		1-09981-468-0 01 1 0009- ● ●
636 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ●
697 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0009- ●
697 HARNESS; CABLE 8-97126-038-0 01 1 0009- ●
733 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0009- ● ●
