◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#4351) — 94 parça
çizim 5008
132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
132 HOSE; WATER PIPE 1-13721-094-0 01 1 9101-9504 ● ● ●

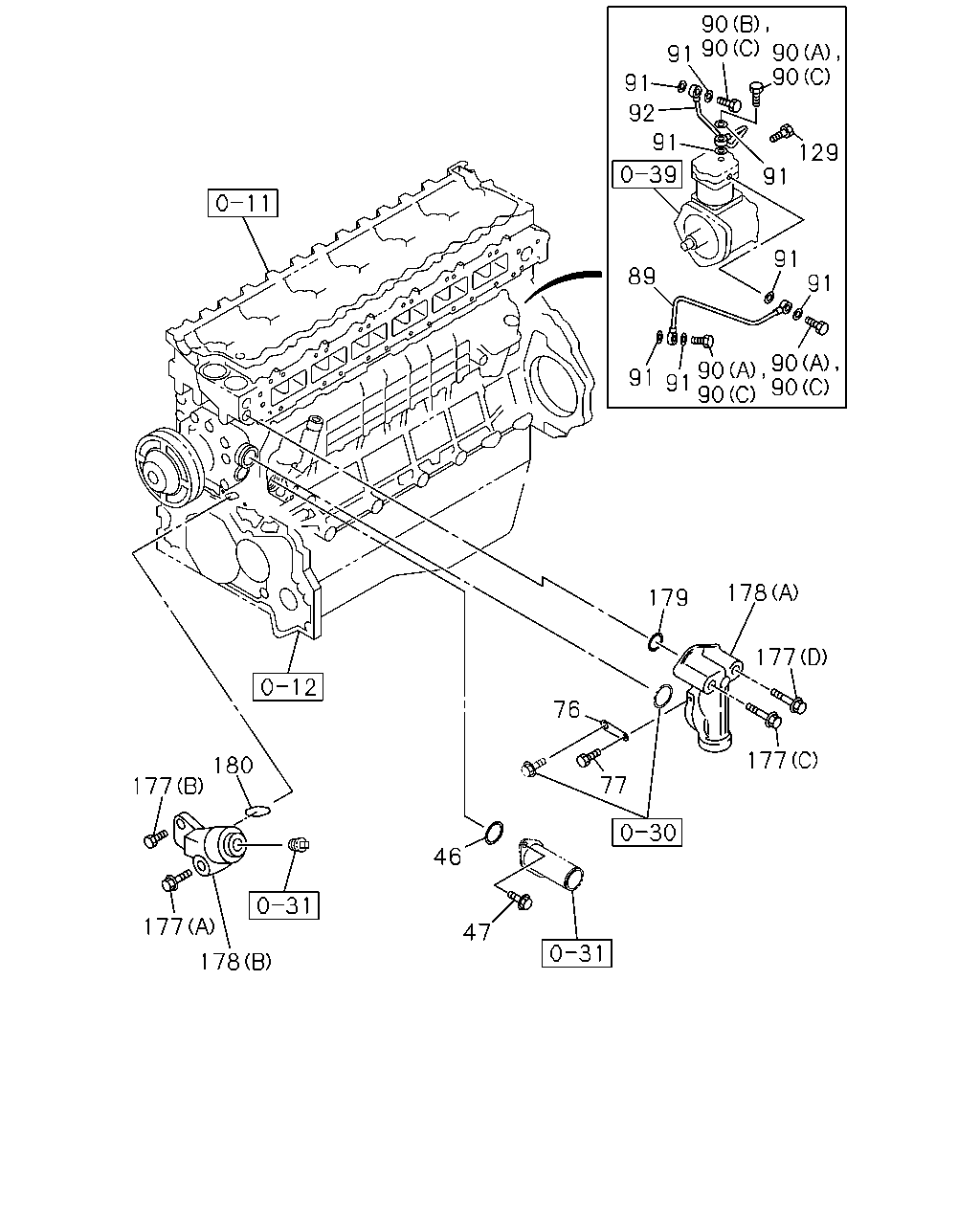

çizim 36879
90 90 90 90 91 91 92 91 129 91 91 89 91 90 90 90 90 91 91 178 179 177 76 177 180 77 177 46 177 47 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 9505-9702 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 9703-9709 ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 9710- ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X16 FLANGE 		0-28080-816-0 01 1 9505-9611 ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28080-845-0 01 1 9612-9702 ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28080-845-0 01 1 9703-9709 ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28080-845-0 01 1 9710-0512 ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X40 FLANGE 		0-28080-840-0 01 1 9505-9611 ●
47 BOLT; DUCT,TO OIL COOLER
M8X25 FLANGE 		0-28680-825-0 01 1 9612-9702 ●
47 BOLT; DUCT,TO OIL COOLER
M8X25 FLANGE 		0-28680-825-0 01 1 9703-9709 ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X25 FLANGE 		0-28680-825-0 01 1 9710-0512 ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9505-9702 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9703-9709 ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9710-9711 ● ● ●
76 BRACKET; WATER DUCT,PUMP
ISUZU M/T<X9A> 		8-94394-784-0 01 1 9711-9805 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9711-9805 ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9806- ● ● ●
76 BRACKET; WATER DUCT,PUMP
LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) 		8-94395-298-1 01 1 9711-9805 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9505-9702 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9703-9709 ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9710-9805 ● ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9907-0004 ●
77 BOLT; BRKT,WATER DUCT
EXC. EURO2 SPECIFICATION<THN> M8X50 FLANGE 		0-28080-850-0 01 1 9907-0004 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0005-0203 ●
77 BOLT; BRKT,WATER DUCT
EMISSION PARTS<TCA> M8X50 FLANGE 		0-28080-850-0 01 1 0005-0203 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0204-0512 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9806-9906 ● ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9907-0203 ●
77 BOLT; BRKT,WATER DUCT
EURO2 SPECIFICATION<THN> M8X50 FLANGE 		0-28080-850-0 02 1 9907-0203 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 0204-0512 ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 02 1 0601- ● ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY<E1Q> 		8-94395-178-1 01 1 9505-0203 ●
89 PIPE; WATER,AIR CMPR,IN 8-94395-178-1 01 1 0204- ●
89 PIPE; WATER,AIR CMPR,IN 8-94395-452-2 01 1 9703-9709 ●
89 PIPE; WATER,AIR CMPR,IN 8-94395-452-2 01 1 9710- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q> (C) M14X27 EYE-BOLT 		1-09675-193-0 04 1 9505-0203 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(C) M14X27 EYE-BOLT 		1-09675-193-0 04 1 0204- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 9703-9709 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 9710- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X25 		5-09675-028-2 01 1 9703-9709 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X25 		5-09675-028-2 01 1 9710- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY<E1Q> ID=14.2 OD=19.2 		1-09630-085-0 08 1 9505-0203 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0204-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 08 1 1401- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 06 1 9703-9709 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 06 1 9710-1312 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1401- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=16.2 		1-09630-086-0 02 1 9703-9709 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=16.2 		1-09630-086-0 02 1 9710- ● ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY<E1Q> 		8-94395-742-1 01 1 9505-0203 ●
92 PIPE; WATER,AIR CMPR,OUT 8-94395-742-1 01 1 0204- ●
92 PIPE; WATER,AIR CMPR,OUT 8-94391-530-0 01 1 9703-9703 ●
92 PIPE; WATER,AIR CMPR,OUT 8-94391-659-0 01 1 9703-9709 ●
92 PIPE; WATER,AIR CMPR,OUT 8-94391-659-0 01 1 9710- ● ●
129 BOLT; WATER PIPE TO BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9703-9709 ●
129 BOLT; WATER PIPE TO BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9710-0512 ● ●
129 BOLT; WATER PIPE TO BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
177 BOLT; WATER DUCT
(B) M8X22 FLANGE 		0-28080-822-0 01 1 9505-9702 ●
177 BOLT; WATER DUCT
(B) M8X22 FLANGE 		0-28080-822-0 01 1 9703-9709 ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9710-0512 ● ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9505-9702 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9703-9709 ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9710-9805 ● ● ●
177 BOLT; WATER DUCT
(C) M8X79 FLANGE 		8-94311-617-1 01 1 9505-9511 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9806- ● ● ●
177 BOLT; WATER DUCT
(C) M8X79 FLANGE 		8-94311-617-1 01 1 9512-9611 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9612-9702 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9703-9709 ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9710-9805 ● ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-0 01 1 9505-9701 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9806-0512 ● ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-0 01 1 9702-9702 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-0 01 1 9703-9709 ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 9710- ● ● ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-2 01 1 9505-9702 ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-2 01 1 9703-9709 ● ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 9710- ● ● ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-283-0 01 1 9511-9512 ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 9601-9702 ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 9703-9709 ● ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 9710- ● ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 9505-9702 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 9703-9709 ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 9710-1408 ● ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ● ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 9505-9702 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 9703-9709 ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 9710- ● ● ●
