0-56 — EMISSION SYSTEM (#43508) — 10 parça

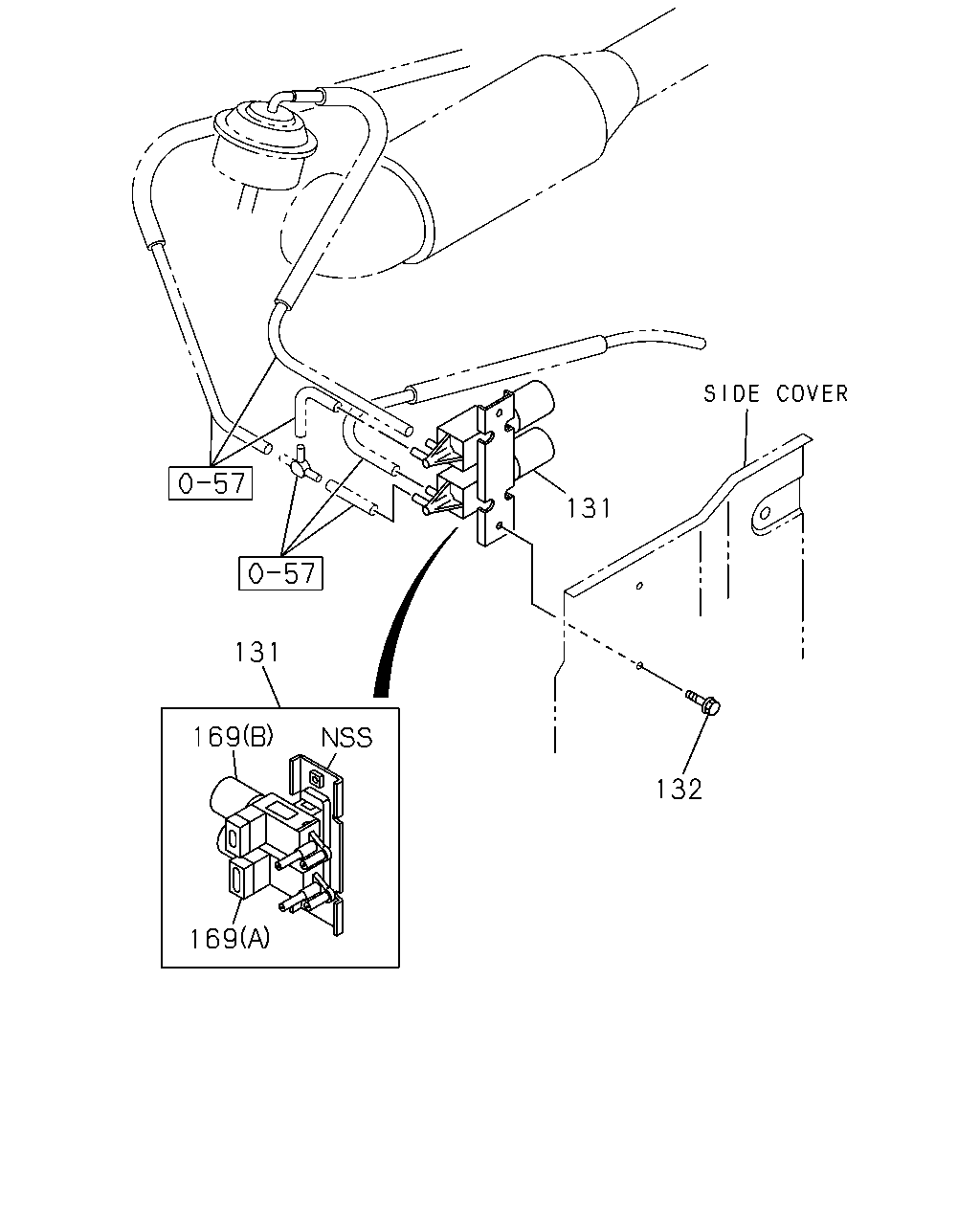

çizim 10257
131 131 169 132 169
BalonParca AdiParca NoAdetTipApplied Date A B
131 VALVE; VAC SWITCHING 8-97030-324-1 01 1 0009- ●
132 BOLT; VSV BRKT
M6X12 FLANGE 		0-28080-612-0 02 1 0009- ●
169 VALVE; VAC SWITCHING
(A) 		8-97012-878-0 01 1 0009- ●
169 VALVE; VAC SWITCHING
(B) 		8-97021-705-1 01 1 0009- ●
çizim 48623
3 2 3 14 1 349 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; VAC SW
CHARGE AIR COOLER<6PL> 		8-97023-544-2 01 1 0009- ●
2 BRACKET; VSV
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97192-228-0 01 1 0009- ●
3 BOLT; VSV
CHARGE AIR COOLER<6PL> M5X8 W/LK WASHER 		9-03910-508-0 03 1 0009- ●
14 VALVE; VAC SW
CHARGE AIR COOLER<6PL> 		8-97023-543-2 01 1 0009- ●
15 VALVE; VAC SW
CHARGE AIR COOLER<6PL> 		8-97023-543-2 01 1 0009- ●
349 BOLT; CASE
CHARGE AIR COOLER<6PL> M8X16 FLANGE 		0-28080-816-0 02 1 0009- ●
